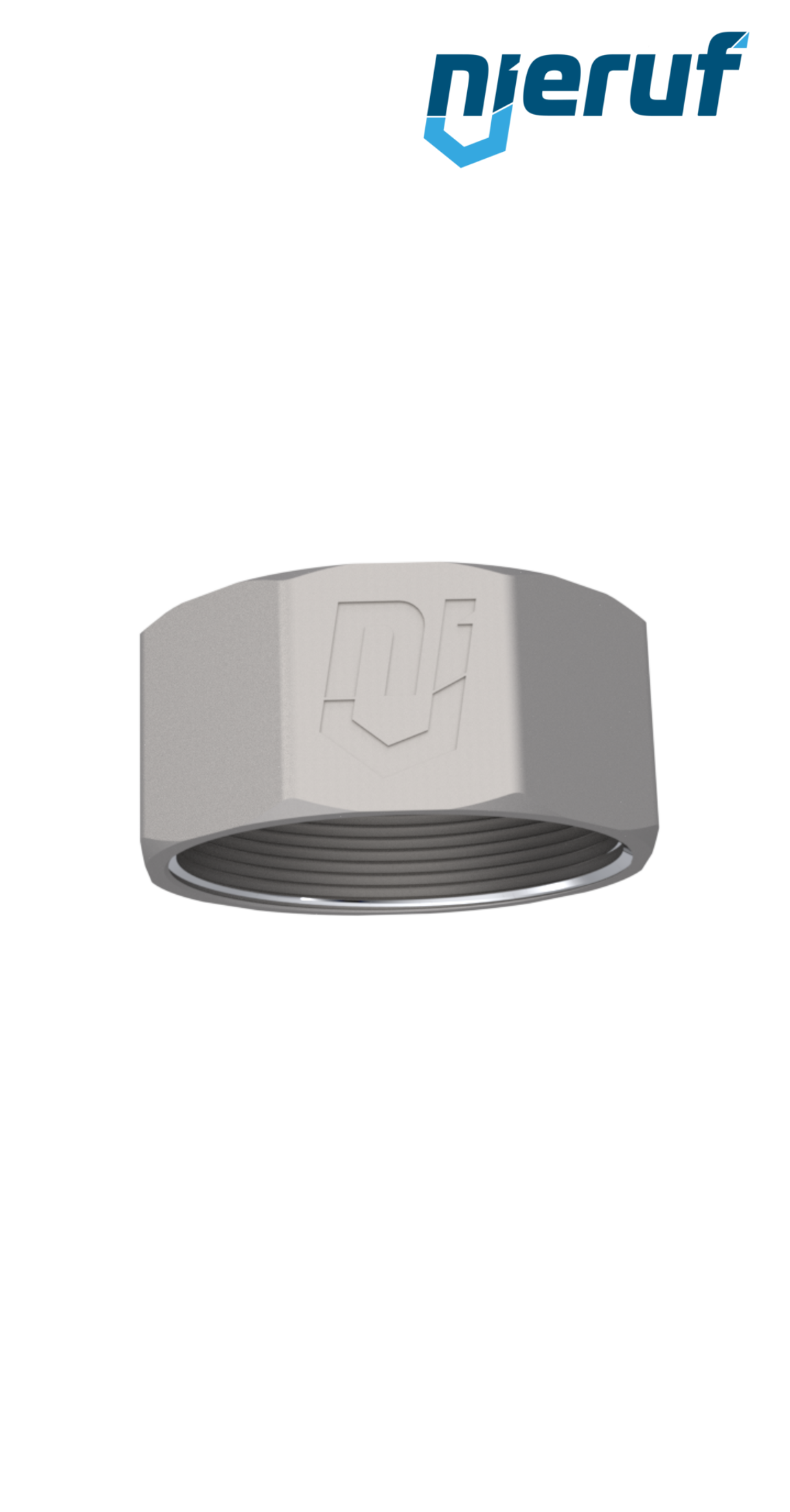

Threaded cap as an end piece for pipes and fittings
A cap is fitted in the pipe construction as an end piece on pipes or fittings. Unlike a plug, the cap has a conical internal thread according to DIN EN 10226-1 instead of an external thread. The pipe cap comprises high quality stainless steel 316 (1.4408) and can be used for an operating pressure of up to 20 bar (at +20°C). The end cap is available in the nominal widths 1/8“ – 4“ inches.
lid GF01-3 with female thread 1/2" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1/2" inch
connection:
female thread
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
lid GF01-3 with female thread 1/4" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1/4" inch
connection:
female thread
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
lid GF01-3 with female thread 1" inch made of stainless steel 316 for liquid and gaseous media
diameter:
1" inch
connection:
female thread
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
lid GF01-3 with female thread 3/4" inch made of stainless steel 316 for liquid and gaseous media
diameter:
3/4" inch
connection:
female thread
material:
stainless steel 316
max. working pressure:
20 bar at +20°C
thread:
acc. to DIN EN 10226-1
