EV10210001
High pressure solenoid valve G 1/4" Inch stainless steel EV10 EPDM 24V DC
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 07. October
Guaranteed delivery until Thursday, 08. October, 12 o'clock
Questions about the article?
Our employee Richie Rost
will be happy to help you

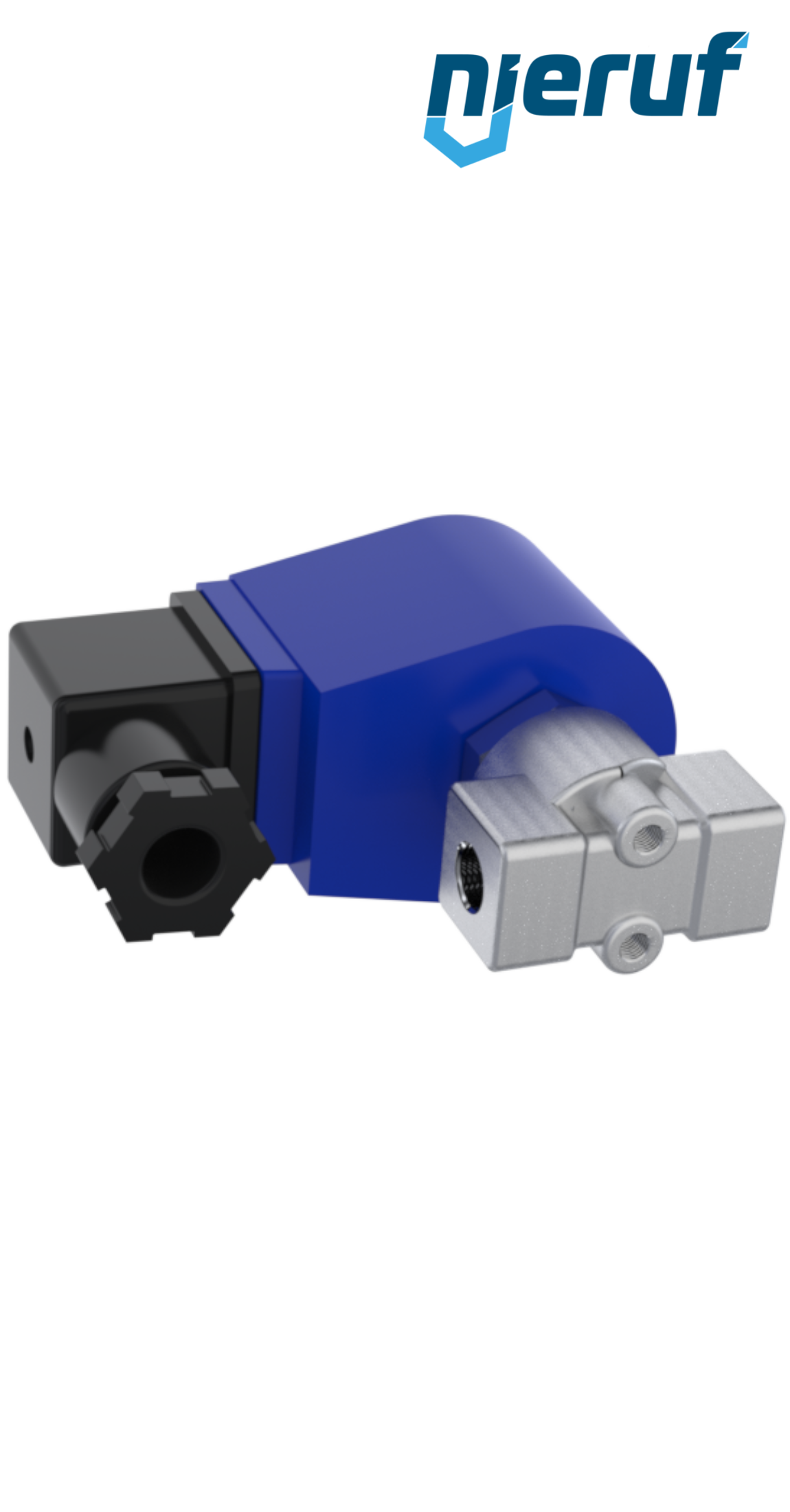

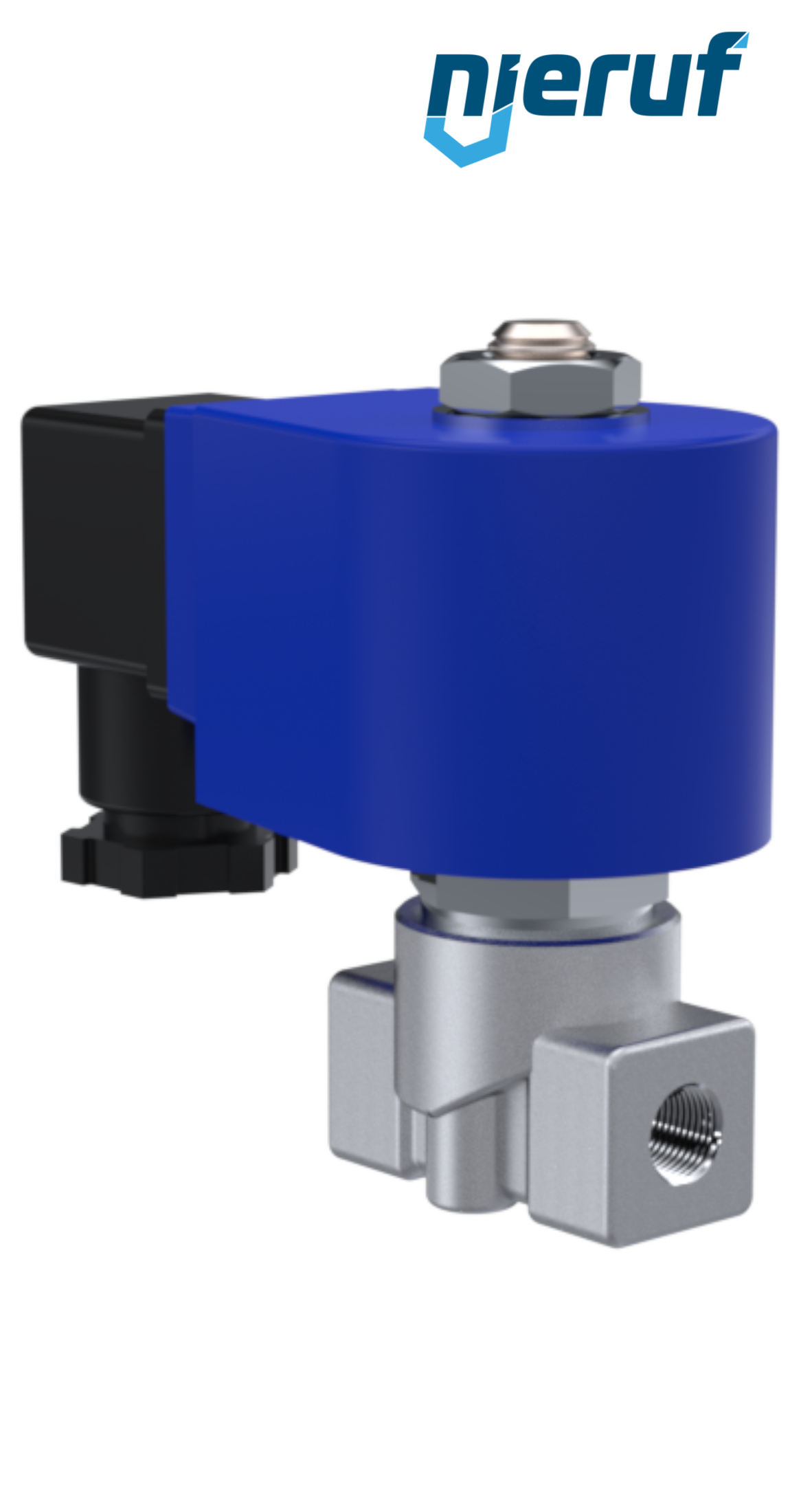

High pressure solenoid valve G 1/4" Inch stainless steel EV10 EPDM 24V DC
2/2 Ways high pressure solenoid valve G 1/4" Inch made of stainless steel 1.4408 seal EPDM direct operated nominal voltage 24V DC pressure 0.0 - 120 bar
| product | Solenoid valve |
|---|---|
| type | EV10 |
| manufacturer | NieRuf |
| design | seat valve |
| diameter | DN2,0 |
| connection | G 1/4" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 0.12 m³/h |
| function | NC - normally closed |
| control | direct acting |
| material | stainless steel 1.4408 |
| seal | EPDM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 9 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +130°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 120 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure solenoid valve G 1/4" Inch stainless steel EV10 EPDM 24V DC
Article no.
: EV10210001
product:
Solenoid valve
type:
EV10
manufacturer:
NieRuf
design:
seat valve
diameter:
DN2,0
connection:
G 1/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
0.12 m³/h
function:
NC - normally closed
control:
direct acting
material:
stainless steel 1.4408
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
9 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 120 bar
Outlet pressure:
0 bar (no counter pressure)
installation position:
any position, solenoid preferably standing
