UV13040107

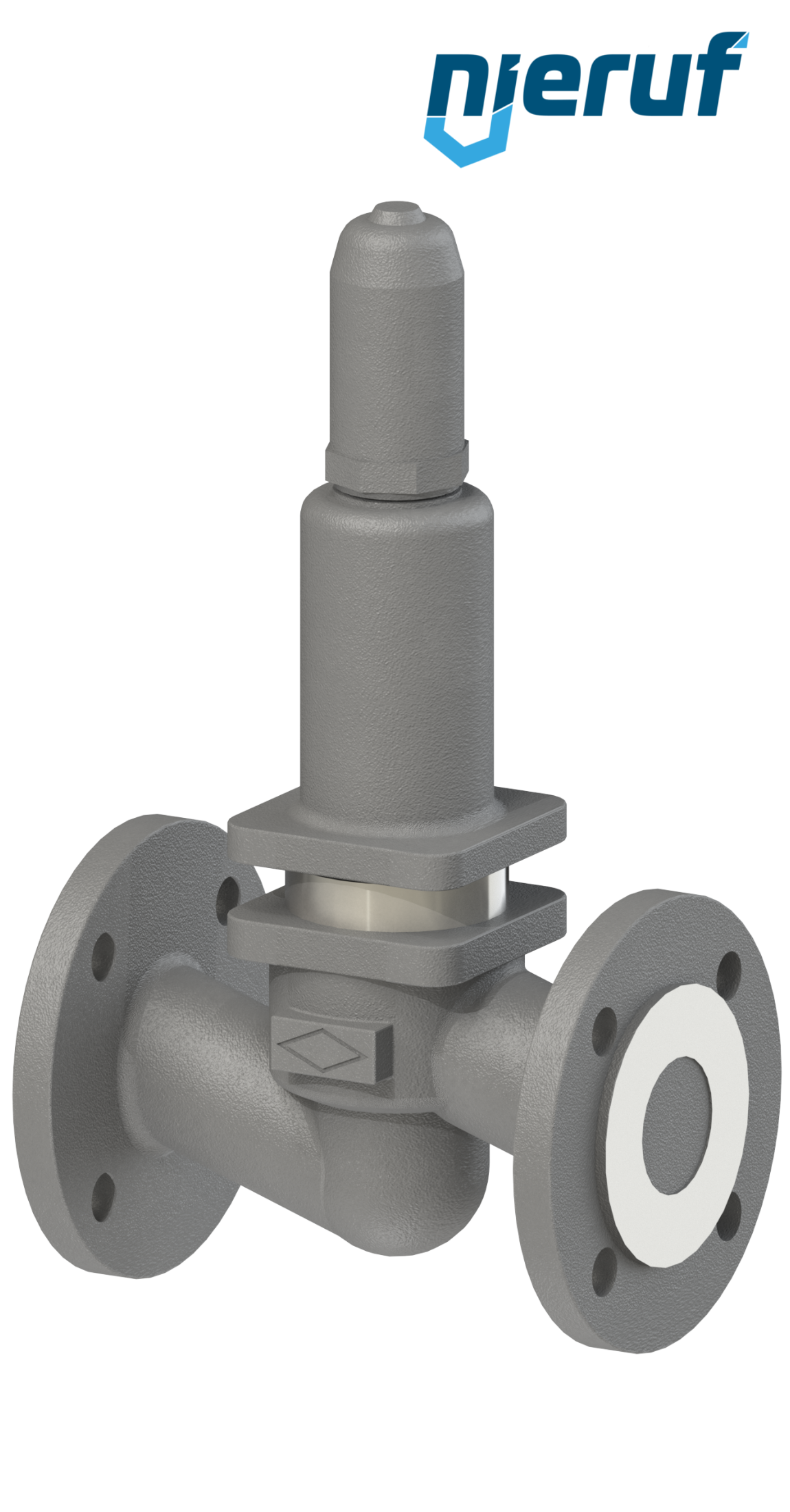

piston overflow valve DN 40 UV13 grey cast iron EN-JL1040 4,0 - 10,0 bar
- Lead time
- 1 - 2 weeks
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 16,0 bar
€12.61 VAT included.
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
€3.21 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
piston overflow valve DN 40 UV13 grey cast iron EN-JL1040 4,0 - 10,0 bar
piston overflow valve DN 40 type UV13 made of grey cast iron EN-JL1040 pressure range 4,0 - 10,0 bar seal metall for liquid and gaseous media
| product | piston overflow valve |
|---|---|
| type | UV13 |
| manufacturer | NieRuf |
| diameter | DN 40 |
| connection | flange connection DIN 1092-2 PN16 |
| seal | metall |
| media | liquid and gaseous media |
| temperature | -10°C to +300°C |
| range of adjustment | 4,0 - 10,0 bar |
| design | straight through, spring loaded |
| material | grey cast iron EN-JL1040 |
| plug unit | 1.4201+QT |
| approval | TA - Air TÜV-Test-No. 922-9241371 |
| installation position | upright, bonnet showing upwards |
| product feature | Spring operated Overflow valve with proportional operating characteristics. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston overflow valve DN 40 UV13 grey cast iron EN-JL1040 4,0 - 10,0 bar
Article no.
: UV13040107
product:
piston overflow valve
type:
UV13
manufacturer:
NieRuf
diameter:
DN 40
connection:
flange connection DIN 1092-2 PN16
seal:
metall
media:
liquid and gaseous media
temperature:
-10°C to +300°C
range of adjustment:
4,0 - 10,0 bar
design:
straight through, spring loaded
material:
grey cast iron EN-JL1040
plug unit:
1.4201+QT
approval:
TA - Air TÜV-Test-No. 922-9241371
installation position:
upright, bonnet showing upwards
product feature:
Spring operated Overflow valve with proportional operating characteristics.
Equipment
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Lead time: in stock
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
Compact ball valve DN40 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4308
Lead time: 3 - 5 working days
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 16,0 bar
Lead time: in stock
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
Lead time: in stock
pipe bend (welded) 90° 48,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 48,3 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: in stock
