SZ07000008

flange-strainer DN50 PN10/16 cast iron for steam

€130.10*

€154.82 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

FL01020108

Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€18.80*

€22.37 VAT included.


VS01010108

joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel

€6.80*

€8.09 VAT included.


FD01000108

flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400

€3.00*

€3.57 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: SZ07000008

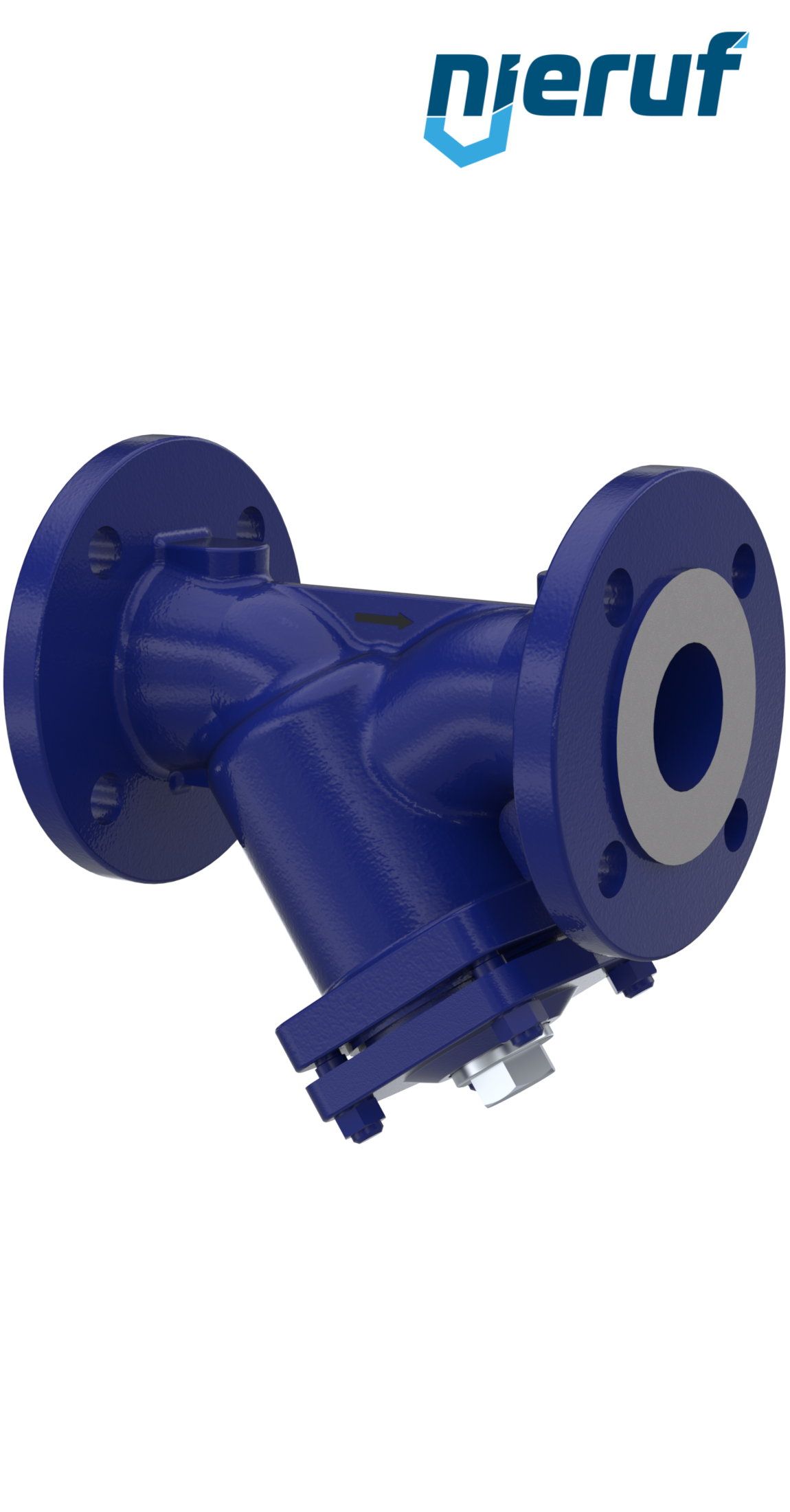

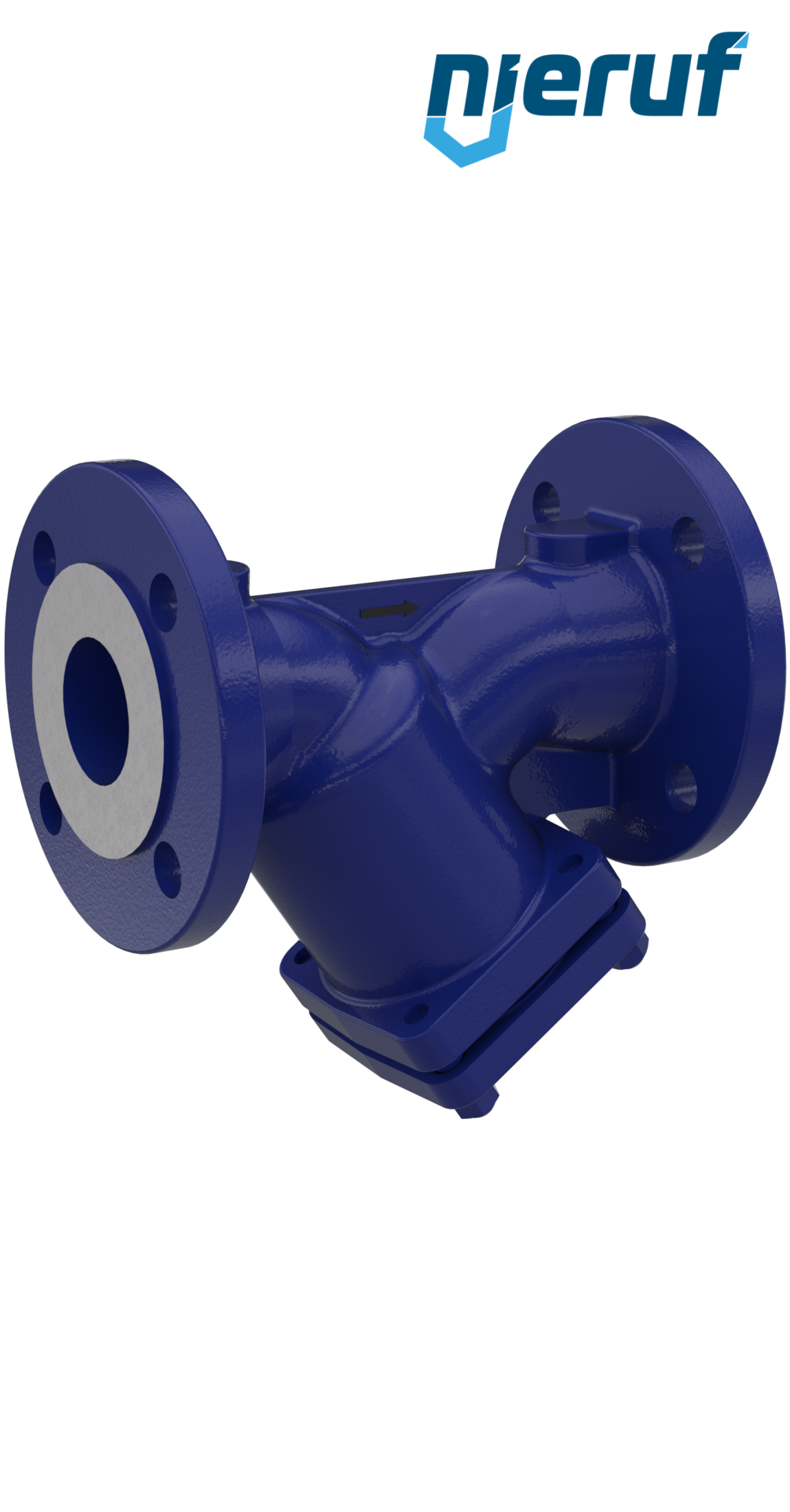

flange-strainer DN50 PN10/16 cast iron for steam

steam strainer DN50 made of cast iron (blue painting) flange PN10/16 temperature up to +300°C 1 mm mesh

product: steam strainer
type: SZ07
manufacturer: NieRuf
design: Y-strainer with draining cap
diameter: DN50
connection: flange acc. DIN EN 1029-2
pressure: PN16
material: cast iron GG25 blue painting
mesh-material: stainless steel 1.4301
cap material: C35E
seal: graphite
media: liquid and gaseous media, steam
temperature: -10°C up to +300°C
norm: According to Pressure equipment directive 2014/68/EU, Category 3 Module H, CE 0062 or 0343
mesh: 1,0 mm
installation position: horizontal or vertical position with descendant fluid
product feature: Y-strainer flange for steam made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange-strainer DN50 PN10/16 cast iron for steam

Article no. : SZ07000008
product: steam strainer
type: SZ07
manufacturer: NieRuf
design: Y-strainer with draining cap
diameter: DN50
connection: flange acc. DIN EN 1029-2
pressure: PN16
material: cast iron GG25 blue painting
mesh-material: stainless steel 1.4301
cap material: C35E
seal: graphite
media: liquid and gaseous media, steam
temperature: -10°C up to +300°C
norm: According to Pressure equipment directive 2014/68/EU, Category 3 Module H, CE 0062 or 0343
mesh: 1,0 mm
installation position: horizontal or vertical position with descendant fluid
product feature: Y-strainer flange for steam made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position.
