flange-strainer DN125 PN16 type SZ03 stainless steel

SZ03000012
Flange-Butterfly valve DN 500 PN16 AK04 NBR Worm gear 1
quantity (pcs.):
916.10€ * 1,090.16€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
flange-strainer DN125 PN16 type SZ03 stainless steel

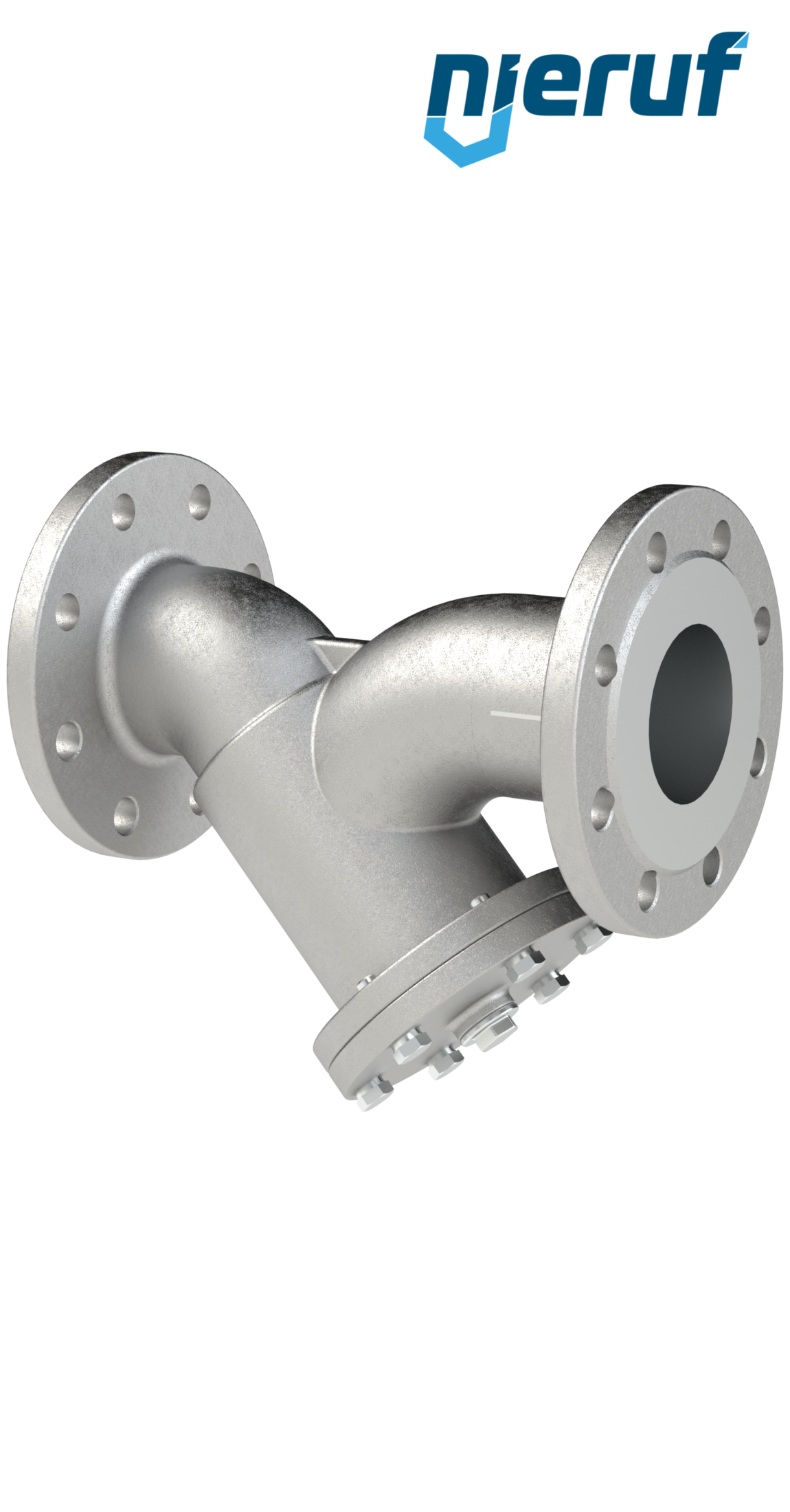

flange-strainer DN125 PN16 stainless steel with PTFE-seal for liquid media Y-strainer with draining cap
design: Y-strainer with draining cap
diameter: DN125
connection: flange
pressure: PN16
material: stainless steel 1.4408

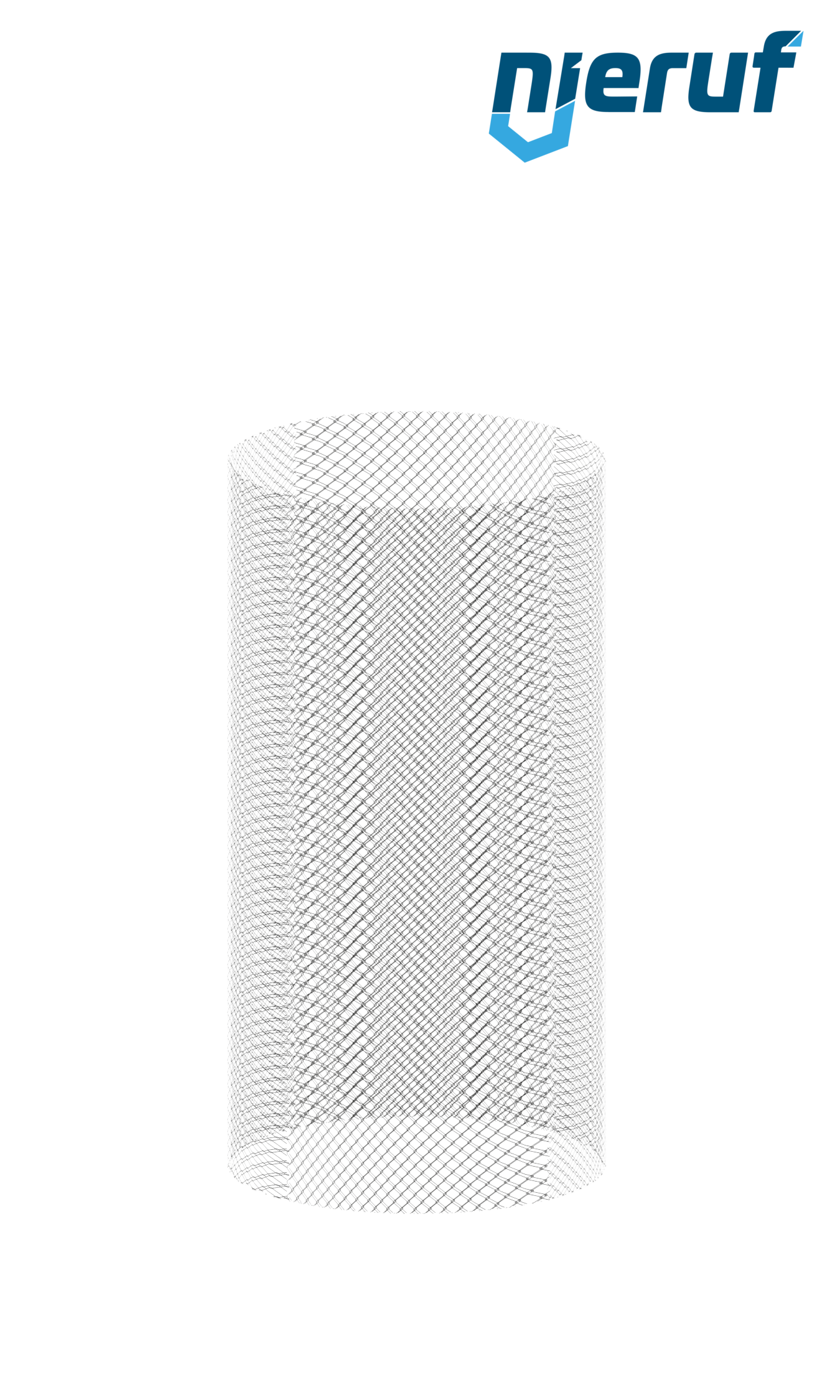

mesh-material: stainless steel 1.4301
cap material: stainless steel 1.4408
seal: PTFE
media: liquid media
temperature: -20°C up to +200°C
norm: Directive 97/23/CE: CE No 0035 Risk Category III Module H
mesh: 3,0 mm
installation position: horizontal or vertical position with descendant fluid
product feature: Y-strainer flange made of stainless steel with draining cap and removable stainless steel filter, horizontal or vertical position.
flange-strainer DN125 PN16 type SZ03 stainless steel

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

flange-strainer DN125 PN16 type SZ03 stainless steel
