FS02020009

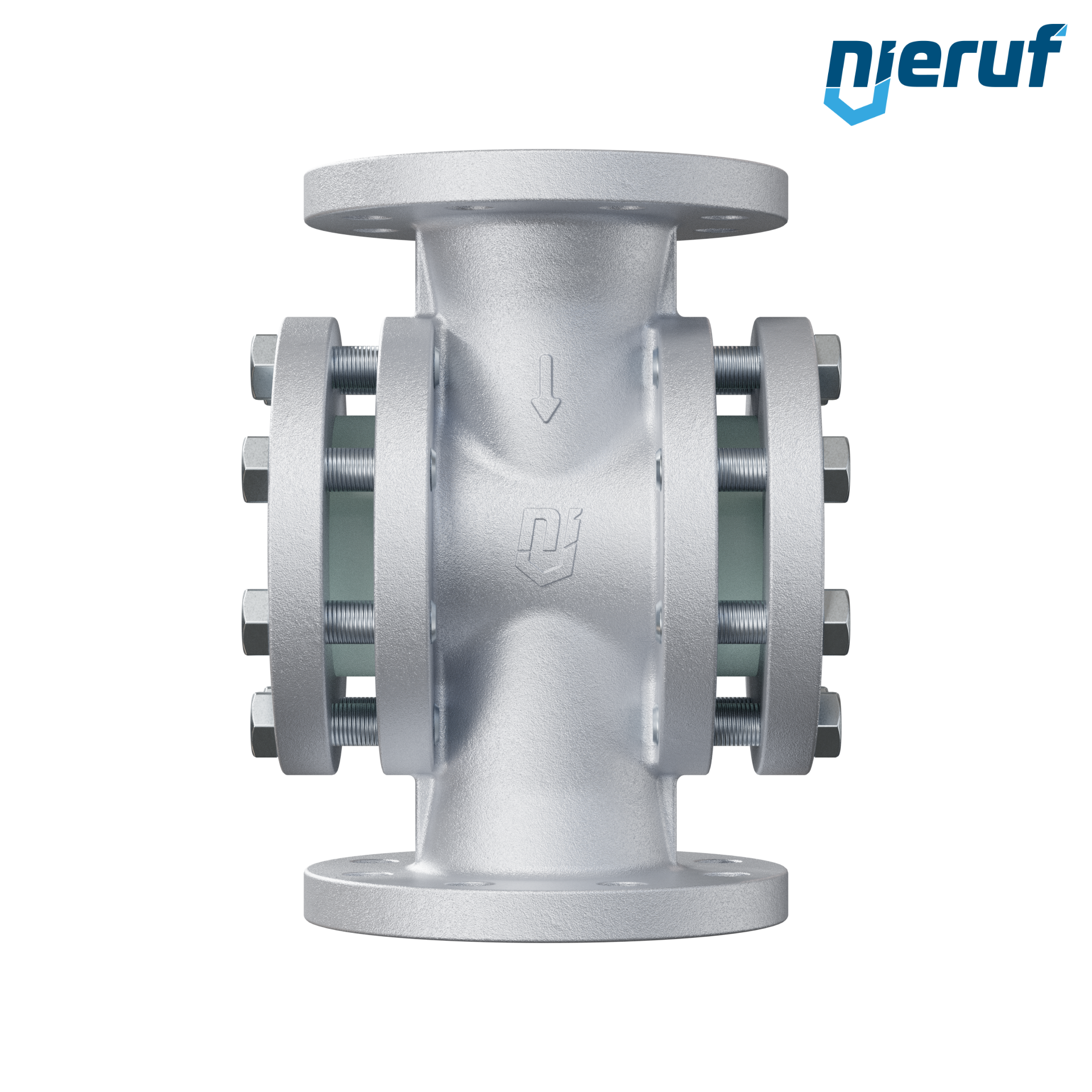

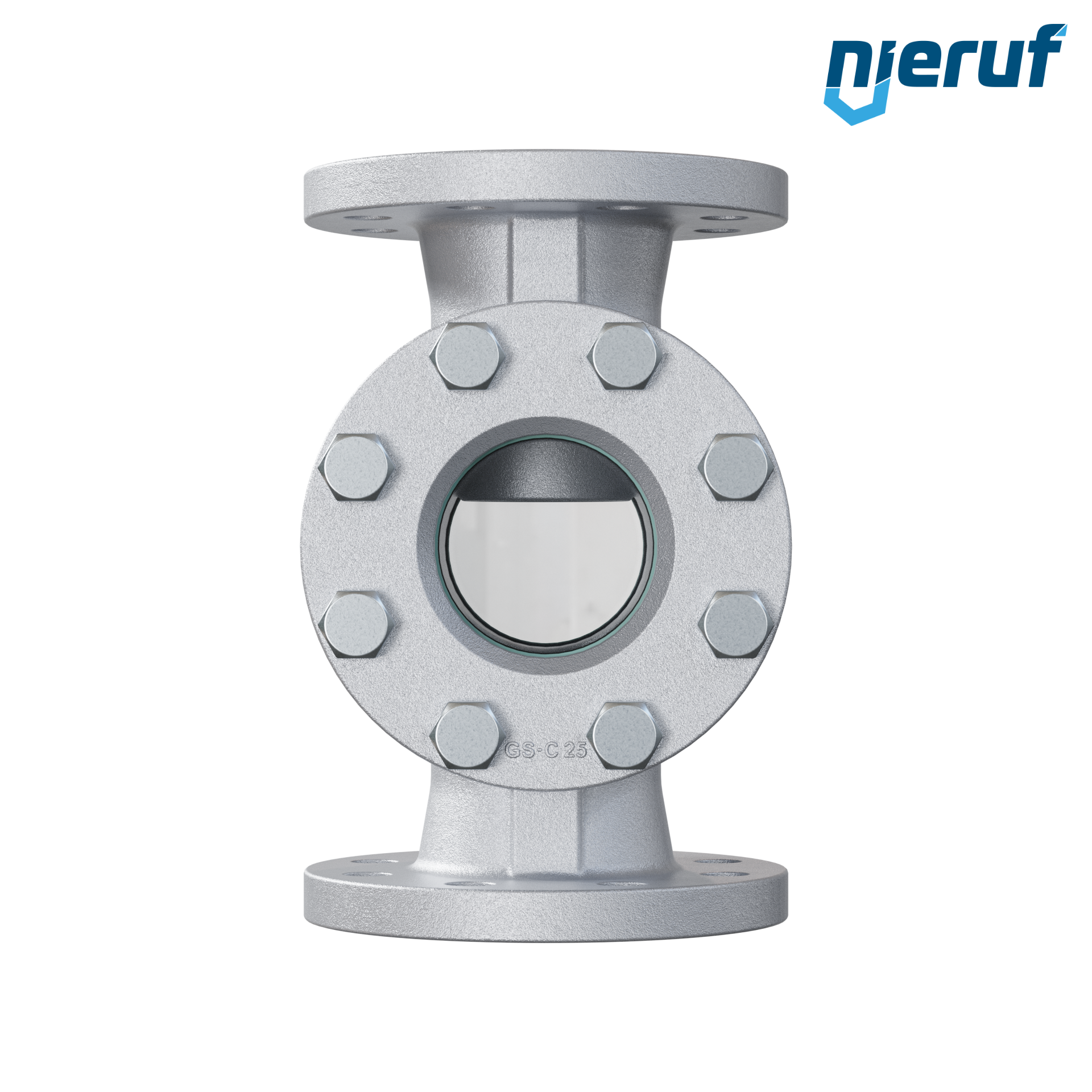

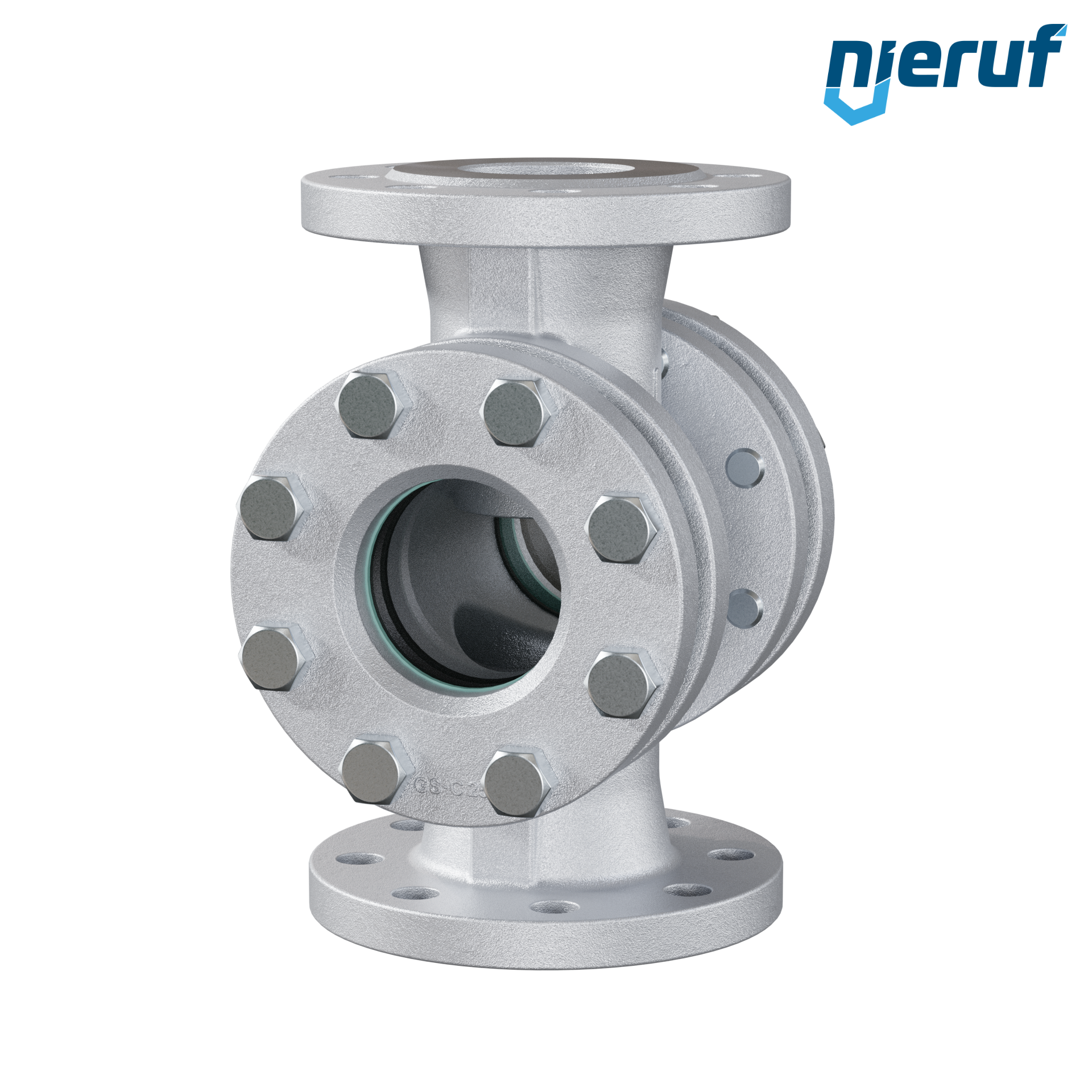

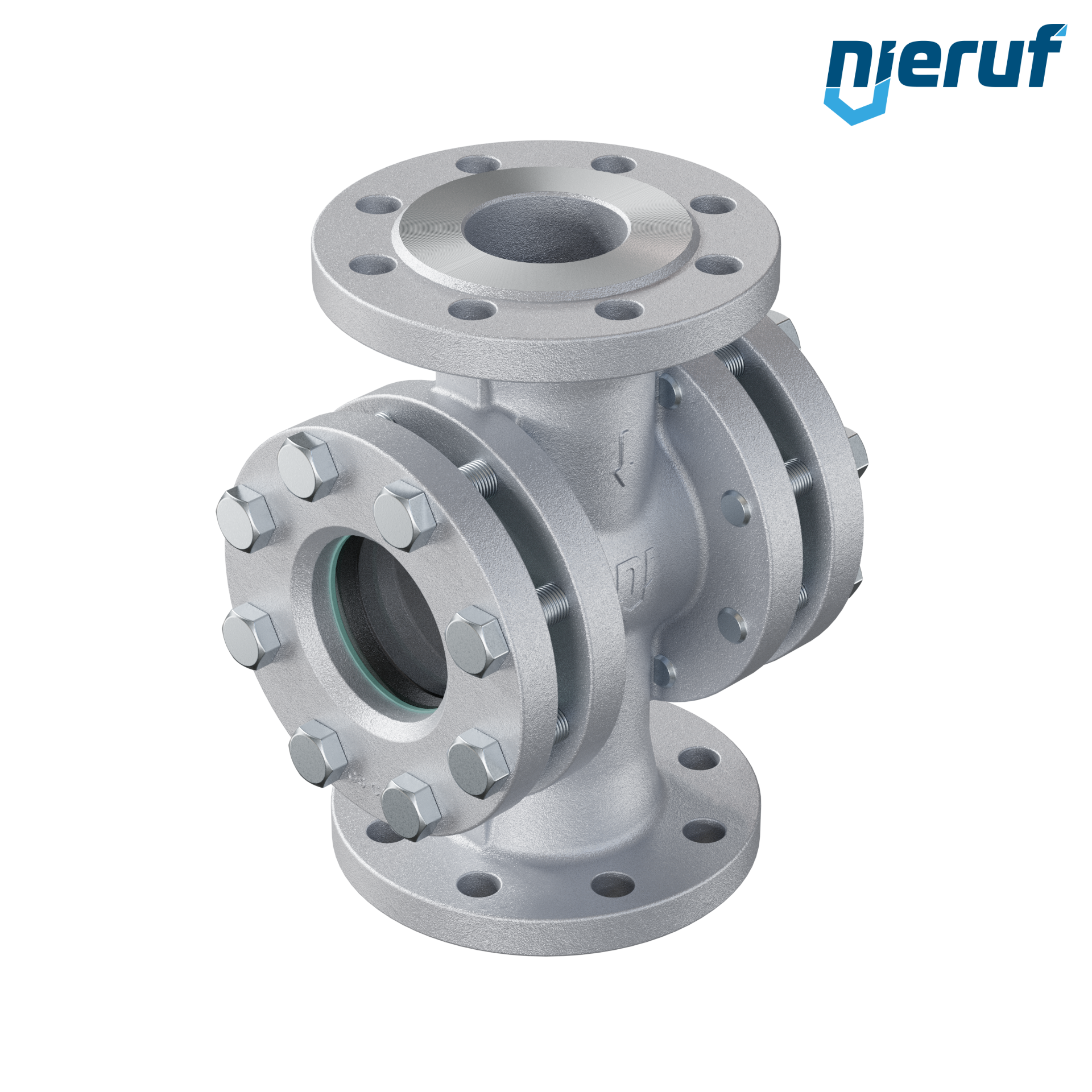

flange sight flow indicator DN65 GS - C25 borosilicate glass version with dripping edge
- Lead time
- 2 - 3 weeks
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.76 VAT included.
sight glass round SG01 Ø 100 x 15 mm round DIN 7080 - 16
€38.20 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
€7.62 VAT included.
Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€31.42 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN65 GS - C25 borosilicate glass version with dripping edge
flange sight flow indicator DN65 cast iron Typ FS02 borosilicate glass max 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN65 |
| connection | flange PN16 |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with dripping edge |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN65 GS - C25 borosilicate glass version with dripping edge
Article no.
: FS02020009
product:
flange sight flow indicator
type:
FS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN65
connection:
flange PN16
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
borosilicate glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 280°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with dripping edge
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
Lead time: in stock
Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 76,1 x 2,0 stainless steel 1.4571
Lead time: in stock
