FS03021107

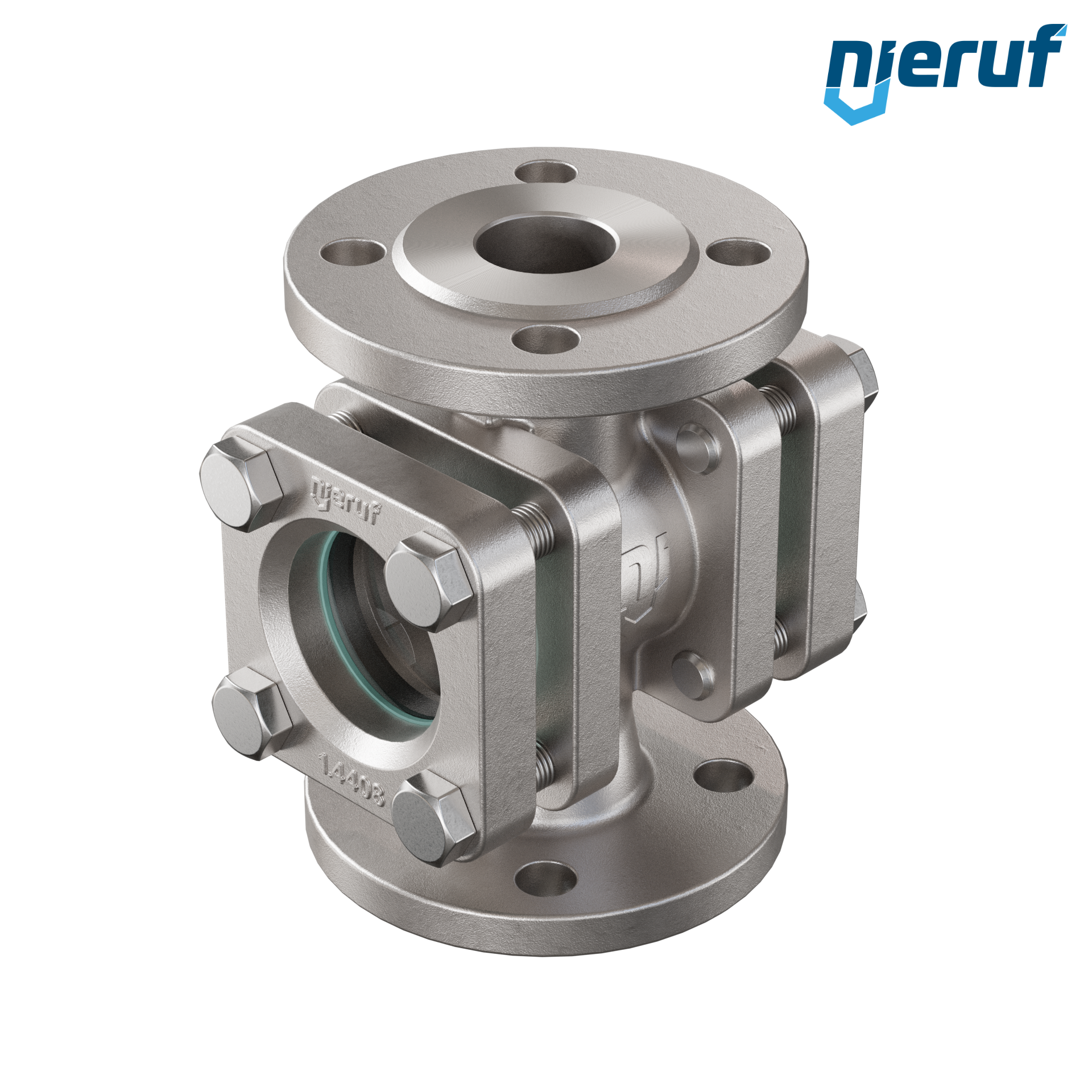

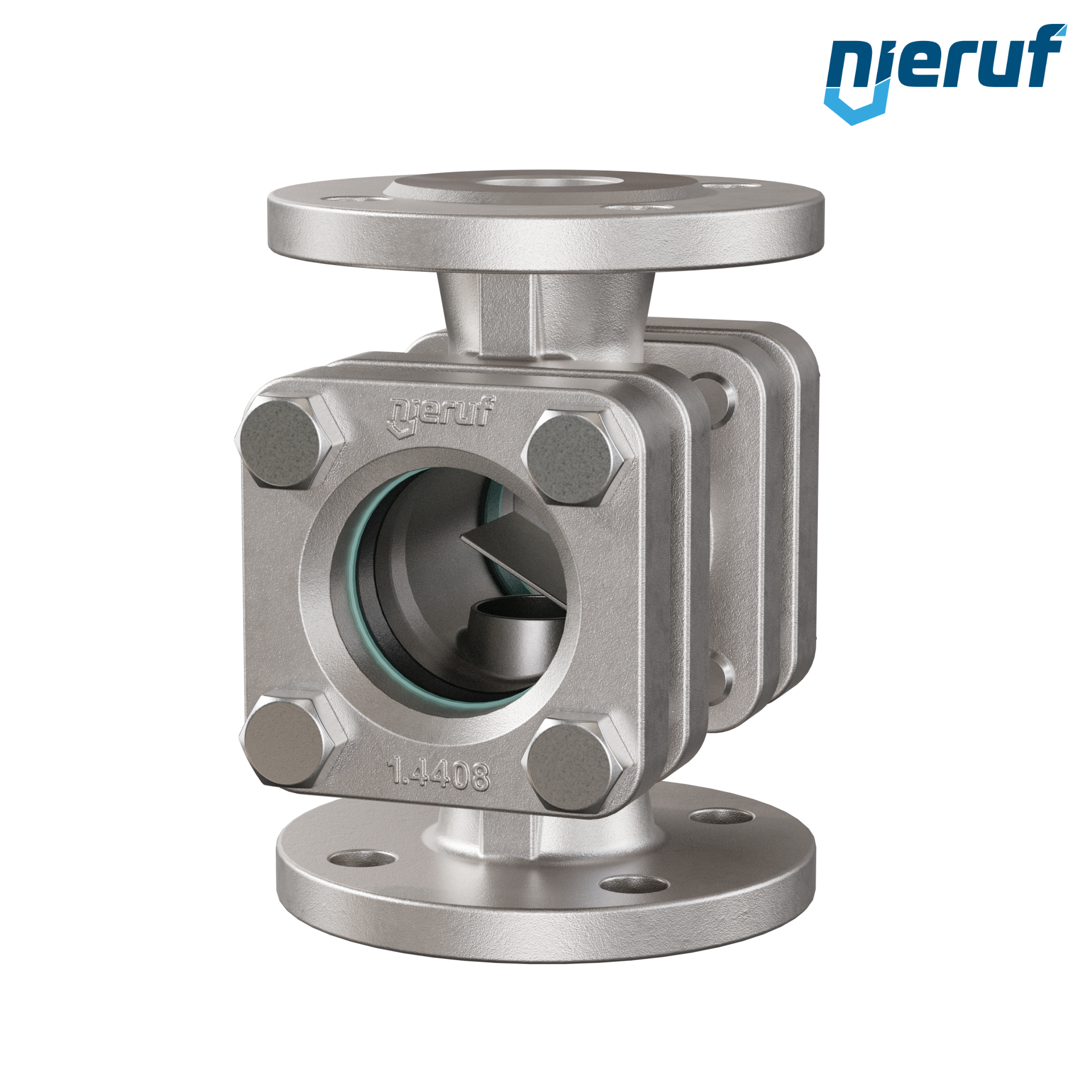

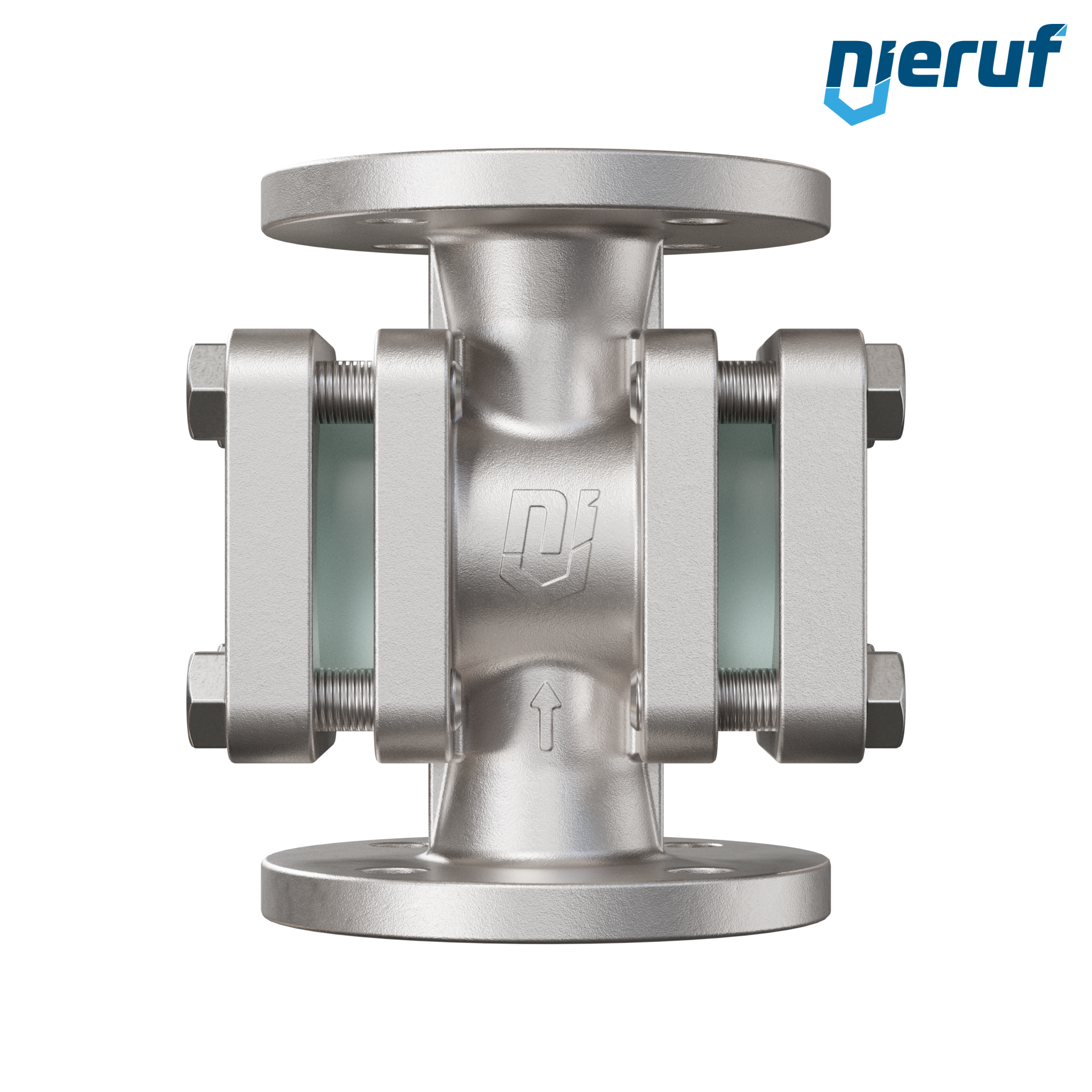

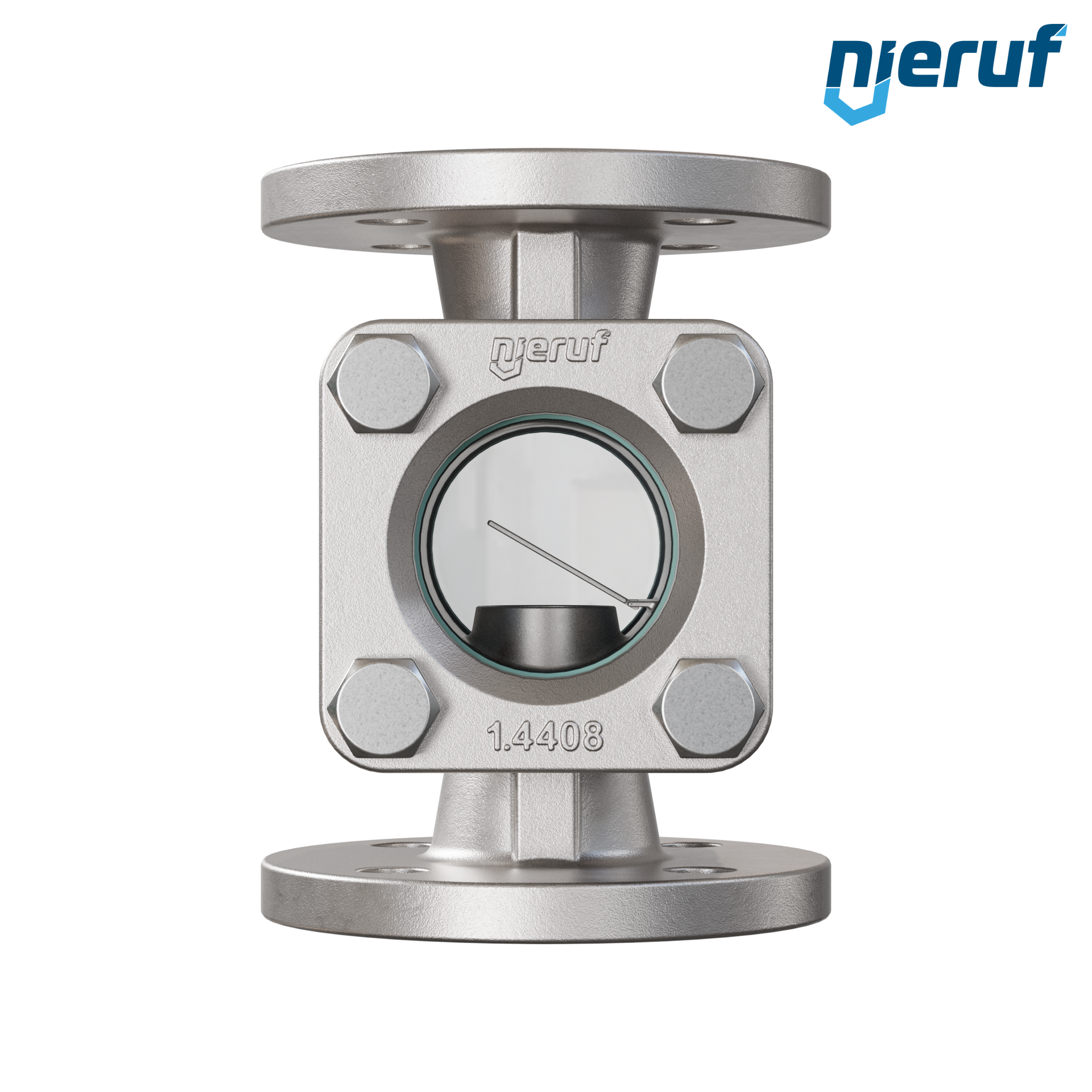

flange sight flow indicator DN40 stainless steel 1.4408 flange PN40 borosilicate glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
€38.32 VAT included.
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
€3.21 VAT included.
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN40 stainless steel 1.4408 flange PN40 borosilicate glass version with flap
flange sight flow indicator version with flap type FS03 made of stainless steel 1.4408, borosilicate glass and seal graphit DN40 flange PN40 40 bar
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN40 |
| connection | flange PN40 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 40 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN40 stainless steel 1.4408 flange PN40 borosilicate glass version with flap
Article no.
: FS03021107
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN40
connection:
flange PN40
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
borosilicate glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 280°C
max. working pressure:
40 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
Equipment
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
