FS01020003

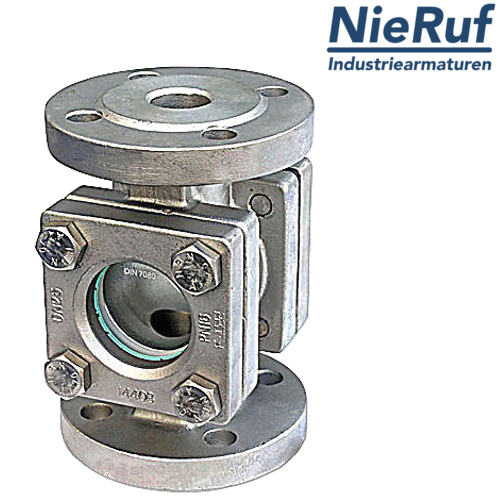

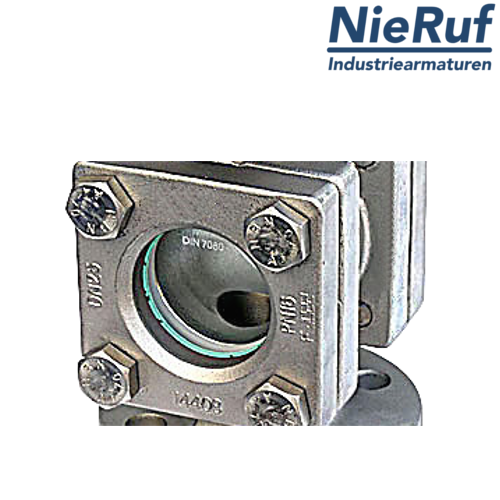

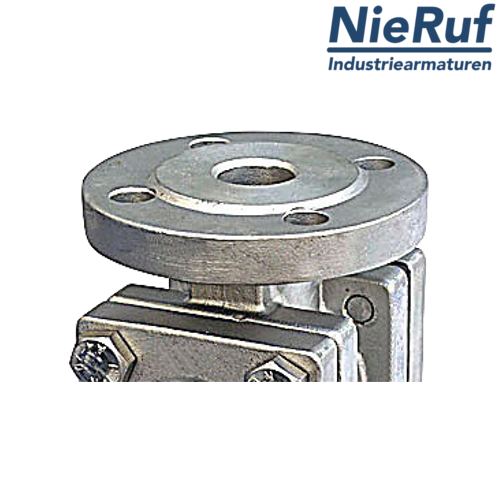

flange sight flow indicator DN15 grey cast iron GG25 borosilicate glass version with dripping edge
- Lead time
- 2 - 3 weeks
Equipment
sight glass round SG01 Ø 45 x 10 mm round DIN 7080 - 40
€19.52 VAT included.
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€11.19 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN15 grey cast iron GG25 borosilicate glass version with dripping edge
flange sight flow indicator DN15 borosilicate glass Typ FS01 grey cast iron GG25 graphit max 16 bar version with dripping edge
| product | flange sight flow indicator |
|---|---|
| type | FS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN15 |
| connection | flange PN16 |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with dripping edge |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN15 grey cast iron GG25 borosilicate glass version with dripping edge
Article no.
: FS01020003
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN15
connection:
flange PN16
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
borosilicate glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 280°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with dripping edge
