FS03020008

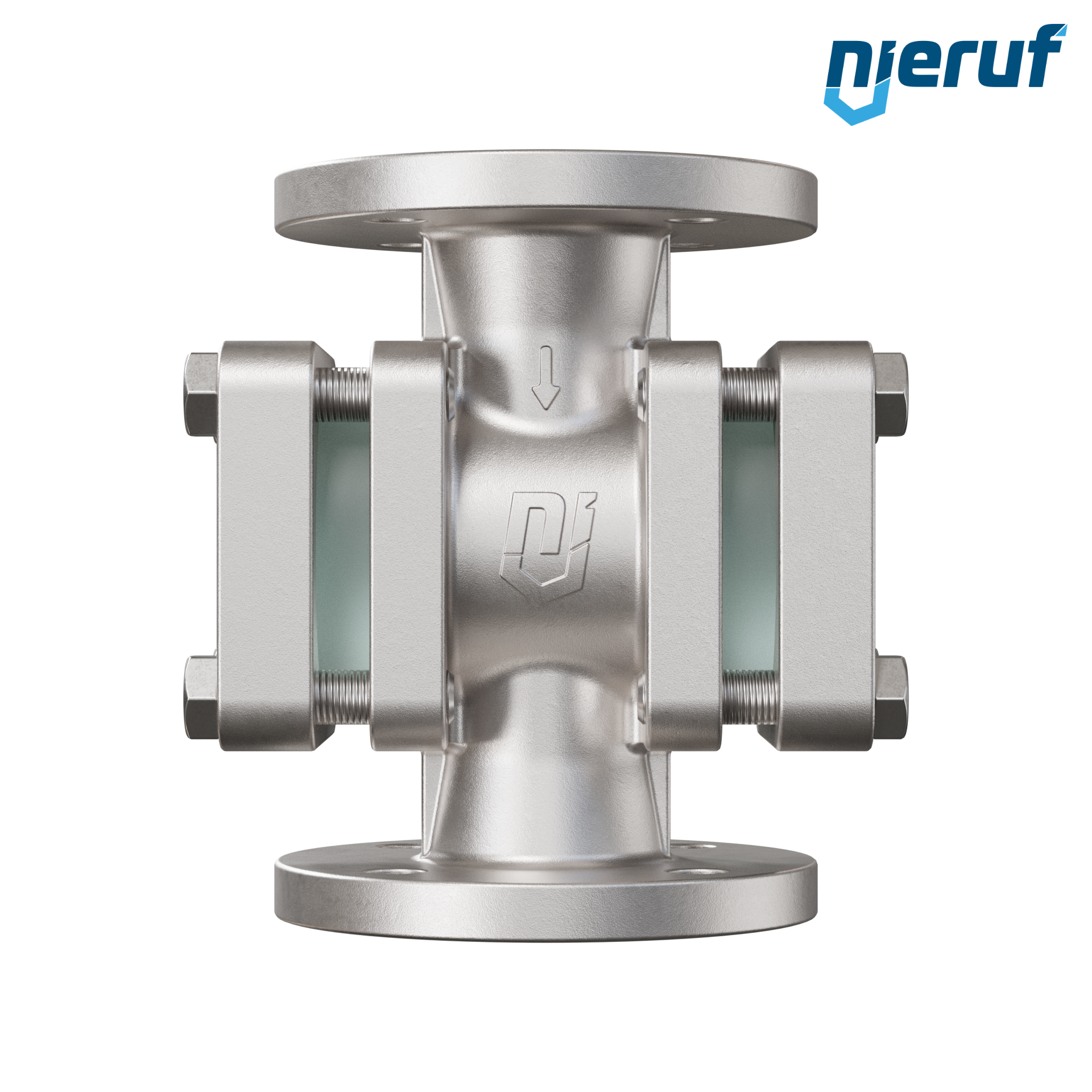

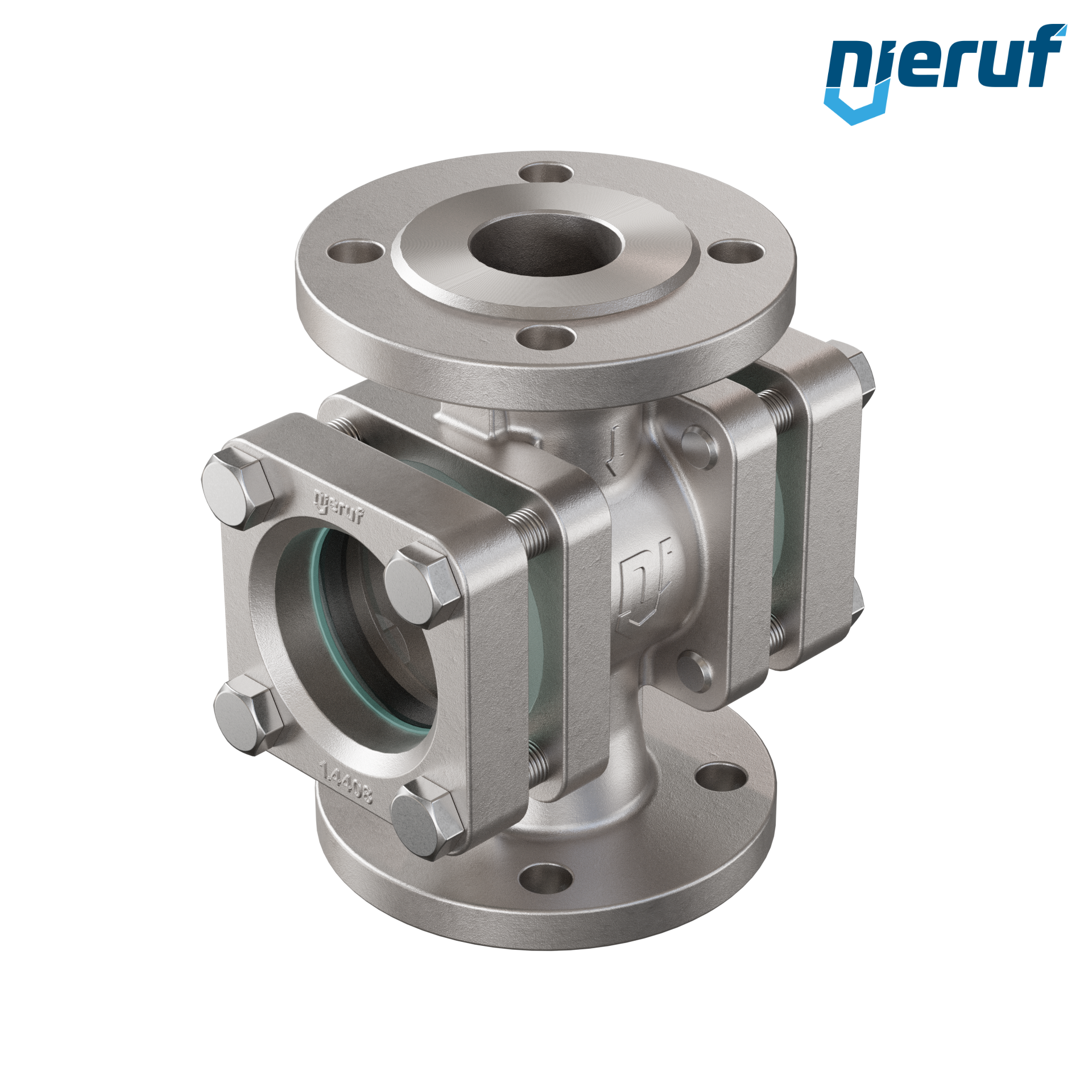

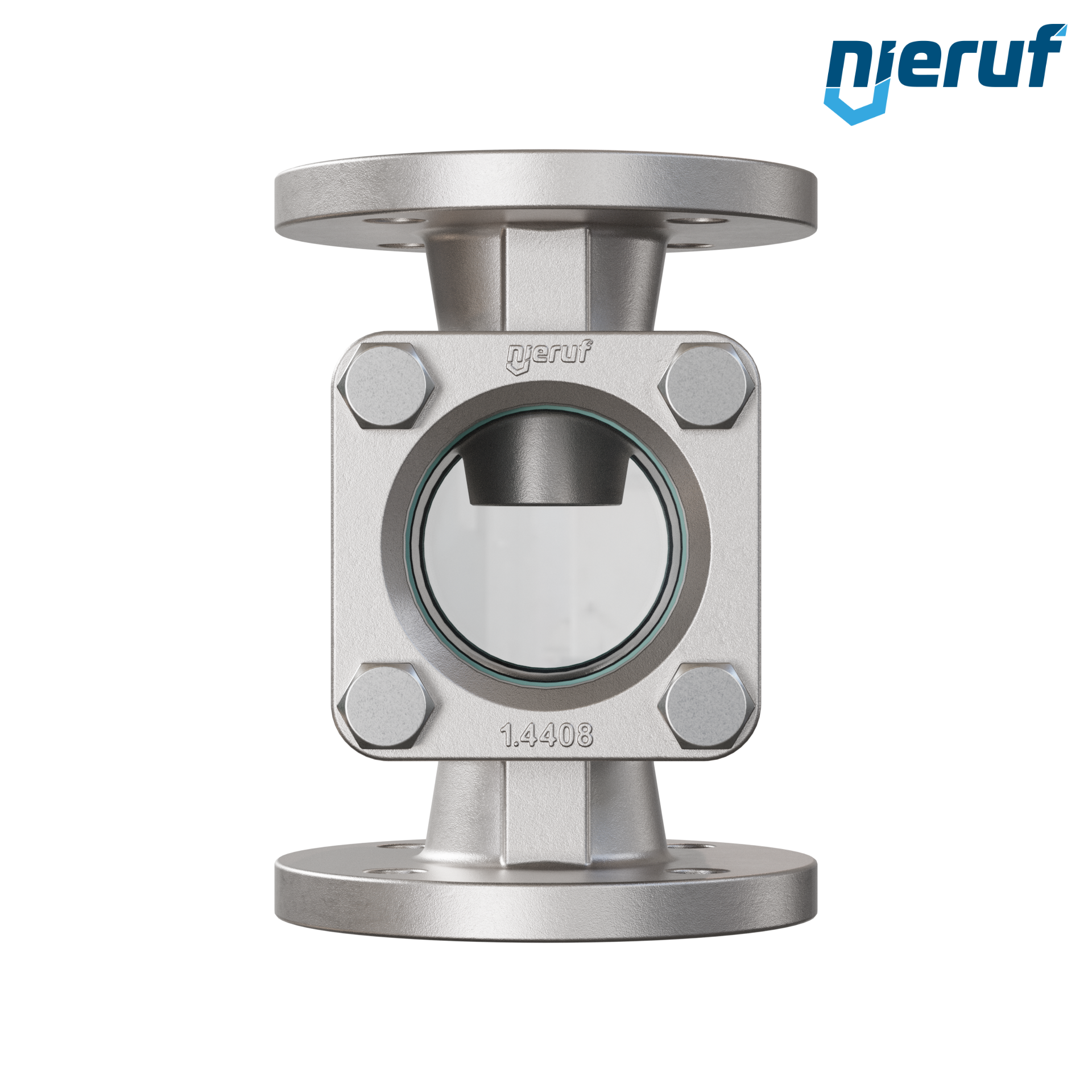

flange sight flow indicator DN50 stainless steel borosilicate glass version with dripping edge
- Delivery time
- 2 - 3 weeks
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
Questions about the article?
Downloads
flange sight flow indicator DN50 stainless steel dripping edge Typ FS03 max 16 bar version with dripping edge
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN50 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -60°C up to + 280°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with dripping edge |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN50 stainless steel borosilicate glass version with dripping edge
Article no.
: FS03020008
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN50
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
borosilicate glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-60°C up to + 280°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with dripping edge
