FS01010108

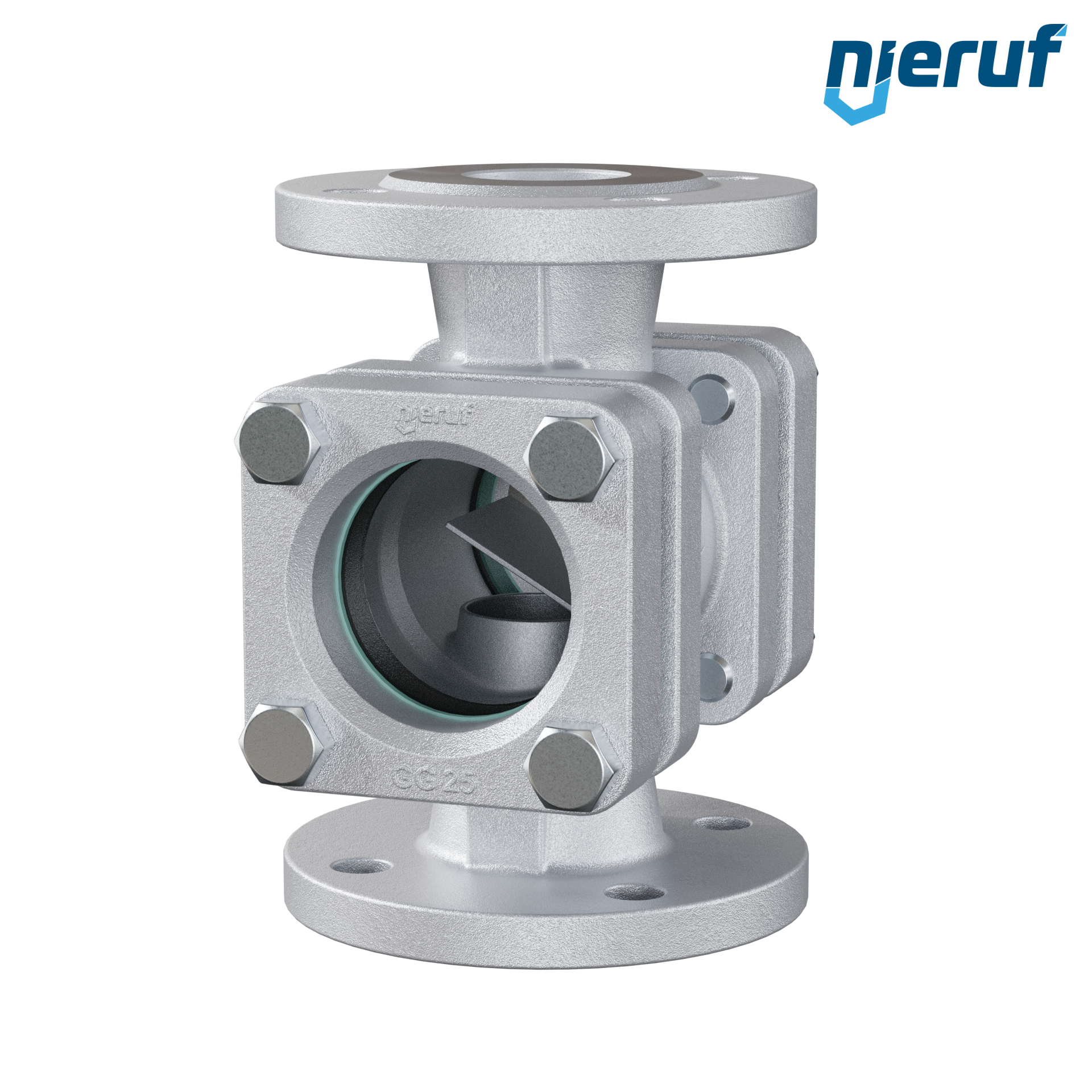

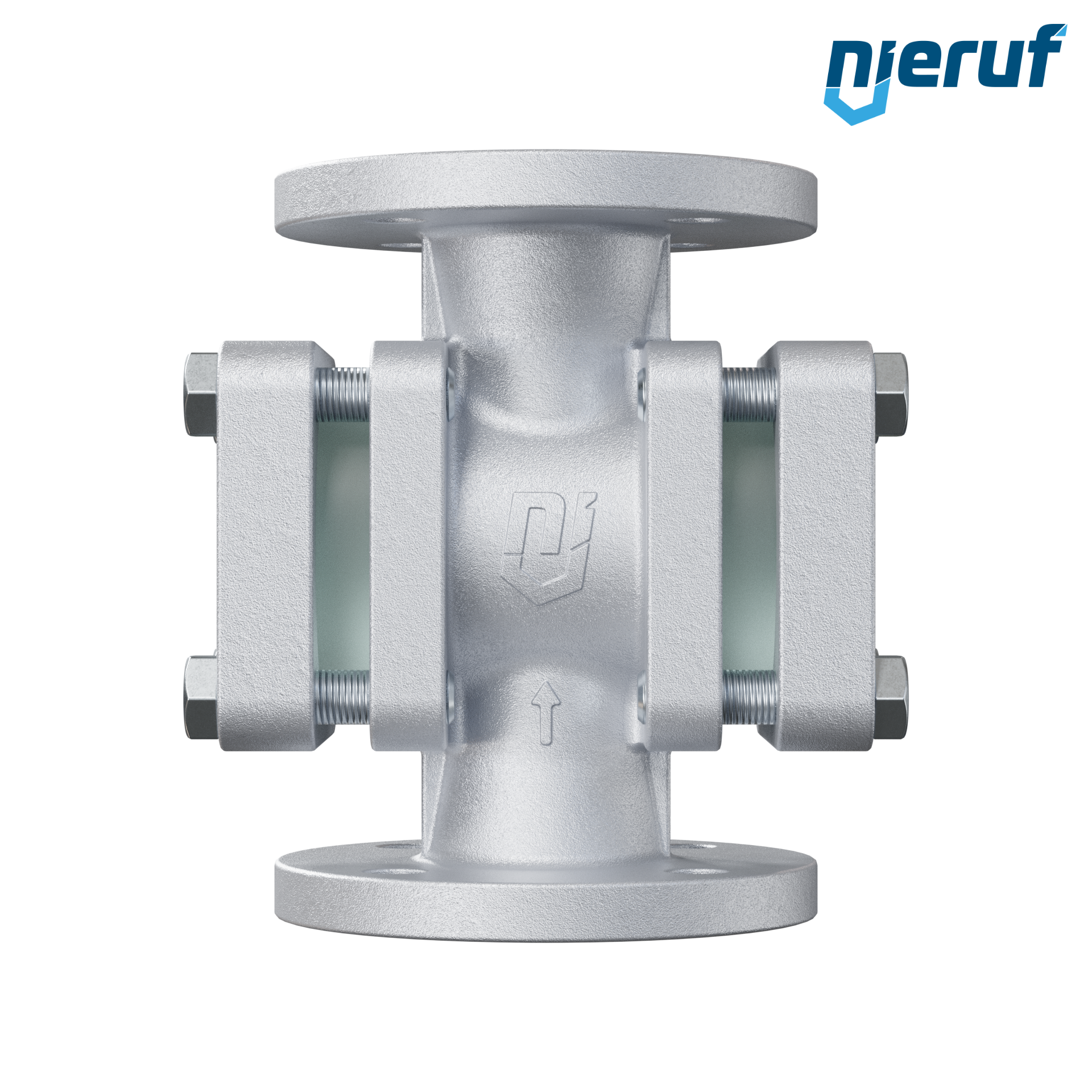

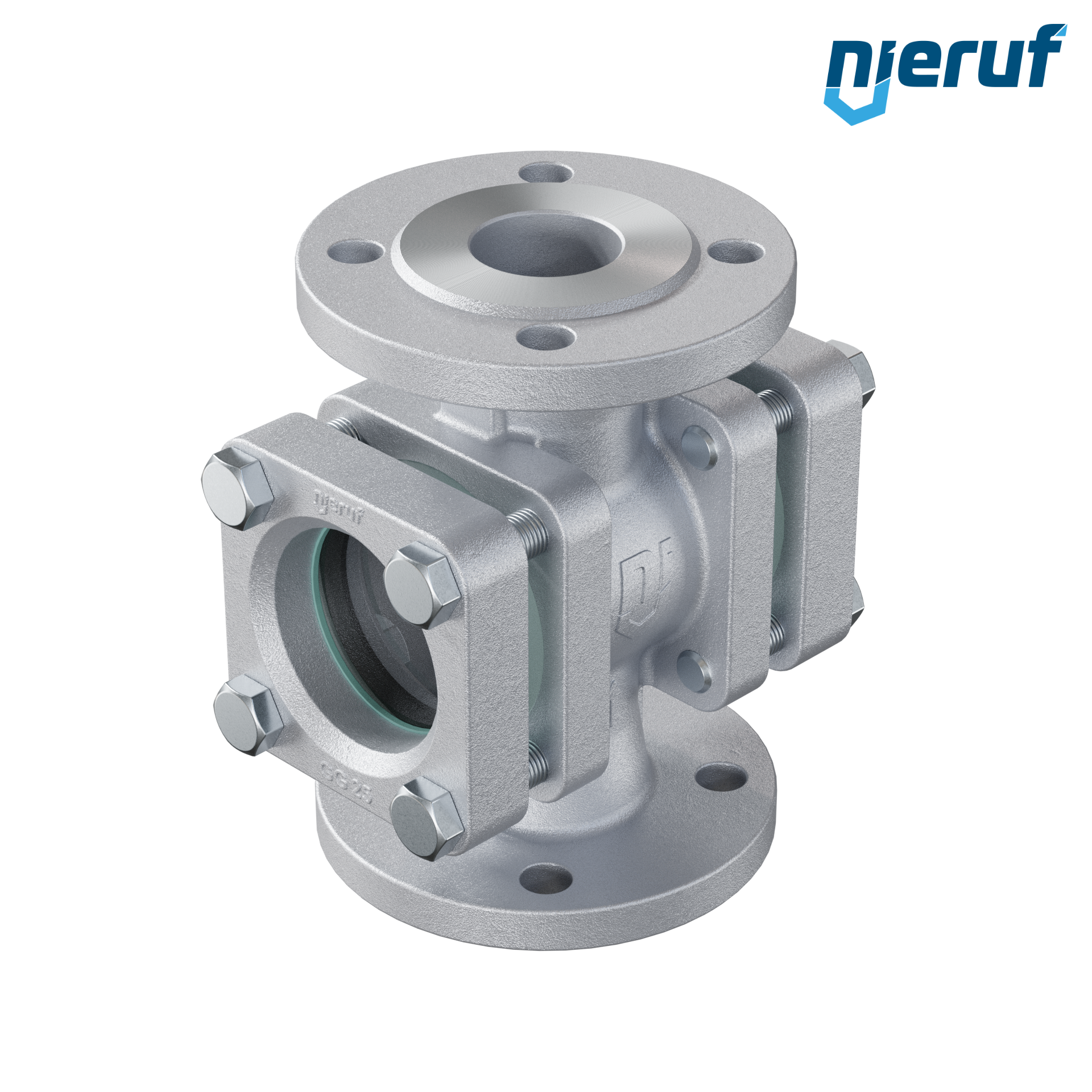

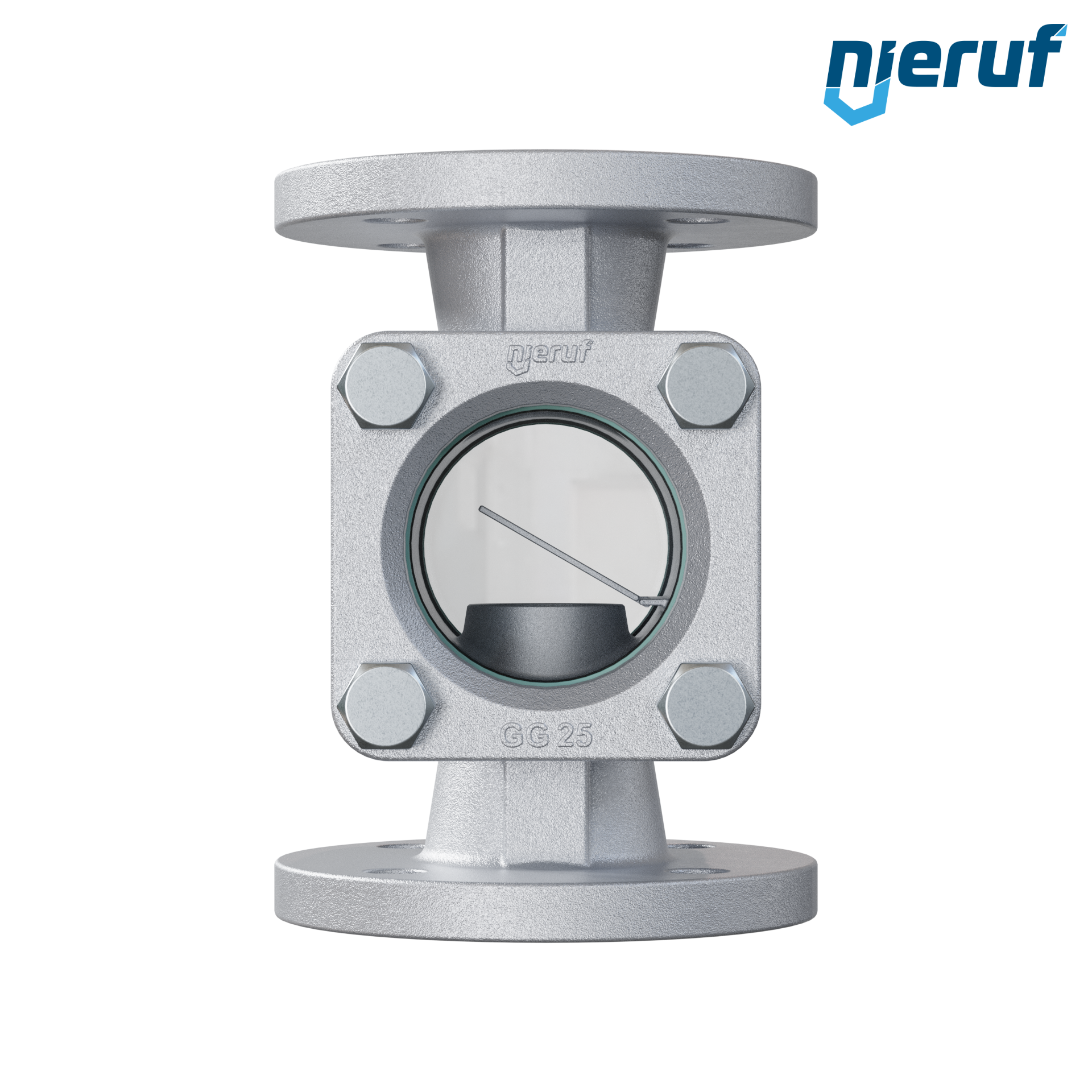

flange sight flow indicator DN50 grey cast iron GG25 soda lime glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.69 VAT included.
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN50 grey cast iron GG25 soda lime glass version with flap
flange sight flow indicator DN50 - 2" Inch grey cast iron GG25 Typ FS01 soda lime glass graphit max 16 bar version with flap
| product | flange sight flow indicator |
|---|---|
| type | FS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN50 |
| connection | flange PN16 |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN50 grey cast iron GG25 soda lime glass version with flap
Article no.
: FS01010108
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN50
connection:
flange PN16
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
