FS03020107

flange sight flow indicator DN40 - 1 1/2" Inch stainless steel borosilicate glass design with disc

€707.10*

€841.45 VAT included.

Delivery time: 2 - 3 weeks

Delivery information

Equipment

VS01000107

joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel

€8.40*

€10.00 VAT included.


FL01000107

Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541

€45.50*

€54.15 VAT included.


FD01000107

flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400

€2.40*

€2.86 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FS03020107

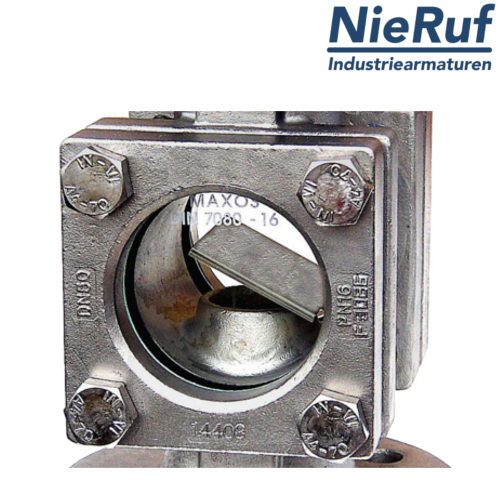

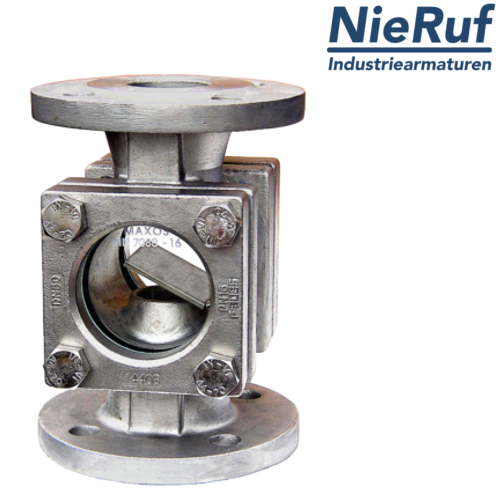

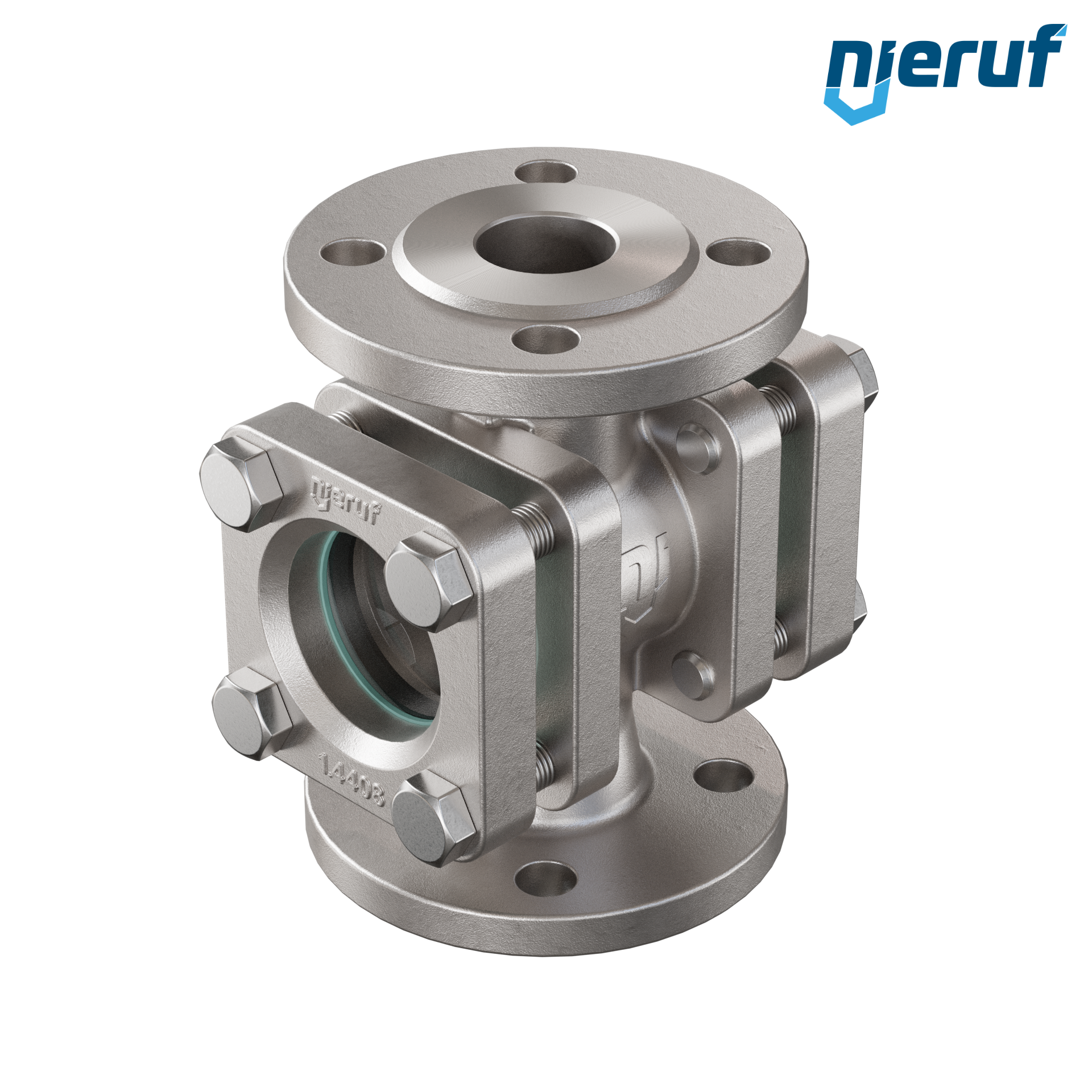

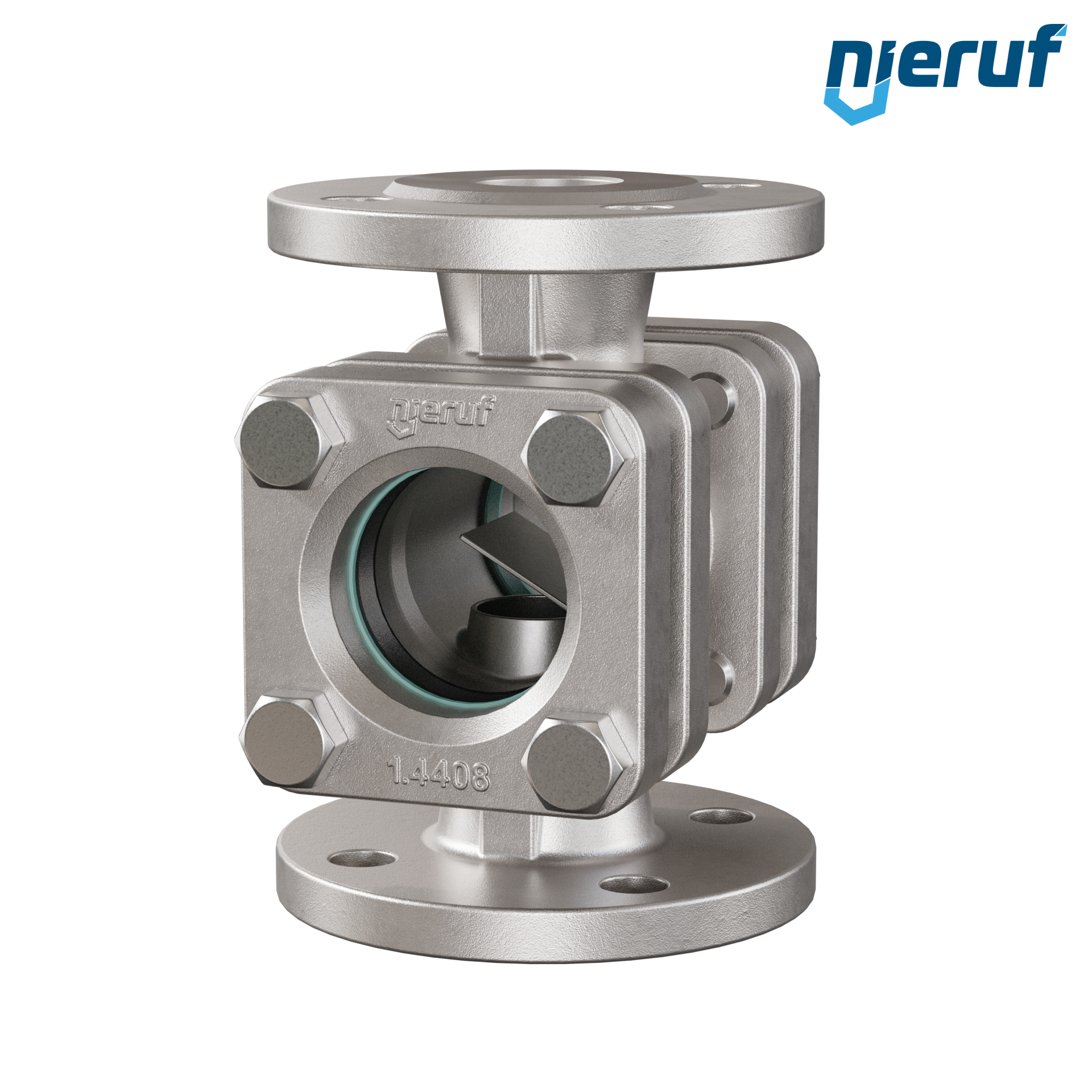

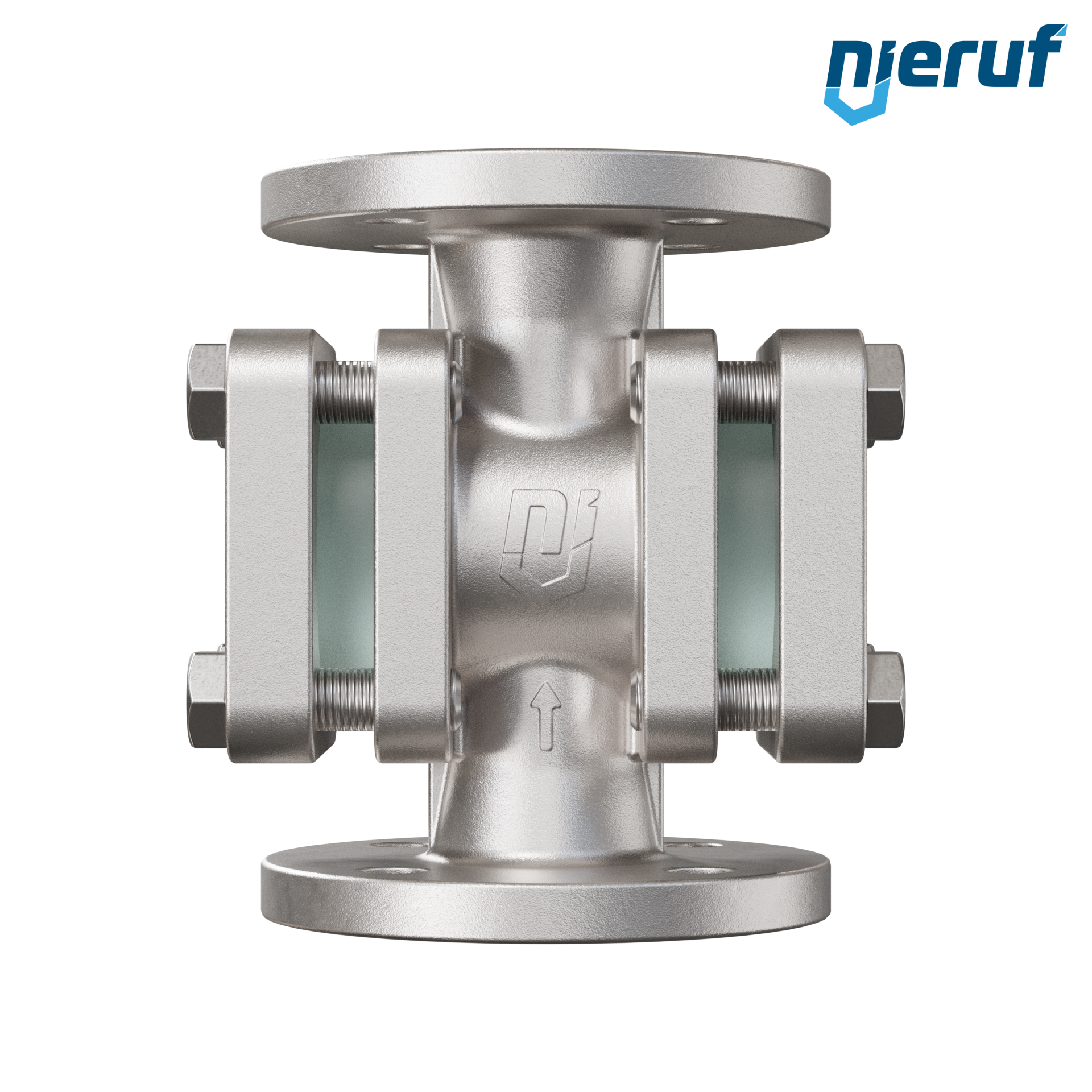

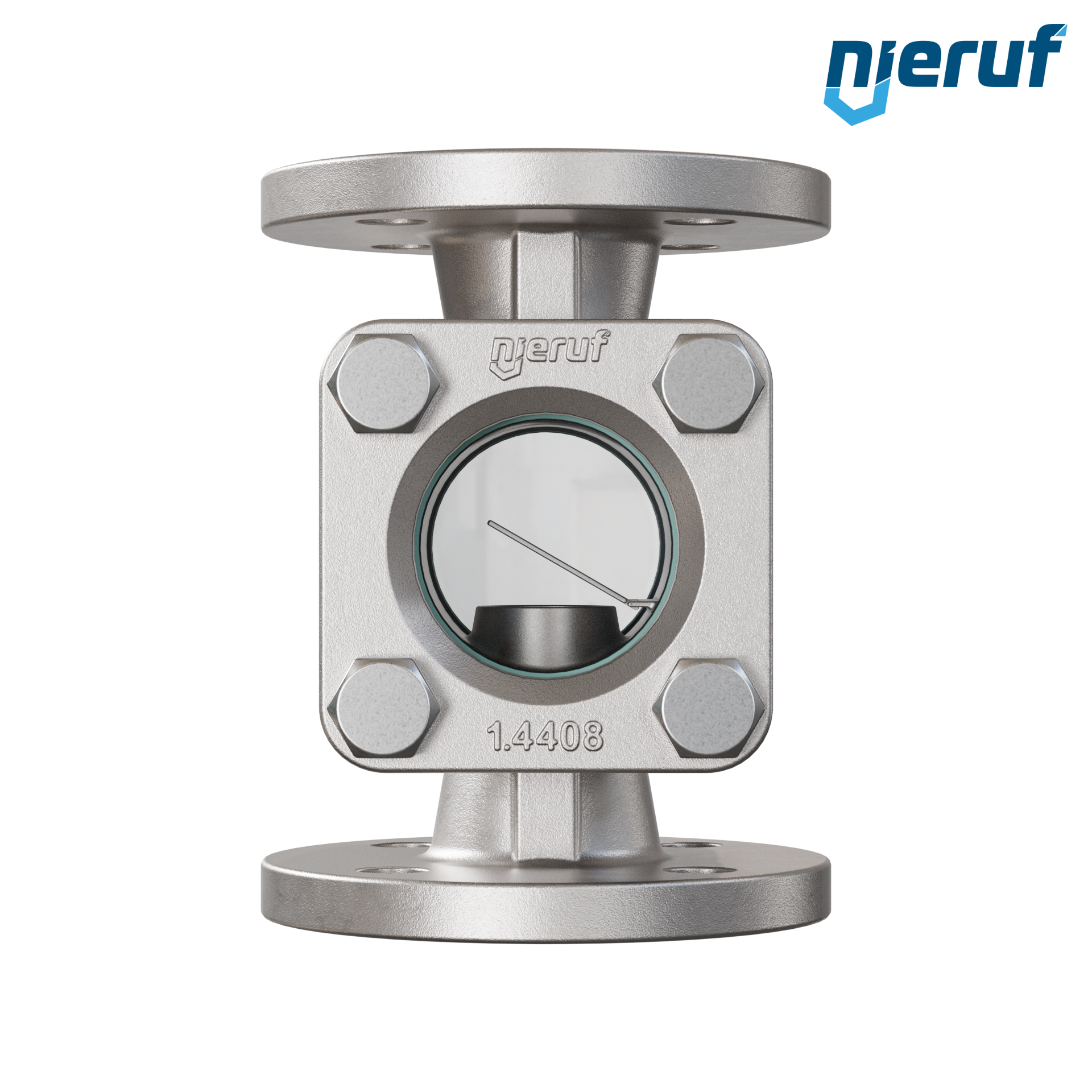

flange sight flow indicator DN40 - 1 1/2" Inch stainless steel borosilicate glass design with disc

flange sight flow indicator DN40 stainless steel borosilicate glass Typ FS03 borosilicate glass graphit max 16 bar

product: flange sight flow indicator
type: FS03
manufacturer: NieRuf
design: straightway form
diameter: DN40 - 1 1/2" Inch
connection: flange PN16
body material: stainless steel
cover material: stainless steel
glass: borosilicate glass
seal: graphit
media: liquid and gaseous media
temperature: min -60°C up to max + 280°C
max. working pressure: max 16 bar
requirements: DIN 3237
installation position: horizontal or vertical with direction of flow from the bottom up
product feature: design with disc

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange sight flow indicator DN40 - 1 1/2" Inch stainless steel borosilicate glass design with disc

Article no. : FS03020107
product: flange sight flow indicator
type: FS03
manufacturer: NieRuf
design: straightway form
diameter: DN40 - 1 1/2" Inch
connection: flange PN16
body material: stainless steel
cover material: stainless steel
glass: borosilicate glass
seal: graphit
media: liquid and gaseous media
temperature: min -60°C up to max + 280°C
max. working pressure: max 16 bar
requirements: DIN 3237
installation position: horizontal or vertical with direction of flow from the bottom up
product feature: design with disc
