FS02012106

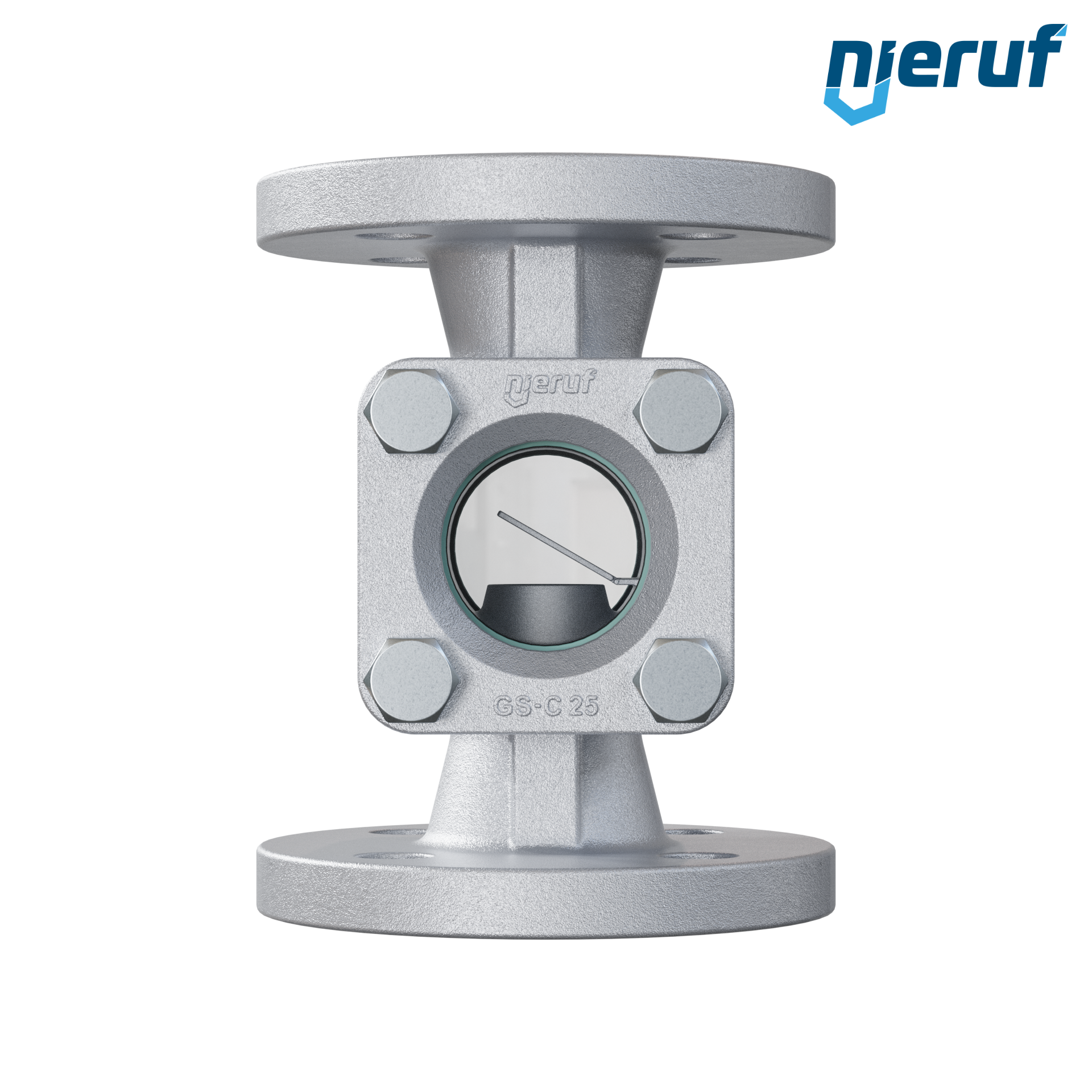

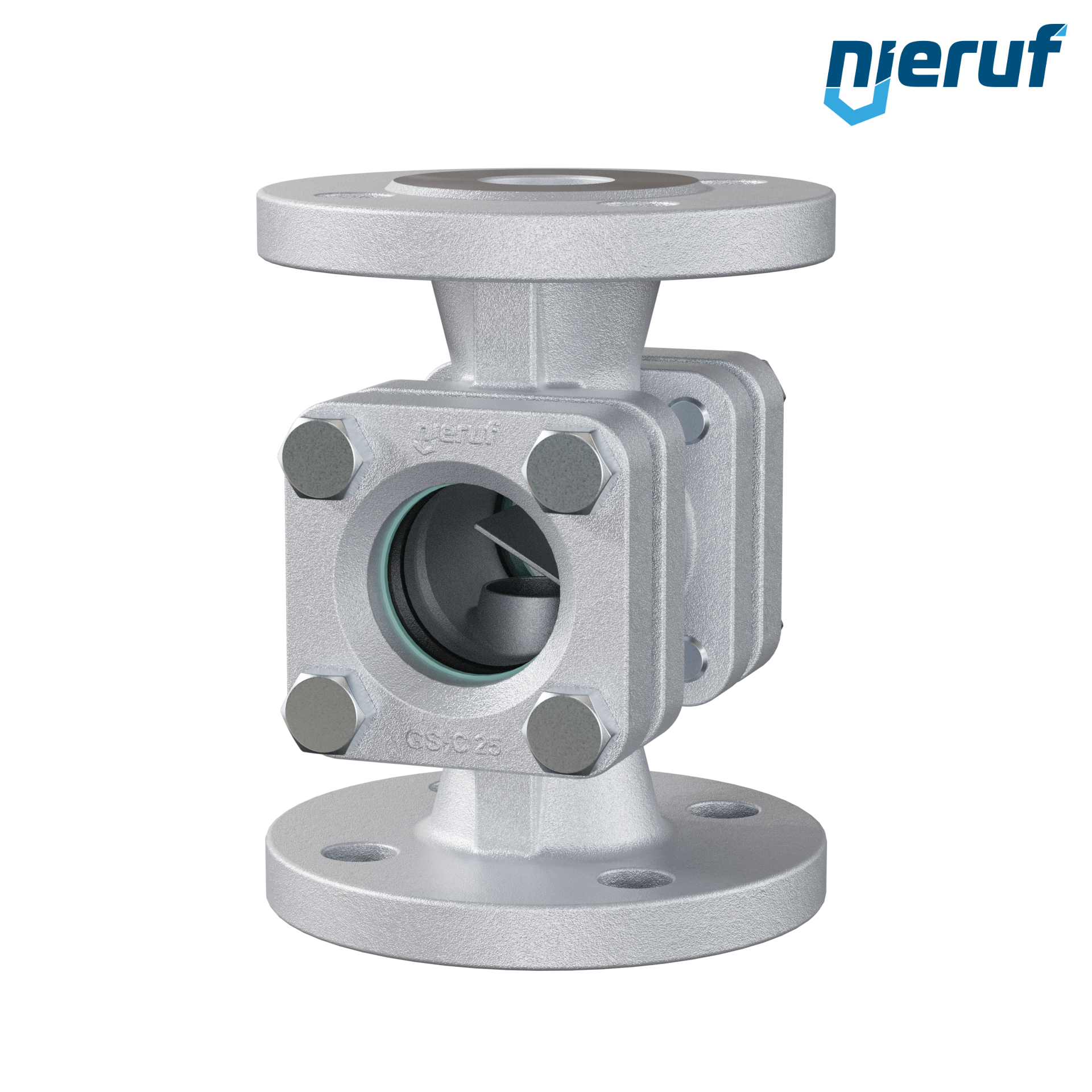

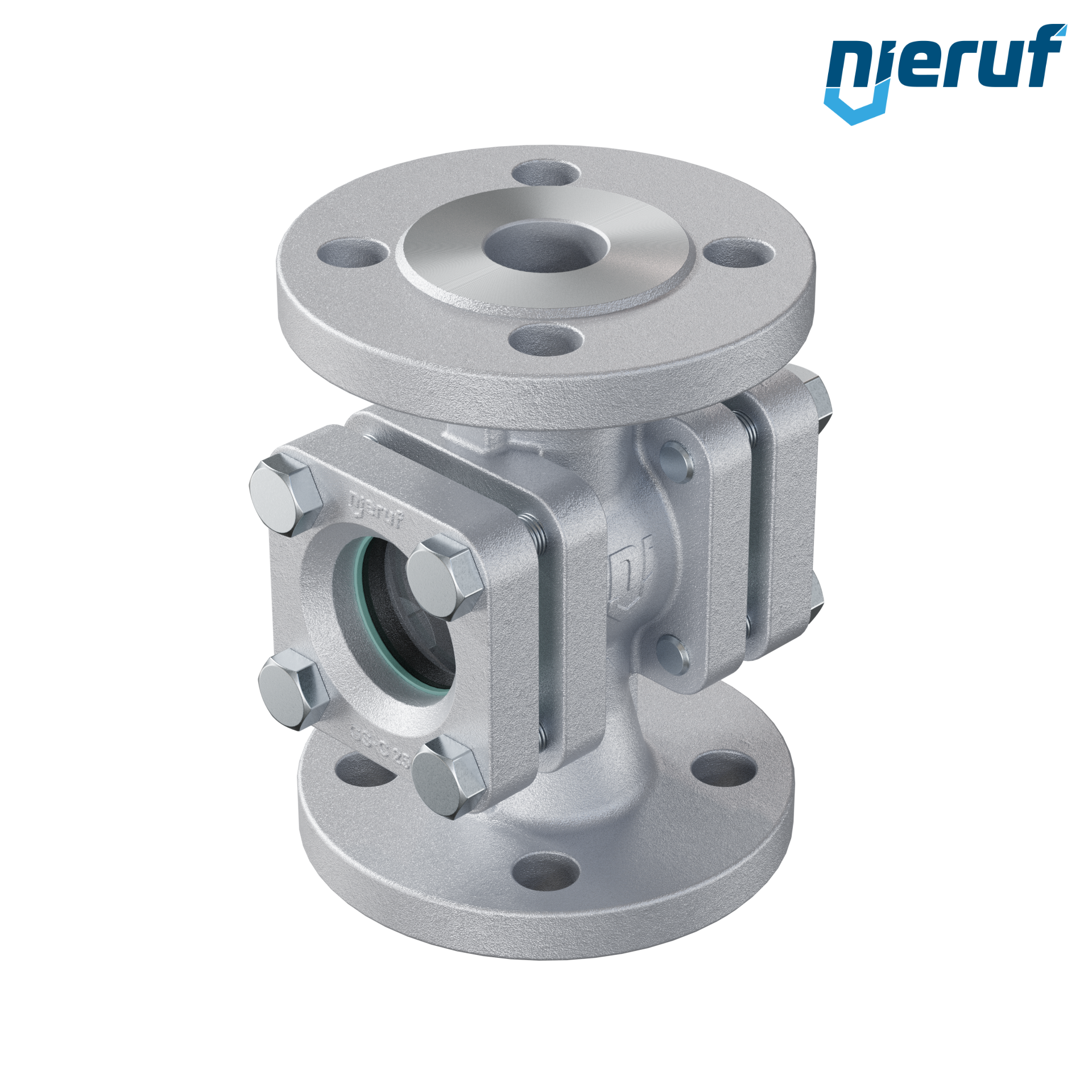

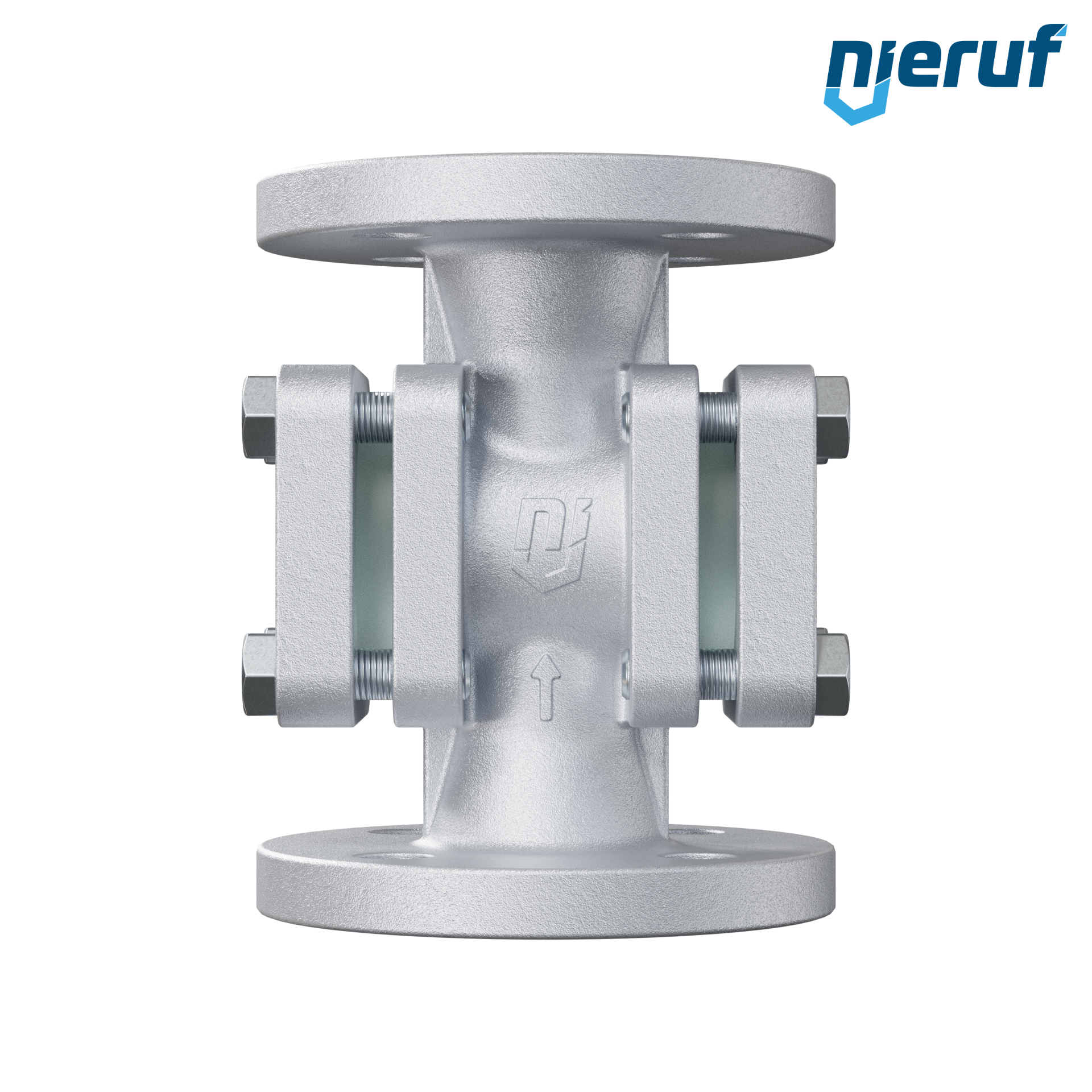

flange sight flow indicator DN32 - 1 1/4" Inch carbon steel 1.0619 flange ANSI 150 soda lime glass version with flap
- Delivery time
- 2 - 3 weeks
Questions about the article?
Downloads
flange sight flow indicator version with flap type FS02 made of carbon steel 1.0619, soda lime glass and seal graphit DN32 - 1 1/4" Inch flange ANSI 150 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN32 - 1 1/4" Inch |
| connection | flange ANSI 150 |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | design with disc |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN32 - 1 1/4" Inch carbon steel 1.0619 flange ANSI 150 soda lime glass version with flap
Article no.
: FS02012106
product:
flange sight flow indicator
type:
FS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN32 - 1 1/4" Inch
connection:
flange ANSI 150
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
design with disc
