FS01010006

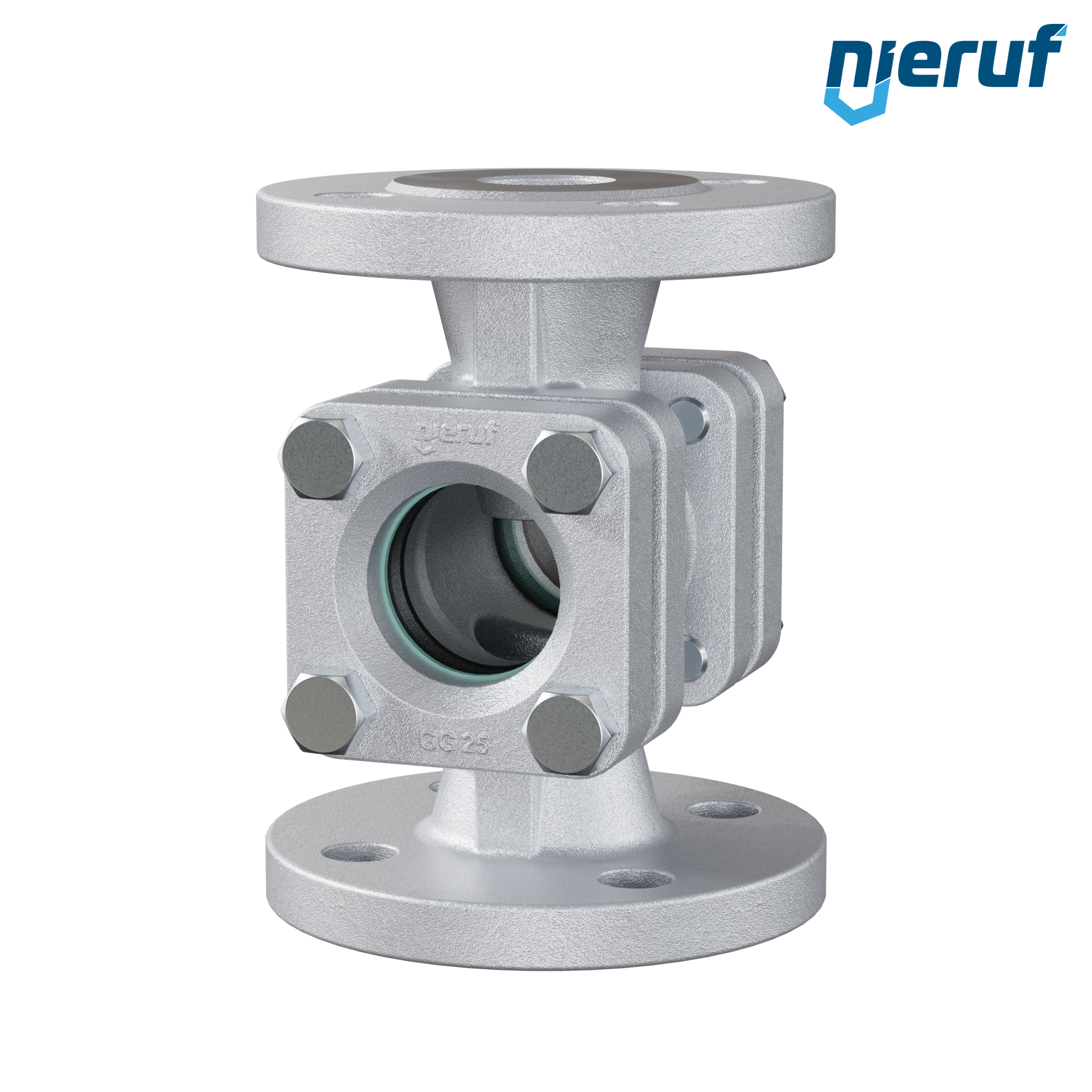

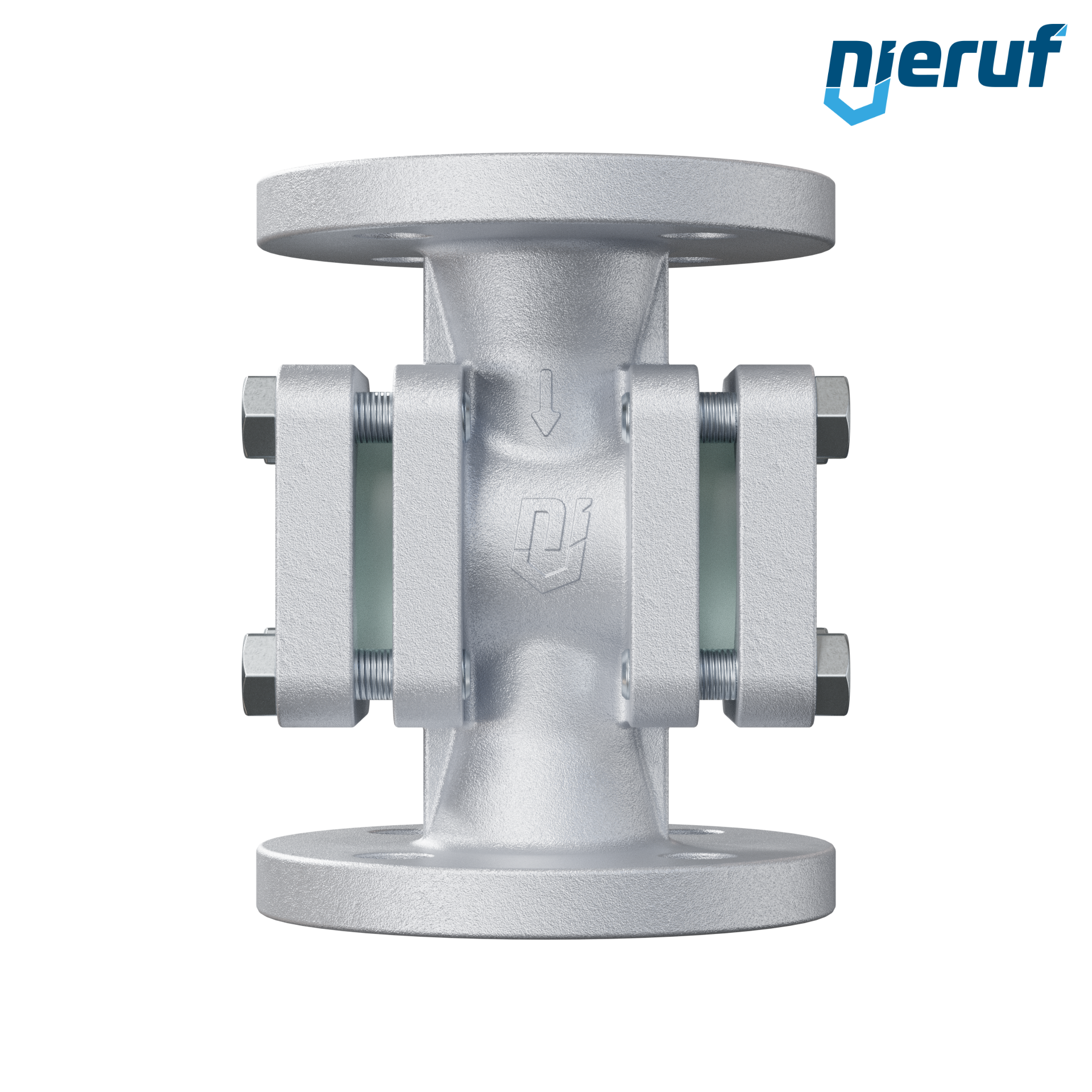

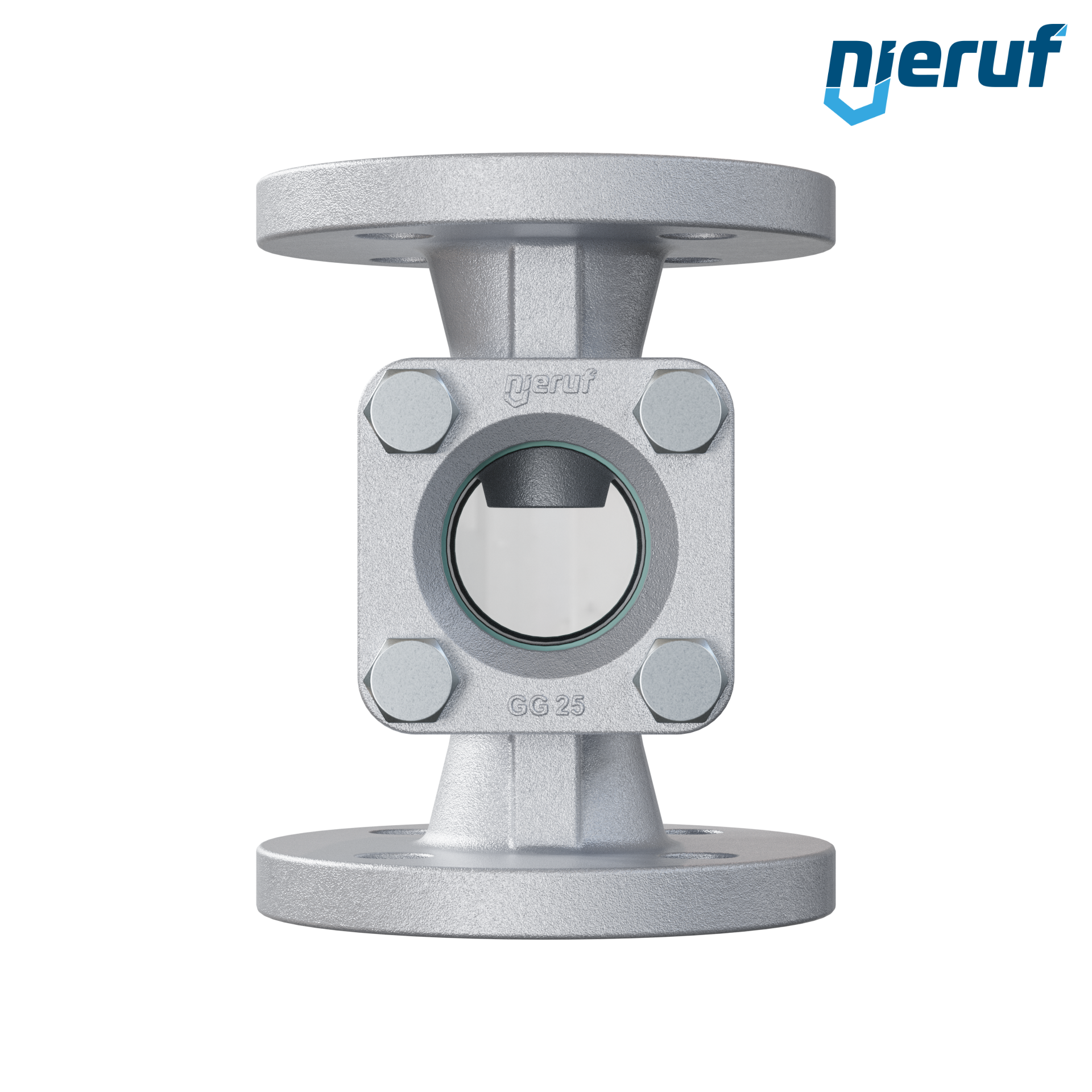

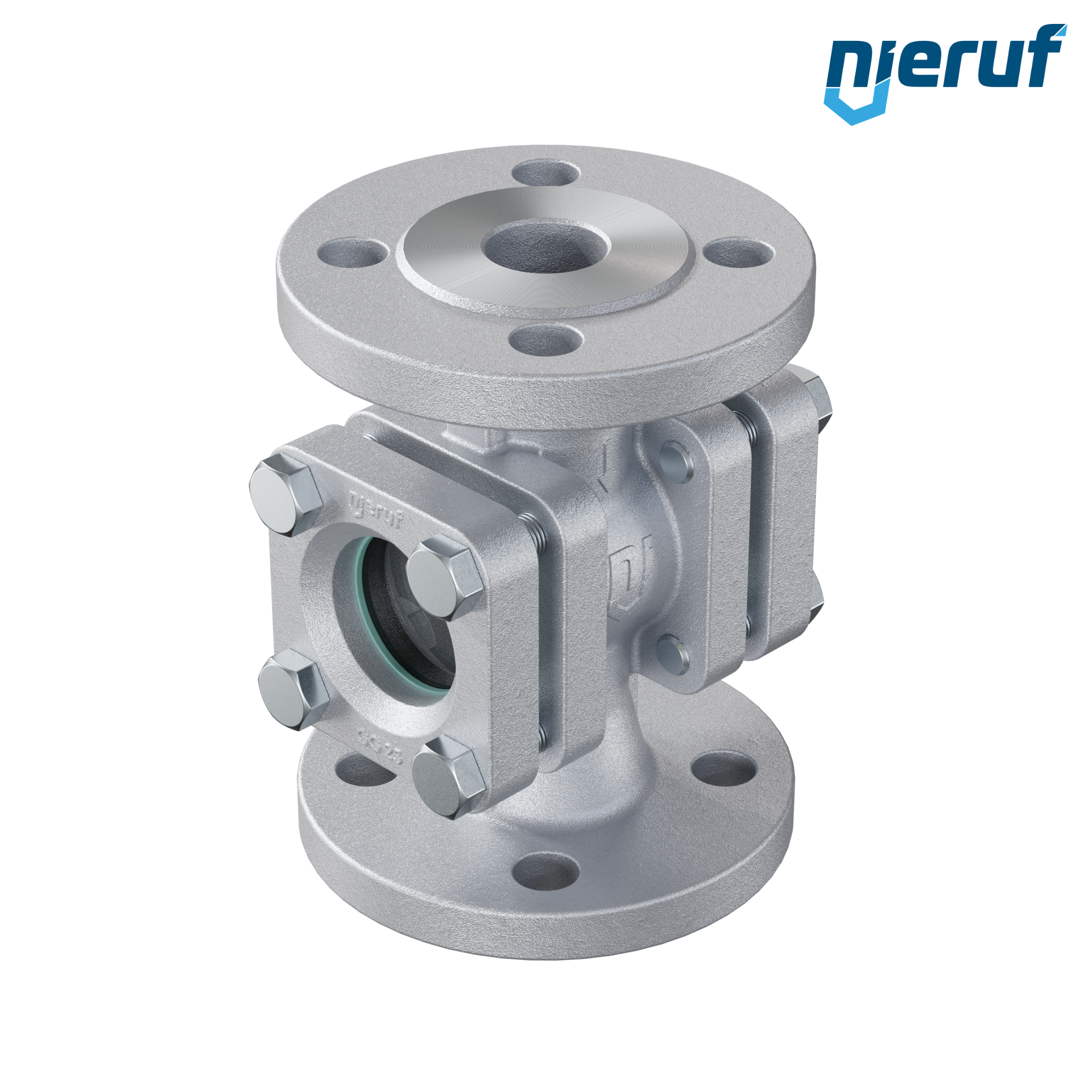

flange sight flow indicator DN32 grey cast iron GG25 soda lime glass version with dripping edge
- Lead time
- 2 - 3 weeks
Equipment
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€17.85 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€5.24 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN32 grey cast iron GG25 soda lime glass version with dripping edge
flange sight flow indicator DN32 - 1 1/4" inch Typ FS01 grey cast iron GG25 soda lime glass graphit max 16 bar version with dripping edge
| product | flange sight flow indicator |
|---|---|
| type | FS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN32 |
| connection | flange PN16 |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with dripping edge |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN32 grey cast iron GG25 soda lime glass version with dripping edge
Article no.
: FS01010006
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN32
connection:
flange PN16
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with dripping edge
Equipment
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
Lead time: in stock
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: 3 - 5 working days
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 42,4 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
