FS03010205

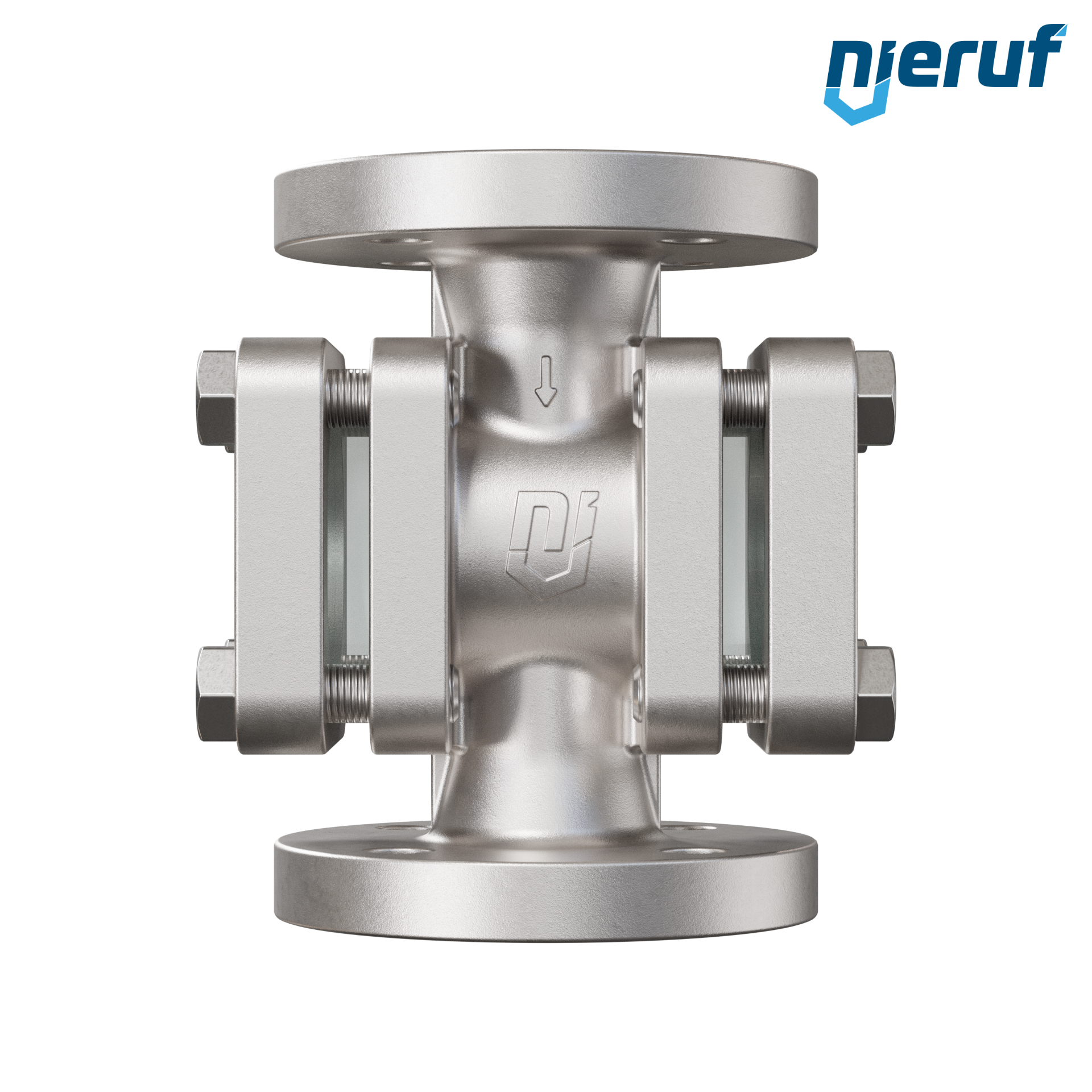

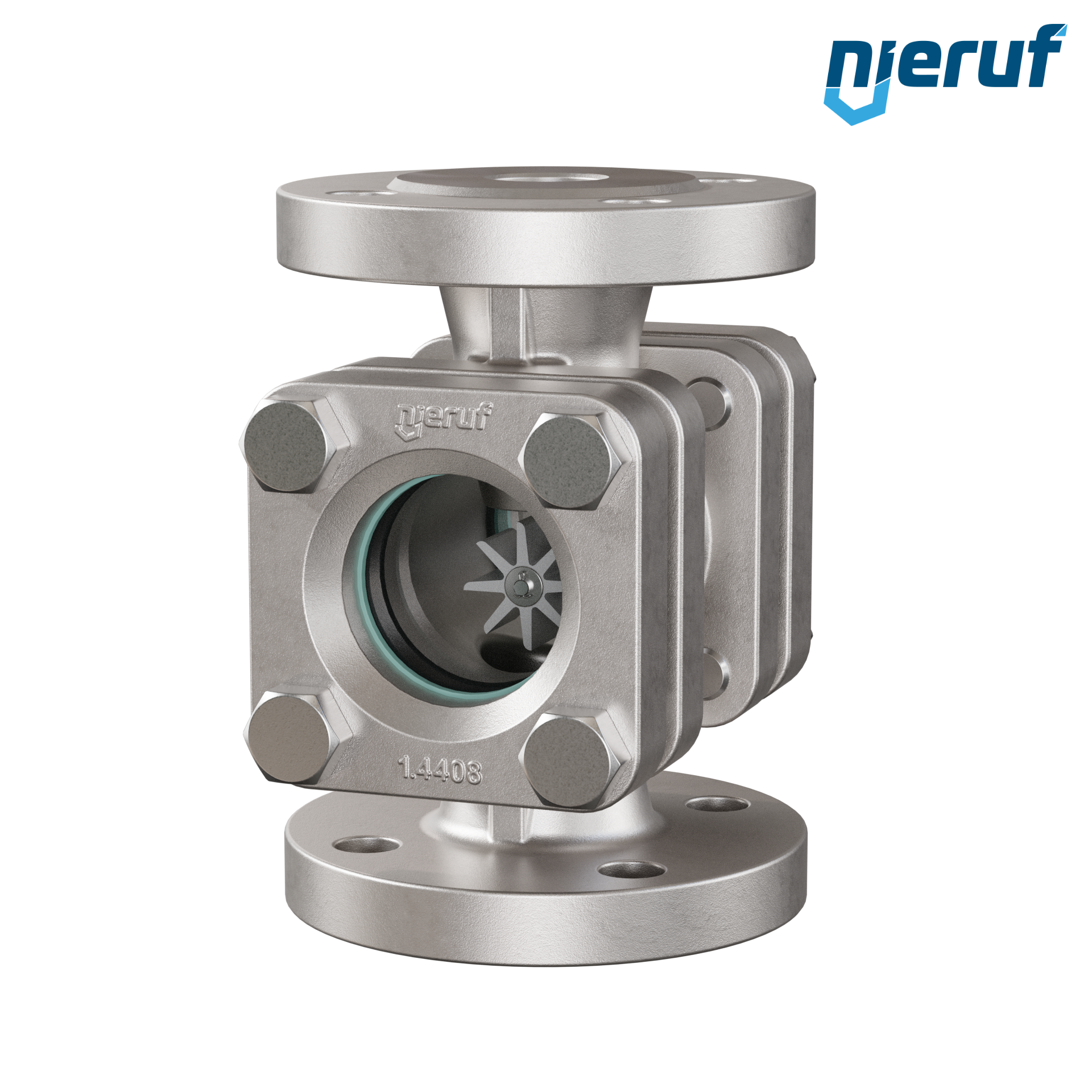

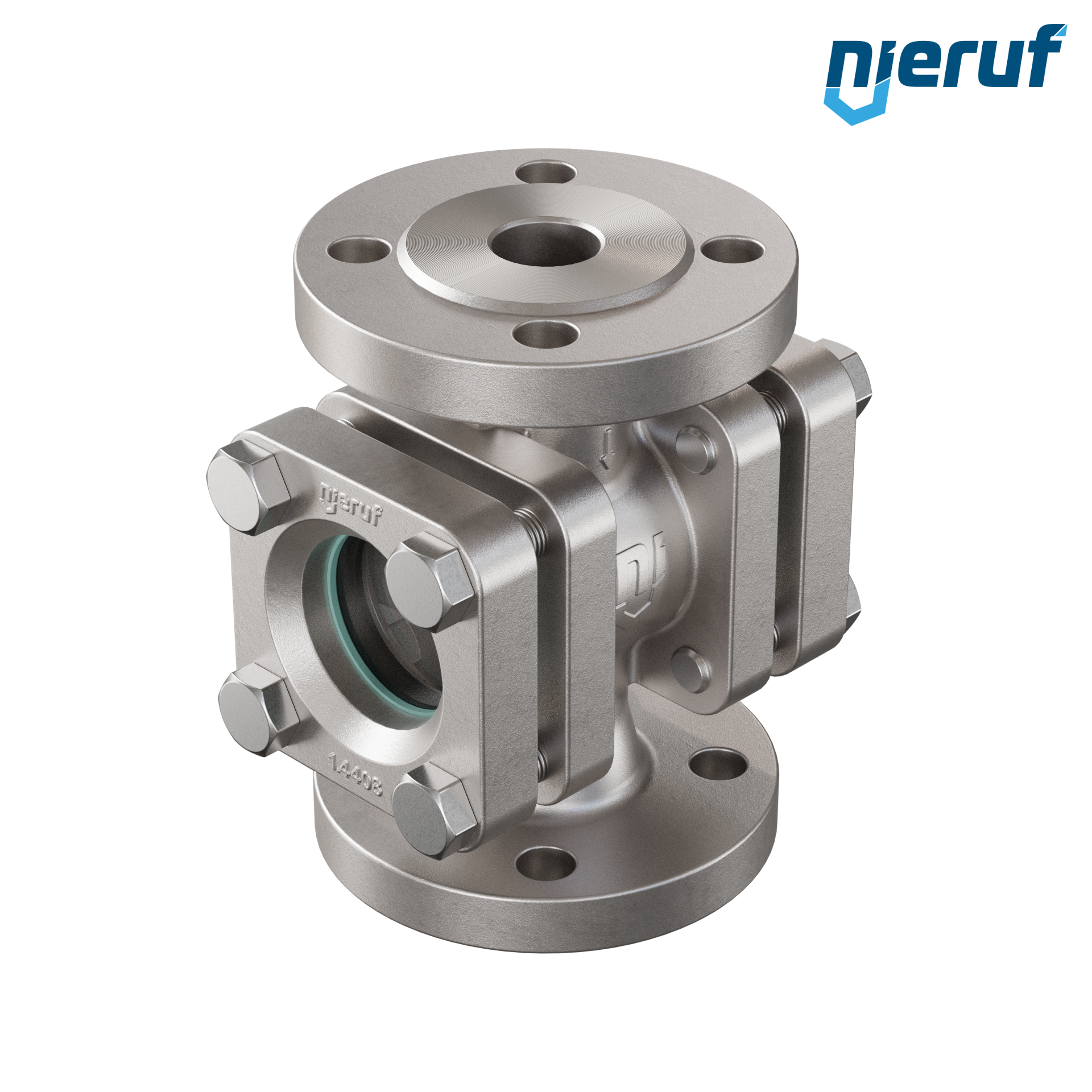

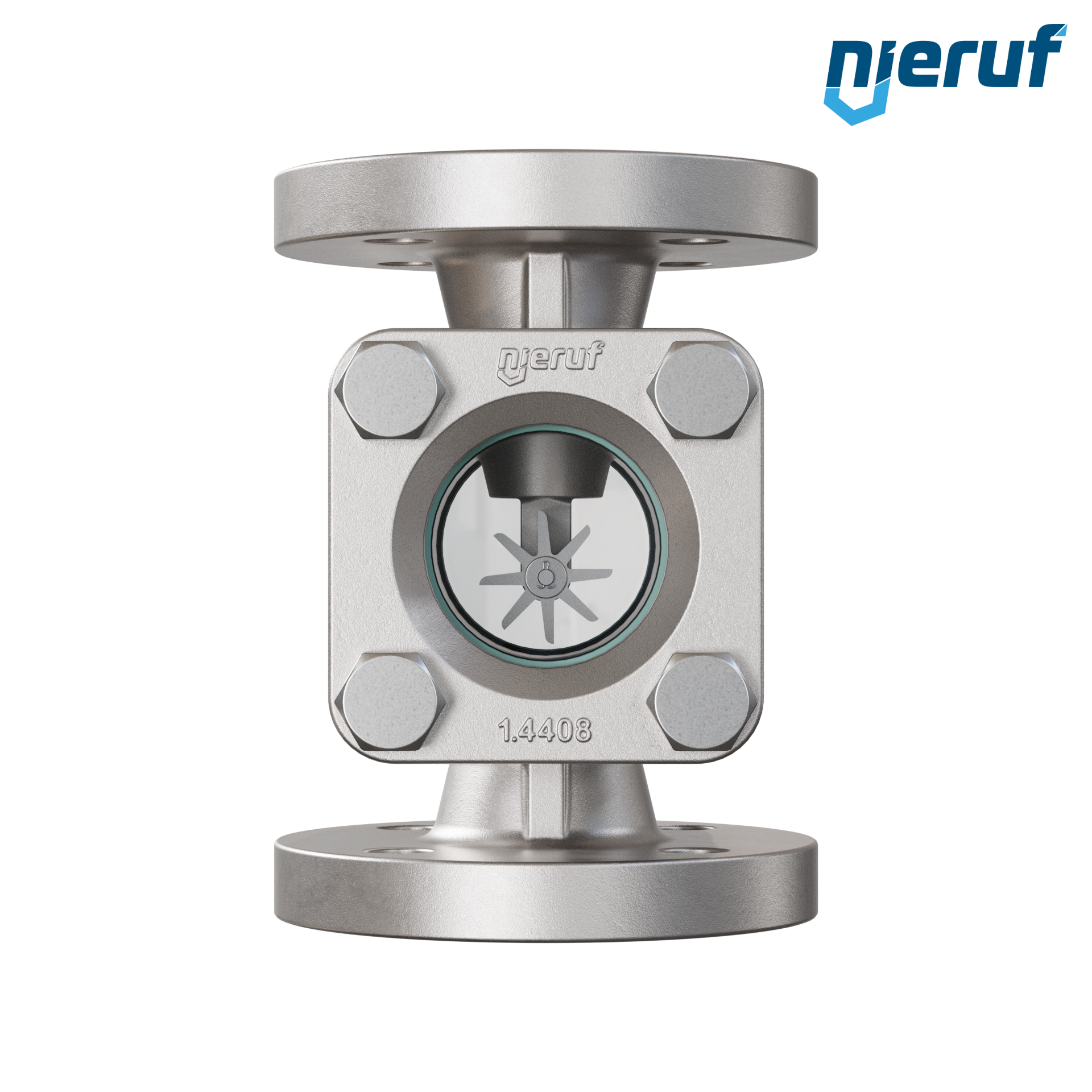

flange sight flow indicator DN25 stainless steel soda lime glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€4.88 VAT included.
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€22.97 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN25 stainless steel soda lime glass version with PTFE-spinner
flange sight flow indicator DN25 stainless steel soda lime glass Typ FS03 max 16 bar design with PTFE-spinner
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN25 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | soda lime glass |
| seal | graphit |
| media | liquid media |
| temperature | -60°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN25 stainless steel soda lime glass version with PTFE-spinner
Article no.
: FS03010205
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN25
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
soda lime glass
seal:
graphit
media:
liquid media
temperature:
-60°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with PTFE-spinner
Equipment
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
pipe bend (welded) 90° 33,7 x 2,0 stainless steel 1.4571
Lead time: in stock
reducer (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
