FS03010005

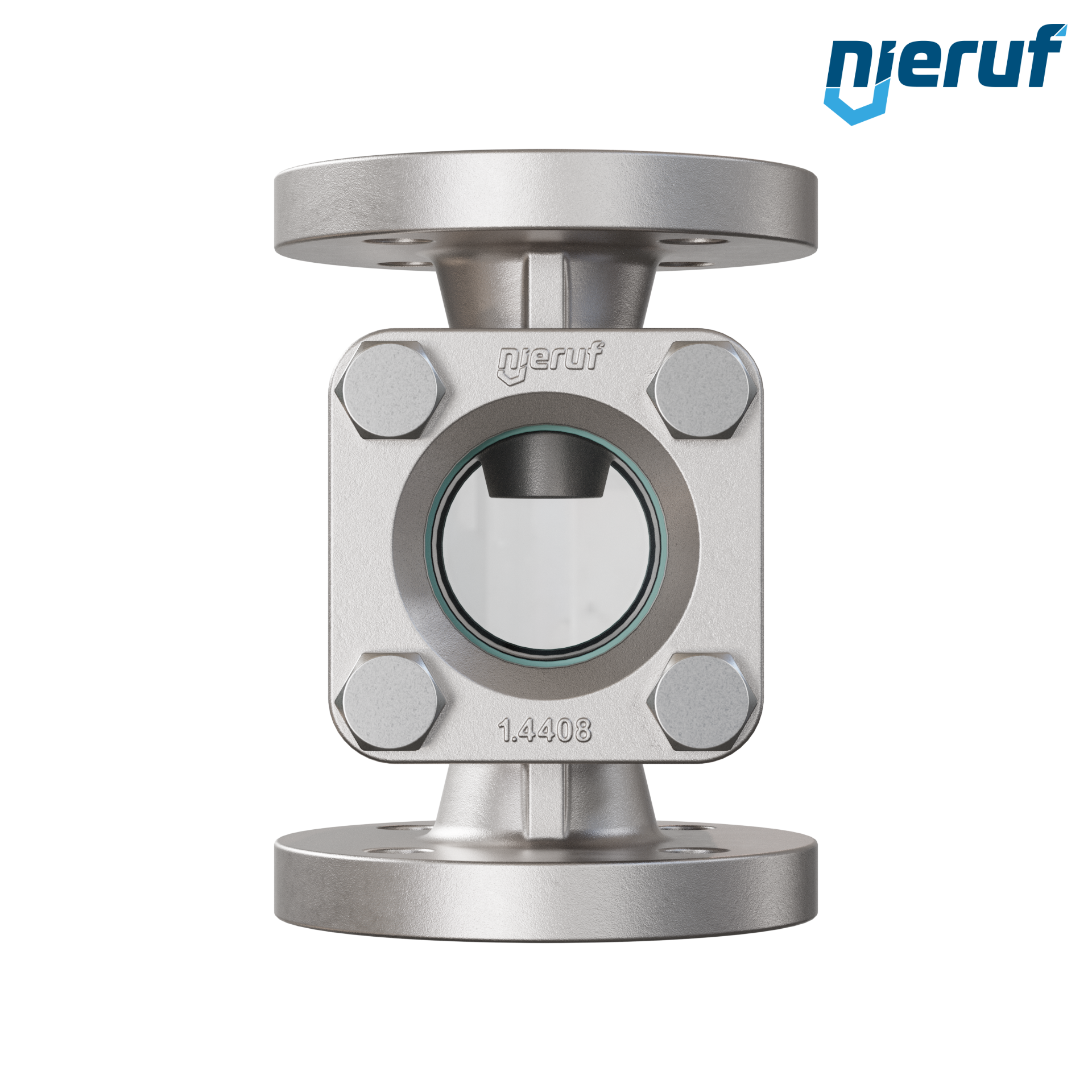

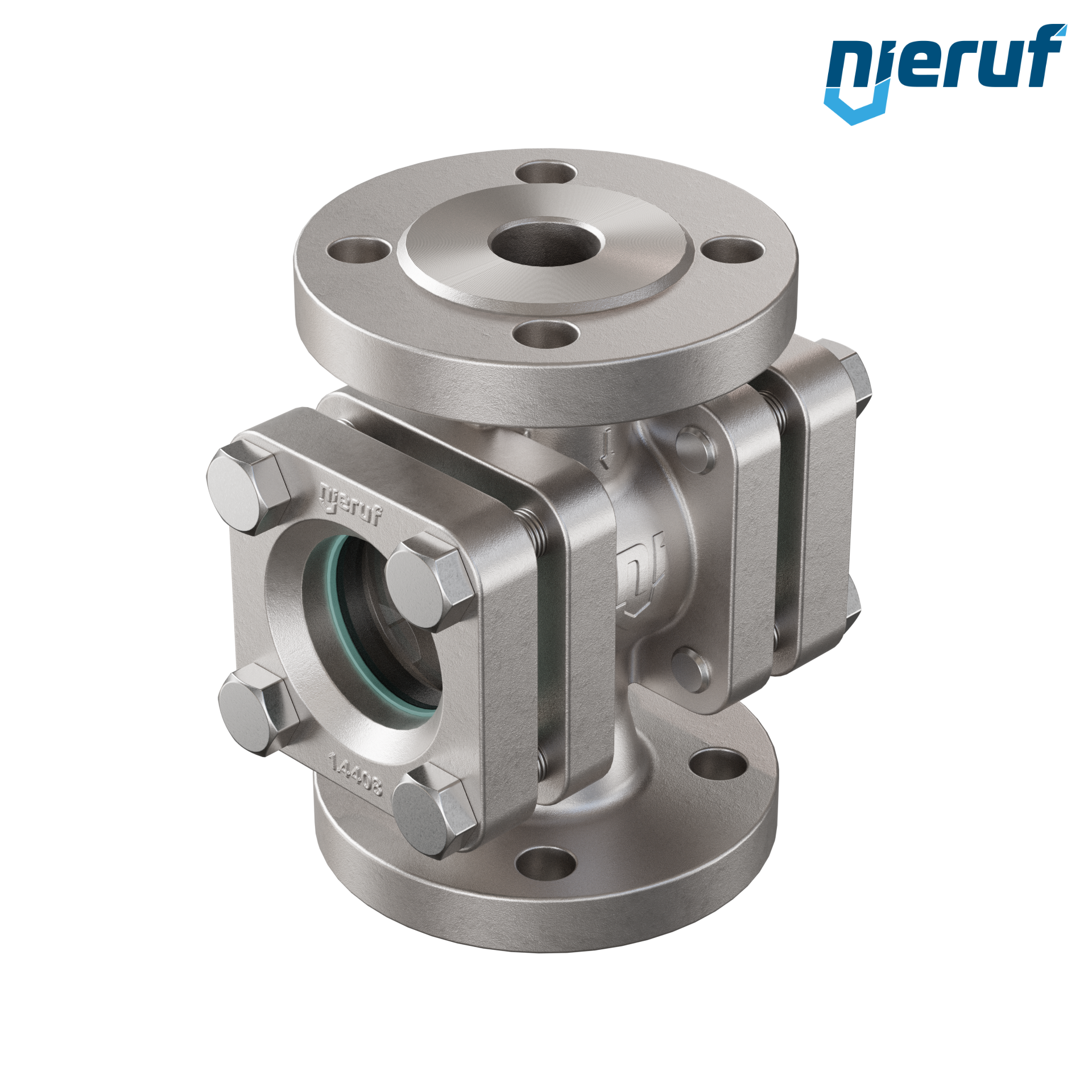

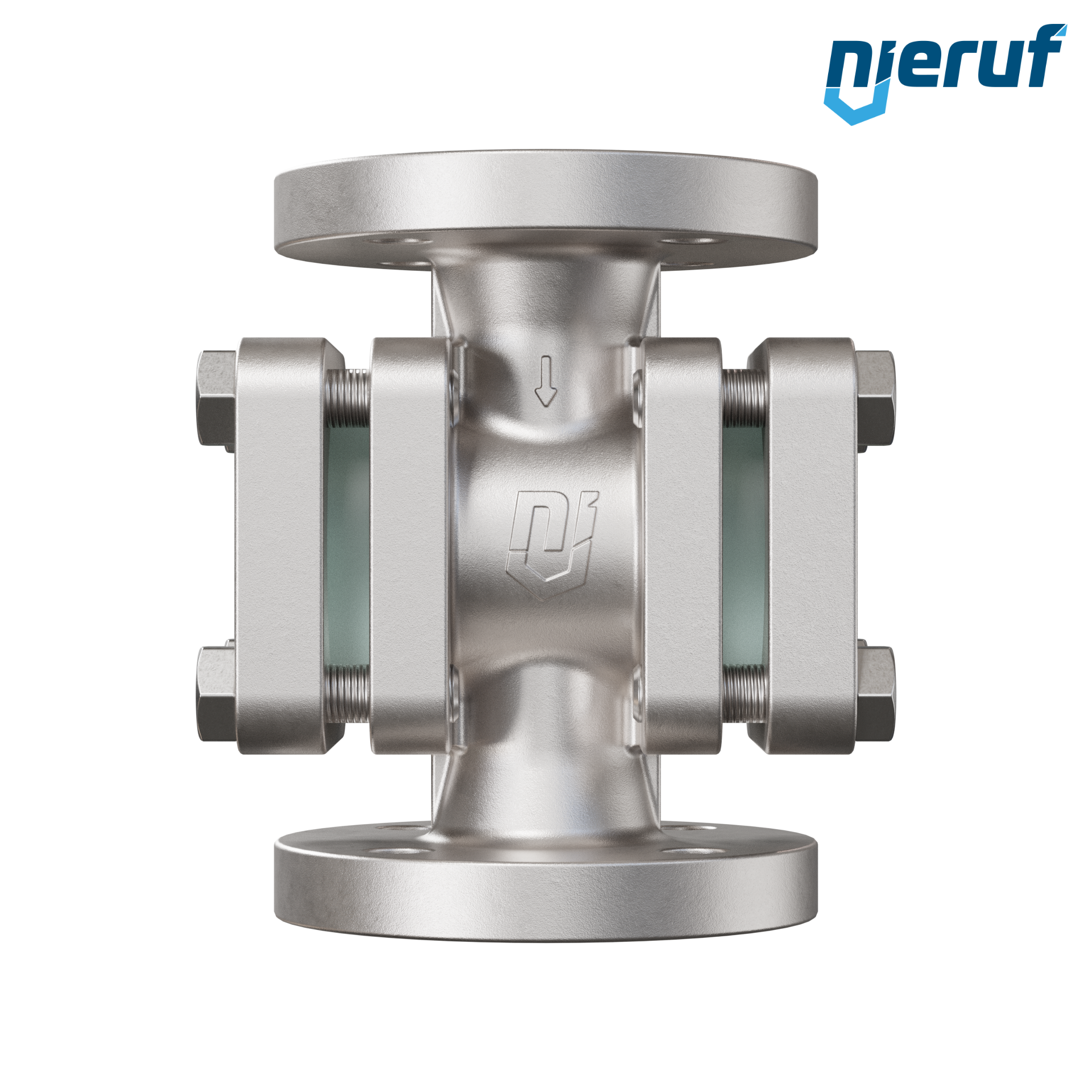

flange sight flow indicator DN25 stainless steel soda lime glass version with dripping edge
- Delivery time
- 2 - 3 weeks
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€21.66 VAT included.
Questions about the article?
Downloads
flange sight flow indicator DN25 - 1" Inch stainless steel Typ FS03 soda lime glass graphit max 16 bar version with dripping edge
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN25 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -60°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with dripping edge |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN25 stainless steel soda lime glass version with dripping edge
Article no.
: FS03010005
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN25
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-60°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with dripping edge
