FS01020205

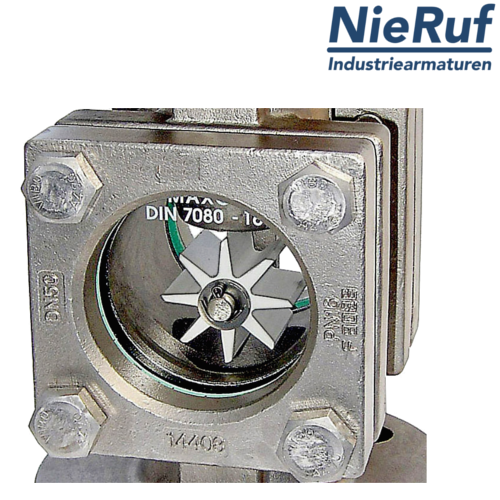

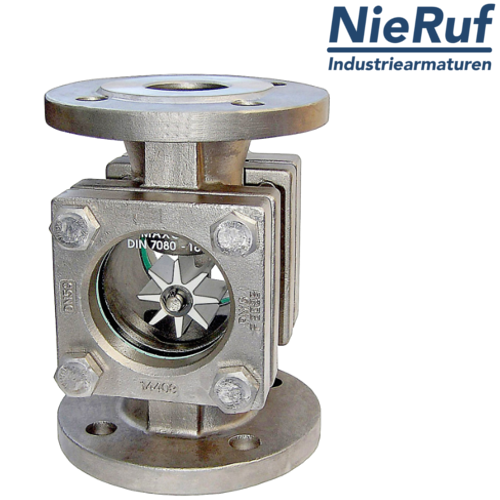

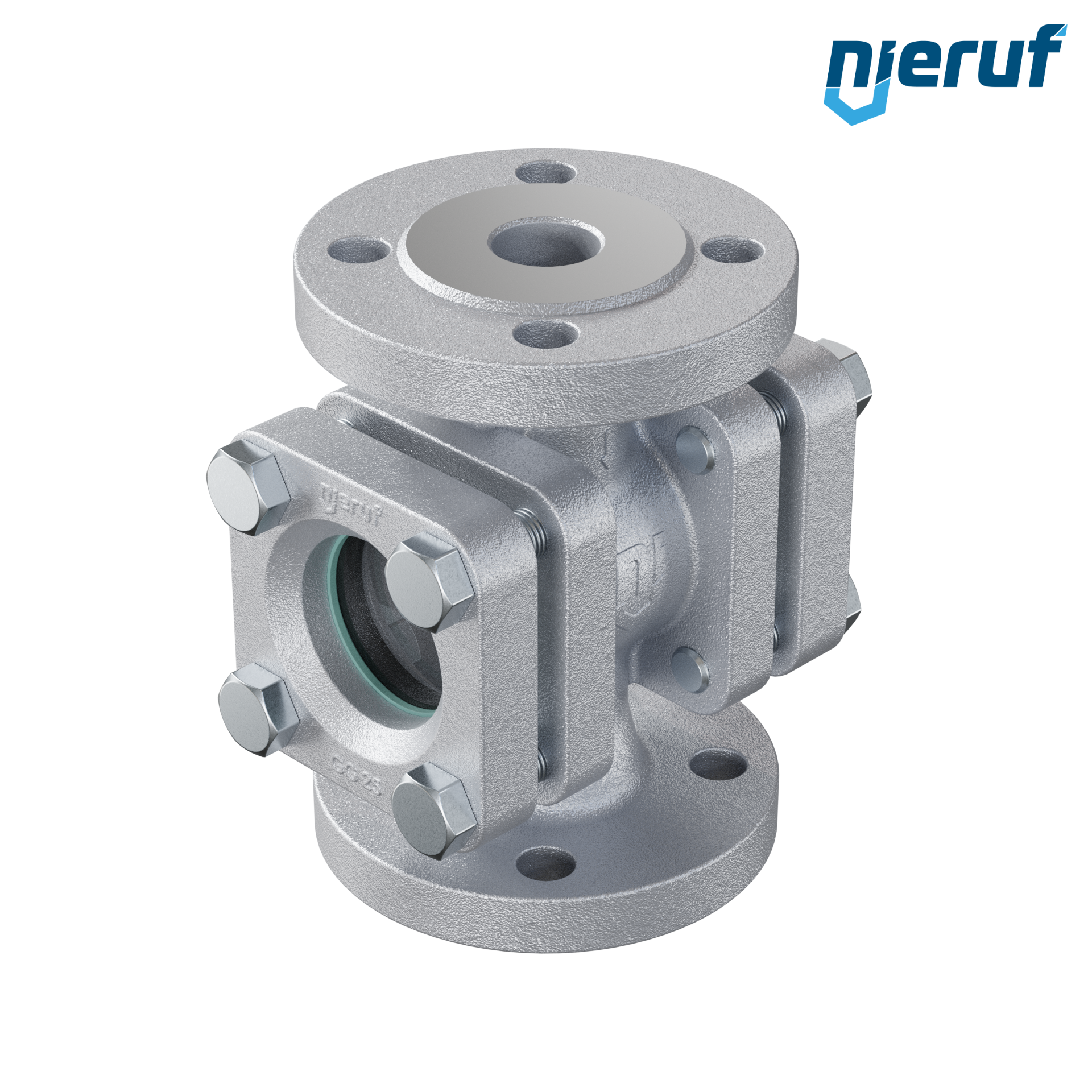

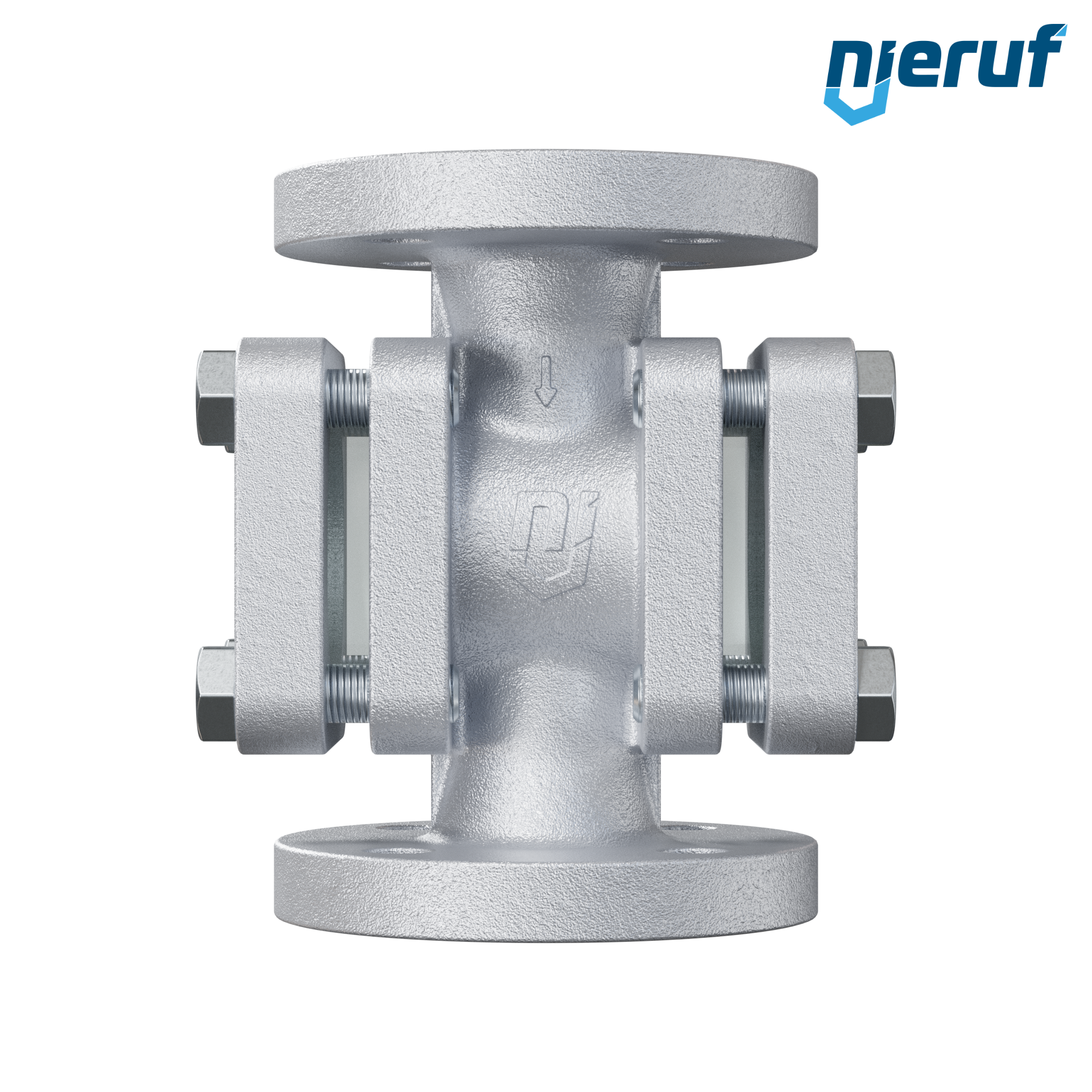

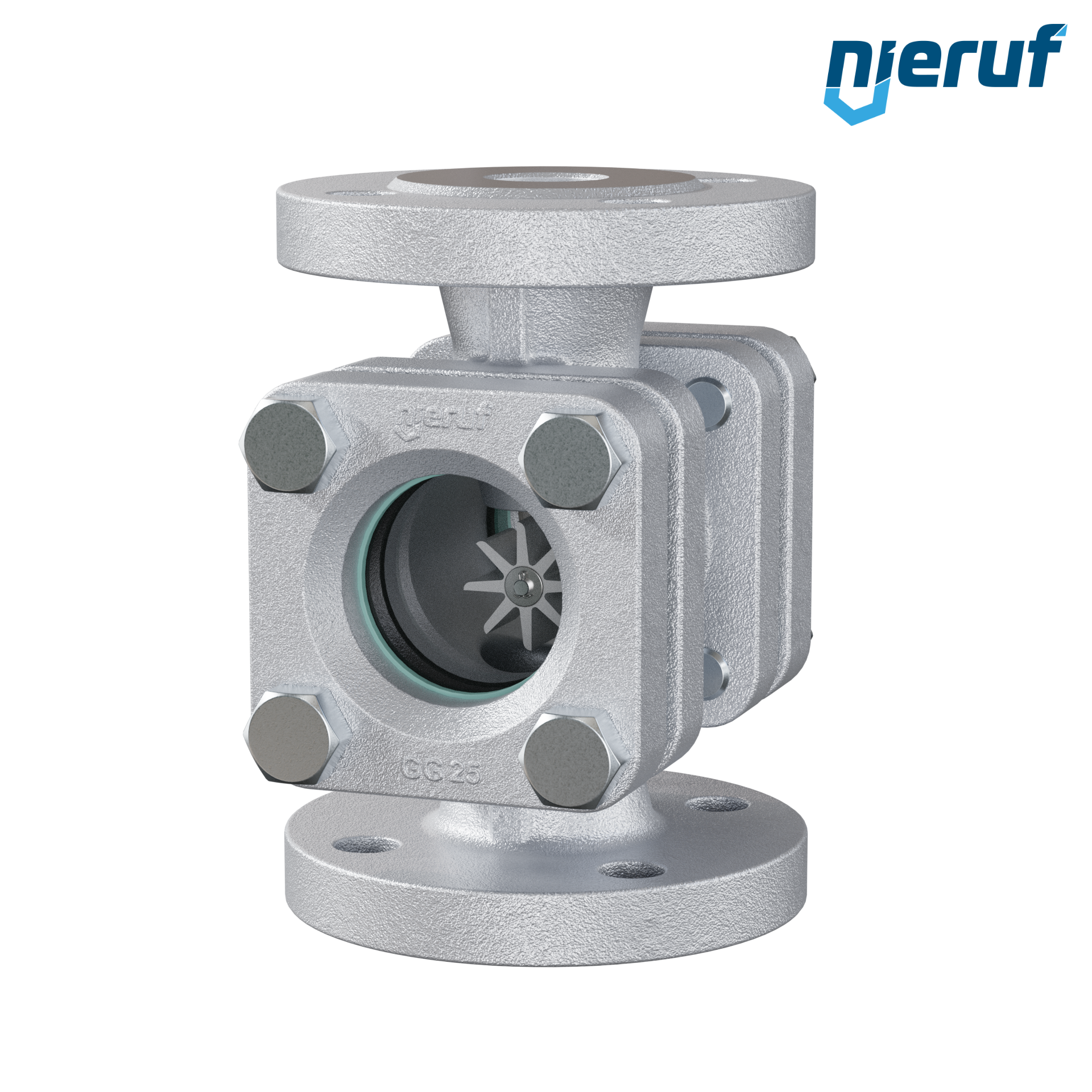

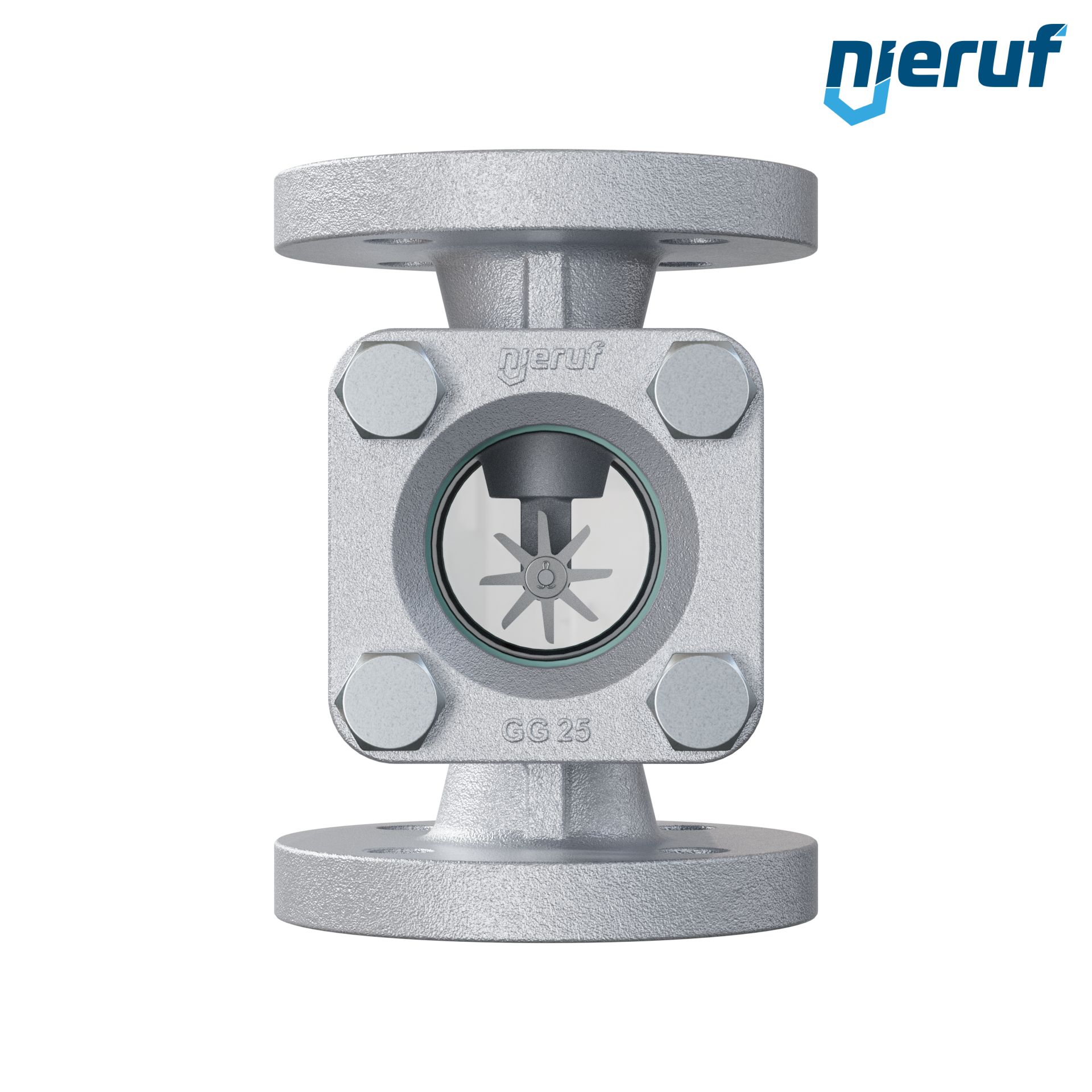

flange sight flow indicator DN25 grey cast iron GG25 borosilicate glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€16.66 VAT included.
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€4.88 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN25 grey cast iron GG25 borosilicate glass version with PTFE-spinner
flange sight flow indicator DN25 design with PTFE-spinner Typ FS01 grey cast iron GG25 borosilicate glass graphit max 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN25 |
| connection | flange PN16 |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN25 grey cast iron GG25 borosilicate glass version with PTFE-spinner
Article no.
: FS01020205
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN25
connection:
flange PN16
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
borosilicate glass
seal:
graphit
media:
liquid media
temperature:
-10°C up to + 280°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with PTFE-spinner
Equipment
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
Lead time: in stock
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 33,7 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
