FS03010114

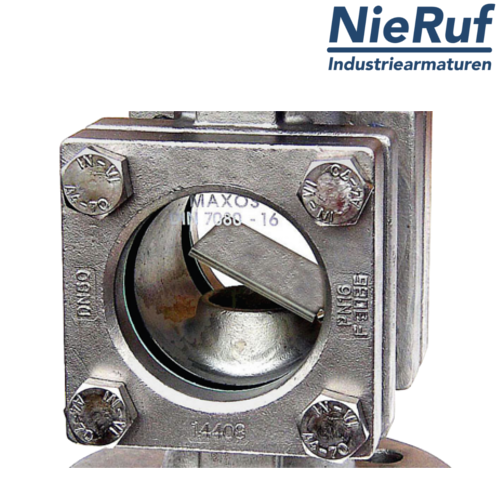

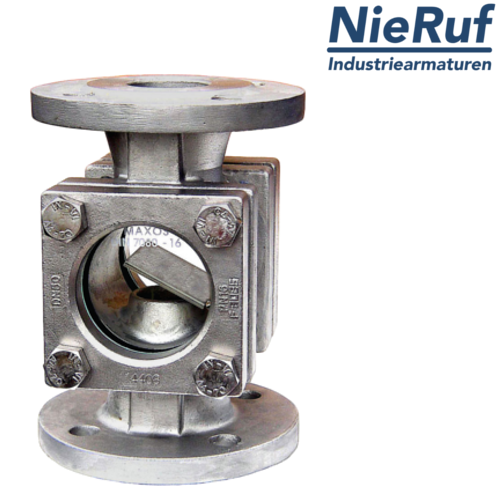

flange sight flow indicator DN200 stainless steel soda lime glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 stainless steel
€25.70 VAT included.
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
€10.71 VAT included.
Welding neck flange DN200 PN10 EN1092-1 11 B1 1.4541
€200.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN200 stainless steel soda lime glass version with flap
flange sight flow indicator DN200 stainless steel flap Typ FS03 soda lime glass max 10 bar version with flap
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN200 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -60°C up to + 150°C |
| max. working pressure | 10 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN200 stainless steel soda lime glass version with flap
Article no.
: FS03010114
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN200
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-60°C up to + 150°C
max. working pressure:
10 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN200 PN10 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN200 - 8" Inch for flange PN10 stainless steel
Lead time: in stock
