FS02010204

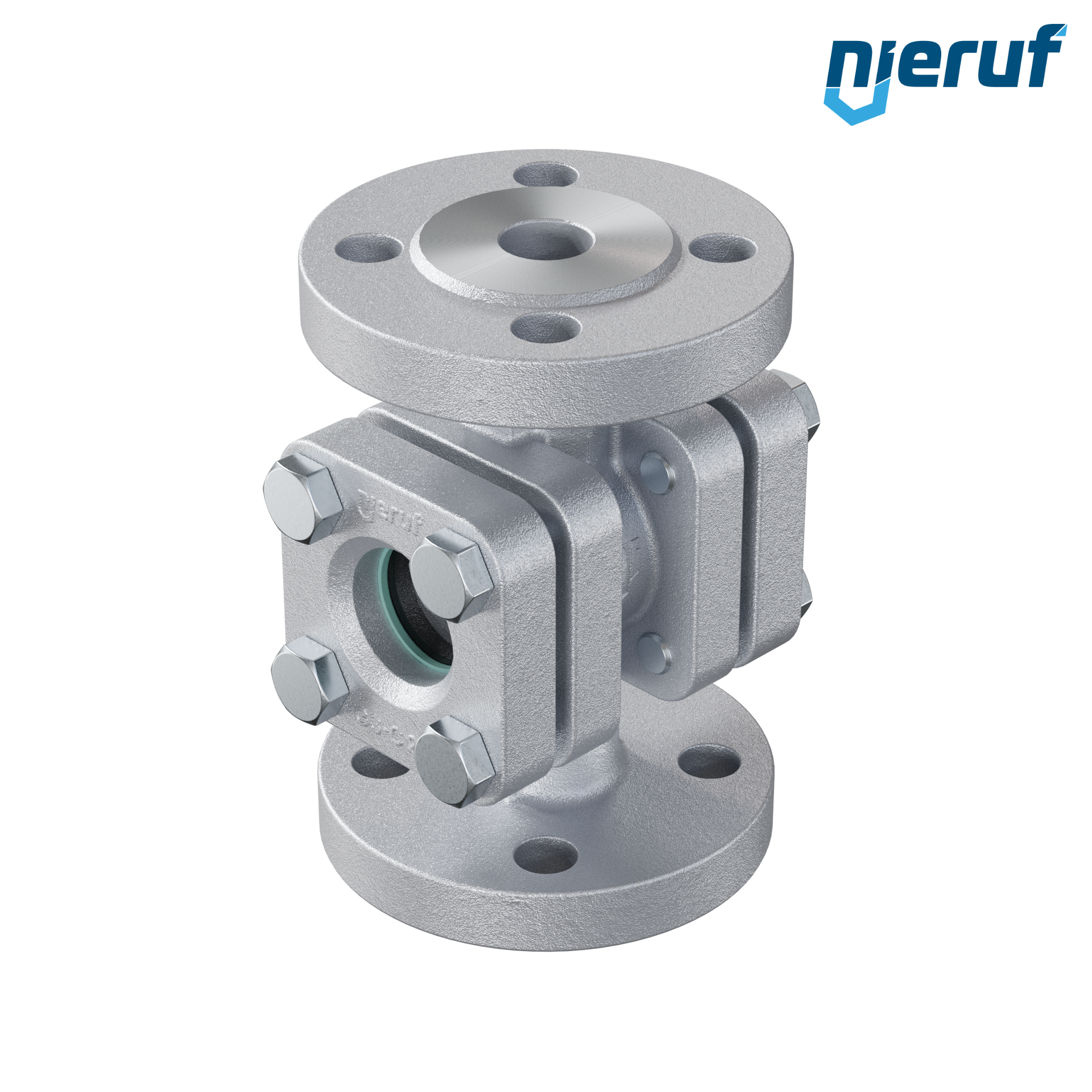

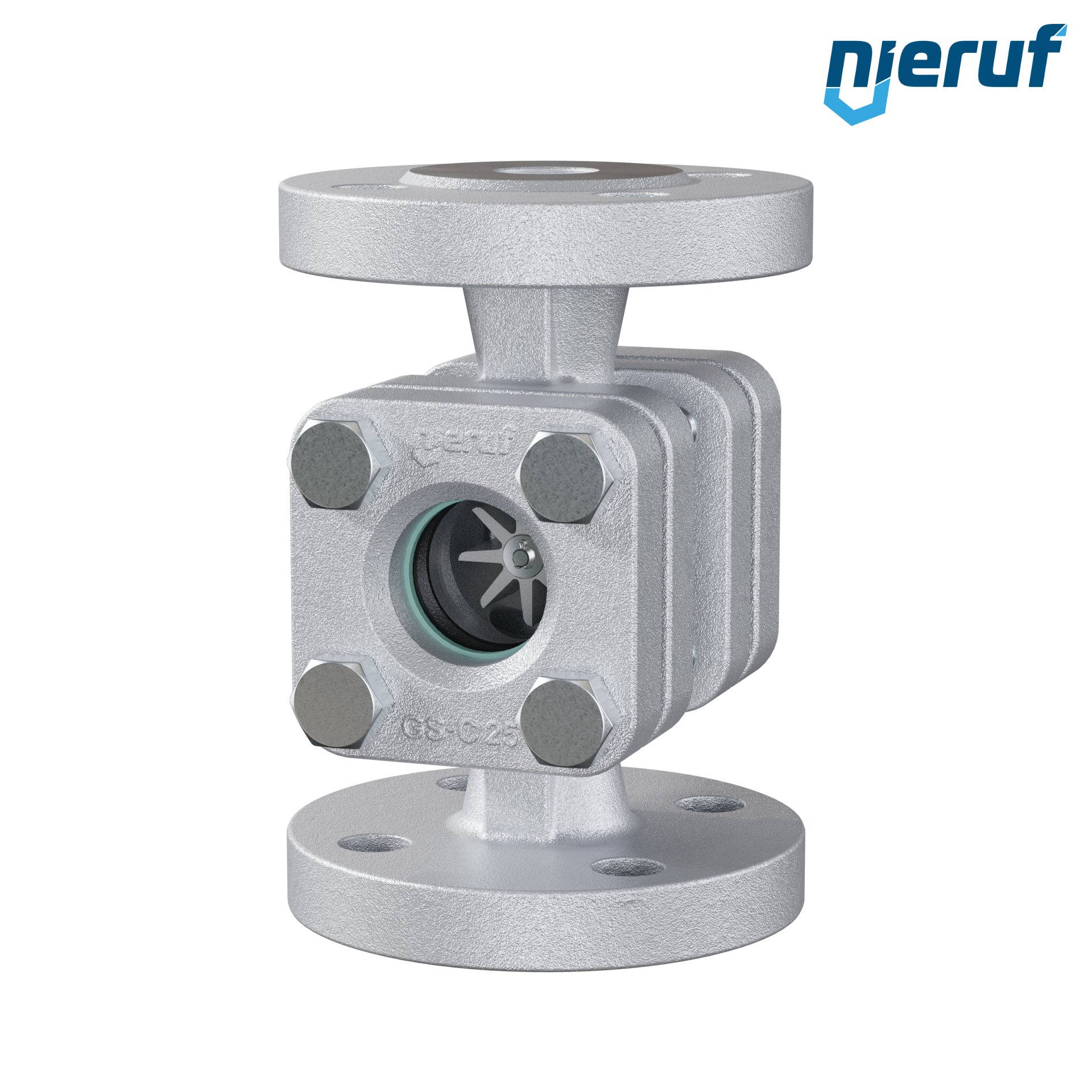

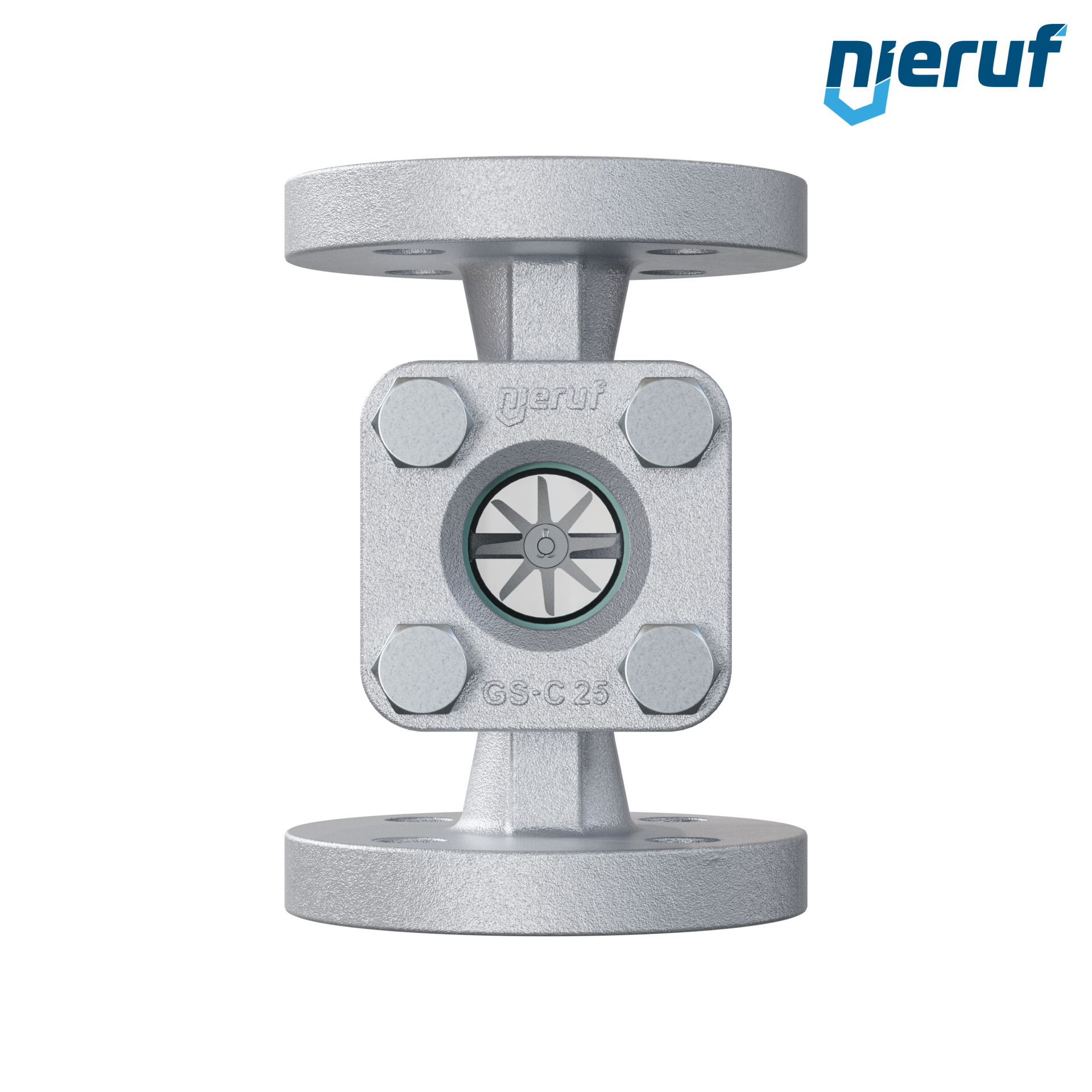

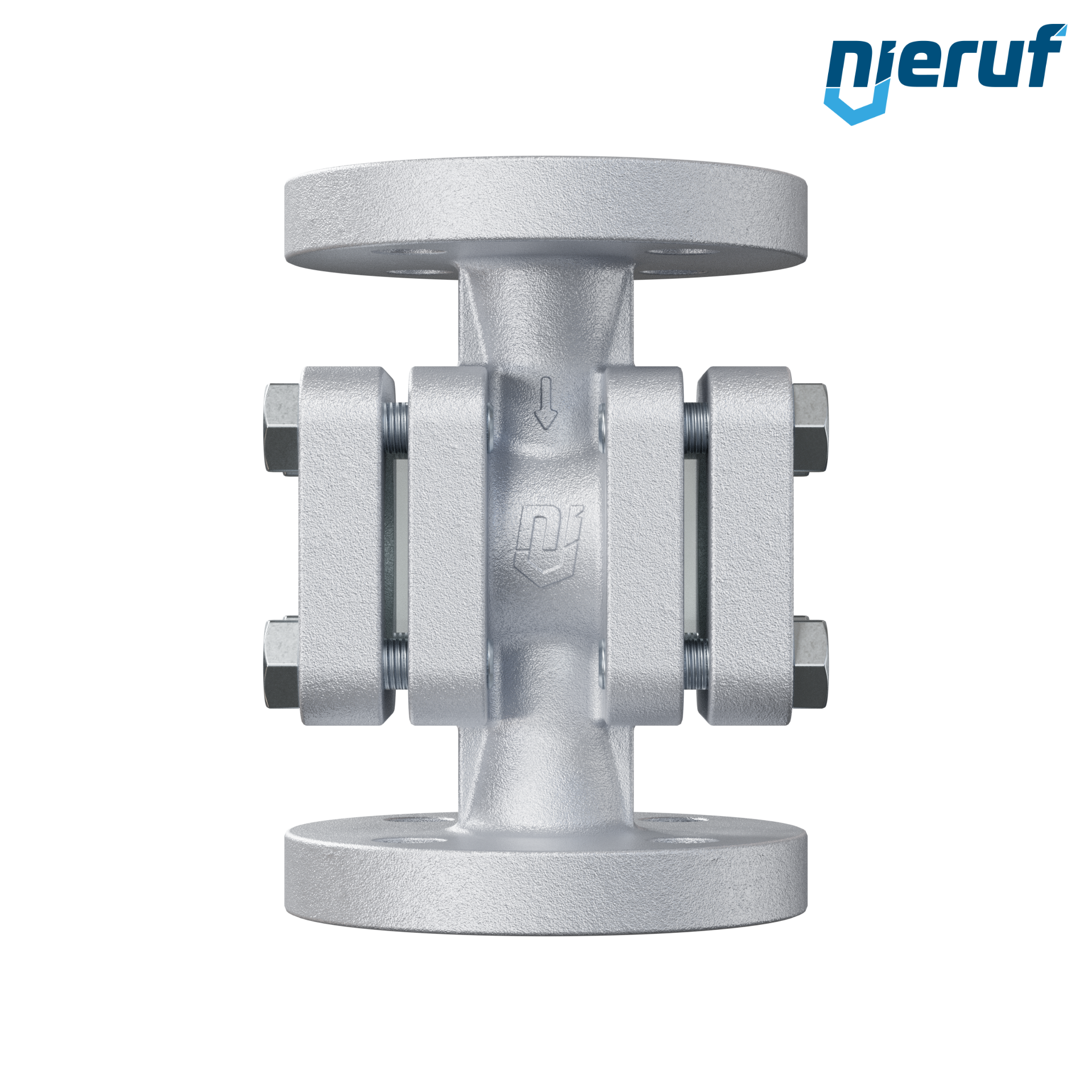

flange sight flow indicator DN20 GS - C25 soda lime glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€14.40 VAT included.
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
€2.14 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN20 GS - C25 soda lime glass version with PTFE-spinner
flange sight flow indicator 3/4" GS - C25 Typ FS02 soda lime glass max 16 bar design with PTFE-spinner
| product | flange sight flow indicator |
|---|---|
| type | FS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN20 |
| connection | flange PN16 |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | soda lime glass |
| seal | graphit |
| media | liquid media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN20 GS - C25 soda lime glass version with PTFE-spinner
Article no.
: FS02010204
product:
flange sight flow indicator
type:
FS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN20
connection:
flange PN16
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
soda lime glass
seal:
graphit
media:
liquid media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with PTFE-spinner
Equipment
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
Lead time: in stock
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
Lead time: in stock
pipe bend (welded) 90° 26,9 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 33,7 x 2,0 to 21,3 x 1,6 stainless steel 1.4571
Lead time: in stock
