FS03020203

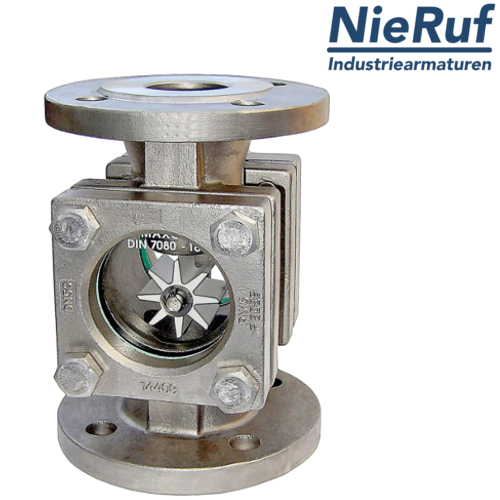

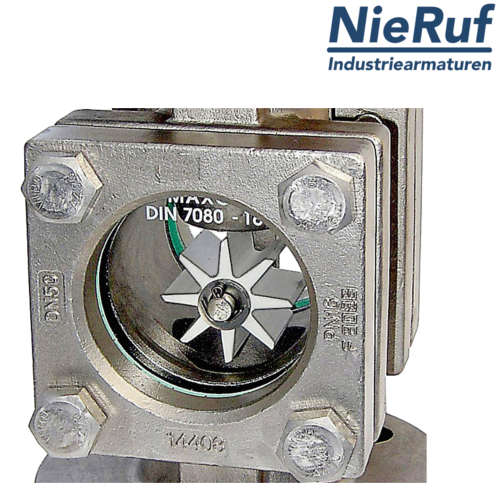

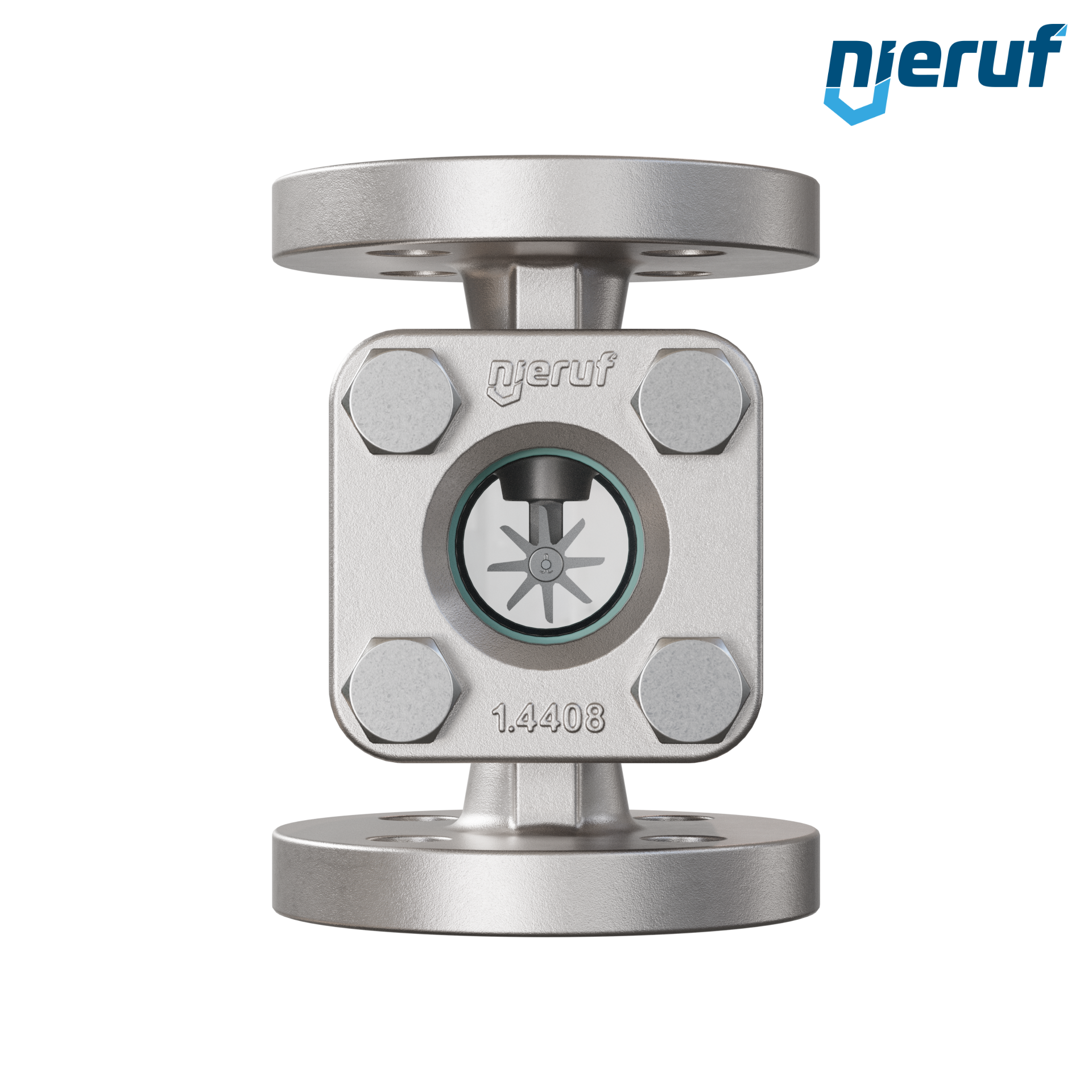

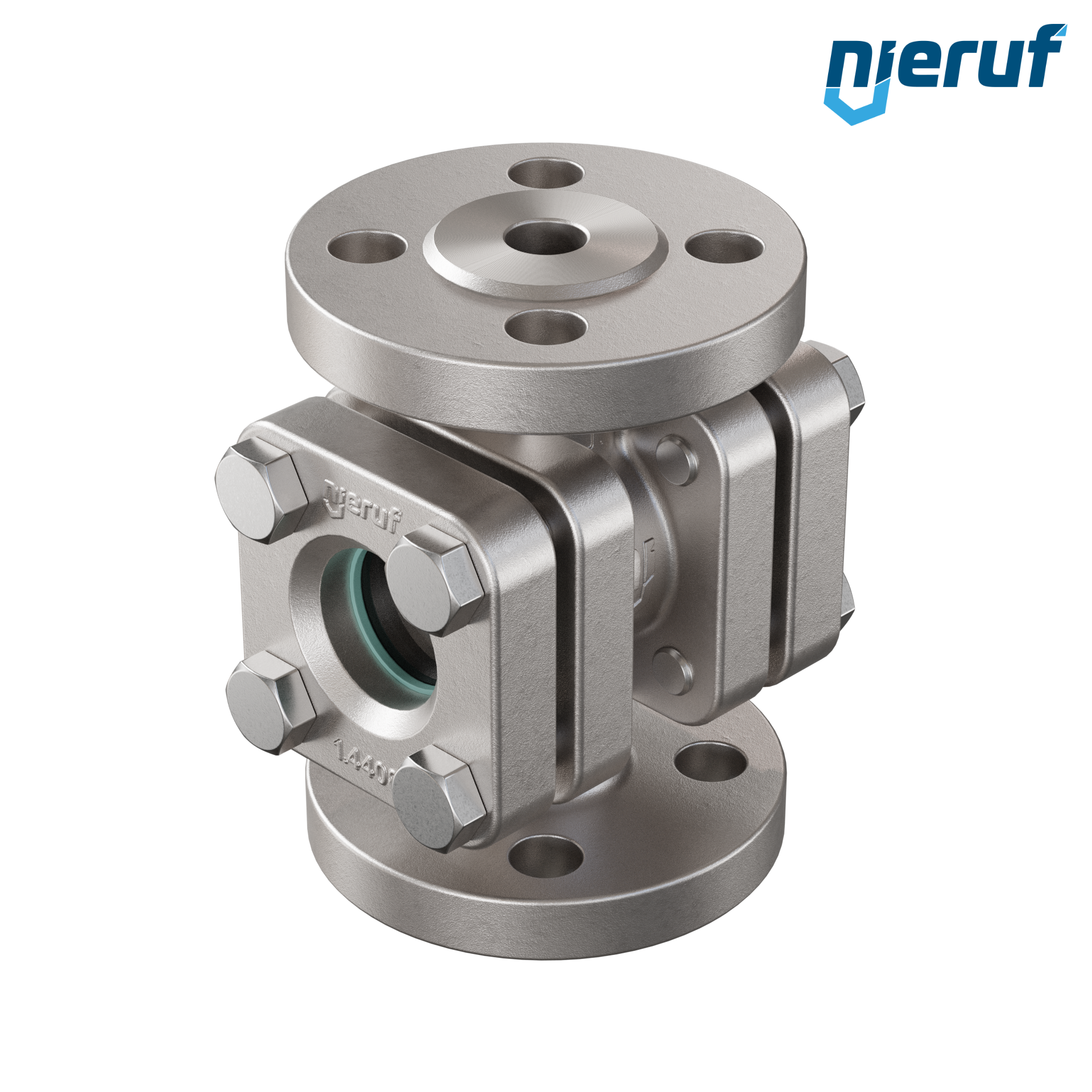

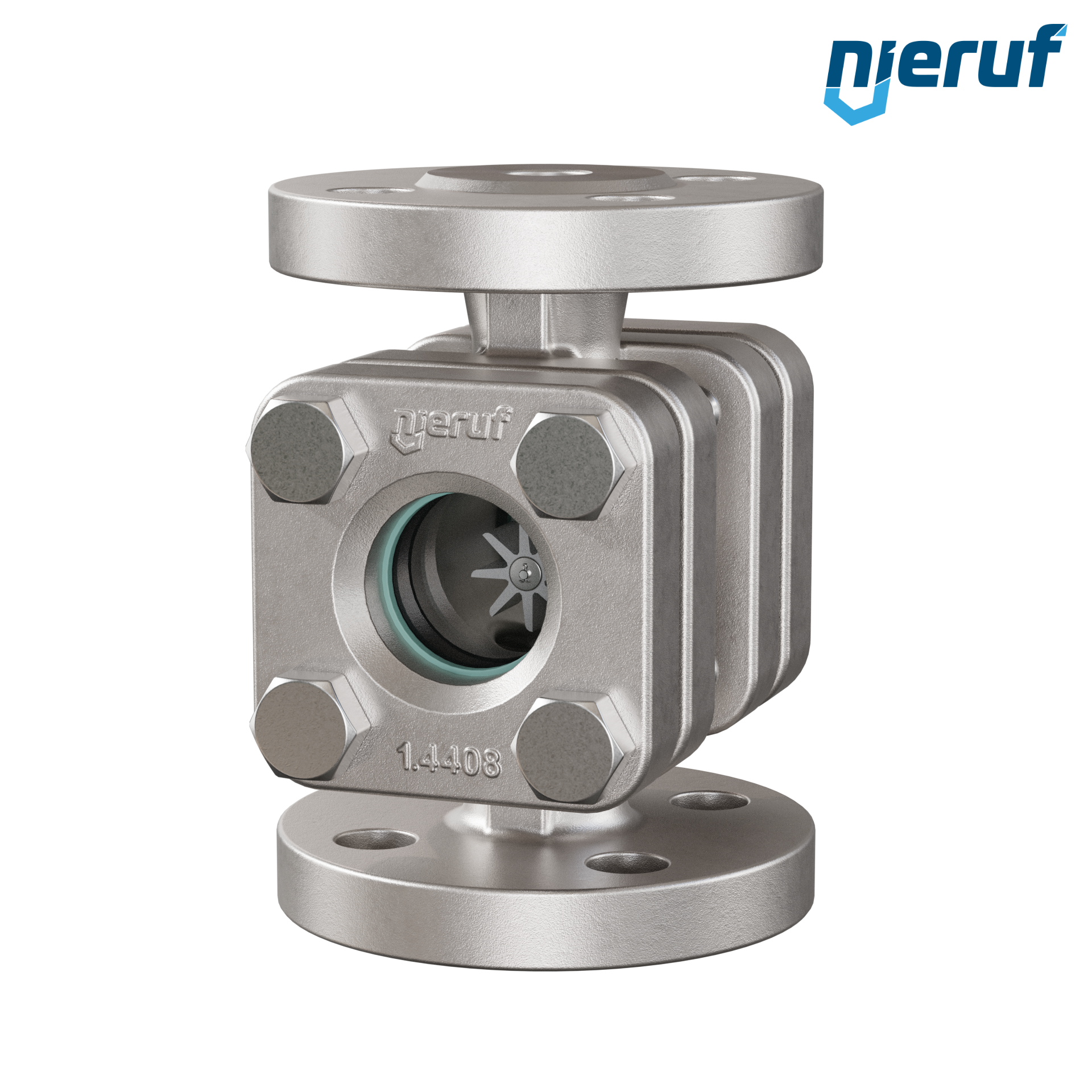

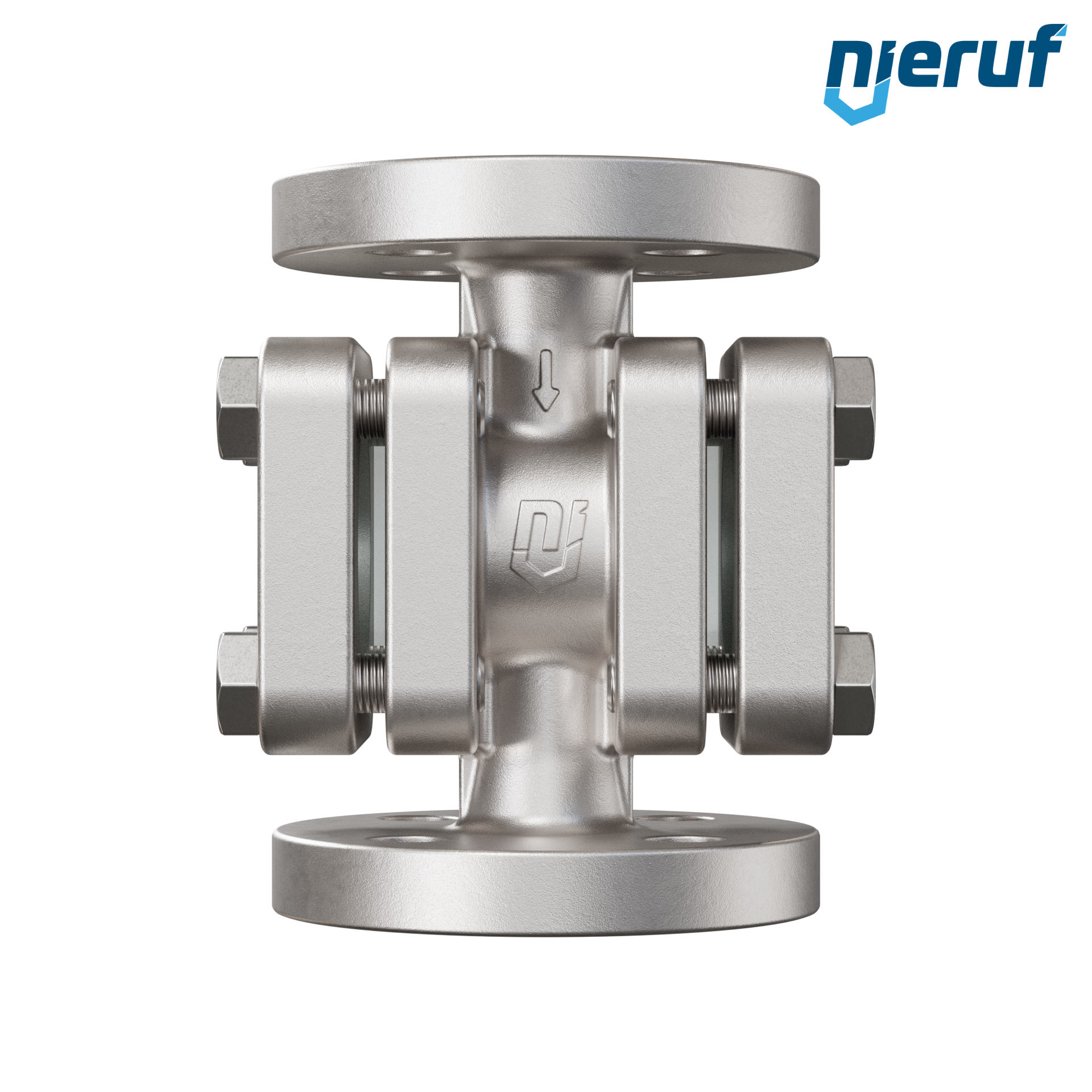

flange sight flow indicator DN15 stainless steel borosilicate glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
sight glass round SG01 Ø 45 x 10 mm round DIN 7080 - 40
€19.52 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
Welding neck flange DN15 PN10/16/25/40 EN1092-1 11 B1 1.4541
€13.33 VAT included.
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN15 stainless steel borosilicate glass version with PTFE-spinner
flange sight flow indicator DN15 stainless steel PTFE-spinner Typ FS03 borosilicate glass graphit max 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN15 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid media |
| temperature | -60°C up to + 280°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN15 stainless steel borosilicate glass version with PTFE-spinner
Article no.
: FS03020203
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN15
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
borosilicate glass
seal:
graphit
media:
liquid media
temperature:
-60°C up to + 280°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
any position
product feature:
version with PTFE-spinner
Equipment
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN15 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
pipe bend (welded) 90° 21,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 26,9 x 2,0 to 21,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
