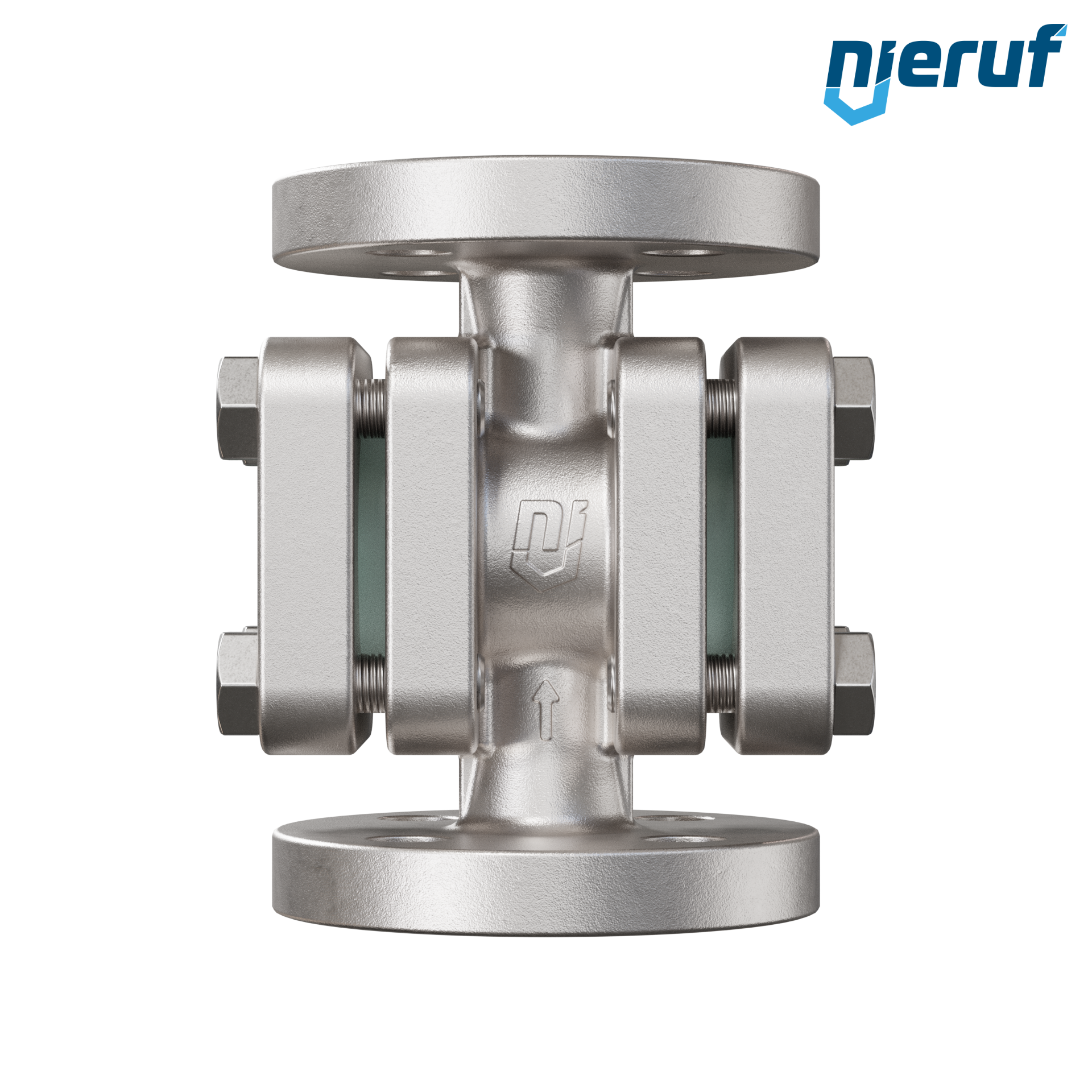

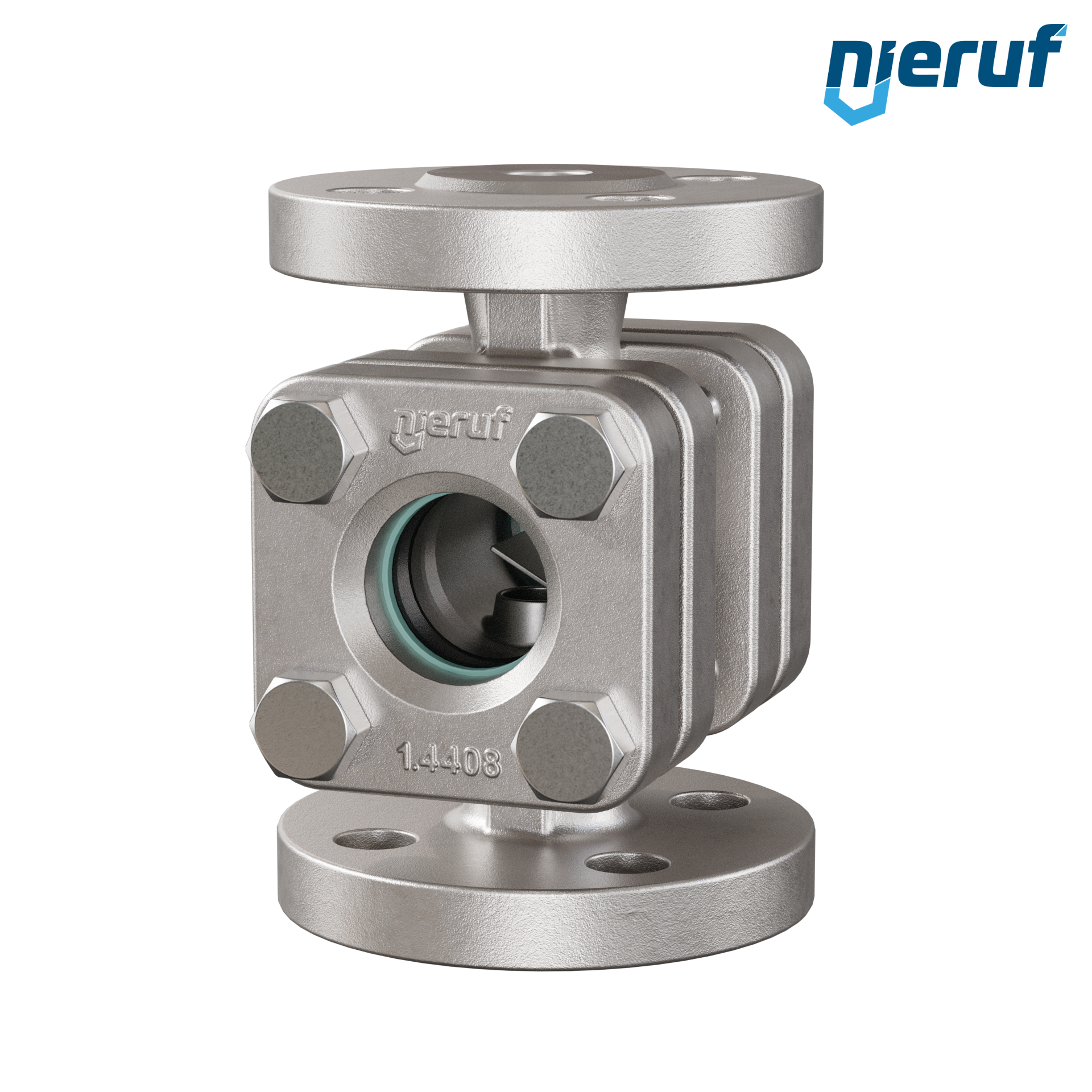

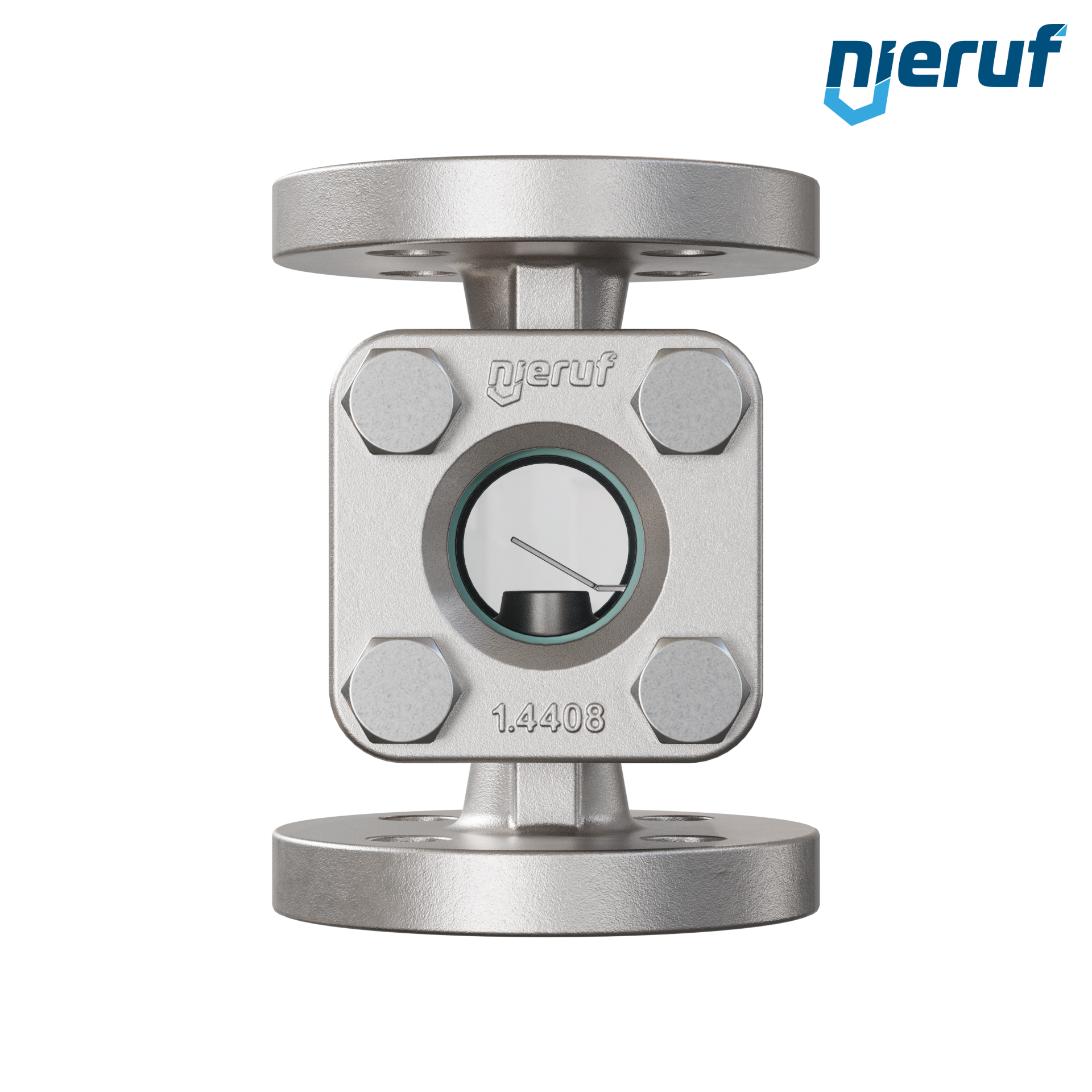

flange sight flow indicator DN15 - 1/2" Inch stainless steel borosilicate glass design with disc

FS03020103
quantity (pcs.):
293.90€ * 349.74€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
flange sight flow indicator DN15 - 1/2" Inch stainless steel borosilicate glass design with disc
flange sight flow indicator DN15 stainless steel borosilicate glass Typ FS03 borosilicate glass graphit max 16 bar
design: straightway form
diameter: DN15 - 1/2" Inch
connection: flange PN16
body material: stainless steel
cover material: stainless steel
glass: borosilicate glass
seal: graphit
media: liquid and gaseous media
temperature: min -60°C up to max + 280°C
max. working pressure: max 16 bar
requirements: DIN 3237
installation position: horizontal or vertikal with direction of flow from the bottom up
product feature: design with disc
flange sight flow indicator DN15 - 1/2" Inch stainless steel borosilicate glass design with disc

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

flange sight flow indicator DN15 - 1/2" Inch stainless steel borosilicate glass design with disc
