FS02010103

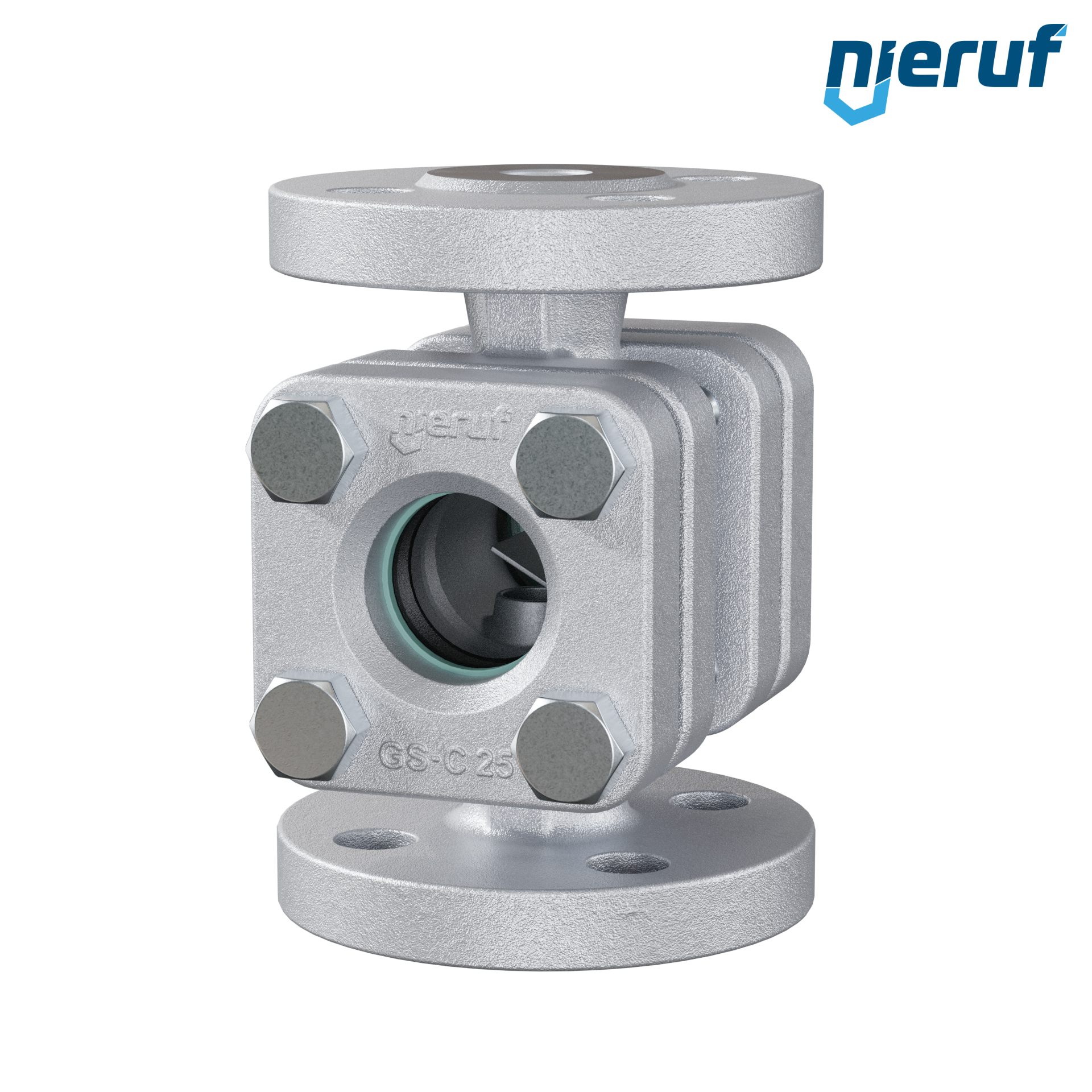

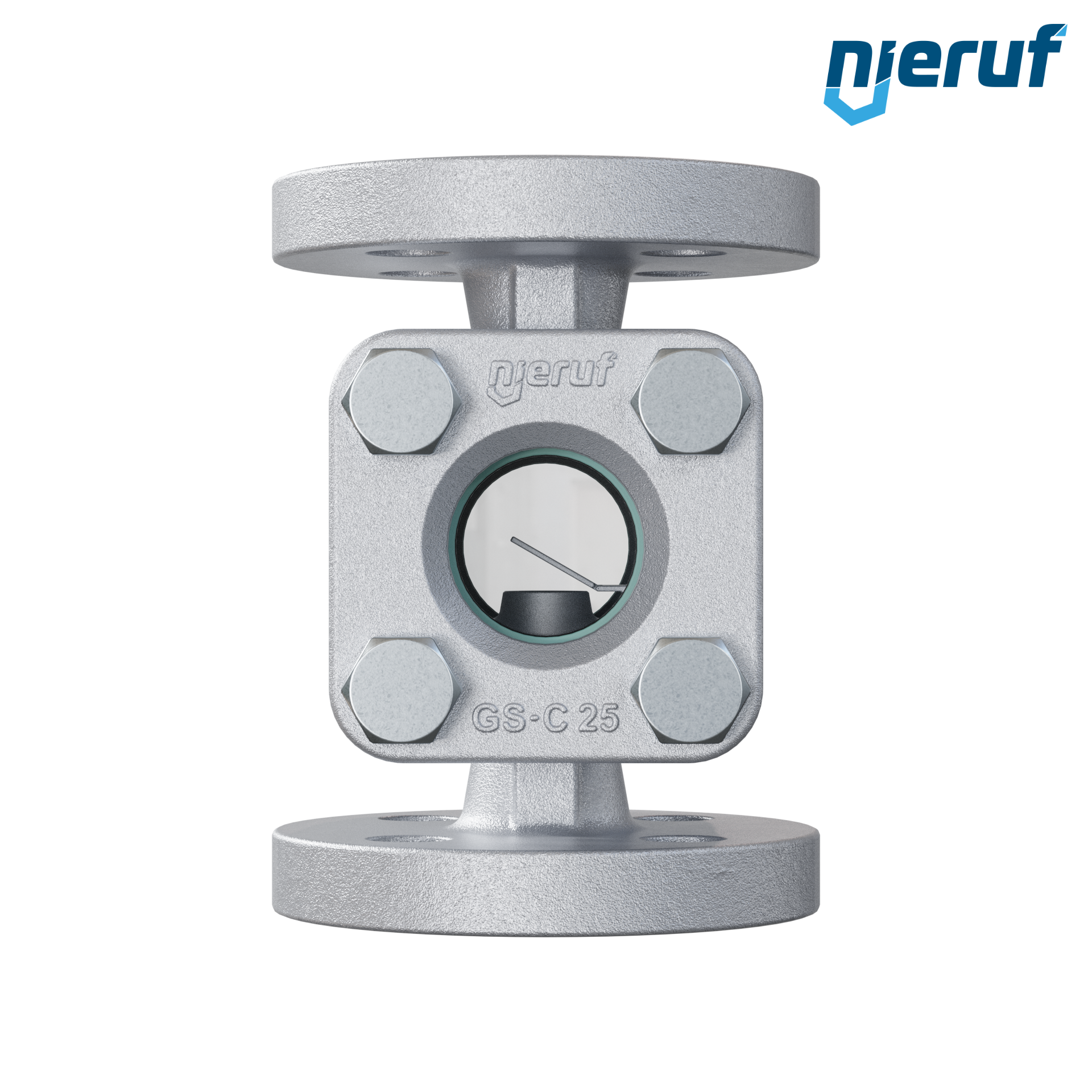

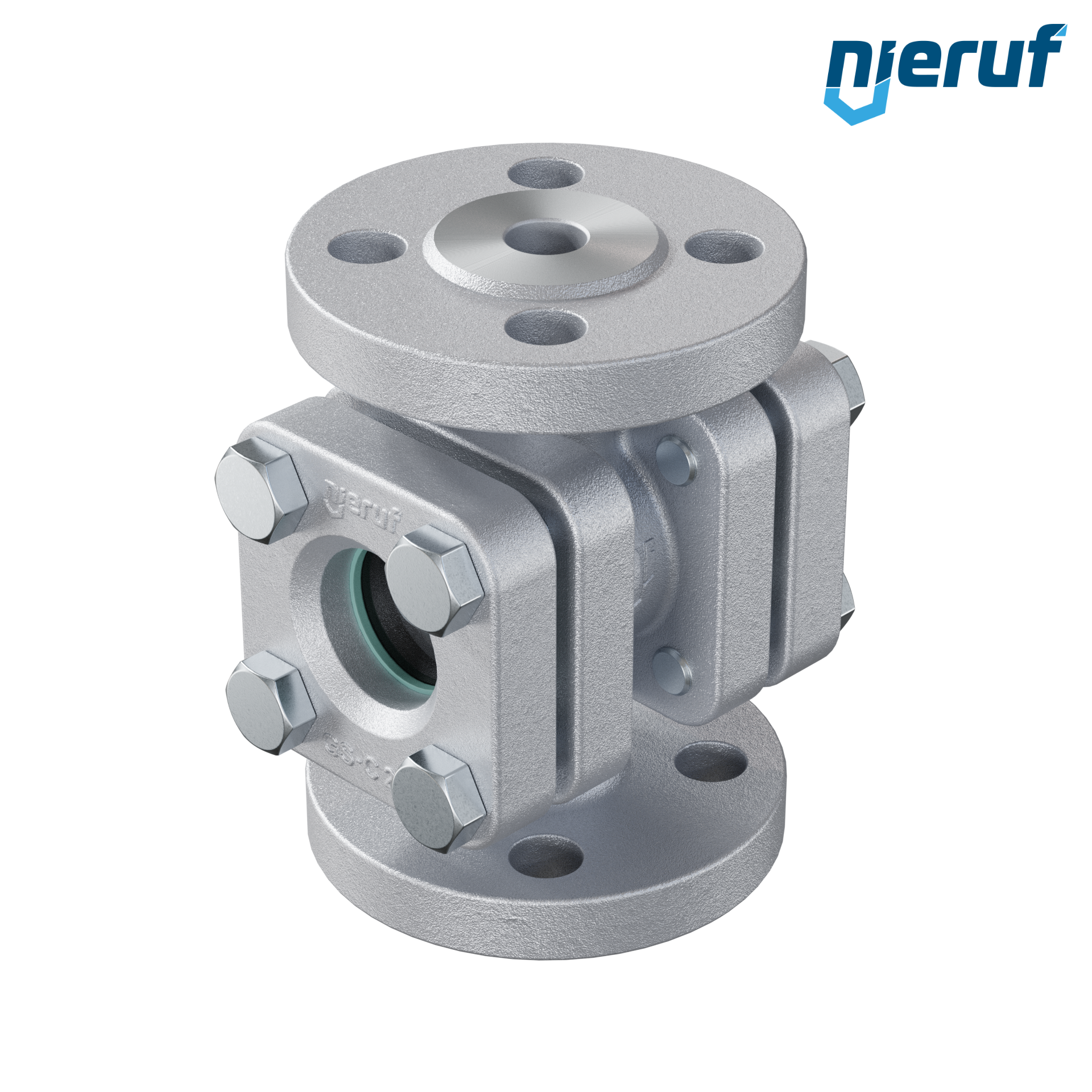

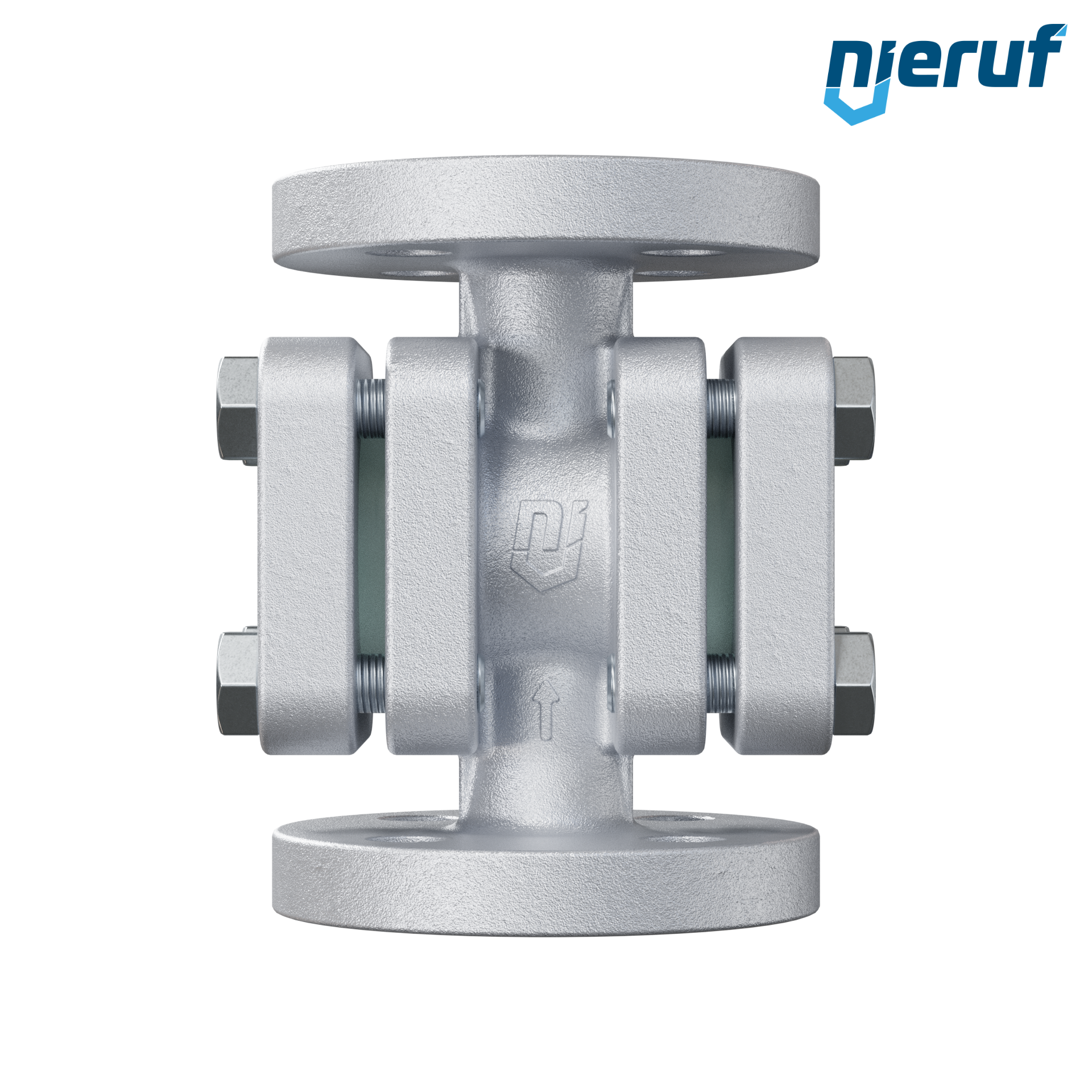

flange sight flow indicator DN15 GS - C25 soda lime glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€11.19 VAT included.
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
€2.38 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
flange sight flow indicator DN15 GS - C25 soda lime glass version with flap
flange sight flow indicator DN15 - 1/2" Inch GS - C25 Typ FS02 soda lime glass graphit max 16 bar version with flap
| product | flange sight flow indicator |
|---|---|
| type | FS02 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN15 |
| connection | flange PN16 |
| body material | carbon steel 1.0619 / WCB |
| cover material | carbon steel 1.0619 / WCB |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN15 GS - C25 soda lime glass version with flap
Article no.
: FS02010103
product:
flange sight flow indicator
type:
FS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN15
connection:
flange PN16
body material:
carbon steel 1.0619 / WCB
cover material:
carbon steel 1.0619 / WCB
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
Equipment
flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400
Lead time: in stock
Flange DN15 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
Lead time: in stock
pipe bend (welded) 90° 21,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 26,9 x 2,0 to 21,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
