- Delivery time
- 2 - 3 weeks
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
Questions about the article?
Downloads

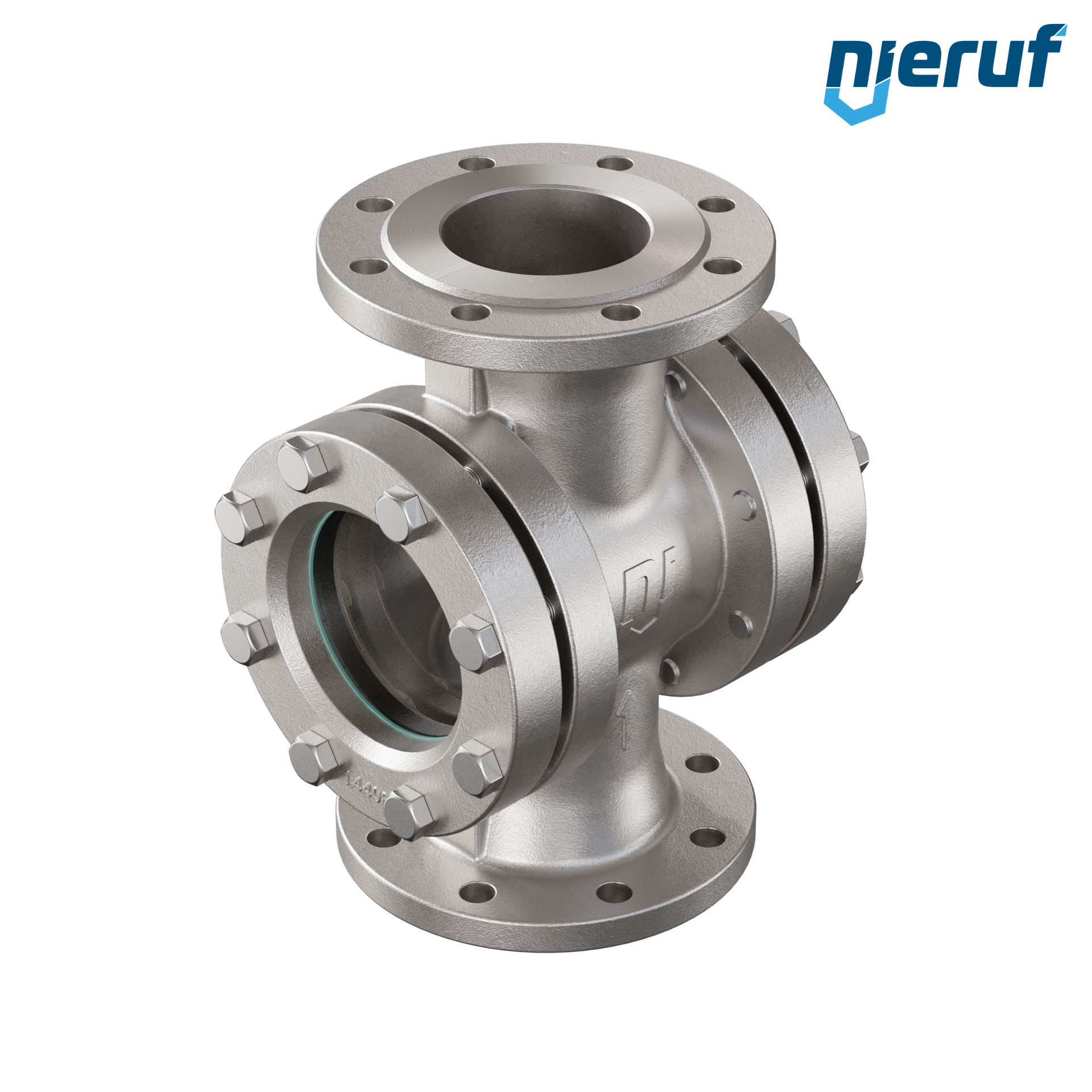

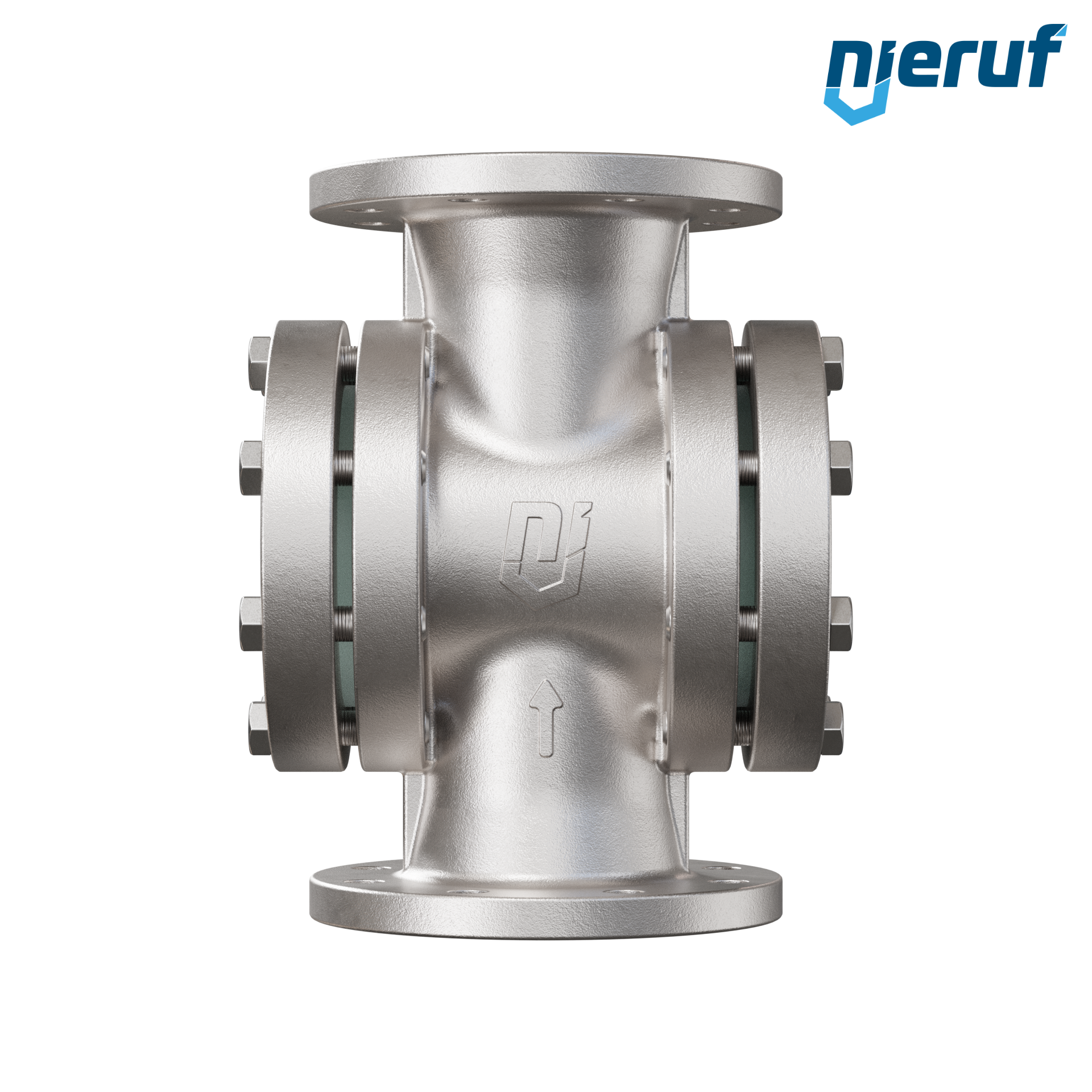

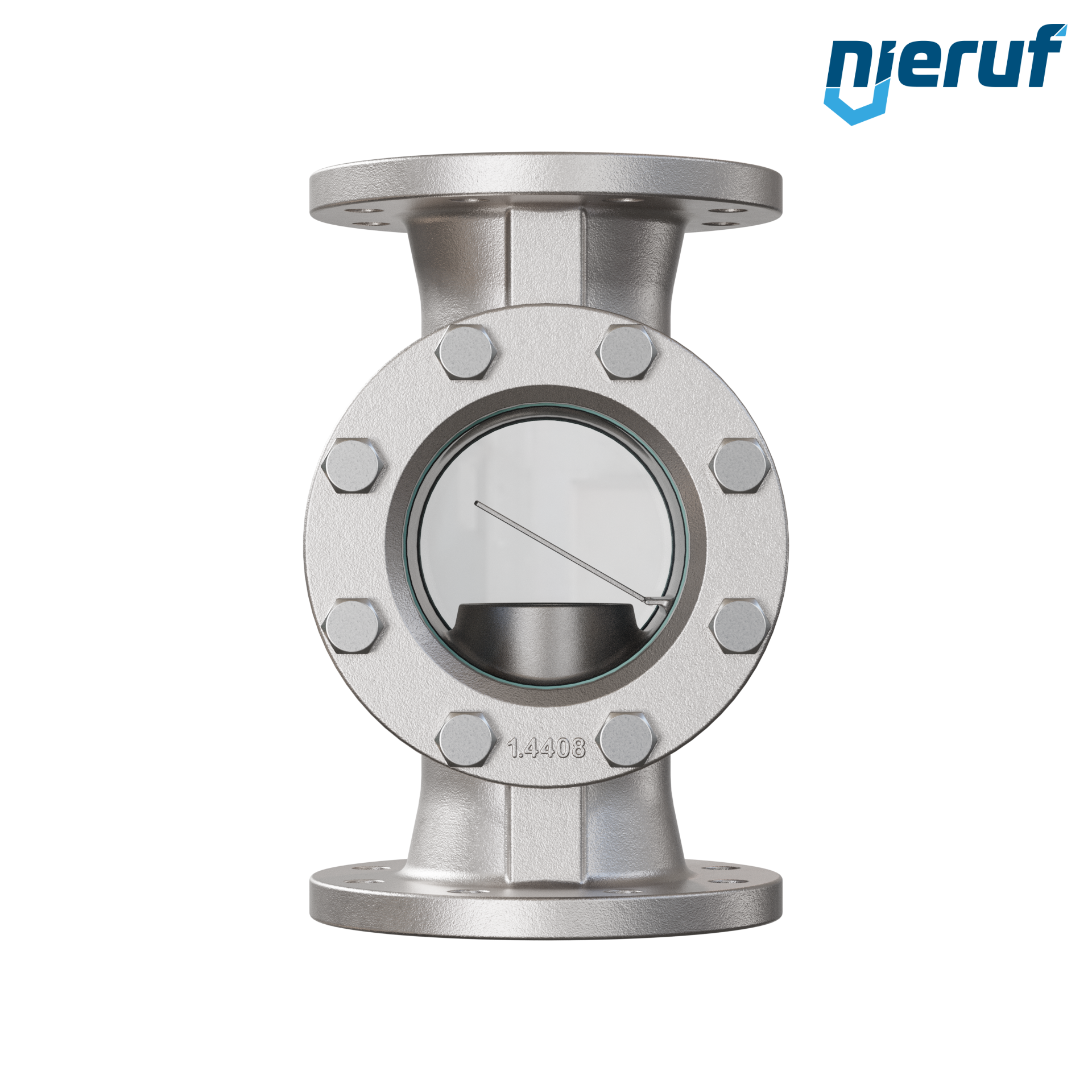

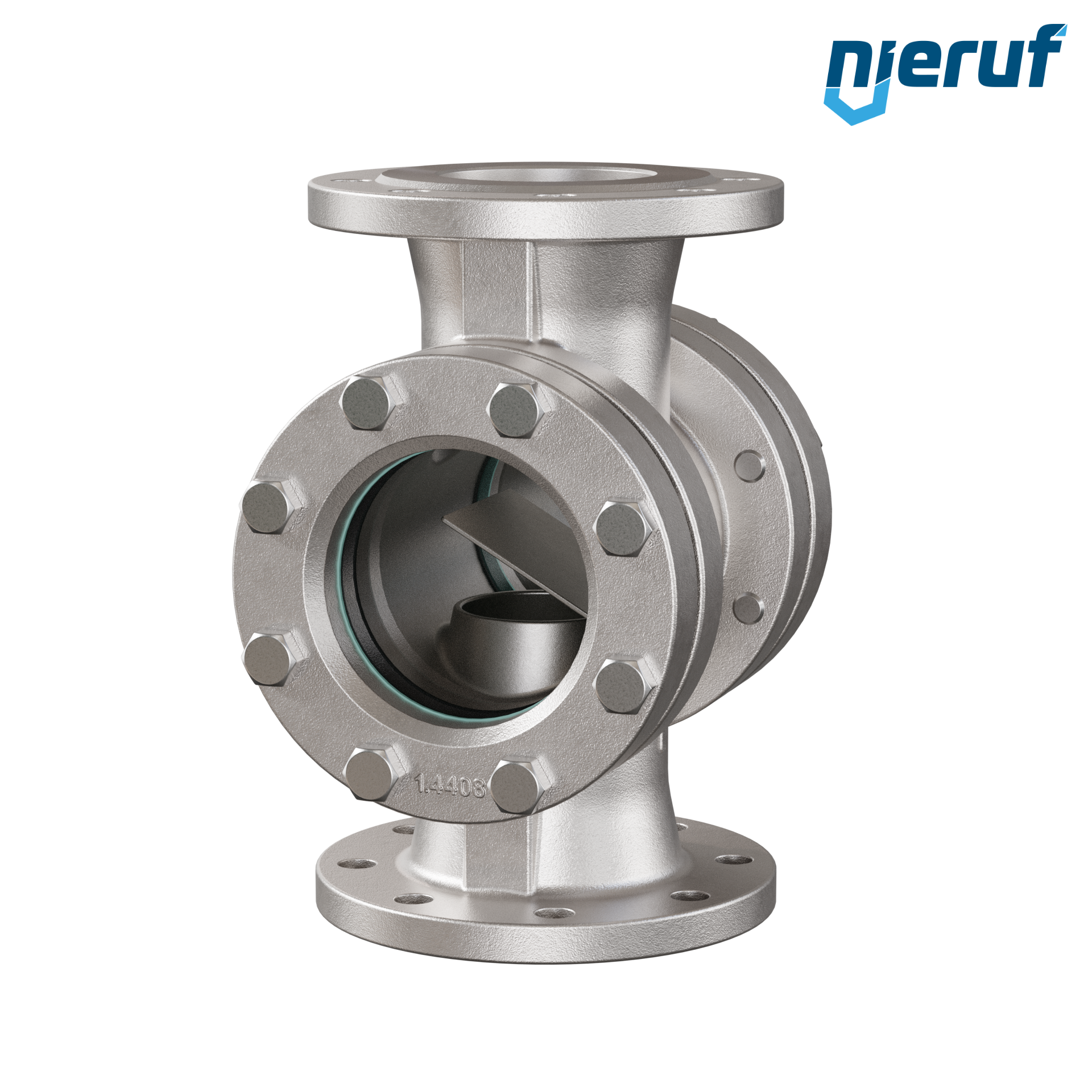

flange sight flow indicator DN100 stainless steel flap Typ FS03 soda lime glass max 16 bar version with flap
| product | flange sight flow indicator |
|---|---|
| type | FS03 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN100 |
| connection | flange PN16 |
| body material | stainless steel 1.4408 / CF8M |
| cover material | stainless steel 1.4408 / CF8M |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -60°C up to + 150°C |
| max. working pressure | 16 bar |
| requirements | DIN 3237 |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | design with disc |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN100 stainless steel soda lime glass version with flap
Article no.
: FS03010111
product:
flange sight flow indicator
type:
FS03
manufacturer:
NieRuf
design:
straightway form
diameter:
DN100
connection:
flange PN16
body material:
stainless steel 1.4408 / CF8M
cover material:
stainless steel 1.4408 / CF8M
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-60°C up to + 150°C
max. working pressure:
16 bar
requirements:
DIN 3237
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
design with disc
