SF07020205

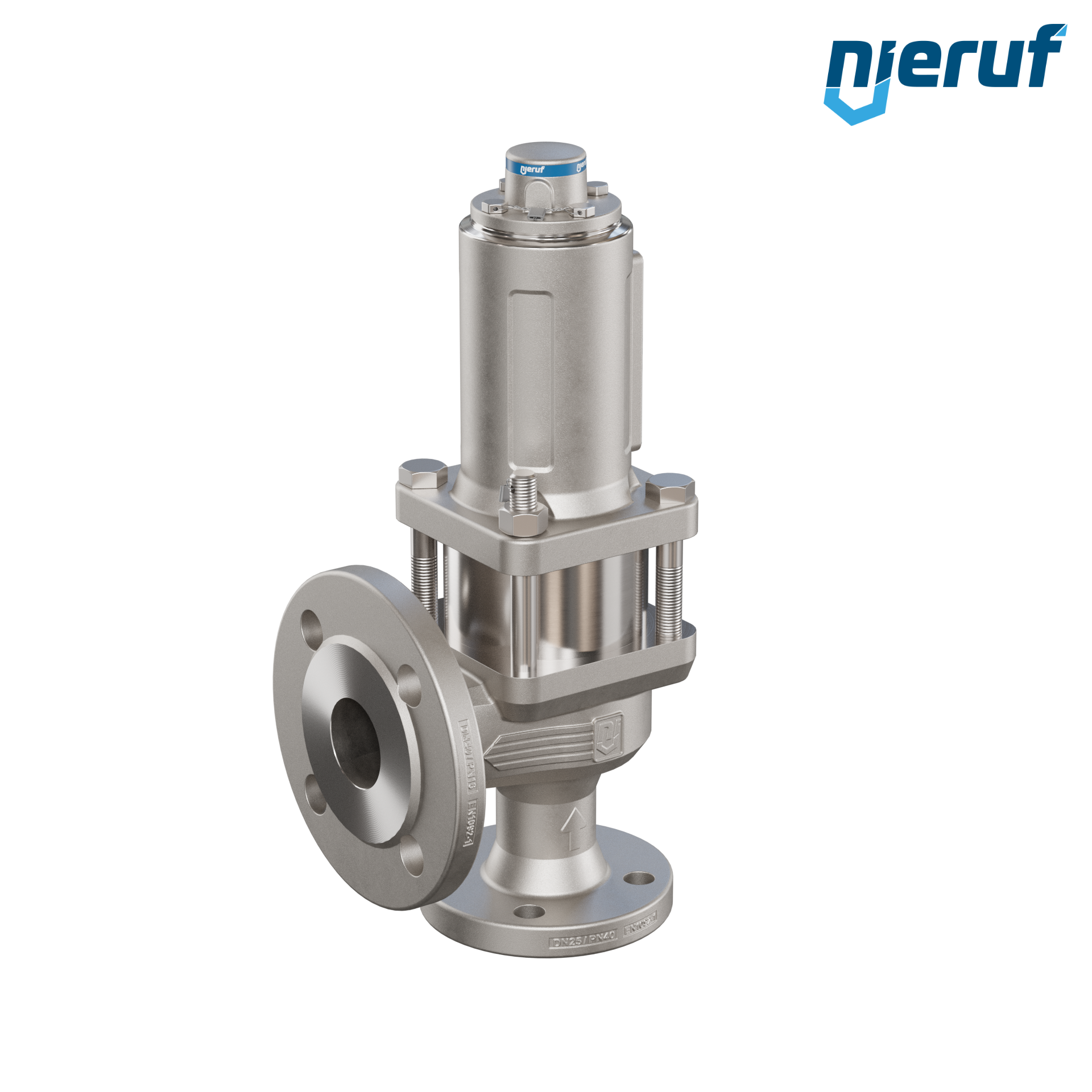

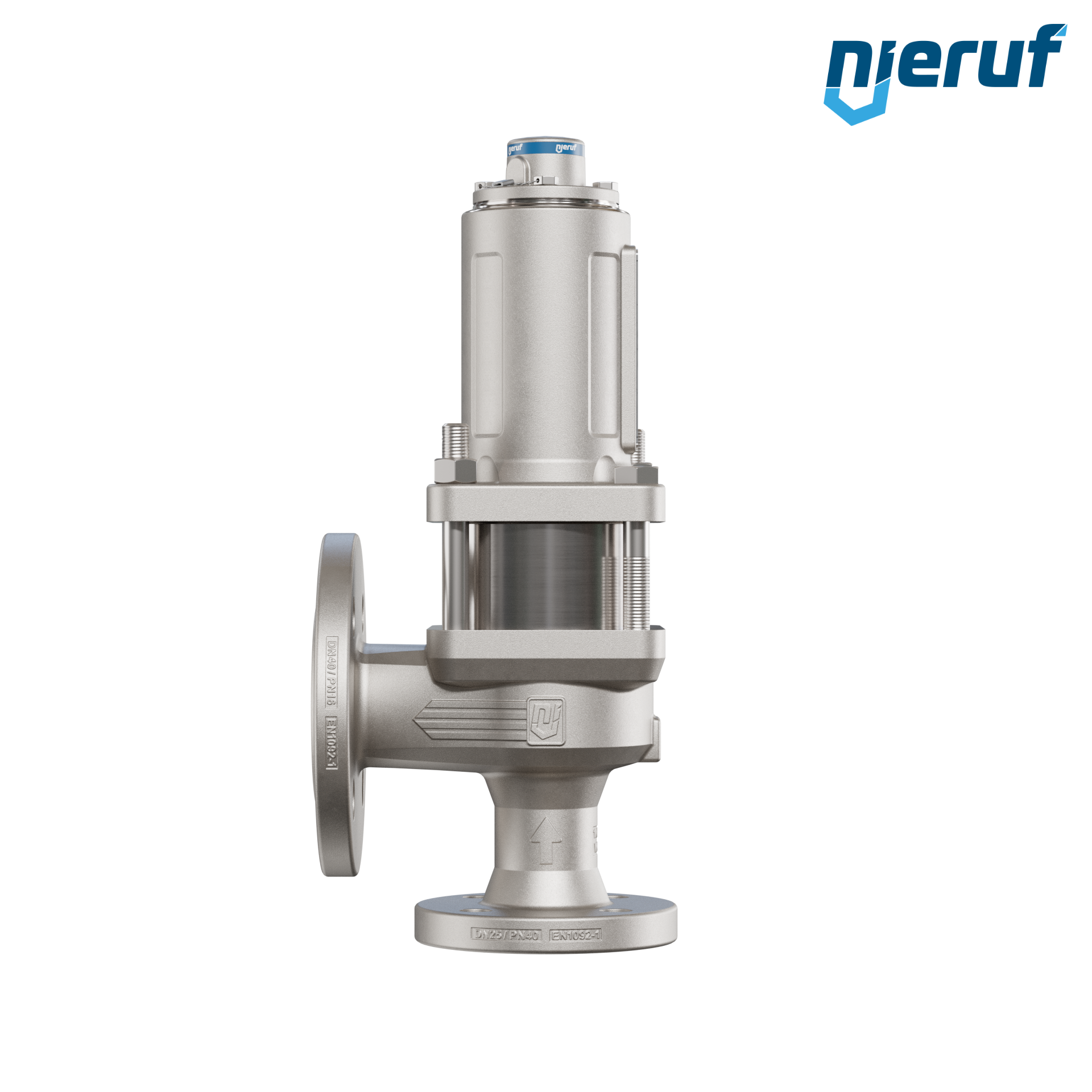

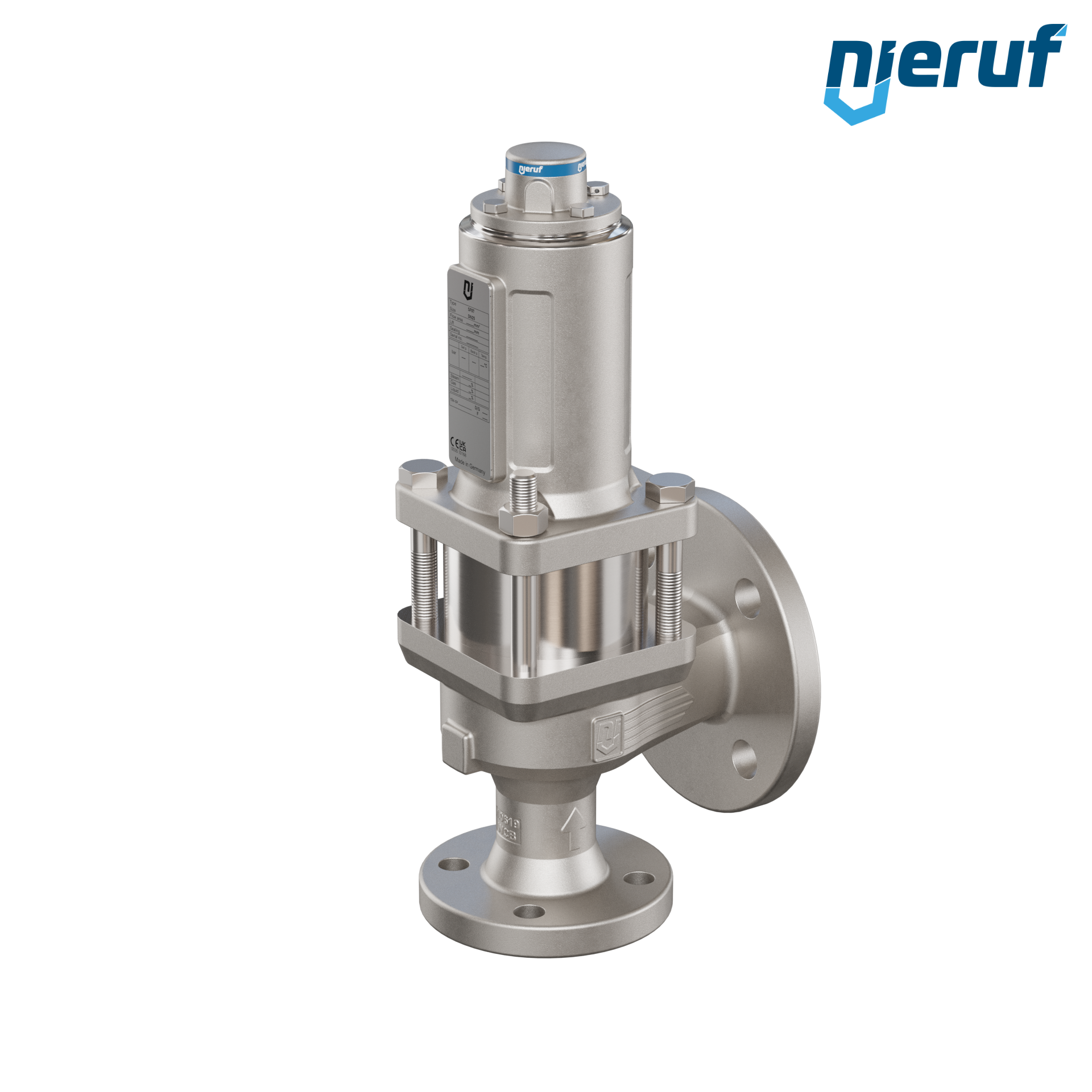

flange-safety valve gastight with bellow DN25/DN40 SF07, cast steel, FKM, without lifting device
- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
Certificates
Questions about the article?
flange-safety valve gastight DN25/DN40 SF07 for liquid and gaseous media made of cast steel, seal FKM set pressure 0,3 - 40,0 bar without lifting device with bellow
| product | flange-safety valve |
|---|---|
| type | SF07 |
| manufacturer | NieRuf |
| diameter | DN25/DN40 |
| d0 | 22,5 mm |
| connection | flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16 |
| seal | FKM |
| media | liquid and gaseous media |
| temperature | -20°C up to +200°C |
| set pressure | 0,3 - 40,0 bar |
| design | angle-type with bellow & gastight cap |
| material | cast steel 1.0619 / WCB |
| lifting | without lifting device |
| type test approval | TUV-SV-2094-D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Vertical, spindle standing upwards. Horizontal installation is also permitted, taking condensate derivation into account. |
| product feature 1 | Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve |
| product feature 2 | for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve gastight with bellow DN25/DN40 SF07, cast steel, FKM, without lifting device
Article no.
: SF07020205
product:
flange-safety valve
type:
SF07
manufacturer:
NieRuf
diameter:
DN25/DN40
d0:
22,5 mm
connection:
flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16
seal:
FKM
media:
liquid and gaseous media
temperature:
-20°C up to +200°C
set pressure:
0,3 - 40,0 bar
design:
angle-type with bellow & gastight cap
material:
cast steel 1.0619 / WCB
lifting:
without lifting device
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Vertical, spindle standing upwards. Horizontal installation is also permitted, taking condensate derivation into account.
product feature 1:
Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve
product feature 2:
for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium.
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
Delivery time: in stock
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
Delivery time: in stock
