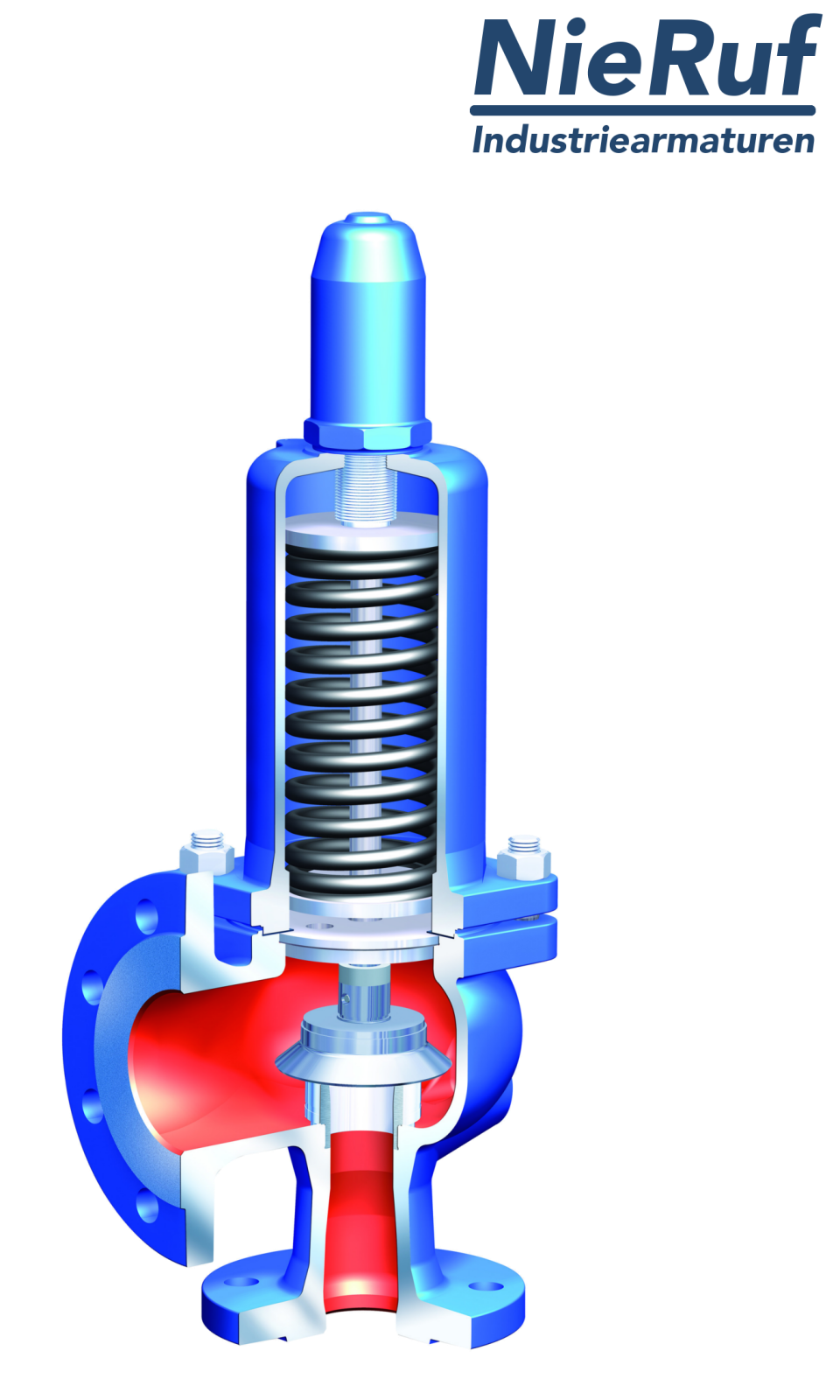

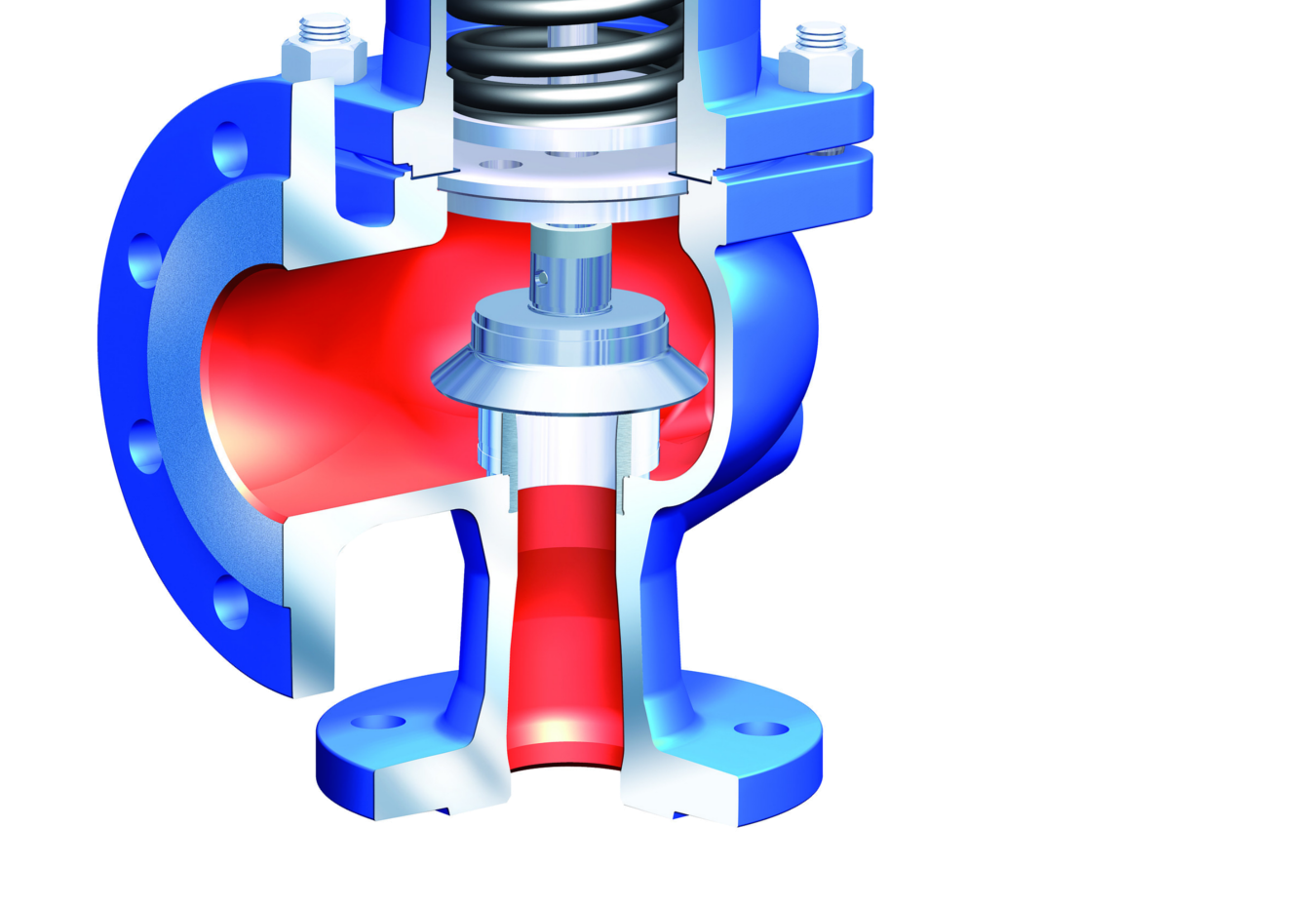

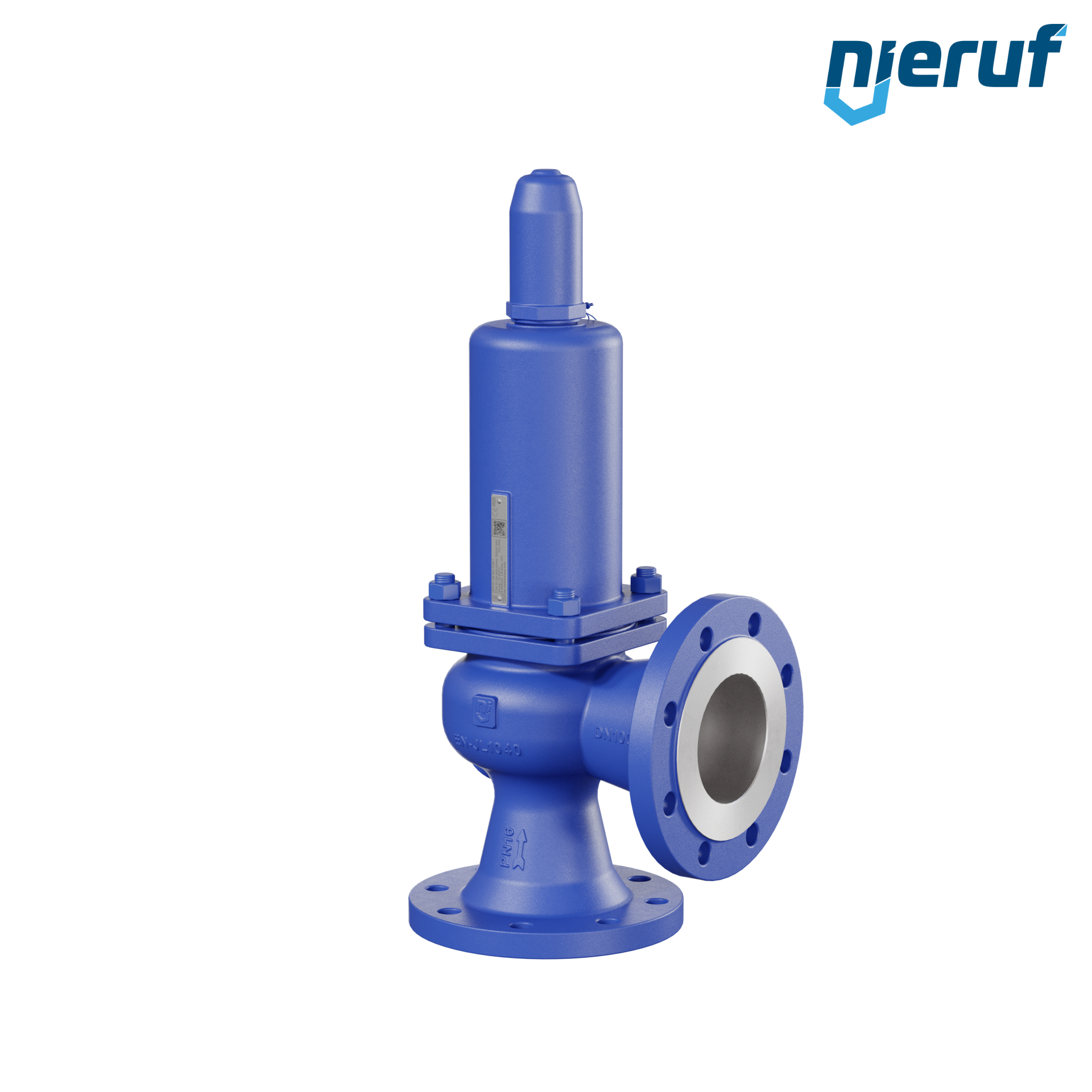

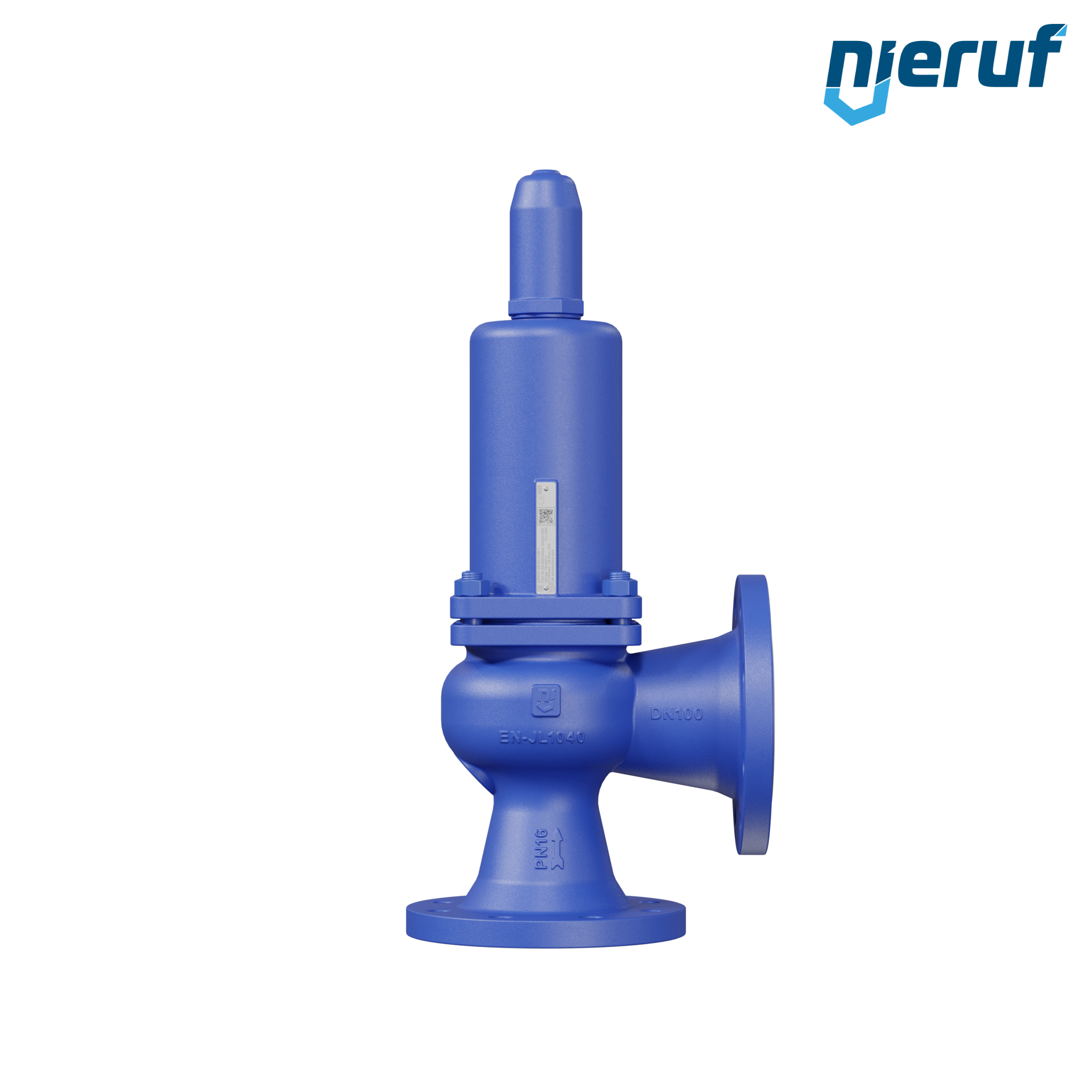

flange-safety valve DN100/DN100 SF0101, cast iron EN-JL1040 metal, without lever

SF01010011
quantity (pcs.):
1,032.60€ * 1,228.79€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3 - 4 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
flange-safety valve DN100/DN100 SF0101, cast iron EN-JL1040 metal, without lever
flange-safety valve DN100/DN100 without lever gastight cap and closed bonnet for liquid and gaseous media made of cast iro seal metal
diameter: DN100/DN100
d0: 55,0 mm
connection: flange acc. to DIN EN 1092-2
seal: metal
media: liquid and gaseous media
temperature: - 10°C up to + 300°C
set pressure: 0,2 up to max. 16 bar

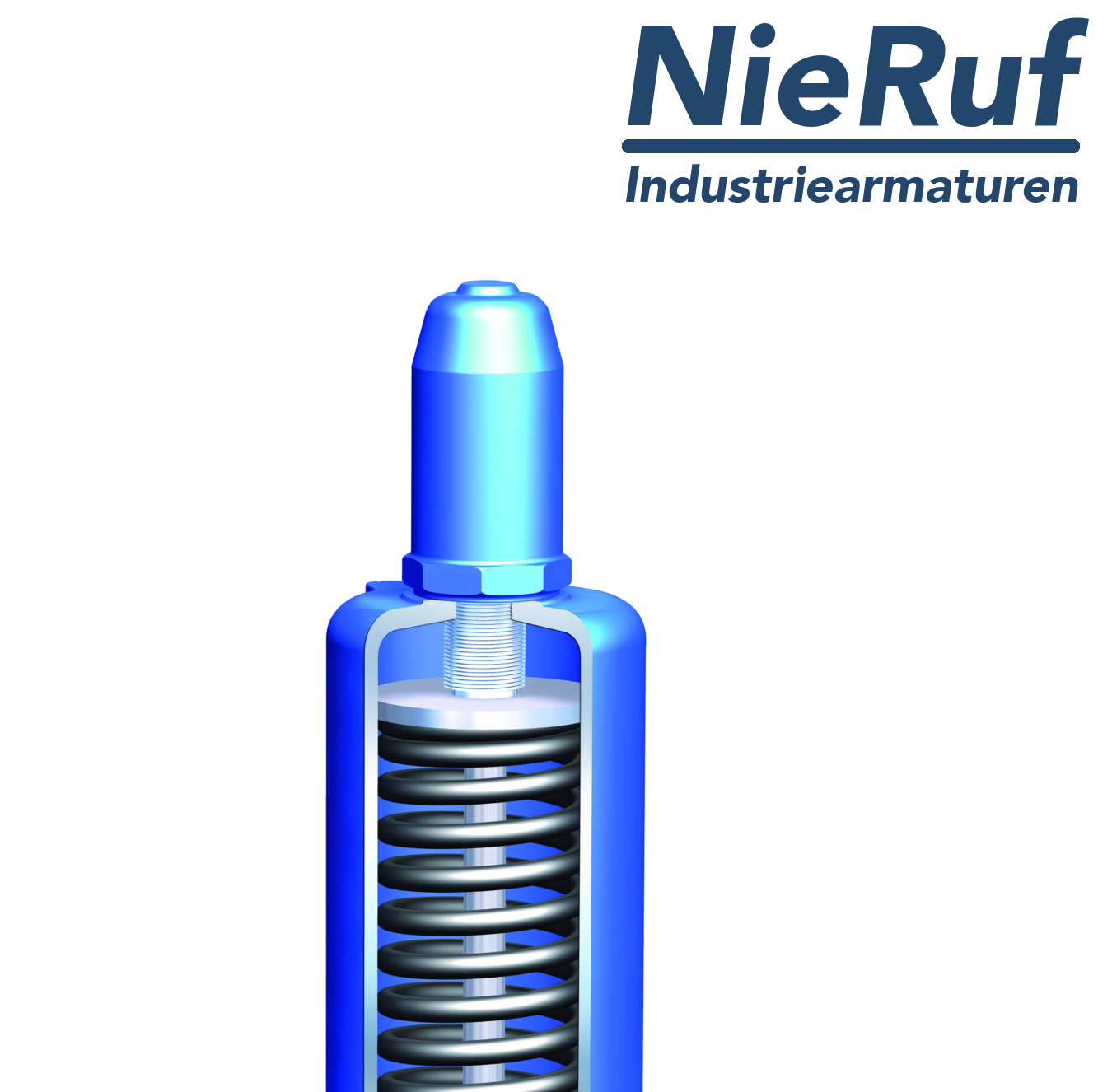

design: gastight cap and closed bonnet
material: cast iron EN-JL1040
lifting: without lever
type test approval: TÜV-SV-811 D/G/F
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: vertical, spindle standing upwards
product feature 1: safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
flange-safety valve DN100/DN100 SF0101, cast iron EN-JL1040 metal, without lever

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

flange-safety valve DN100/DN100 SF0101, cast iron EN-JL1040 metal, without lever
