SF06110009

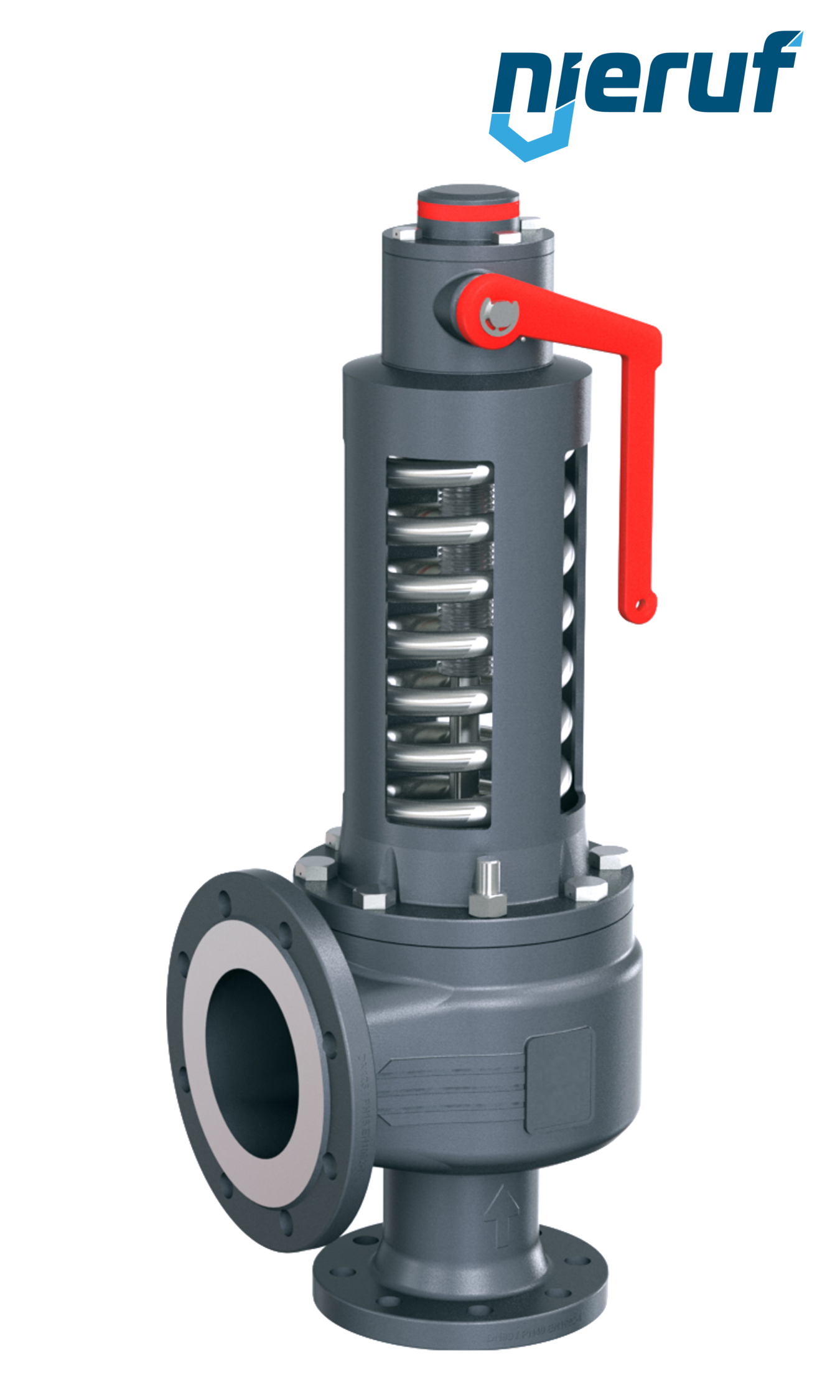

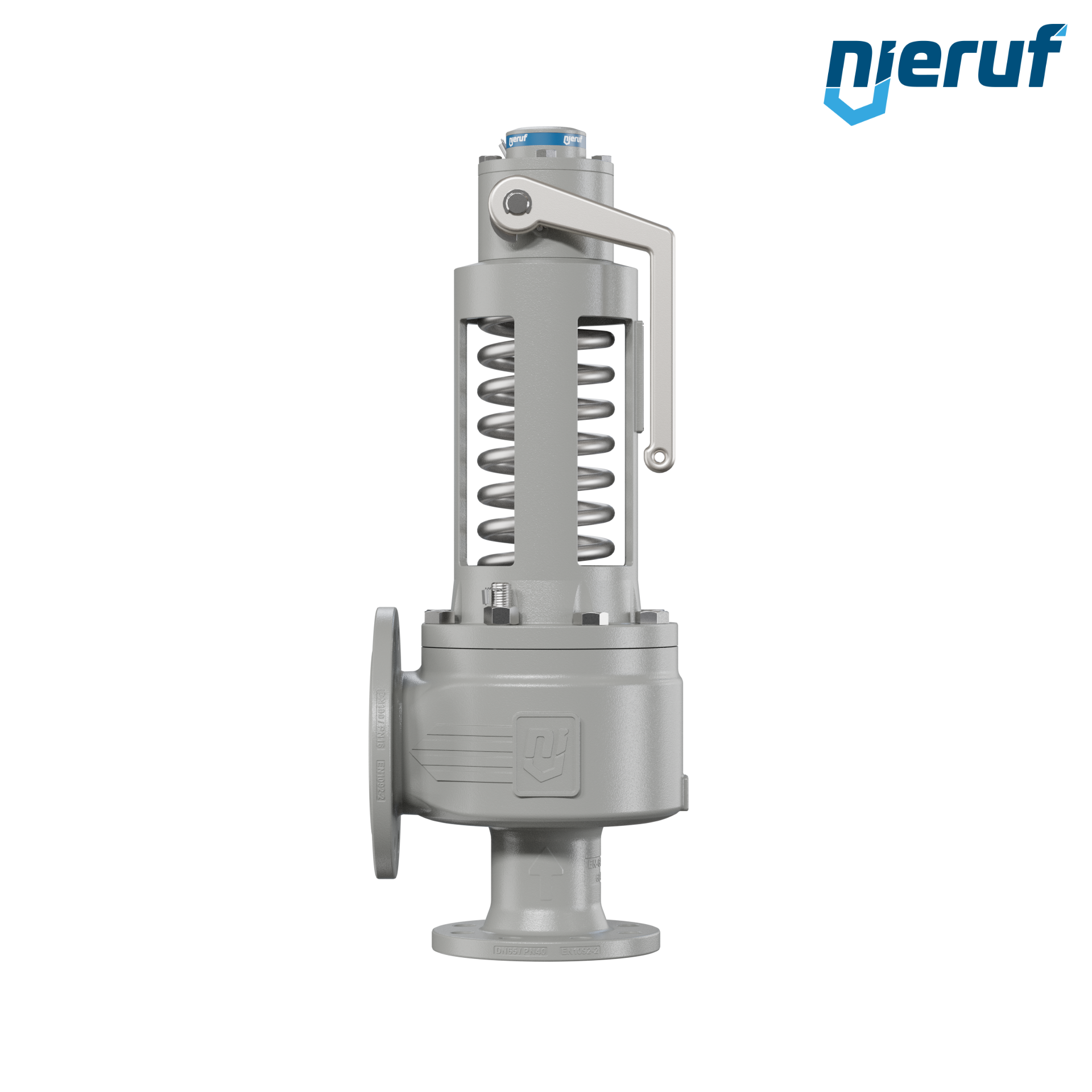

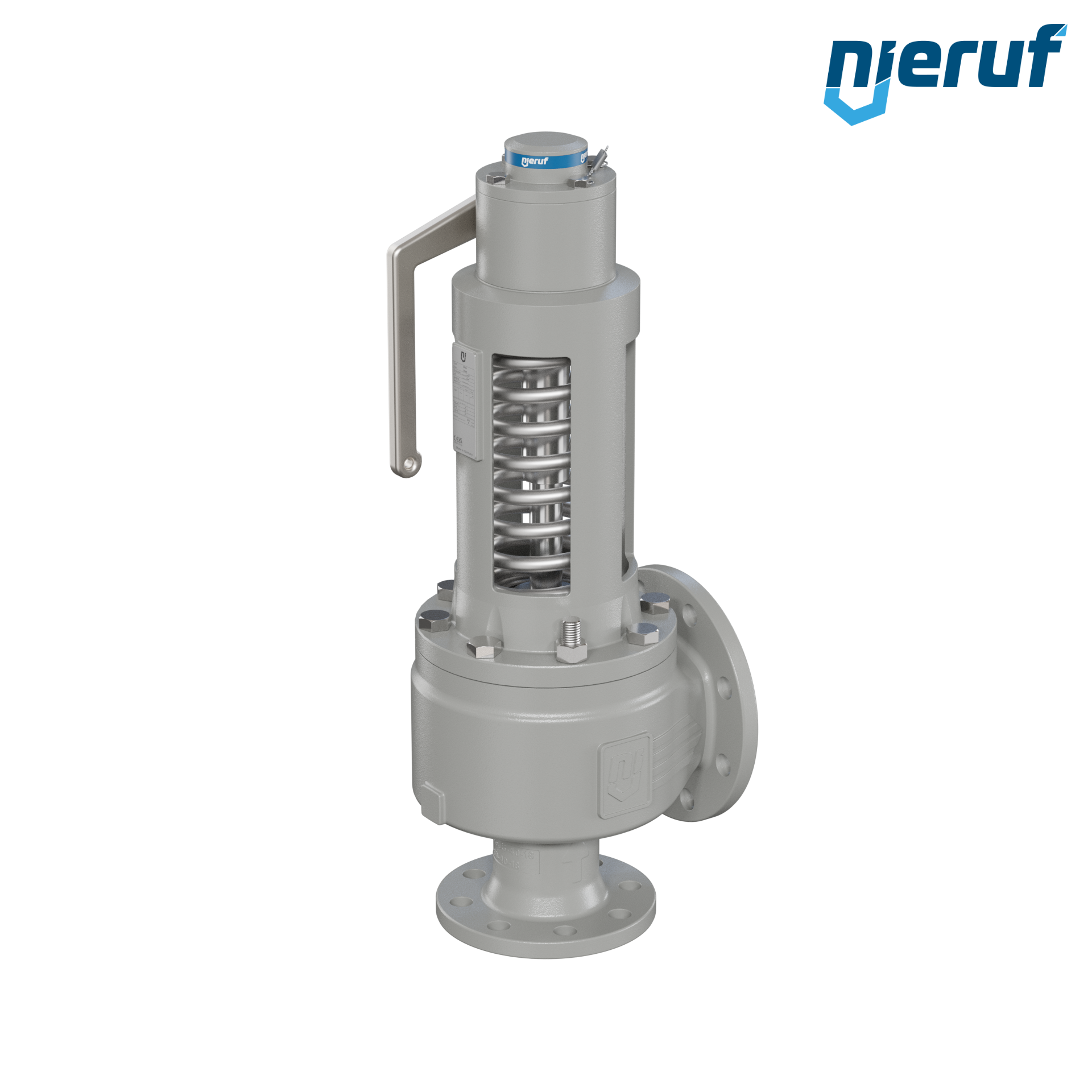

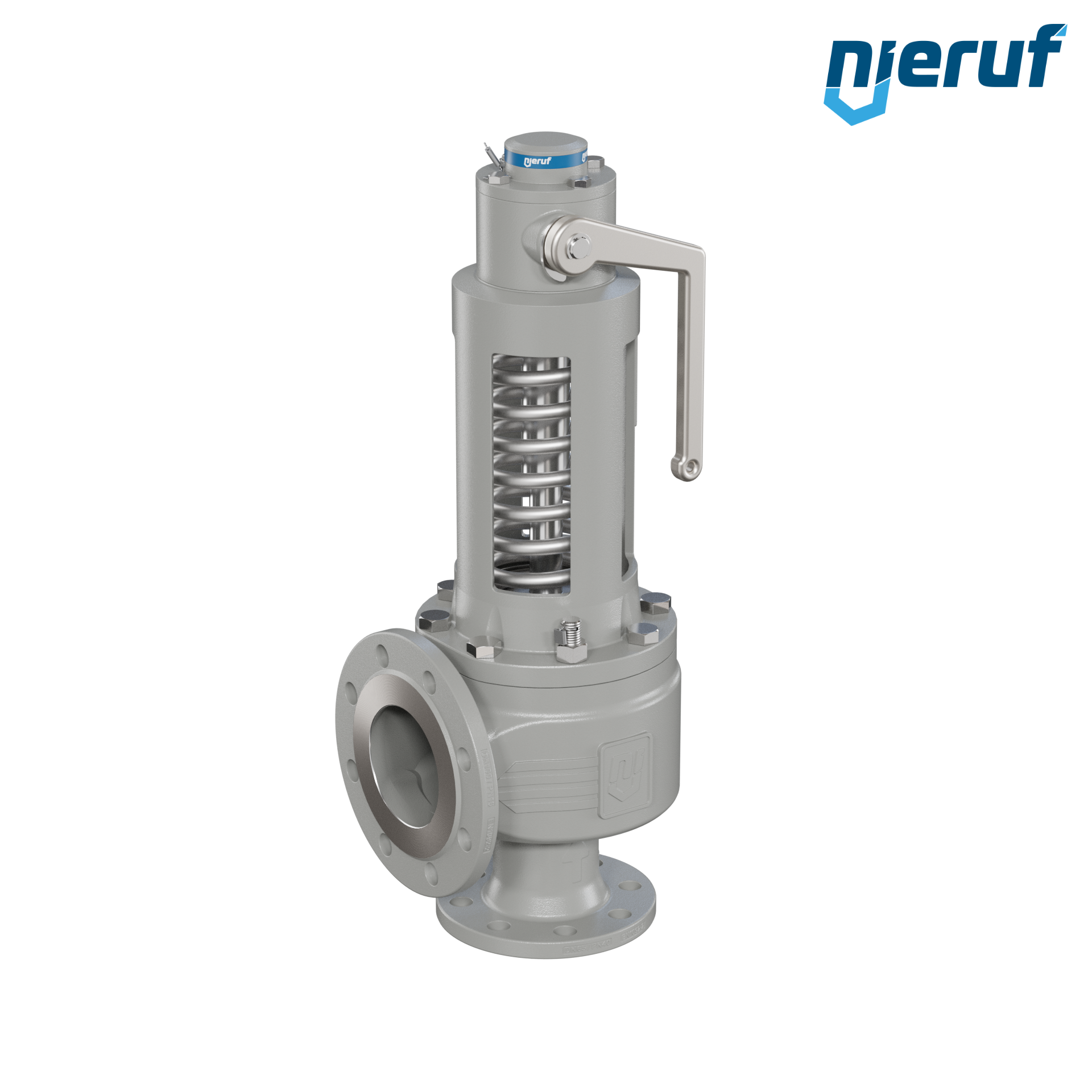

flange-safety valve DN65/DN100 SF06, open bonnet metal, with lifting device lever
- Lead time
- 3 - 5 working days
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.76 VAT included.
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€40.70 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN40 stainless steel
€8.09 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€15.23 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
flange-safety valve DN65/DN100 SF06, open bonnet metal, with lifting device lever
flange-safety valve DN65/DN100 SF06 for gaseous media made of Spheriodal graphite cast iron 5.1303 seal metal set pressure 0,2 - 24,0 bar with lifting device lever
| product | flange-safety valve |
|---|---|
| type | SF06 |
| manufacturer | NieRuf |
| diameter | DN65/DN100 |
| d0 | 59,0 mm |
| connection | flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16 |
| seal | metal |
| media | gaseous media |
| temperature | -10°C up to +350°C |
| set pressure | 0,2 - 24,0 bar |
| design | open bonnet |
| material | spheriodal graphite cast iron 5.1303 / Gr. 60-40-18 |
| lifting | with lifting device lever |
| type test approval | TUV-SV-2094-D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | full lift as D/G |
| product feature 2 | open spring housing, for neutral media without counter pressure |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN65/DN100 SF06, open bonnet metal, with lifting device lever
Article no.
: SF06110009
product:
flange-safety valve
type:
SF06
manufacturer:
NieRuf
diameter:
DN65/DN100
d0:
59,0 mm
connection:
flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16
seal:
metal
media:
gaseous media
temperature:
-10°C up to +350°C
set pressure:
0,2 - 24,0 bar
design:
open bonnet
material:
spheriodal graphite cast iron 5.1303 / Gr. 60-40-18
lifting:
with lifting device lever
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
full lift as D/G
product feature 2:
open spring housing, for neutral media without counter pressure
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
Lead time: in stock
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN65 - 2 1/2" Inch for flange PN40 stainless steel
Lead time: in stock
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
