PK04010011
automatic-flange ball valve DN100 - 4" inch PK04 pneumatic actuator single acting
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 06. October
Guaranteed delivery until Tuesday, 07. October, 12 o'clock
Order in within by express delivery
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€80.09 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

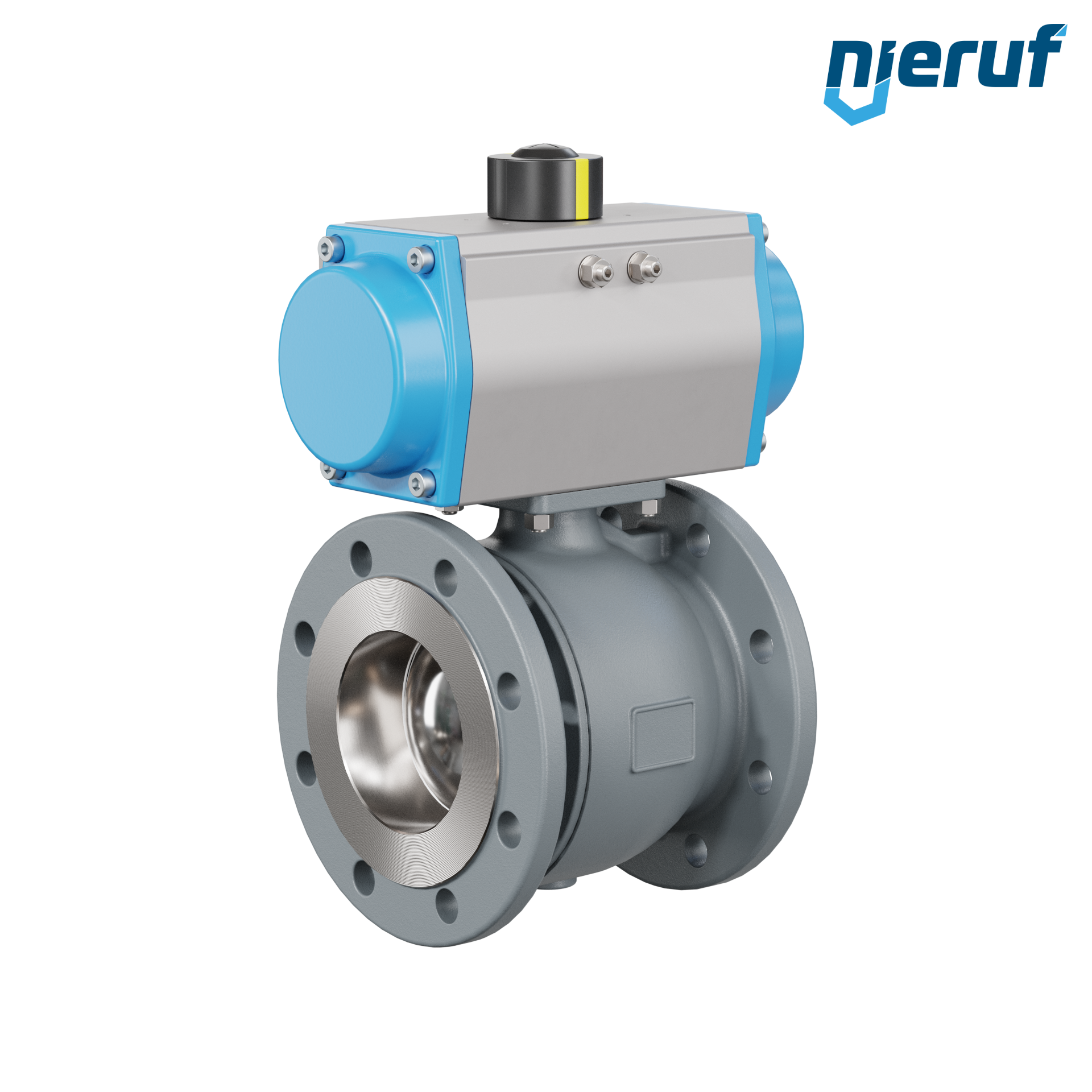

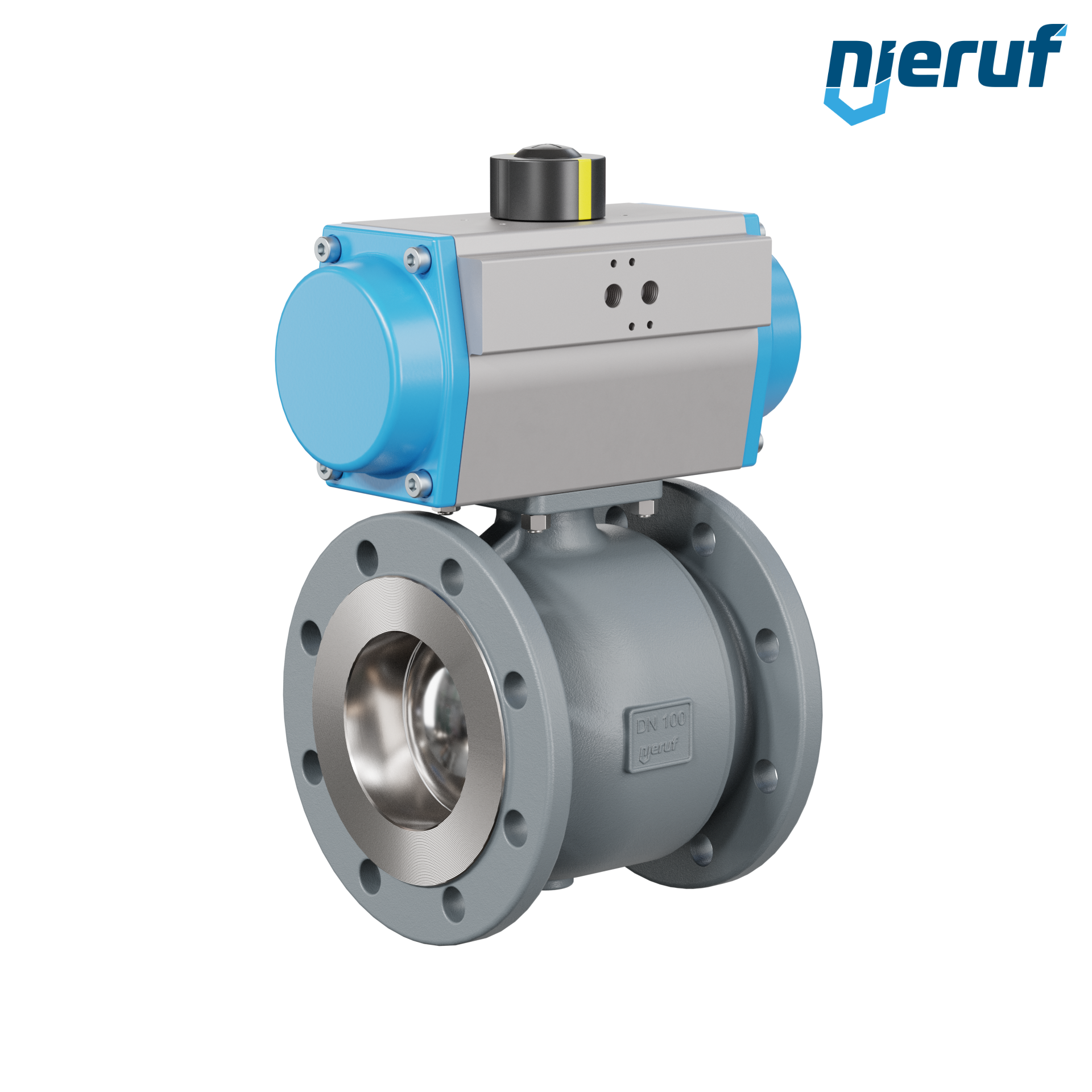

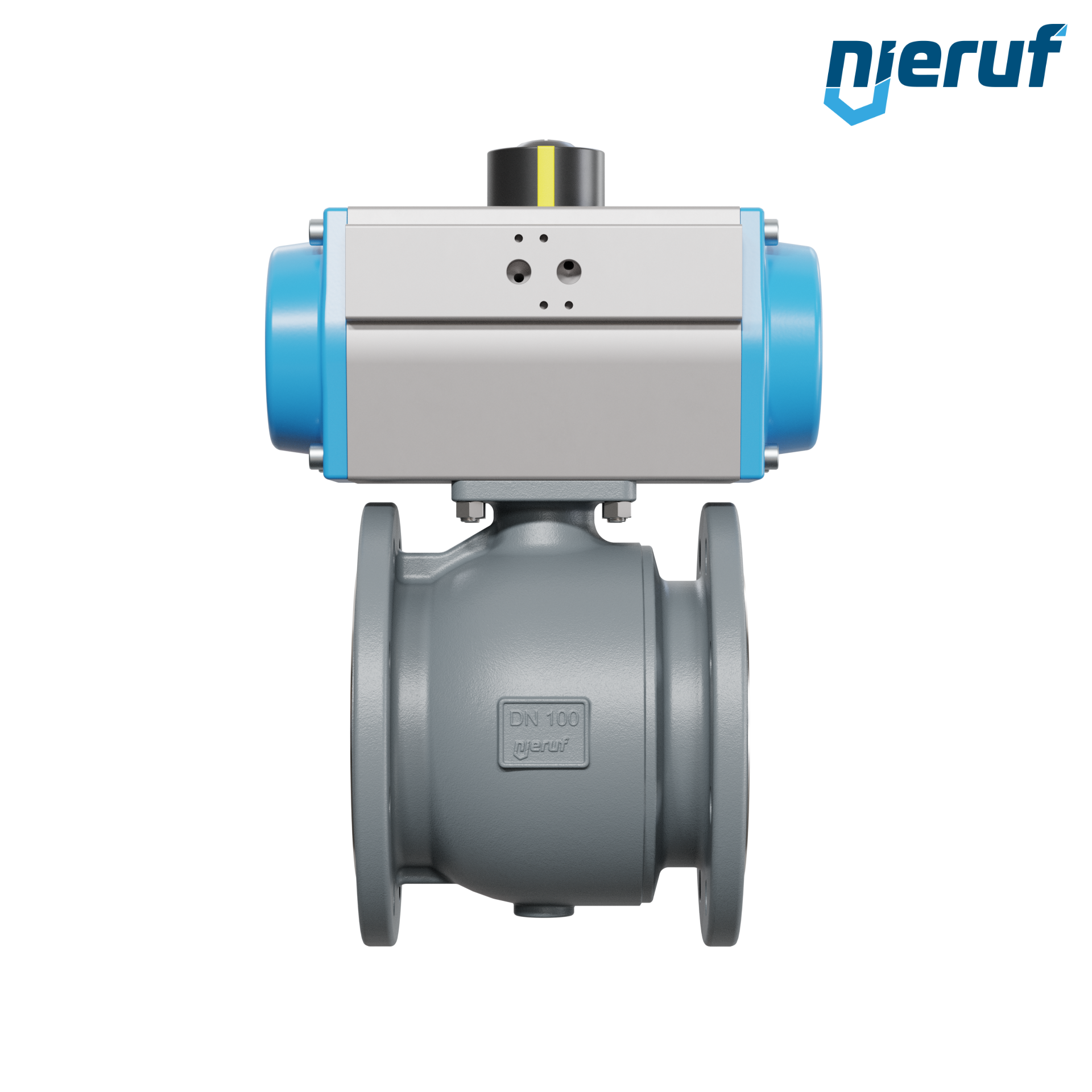

automatic-flange ball valve DN100 - 4" inch spheroidal cast iron GGG40 PK04 pneumatic actuator GS105 made of aluminium (mode of function: GS = single acting)
product: | automatic-flange ball valve |
---|---|
type: | PK04 |
manufacturer: | NieRuf |
diameter: | DN100 - 4" inch |
connection: | flange dimensions acc. DIN EN 1092-1 PN 16 |
Seal steam: | Viton |
media: | liquid and gaseous media |
temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
max. pressure: | PN16 |
max. differentiel pressure: | 7 bar |
design: | flange ball valve with pneumatic actuator (single acting normally closed) |
body material: | spheroidal cast iron GGG40 |
ball material: | chromed cast steel |
ball seal: | PTFE + GF |
length: | DIN EN 558-1 R14 |
actuator: | pneumatic actuator GS105 made of aluminium (mode of function: GS = single acting - normally closed) |
actuator informations: | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
authorized for: | TA Luft |
product description: | This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange ball valve DN100 - 4" inch PK04 pneumatic actuator single acting
Article no.
: PK04010011
product:
automatic-flange ball valve
type:
PK04
manufacturer:
NieRuf
diameter:
DN100 - 4" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
max. differentiel pressure:
7 bar
design:
flange ball valve with pneumatic actuator (single acting normally closed)
body material:
spheroidal cast iron GGG40
ball material:
chromed cast steel
ball seal:
PTFE + GF
length:
DIN EN 558-1 R14
actuator:
pneumatic actuator GS105 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air
