PK04000011

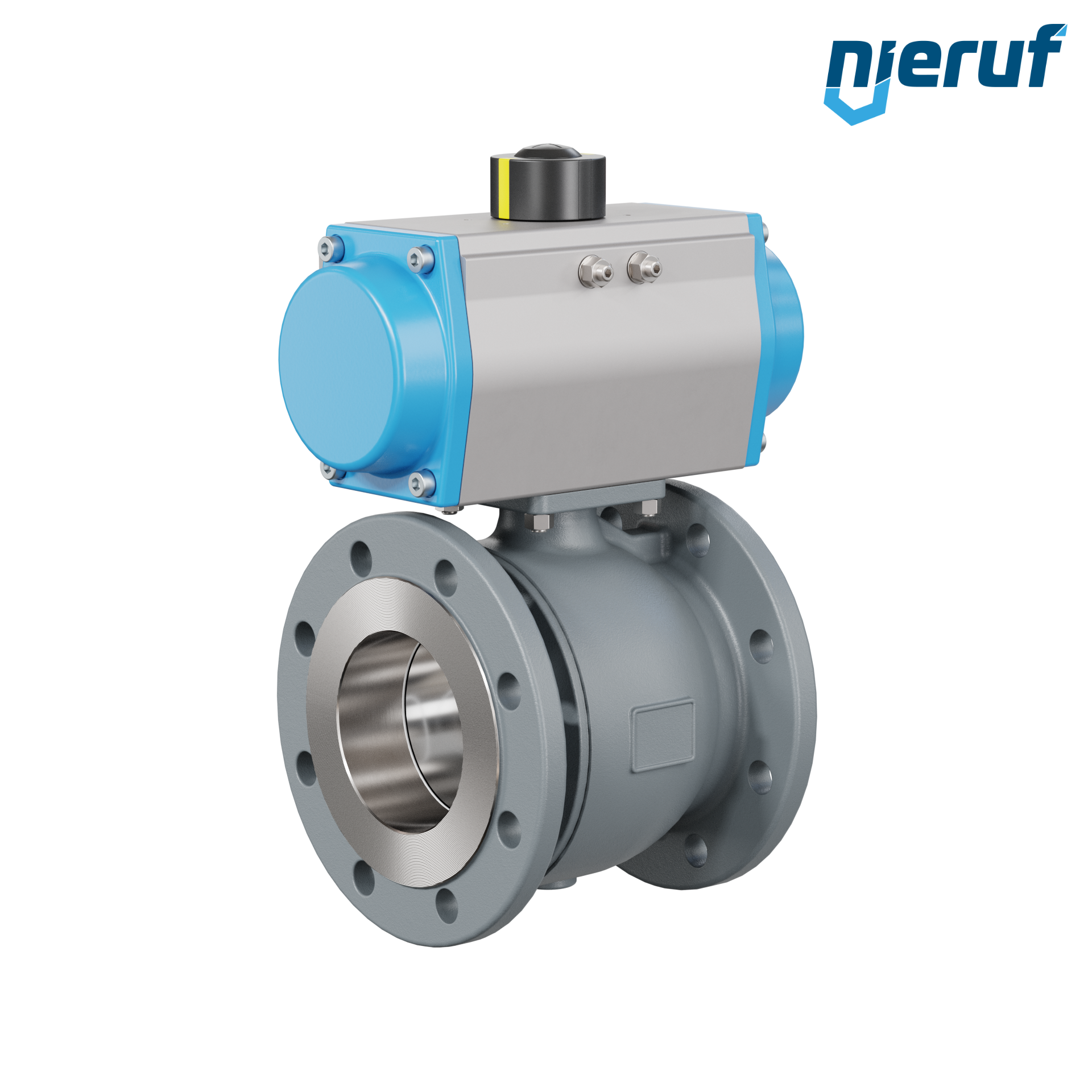

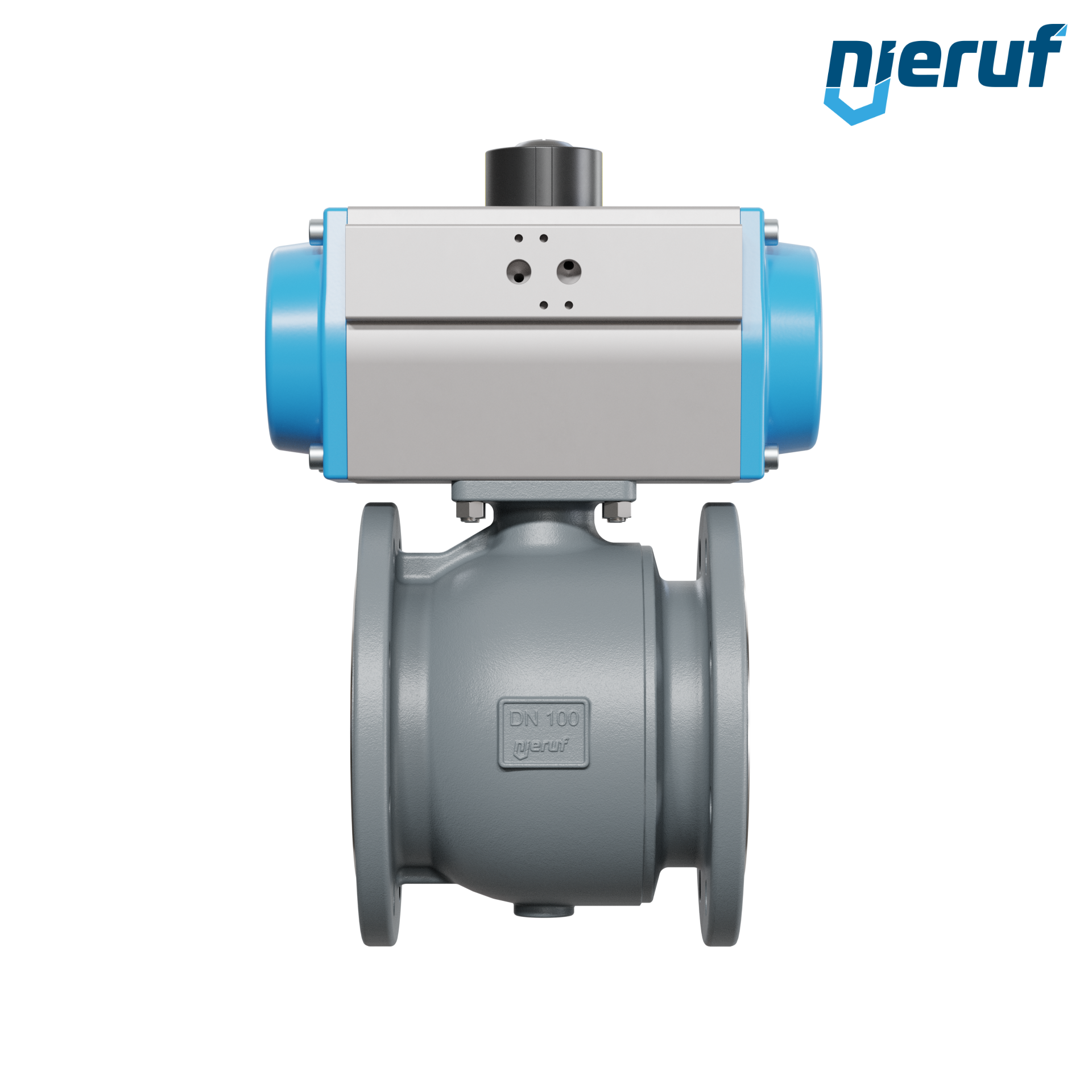

automatic-flange ball valve DN100 - 4" inch PK04 pneumatic actuator double acting
- Lead time
- 3 - 5 working days
Equipment
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
€54.98 VAT included.
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
€4.88 VAT included.
Positioner PS01 for pneumatic actuators double acting air volume less than 5 l
€929.51 VAT included.
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€15.23 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
automatic-flange ball valve DN100 - 4" inch PK04 pneumatic actuator double acting
automatic-flange ball valve DN100 - 4" inch spheroidal cast iron GGG40 PK04 pneumatic actuator GD105 made of aluminium (mode of function: GD = double acting)
| product | automatic-flange ball valve |
|---|---|
| type | PK04 |
| manufacturer | NieRuf |
| diameter | DN100 - 4" inch |
| connection | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam | Viton |
| media | liquid and gaseous media |
| temperature | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN16 |
| max. differentiel pressure | 7 bar |
| design | flange ball valve with pneumatic actuator (double acting) |
| body material | spheroidal cast iron GGG40 |
| ball material | chromed cast steel |
| ball seal | PTFE + GF |
| length | DIN EN 558-1 R14 |
| actuator | pneumatic actuator GD105 made of aluminium (mode of function: GD = double acting) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for | TA Luft |
| product description | This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange ball valve DN100 - 4" inch PK04 pneumatic actuator double acting
Article no.
: PK04000011
product:
automatic-flange ball valve
type:
PK04
manufacturer:
NieRuf
diameter:
DN100 - 4" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
max. differentiel pressure:
7 bar
design:
flange ball valve with pneumatic actuator (double acting)
body material:
spheroidal cast iron GGG40
ball material:
chromed cast steel
ball seal:
PTFE + GF
length:
DIN EN 558-1 R14
actuator:
pneumatic actuator GD105 made of aluminium (mode of function: GD = double acting)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GD = double acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air
Equipment
flange seal DN100 PN10/16 115x162x2 Klingersil C 4400
Lead time: in stock
Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
Lead time: in stock
rotary elbow male adaptor parallel EF07 brass NBR G1/4" D6mm
Lead time: in stock
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Lead time: 3 - 5 working days
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
Lead time: in stock
Positioner PS01 for pneumatic actuators double acting with safety function air volume less than 5 l
Lead time: 2 - 3 weeks
