FK12030010
Gas-flange ball valve DN80 FK12 carbon steel 1.0619
- Lead time
- 1 - 2 weeks
Equipment
Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€34.51 VAT included.
stem extension hub length 100 mm square 22mm AD02 stainless steel
€52.24 VAT included.
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel
€15.23 VAT included.
flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400
€5.24 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

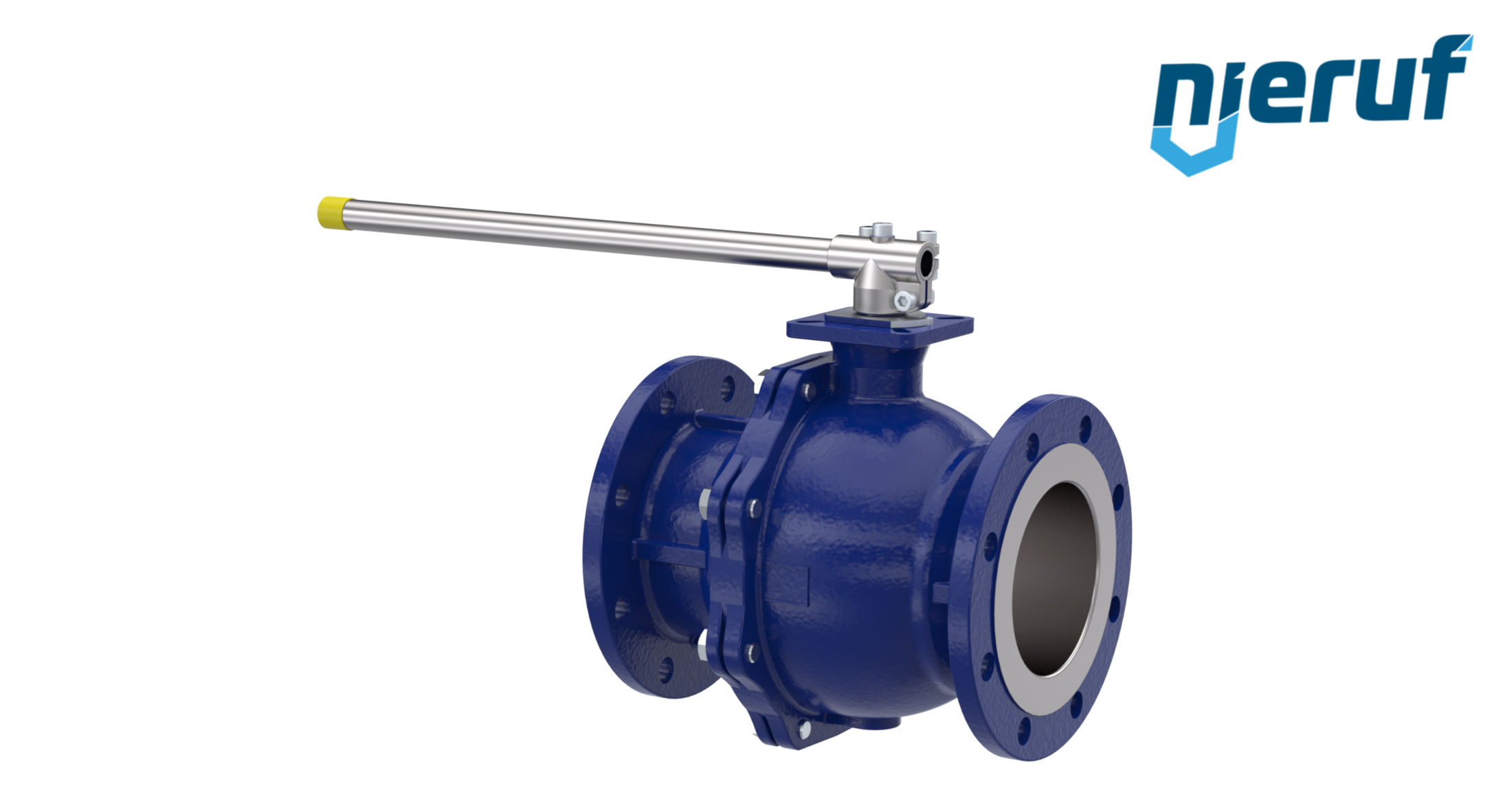

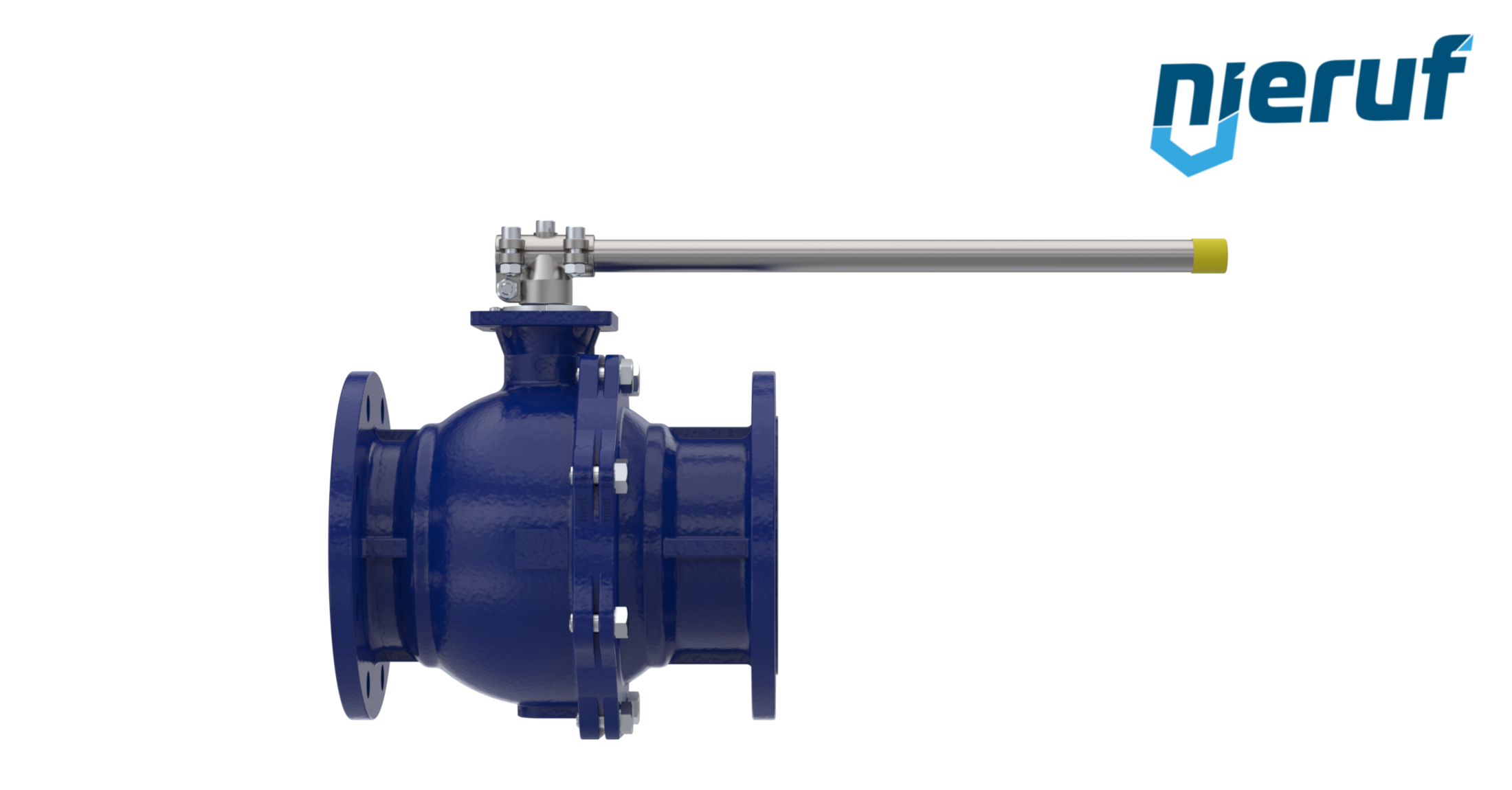

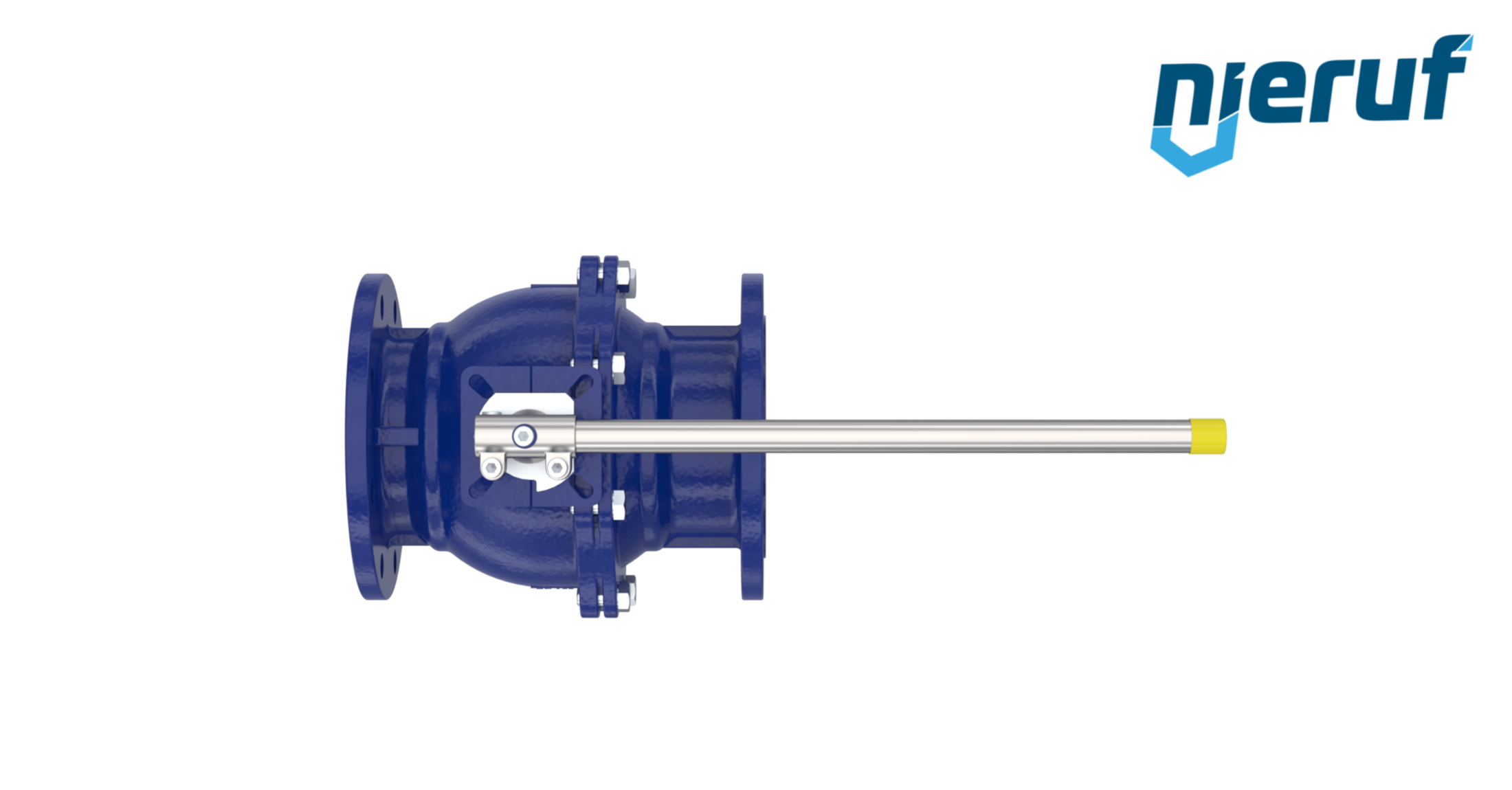

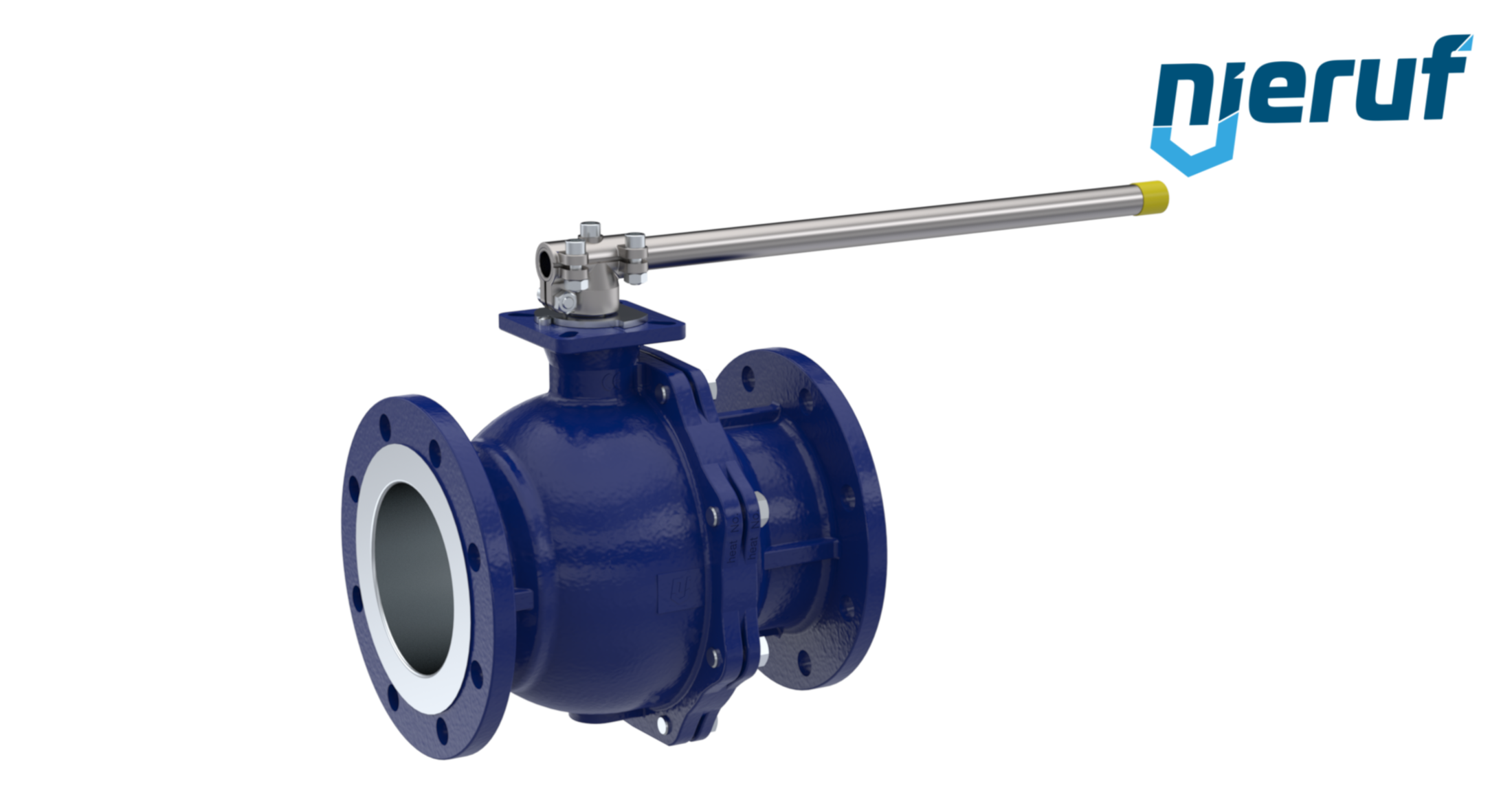

Gas-flange ball valve DN80 FK12 carbon steel 1.0619
Gas-flange ball valve DN80 PN16 FK12 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE for gas
| product | Gas-flange ball valve |
|---|---|
| type | FK12 |
| manufacturer | NieRuf |
| diameter | DN80 |
| connection | flange dimensions acc. to EN 1092-1 |
| Seal steam | PTFE / FKM |
| ball seal | PTFE |
| media | gaseous media, gas, DVGW-gas |
| Leakage rate | A |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4408 / CF8M |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of steel |
| installation position | any position |
| authorized for | DVGW-Gas |
| product description | This high quality ball valve is made of stainless steel with blow out proof stem design. Stem extension is made of steel. The stem seal is 3 - side covered. This ball valve is authorized for DVGW-Gas |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Gas-flange ball valve DN80 FK12 carbon steel 1.0619
Article no.
: FK12030010
product:
Gas-flange ball valve
type:
FK12
manufacturer:
NieRuf
diameter:
DN80
connection:
flange dimensions acc. to EN 1092-1
Seal steam:
PTFE / FKM
ball seal:
PTFE
media:
gaseous media, gas, DVGW-gas
Leakage rate:
A
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4408 / CF8M
length:
DIN EN 558 R 27
actuator:
lever handle made of steel
installation position:
any position
authorized for:
DVGW-Gas
product description:
This high quality ball valve is made of stainless steel with blow out proof stem design. Stem extension is made of steel. The stem seal is 3 - side covered. This ball valve is authorized for DVGW-Gas
Equipment
flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
stem extension hub length 100 mm square 22mm AD02 stainless steel
Lead time: 3 - 5 working days
