FK06000009

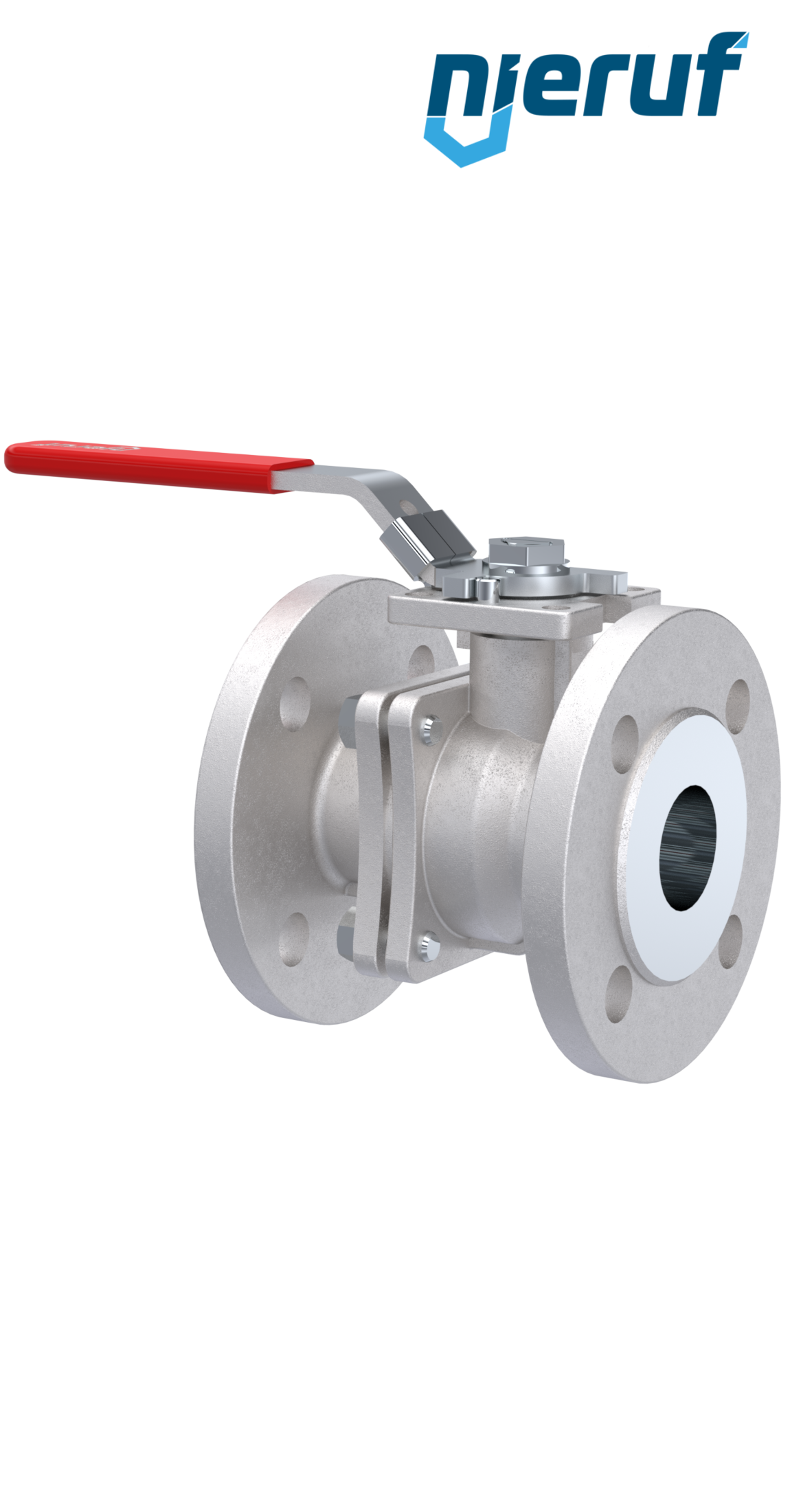

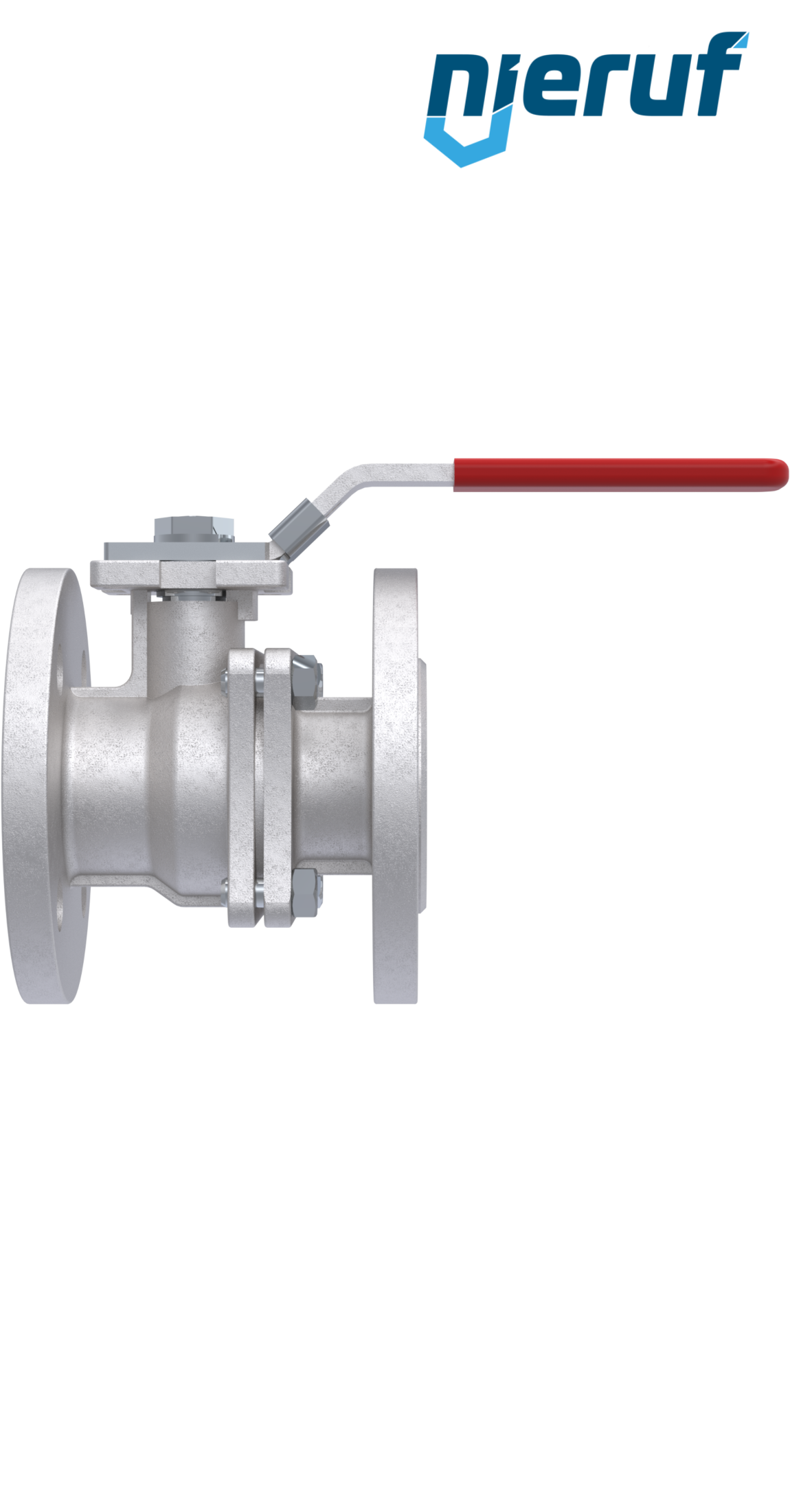

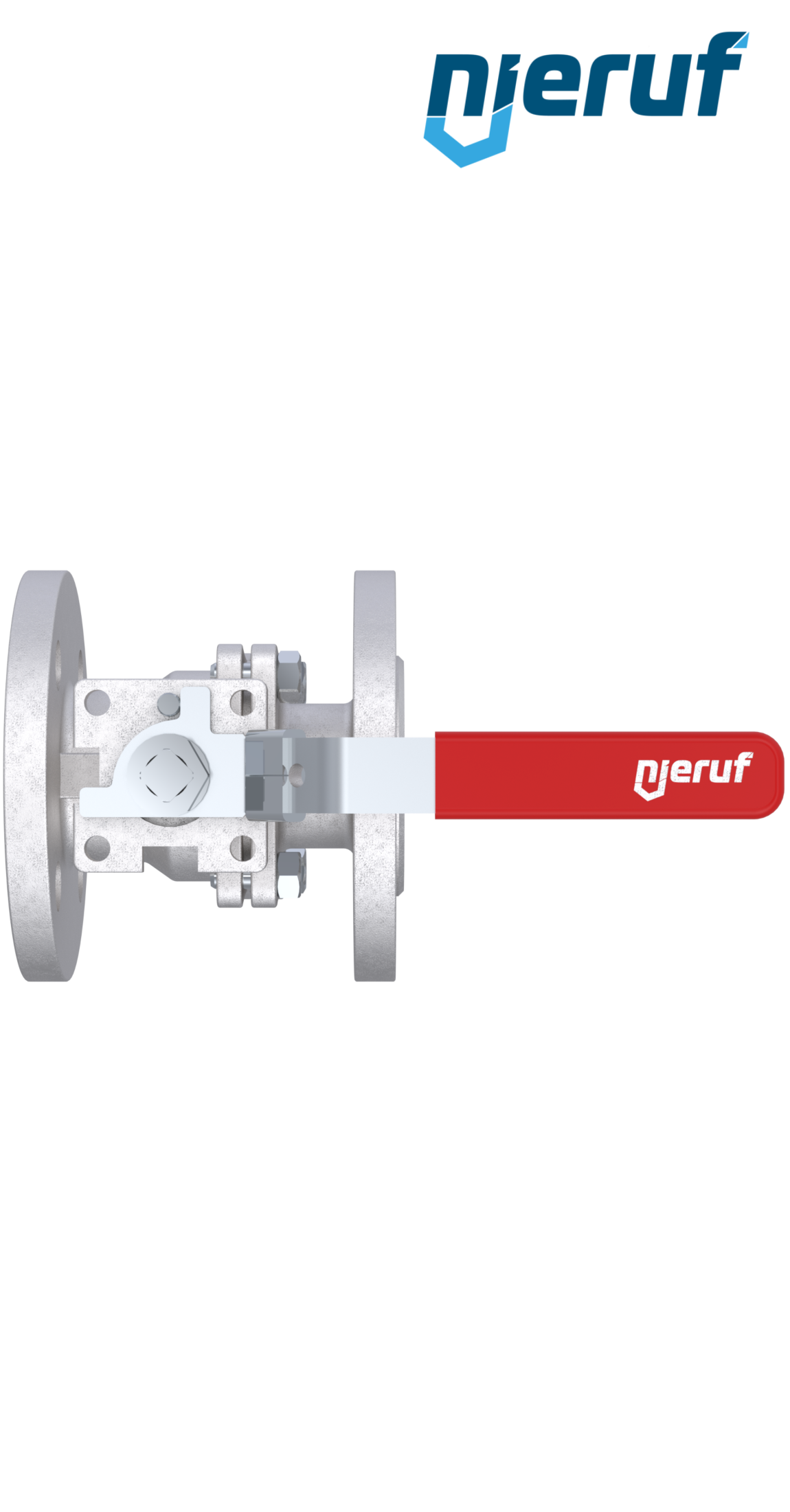

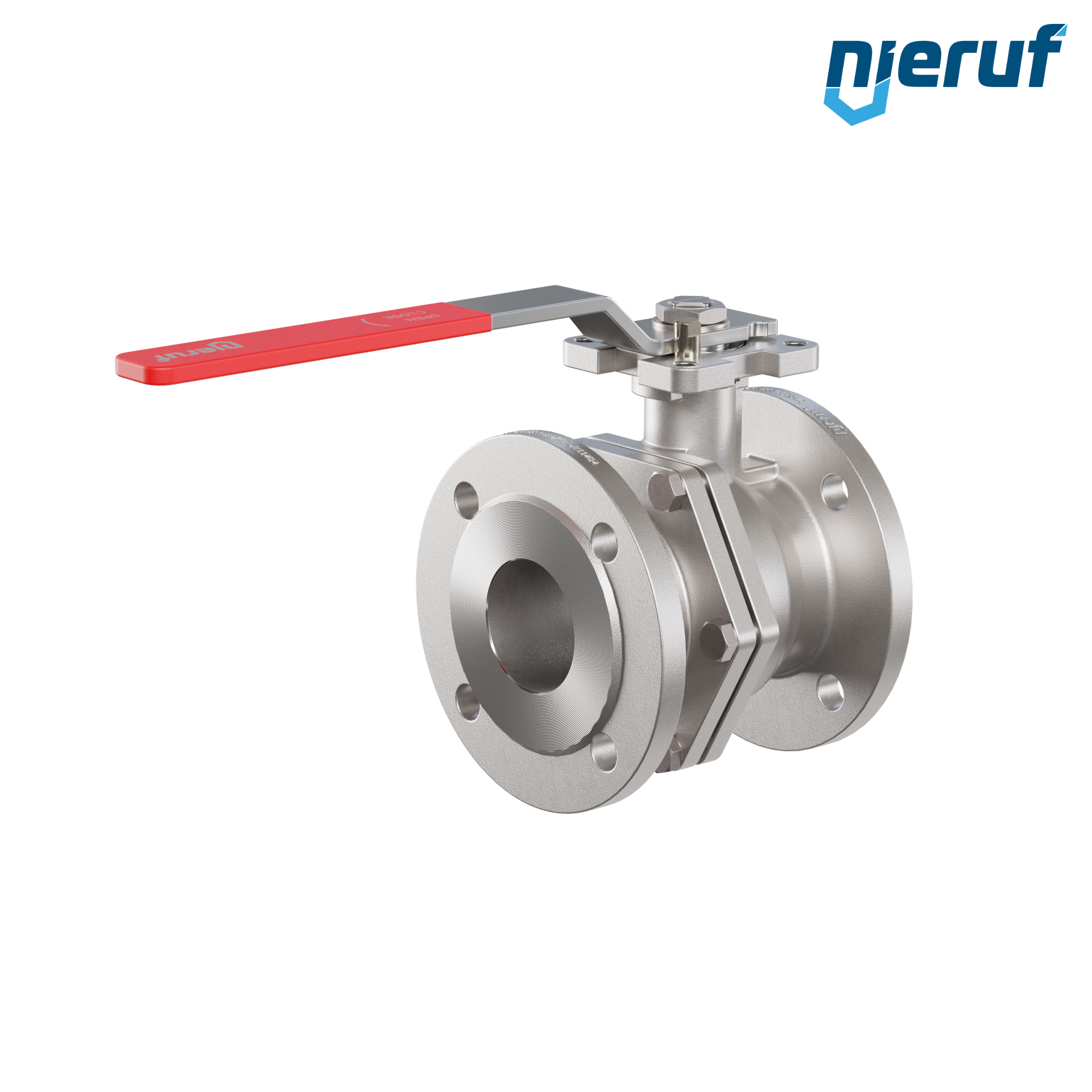

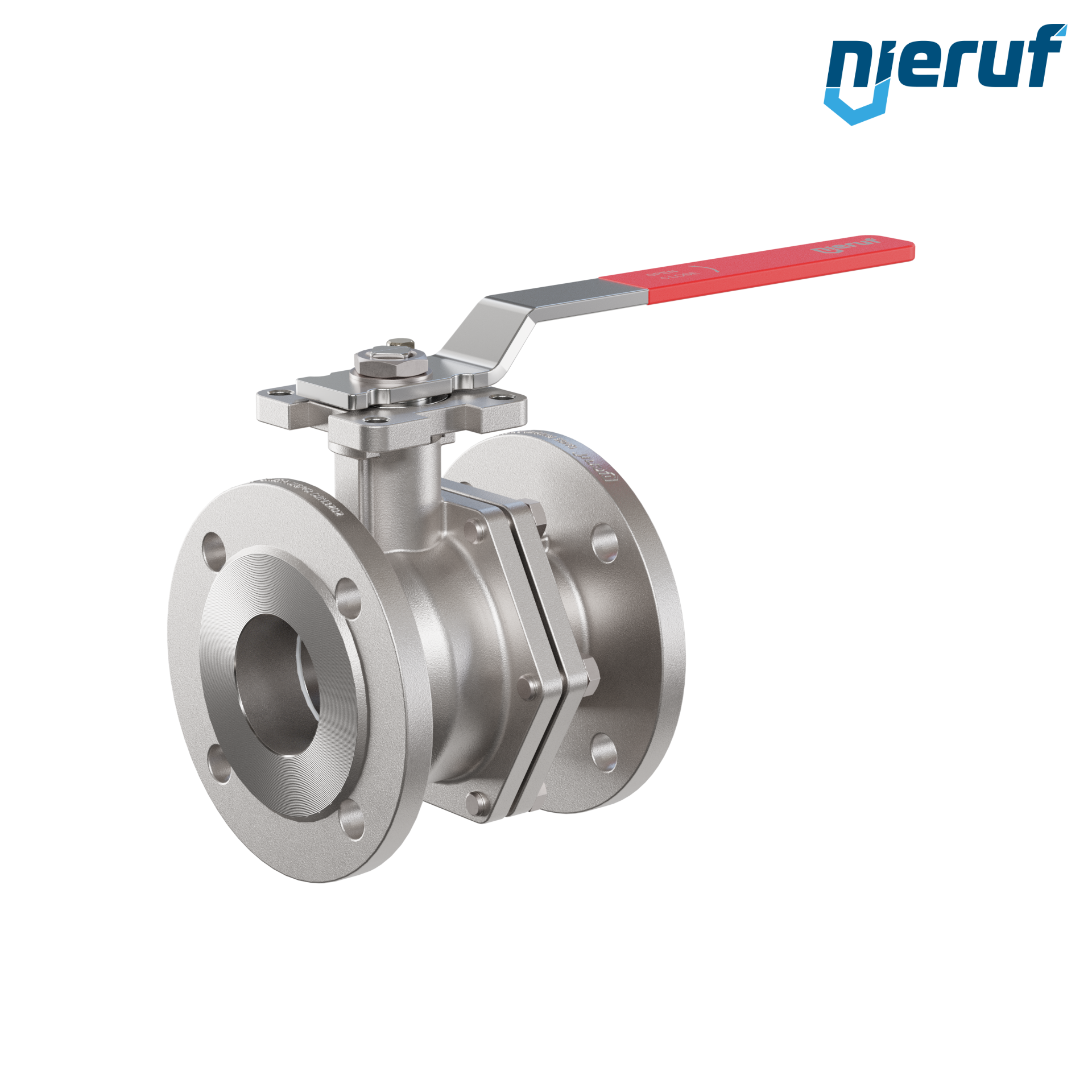

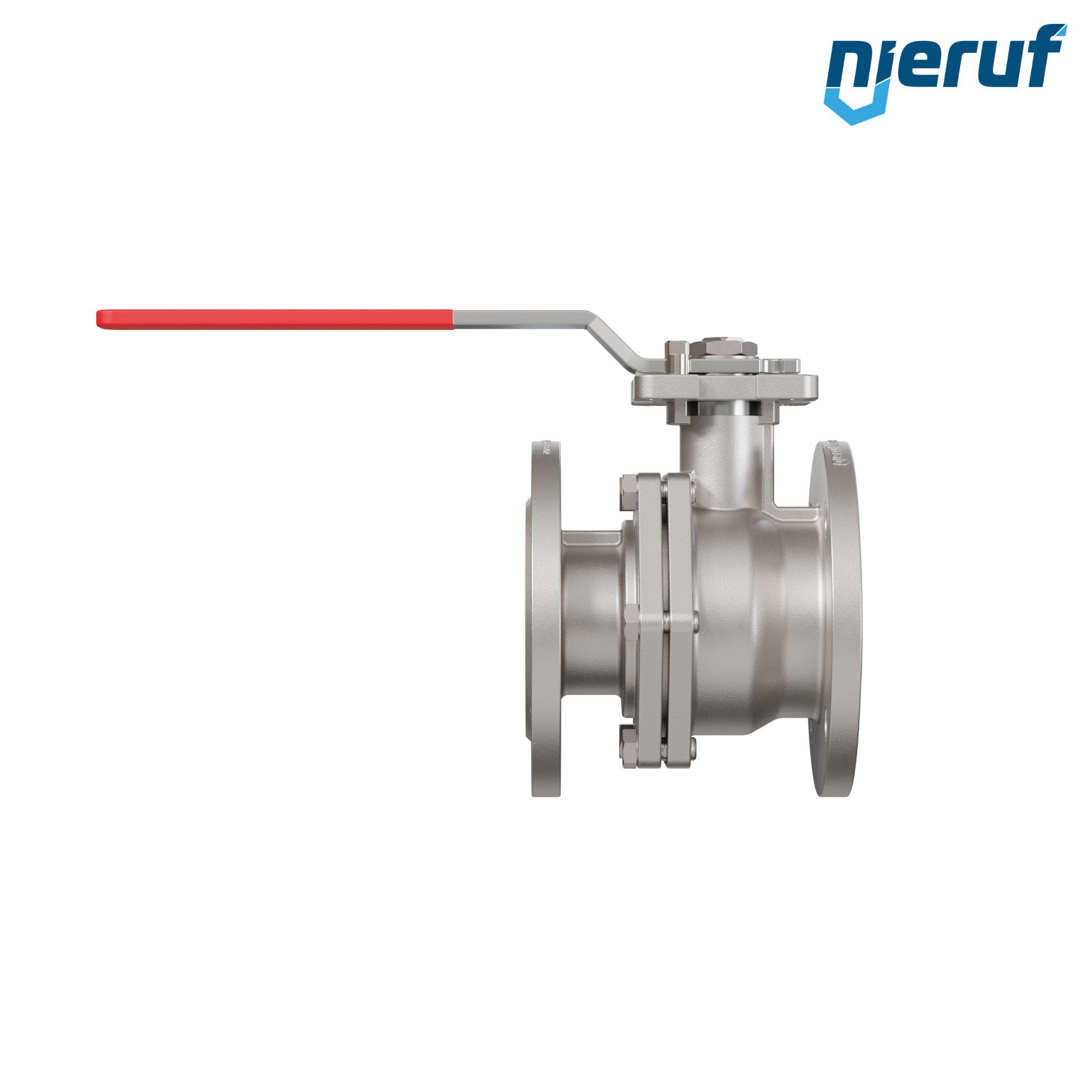

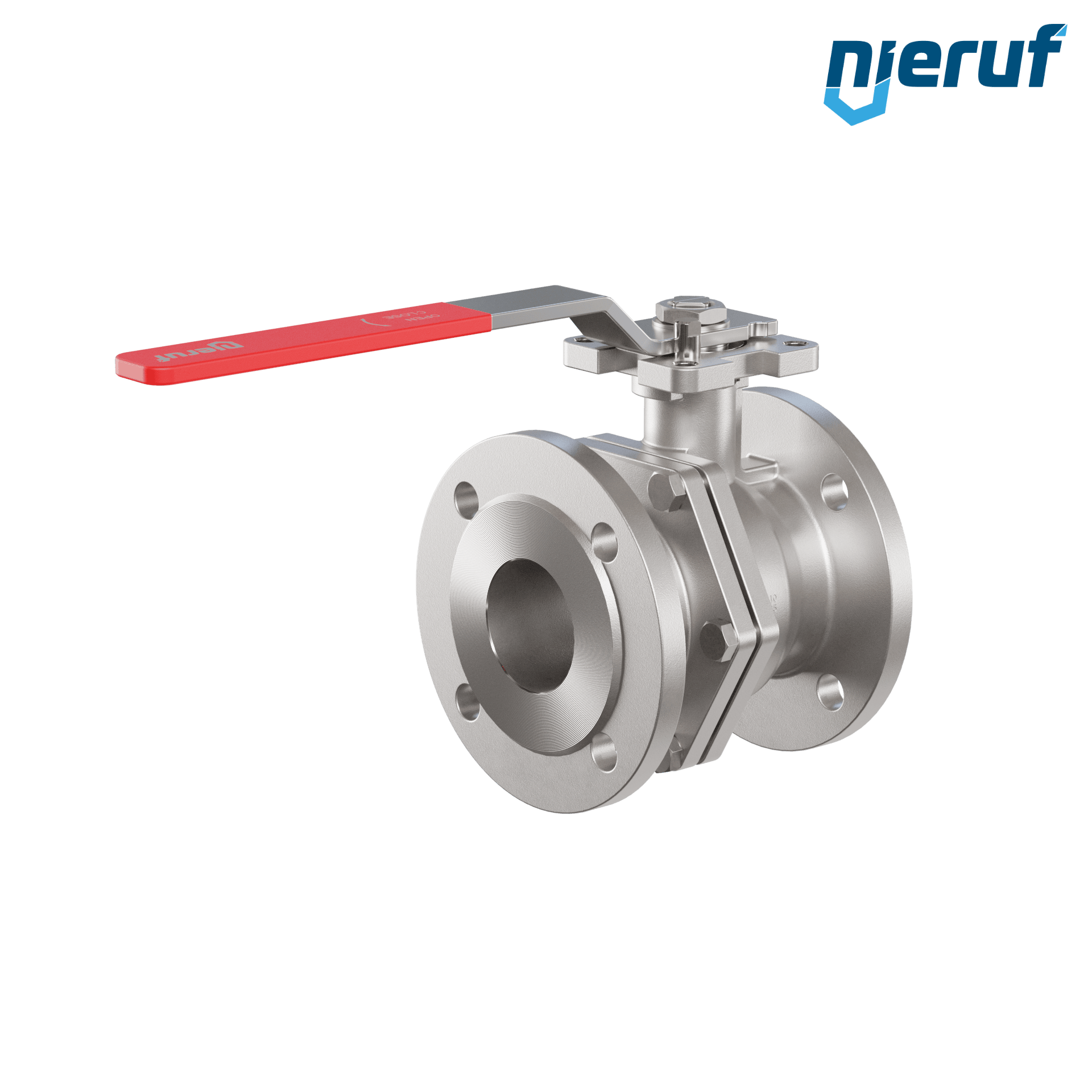

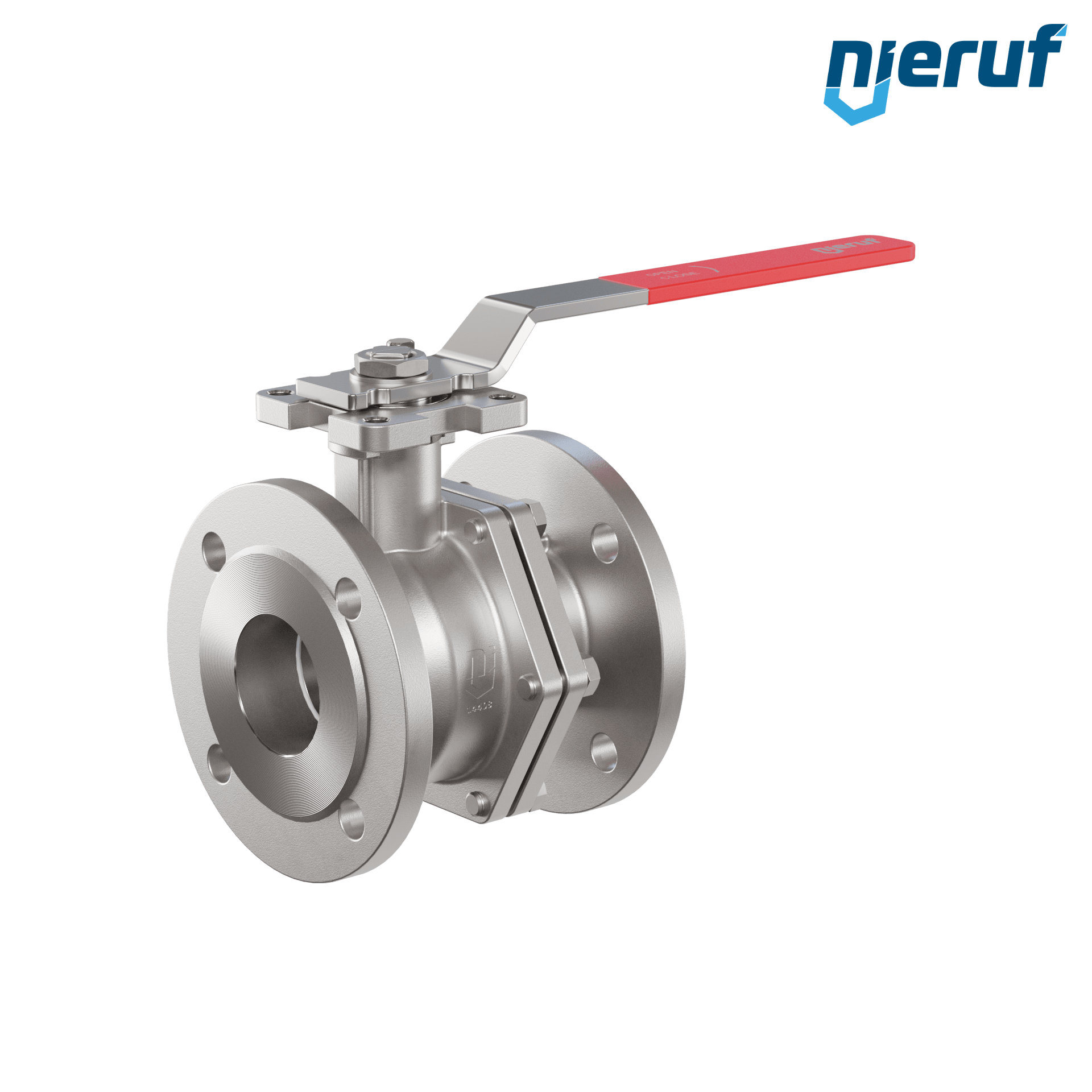

flange ball valve DN65 PN16 FK06 stainless steel 1.4408

€536.60*

€638.55 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

FD01000109

flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400

€3.60*

€4.28 VAT included.


VS01000109

joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel

€8.40*

€10.00 VAT included.


FL01000109

Welding neck flange DN65 PN10/16 EN1092-1 11 B1 1.4541

€52.70*

€62.71 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FK06000009

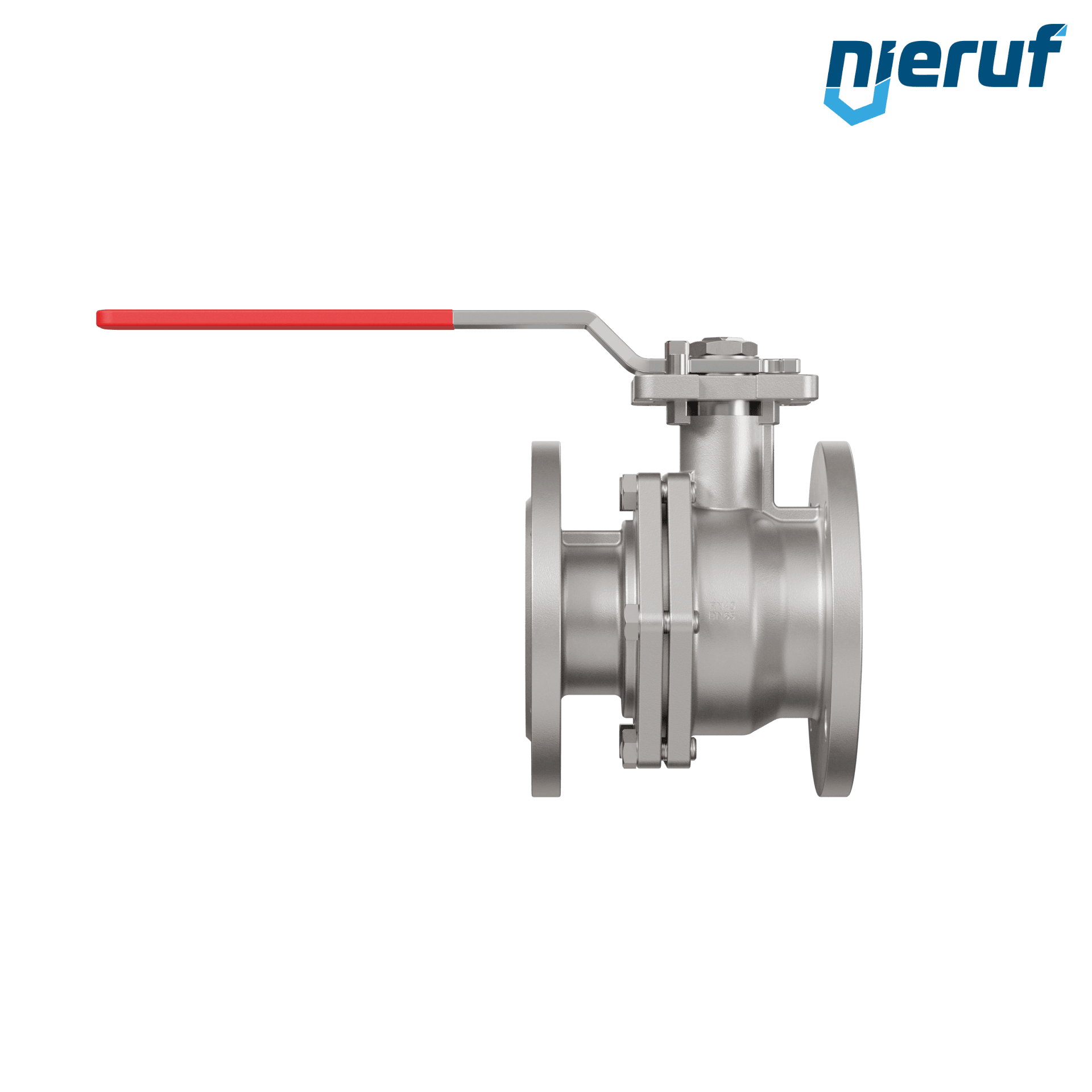

flange ball valve DN65 PN16 FK06 stainless steel 1.4408

flange ball valve DN65 PN16 FK06 body stainless steel 1.4408 ball stainless steel 1.4401 seal PTFE for liquid and gaseous media

product: flange ball valve
type: FK06
manufacturer: NieRuf
diameter: DN65
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: O-ring FKM
ball seal: PTFE
media: liquid and gaseous media
temperature: -10°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel with plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange ball valve DN65 PN16 FK06 stainless steel 1.4408

Article no. : FK06000009
product: flange ball valve
type: FK06
manufacturer: NieRuf
diameter: DN65
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: O-ring FKM
ball seal: PTFE
media: liquid and gaseous media
temperature: -10°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel with plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.
