FK02020009

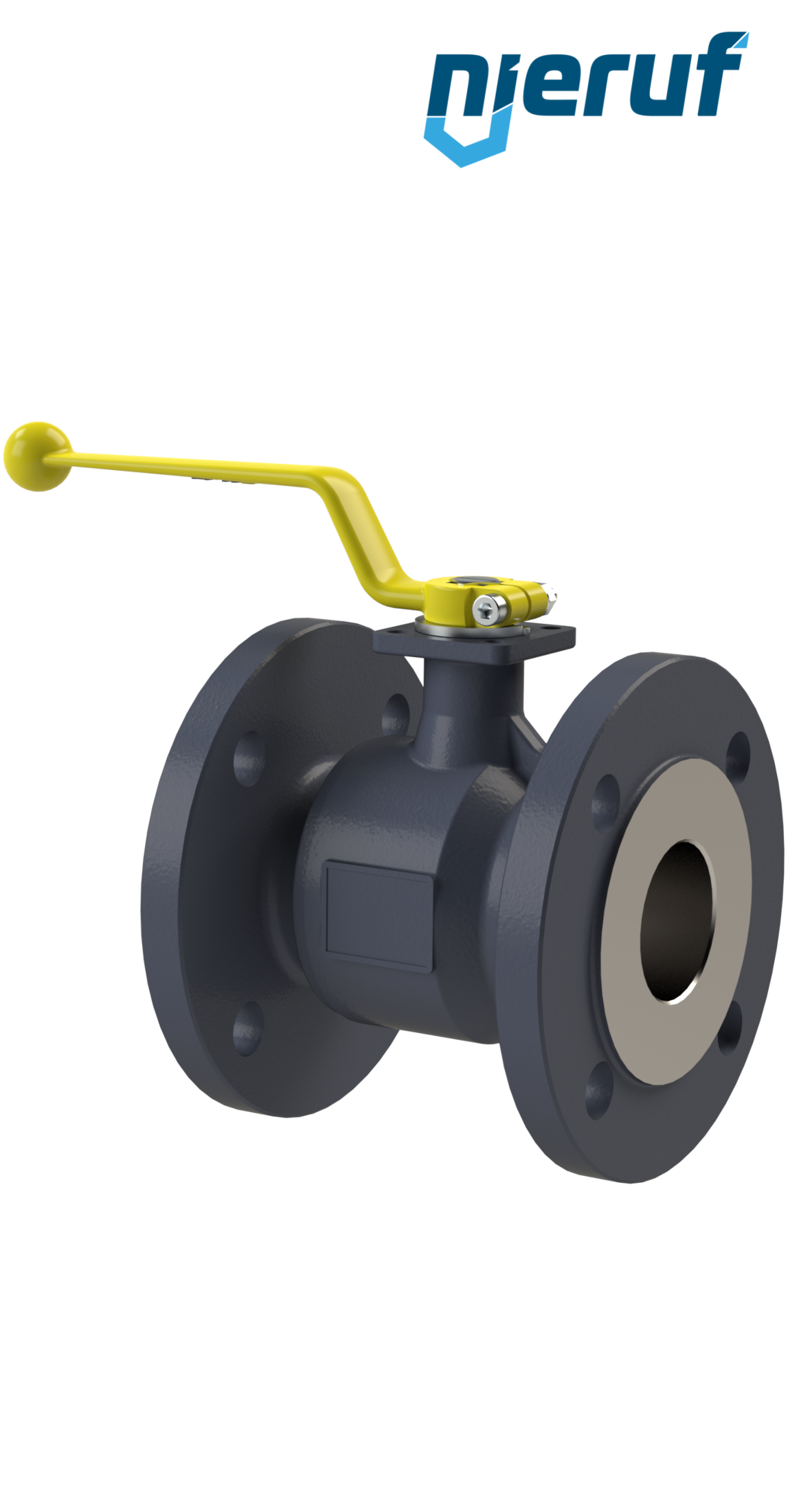

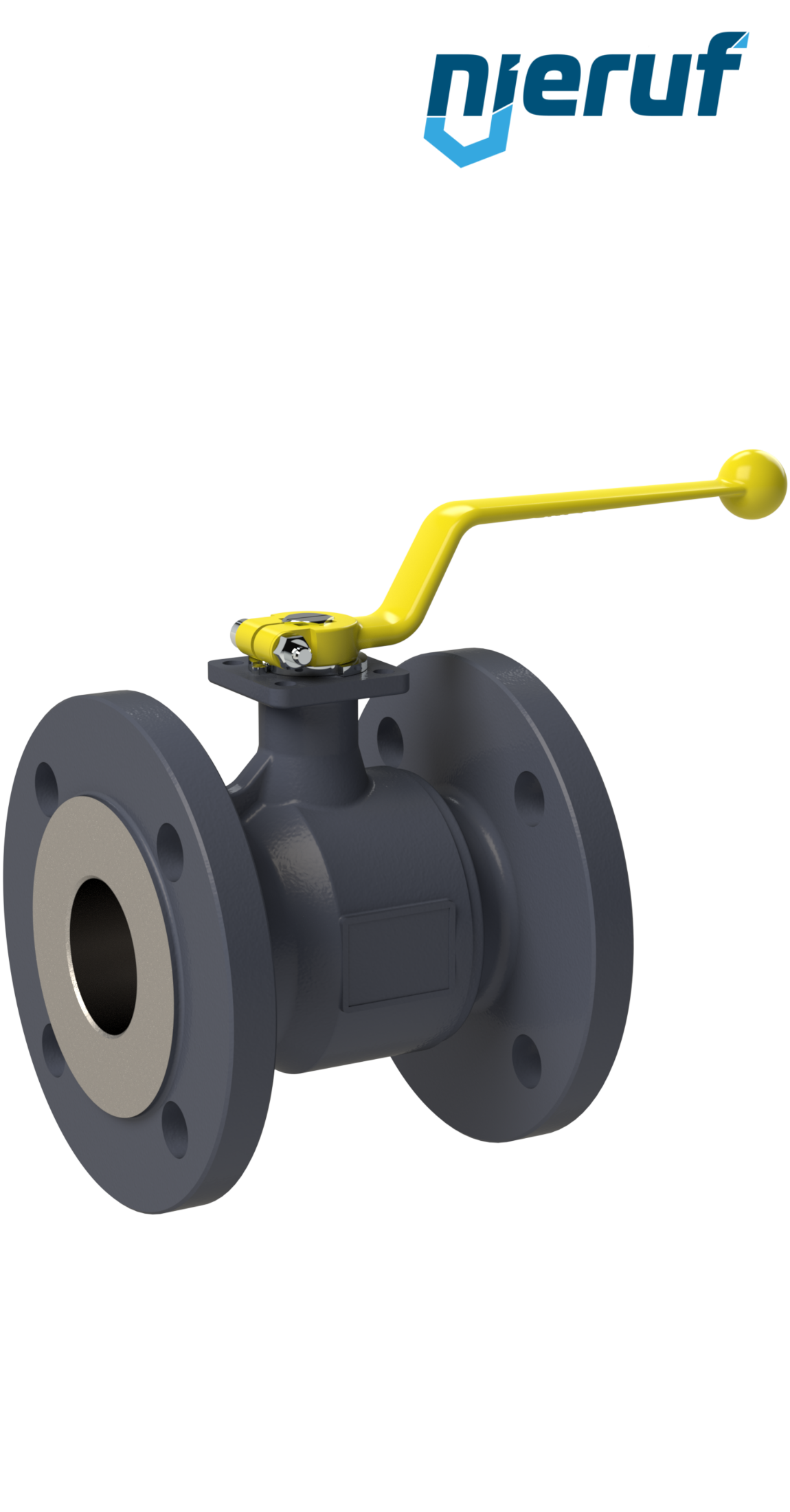

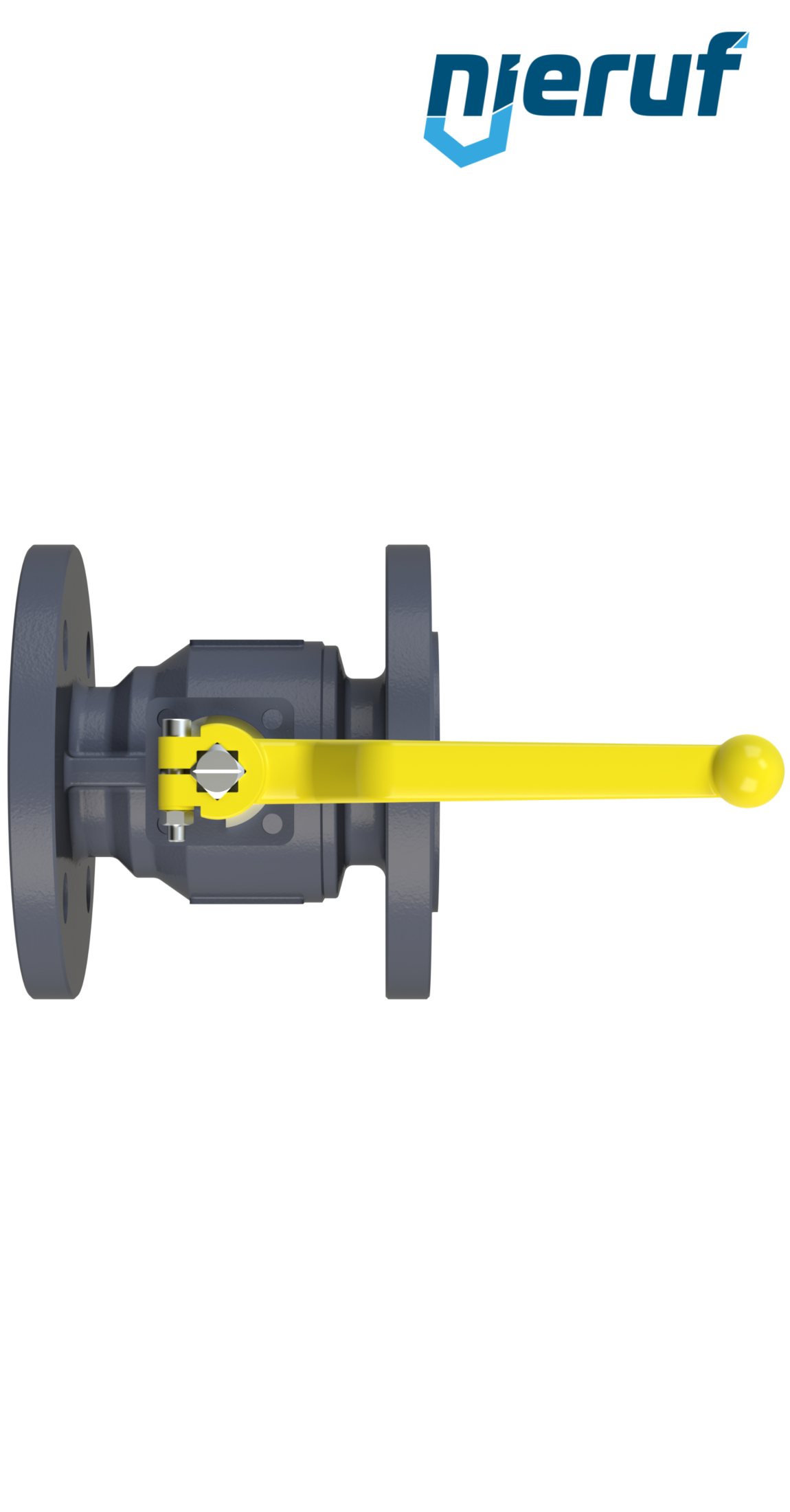

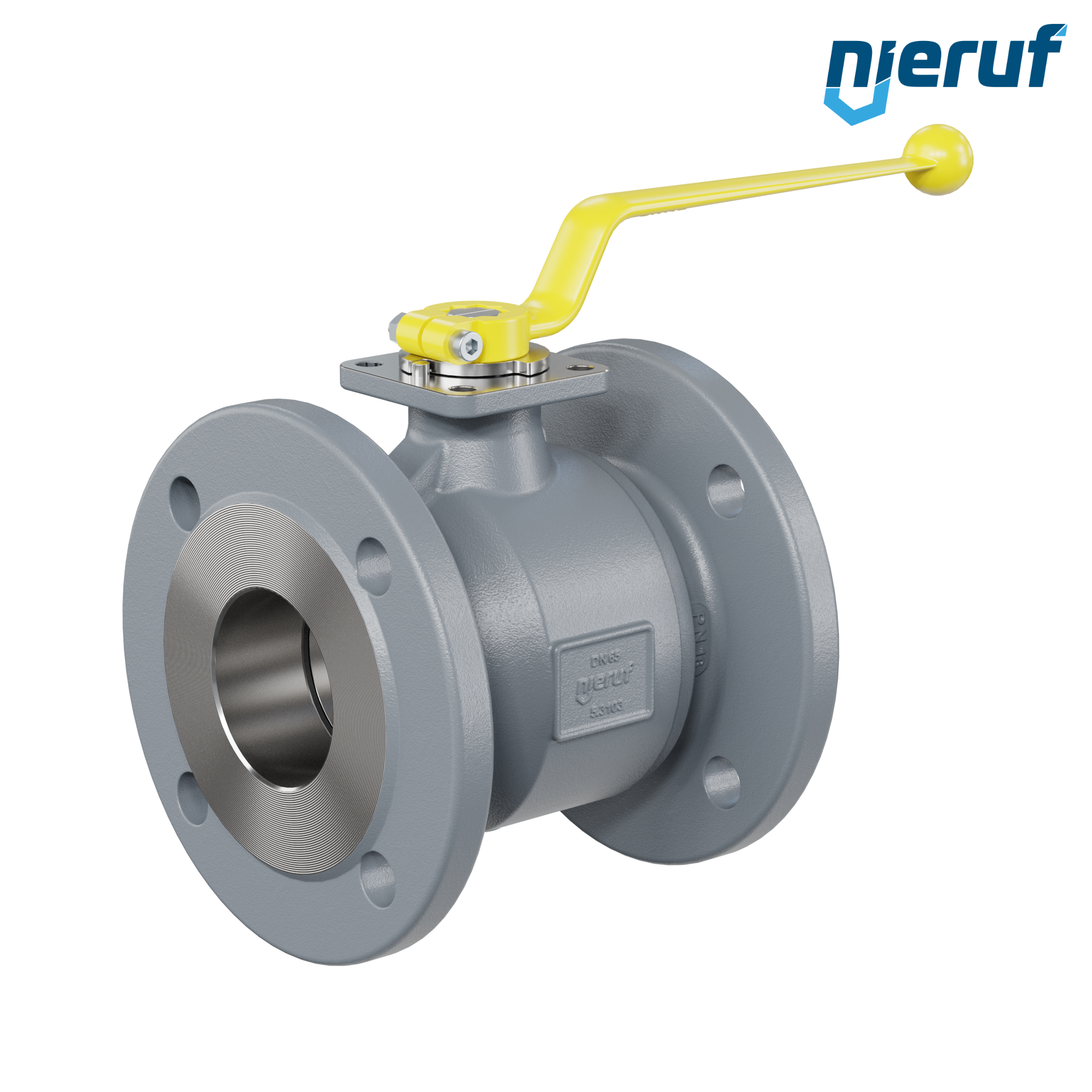

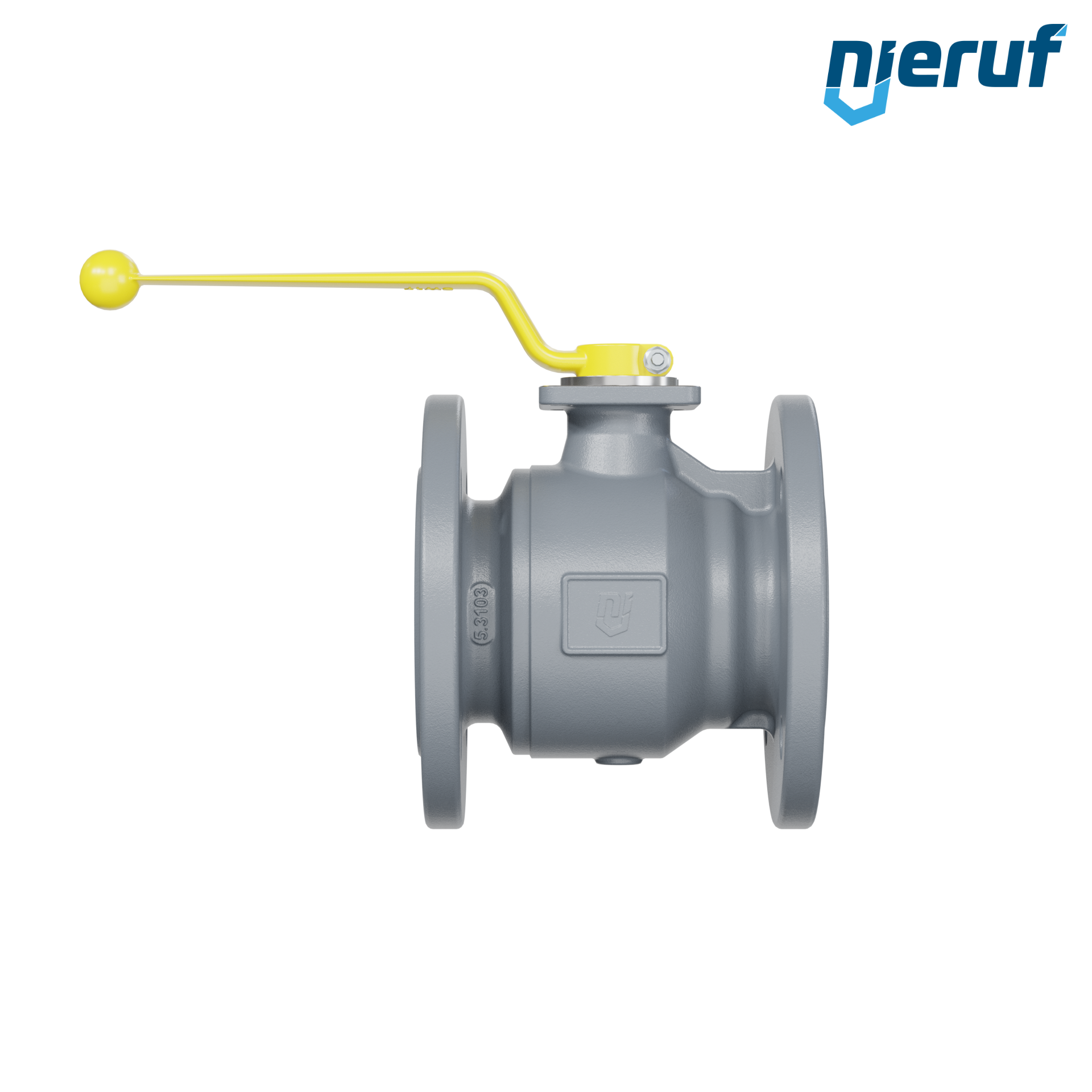

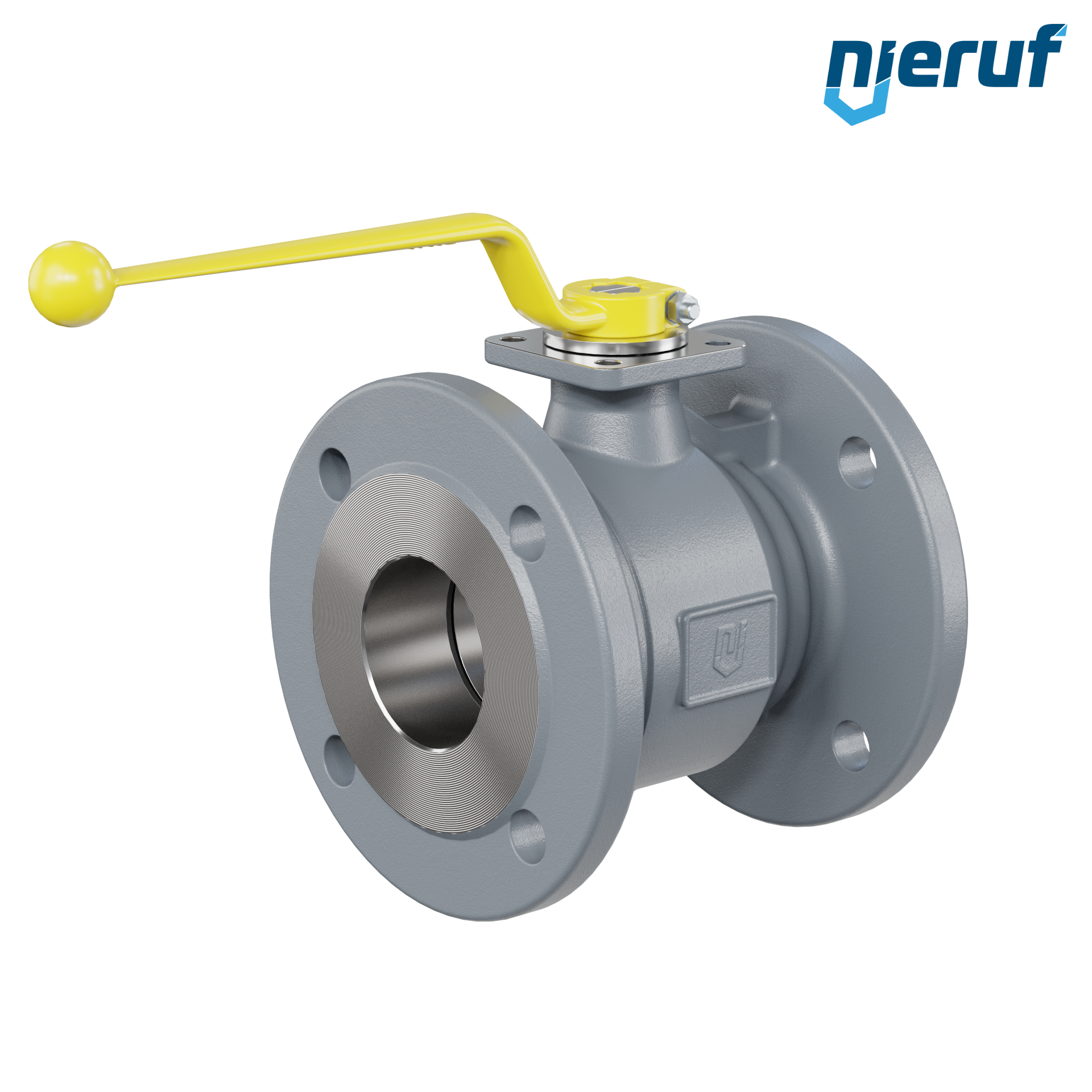

Flange ball valve DN65 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas

€333.70*

€397.10 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

FD01000109

flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400

€3.60*

€4.28 VAT included.


FL01020109

Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€26.40*

€31.42 VAT included.


VS01010109

joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel

€6.80*

€8.09 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: FK02020009
Flange ball valve DN65 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas

Flange ball valve DN65 FK02 body spheroidal graphite cast iron GJS 400-18 ball (solid) stainless steel 1.4408 seal PTFE approval DVGW gas

product: Flange ball valve
type: FK02
manufacturer: NieRuf
diameter: DN65
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE
media: gas: 1., 2. and 3. gas category
temperature: -20°C up to +60°C - depending on working pressure and media
max. pressure: PN16
design: full port design with solid stainless steel ball
body material: spheroidal graphite cast iron GJS 400-18
ball material: (solid) stainless steel 1.4408
length: DIN EN 558-1 R14
actuator: hand lever made of alu with yellow cover
installation position: any position
authorized for: DVGW-Gas
product description: This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a solid stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange ball valve DN65 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas

Article no. : FK02020009
product: Flange ball valve
type: FK02
manufacturer: NieRuf
diameter: DN65
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE
media: gas: 1., 2. and 3. gas category
temperature: -20°C up to +60°C - depending on working pressure and media
max. pressure: PN16
design: full port design with solid stainless steel ball
body material: spheroidal graphite cast iron GJS 400-18
ball material: (solid) stainless steel 1.4408
length: DIN EN 558-1 R14
actuator: hand lever made of alu with yellow cover
installation position: any position
authorized for: DVGW-Gas
product description: This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a solid stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.
