FK05000008

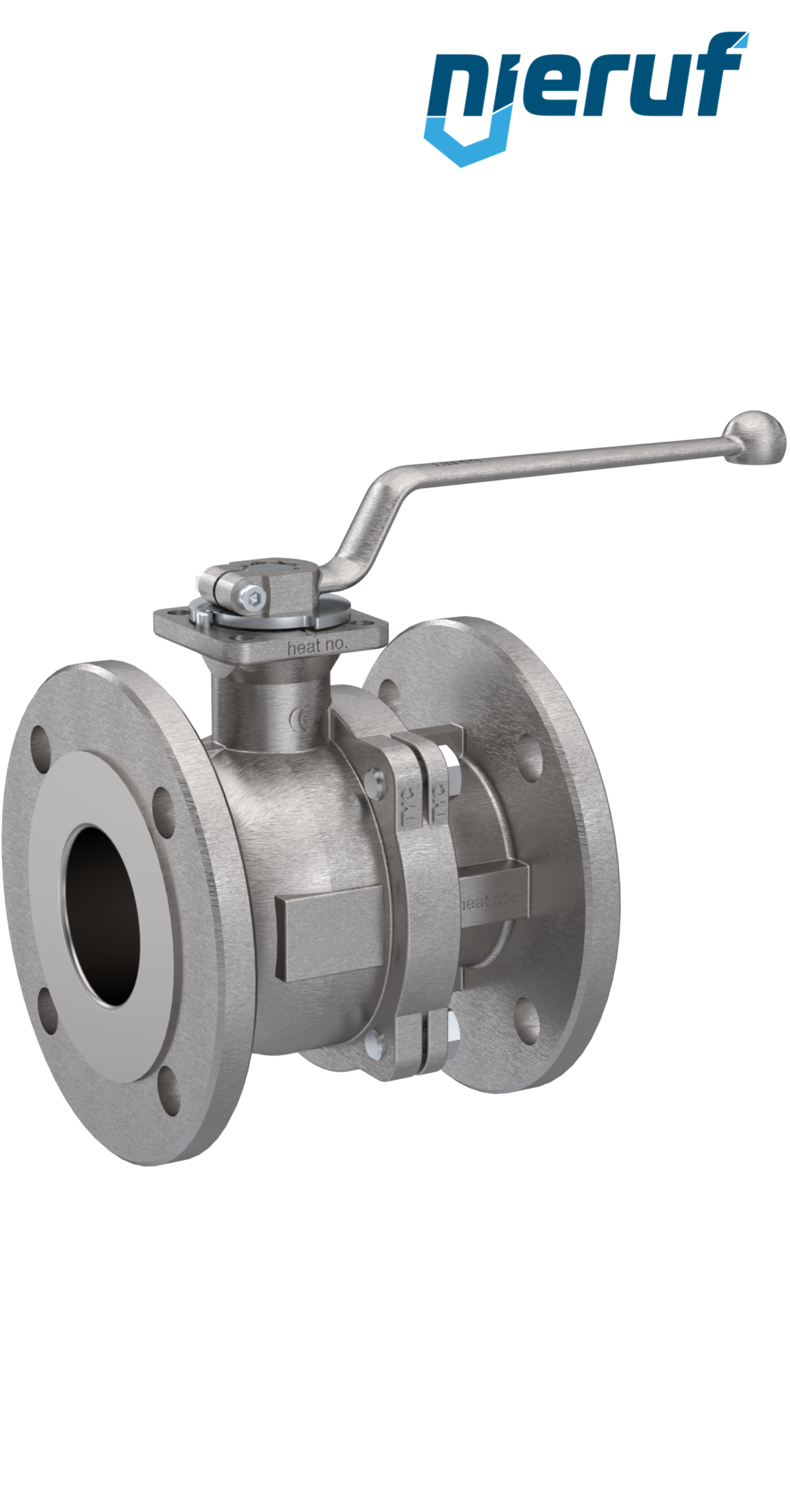

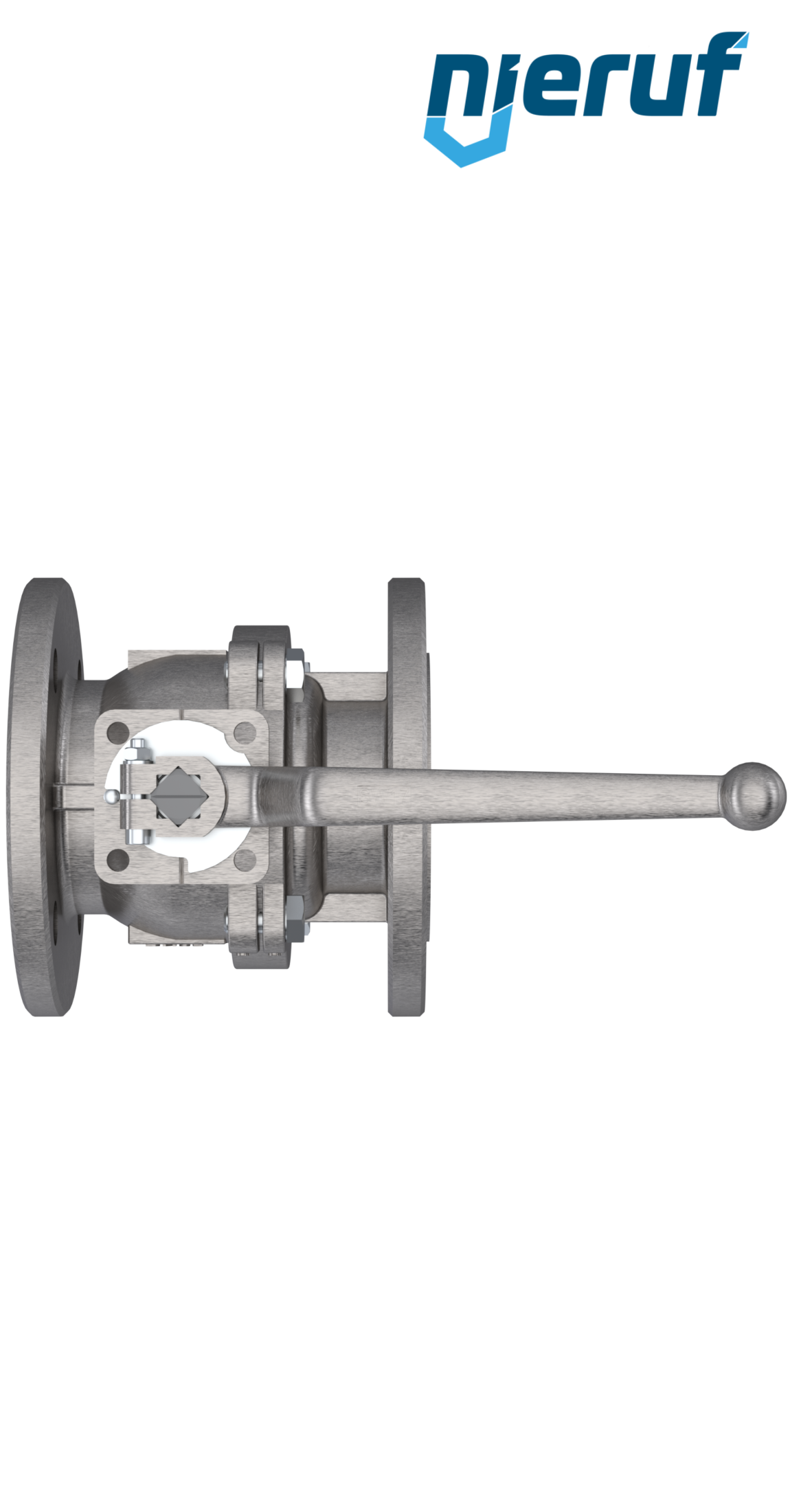

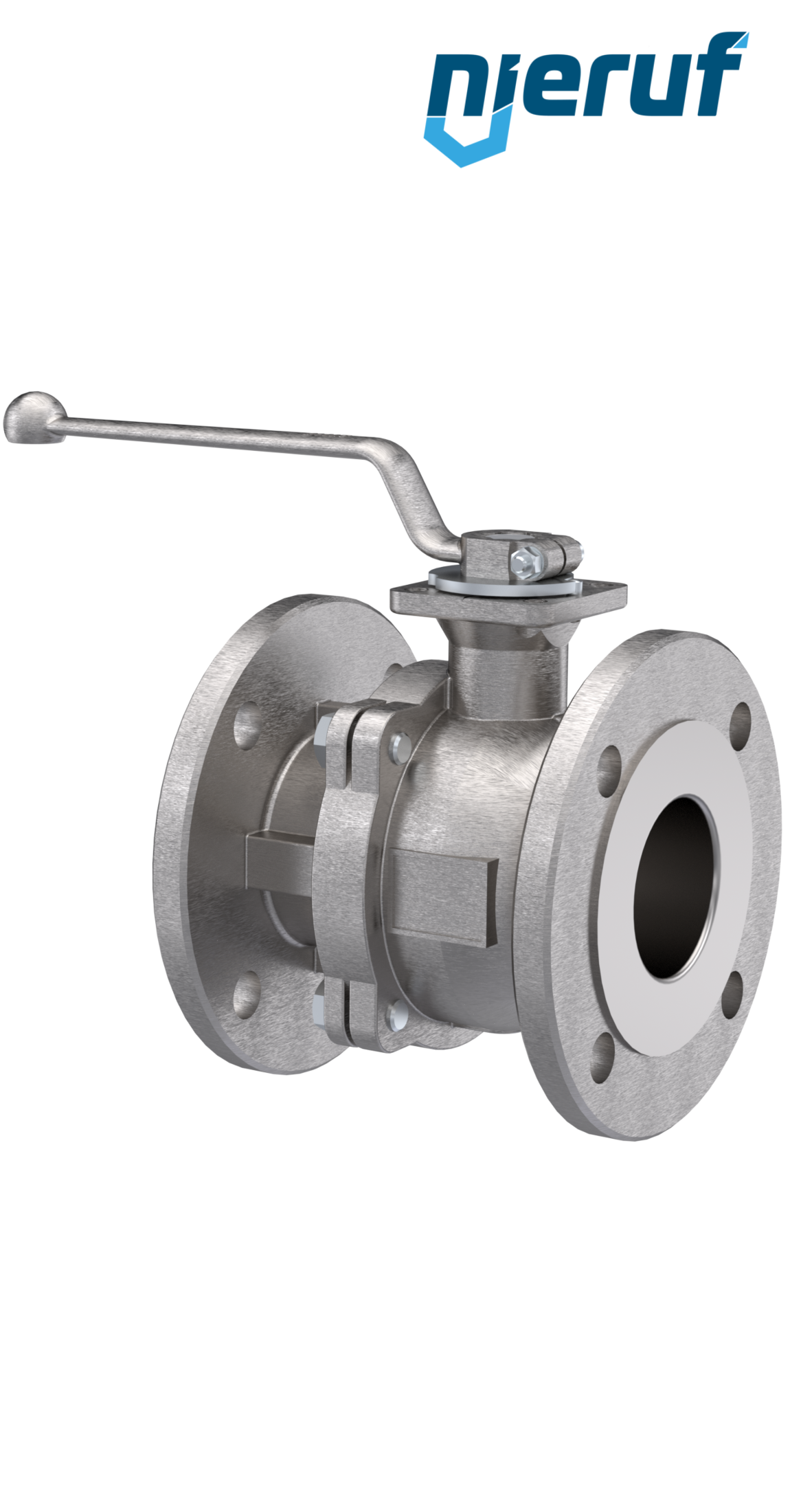

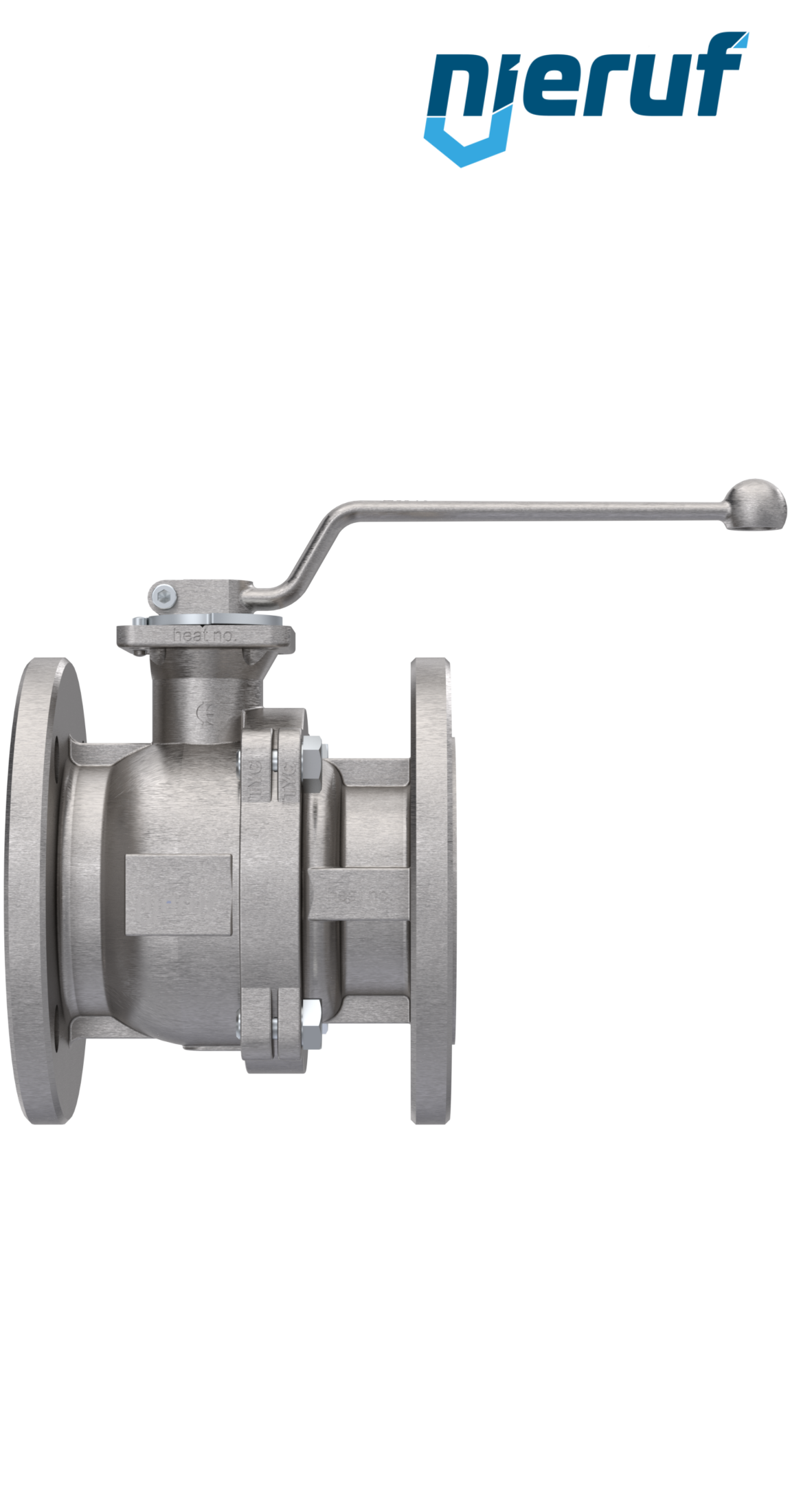

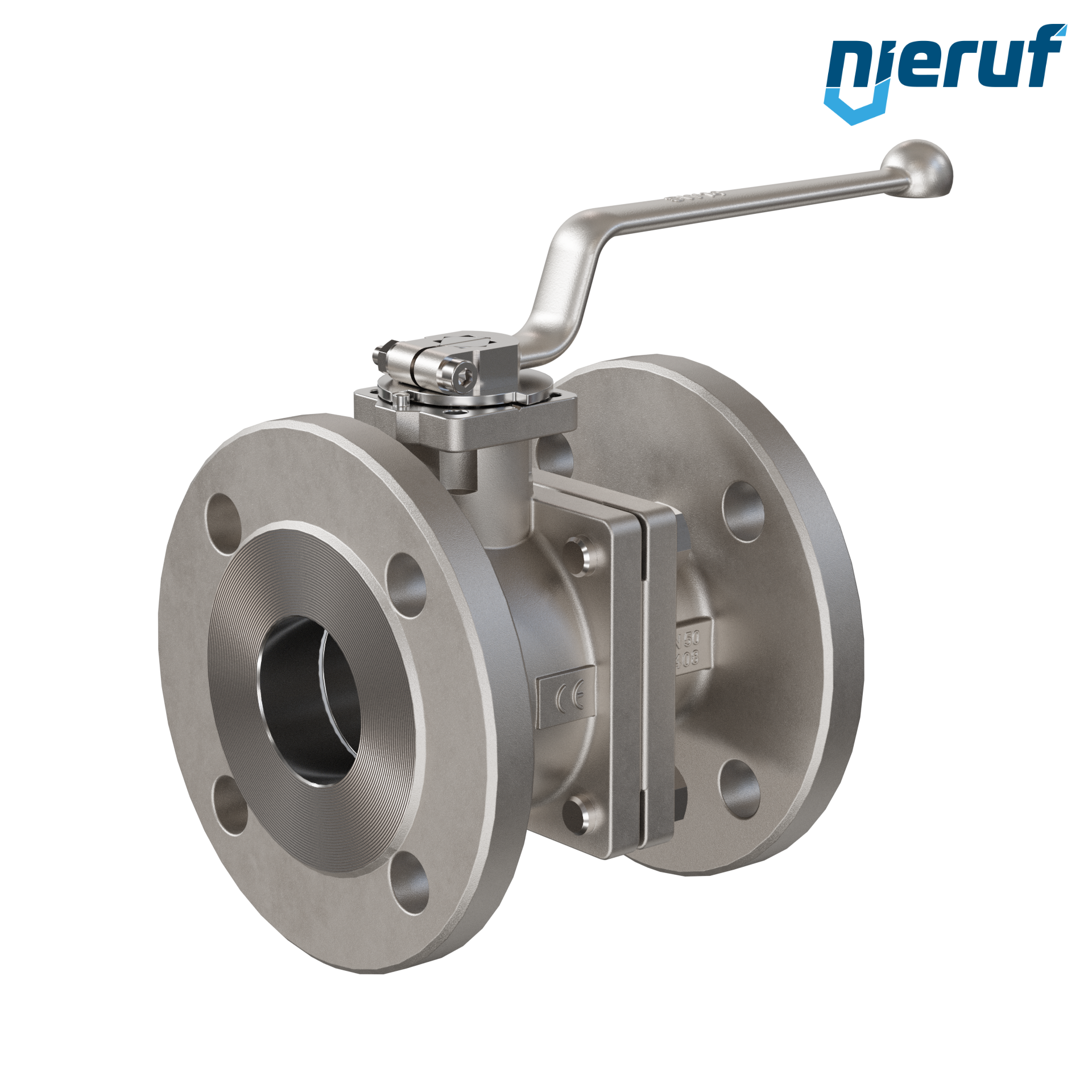

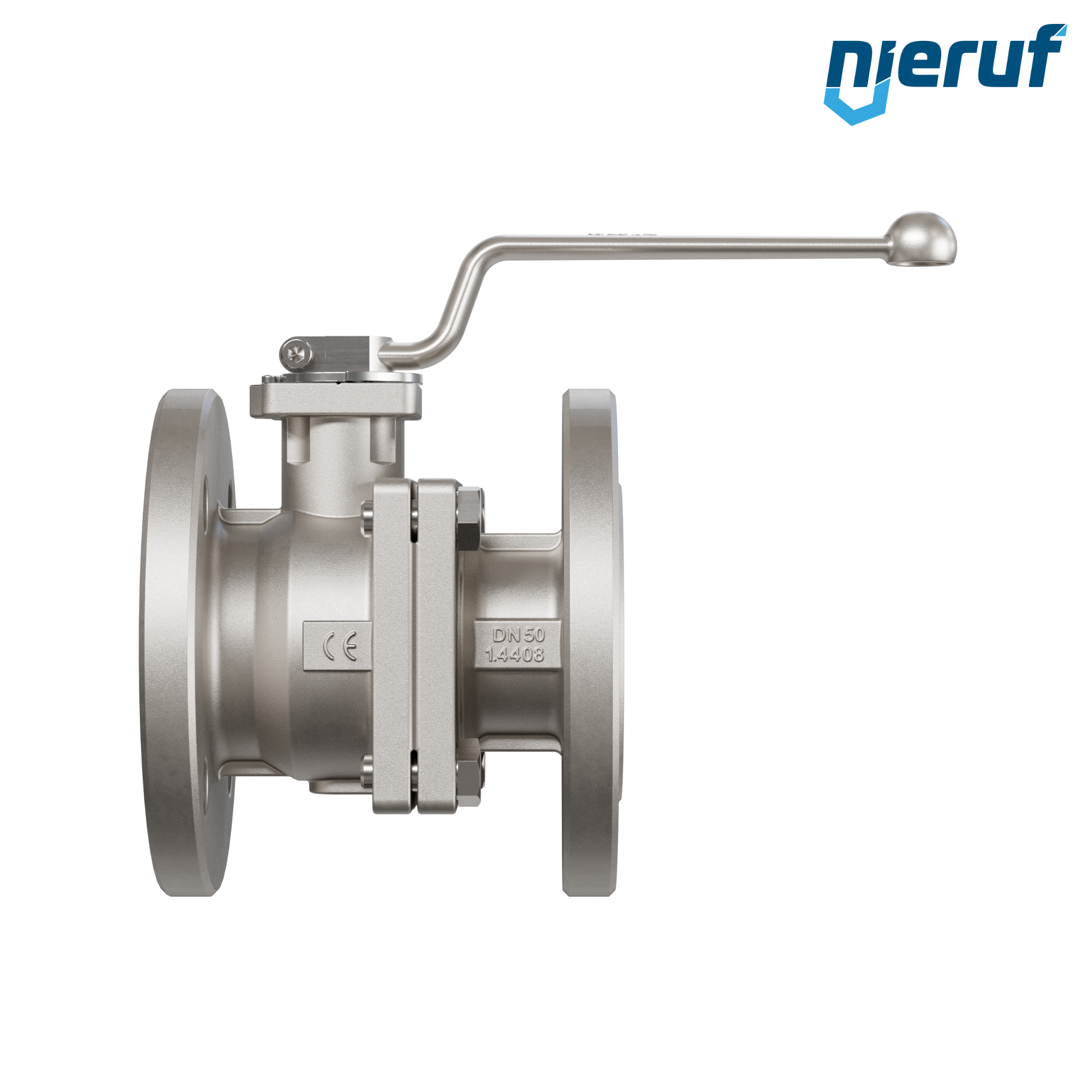

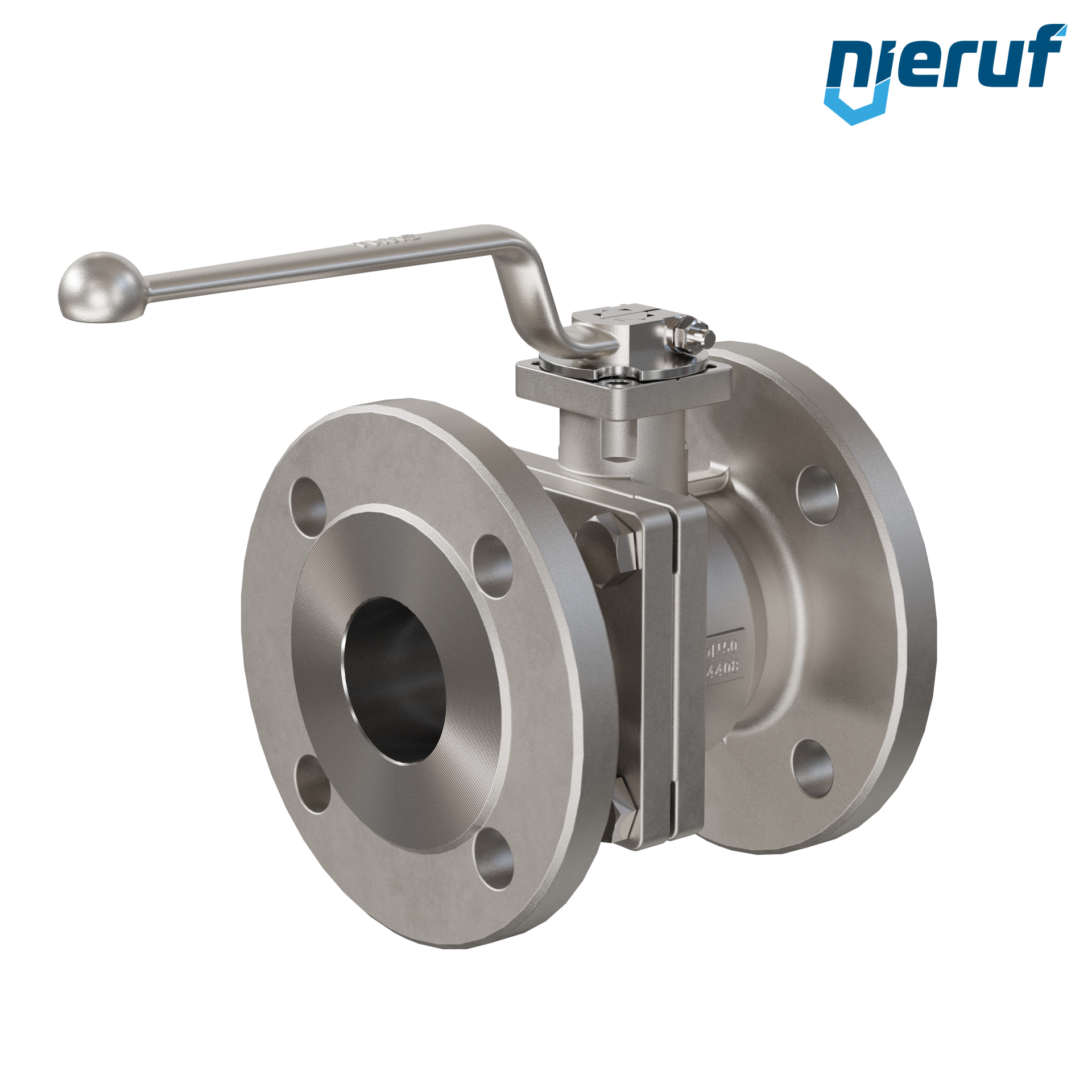

flange ball valve DN50 FK05 stainless steel 1.4408

€424.20*

€504.80 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

FD01000108

flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400

€3.00*

€3.57 VAT included.


VS01000108

joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel

€8.40*

€10.00 VAT included.


FL01000108

Welding neck flange DN50 PN10/16 EN1092-1 11 B1 1.4541

€43.70*

€52.00 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: FK05000008
flange ball valve DN50 FK05 stainless steel 1.4408

flange ball valve DN50 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / GF for liquid and gaseous media

product: flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN50
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: PTFE/FKM
body seal: FKM/TFM
ball seal: PTFE/GF
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

flange ball valve DN50 FK05 stainless steel 1.4408

Article no. : FK05000008
product: flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN50
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: PTFE/FKM
body seal: FKM/TFM
ball seal: PTFE/GF
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
