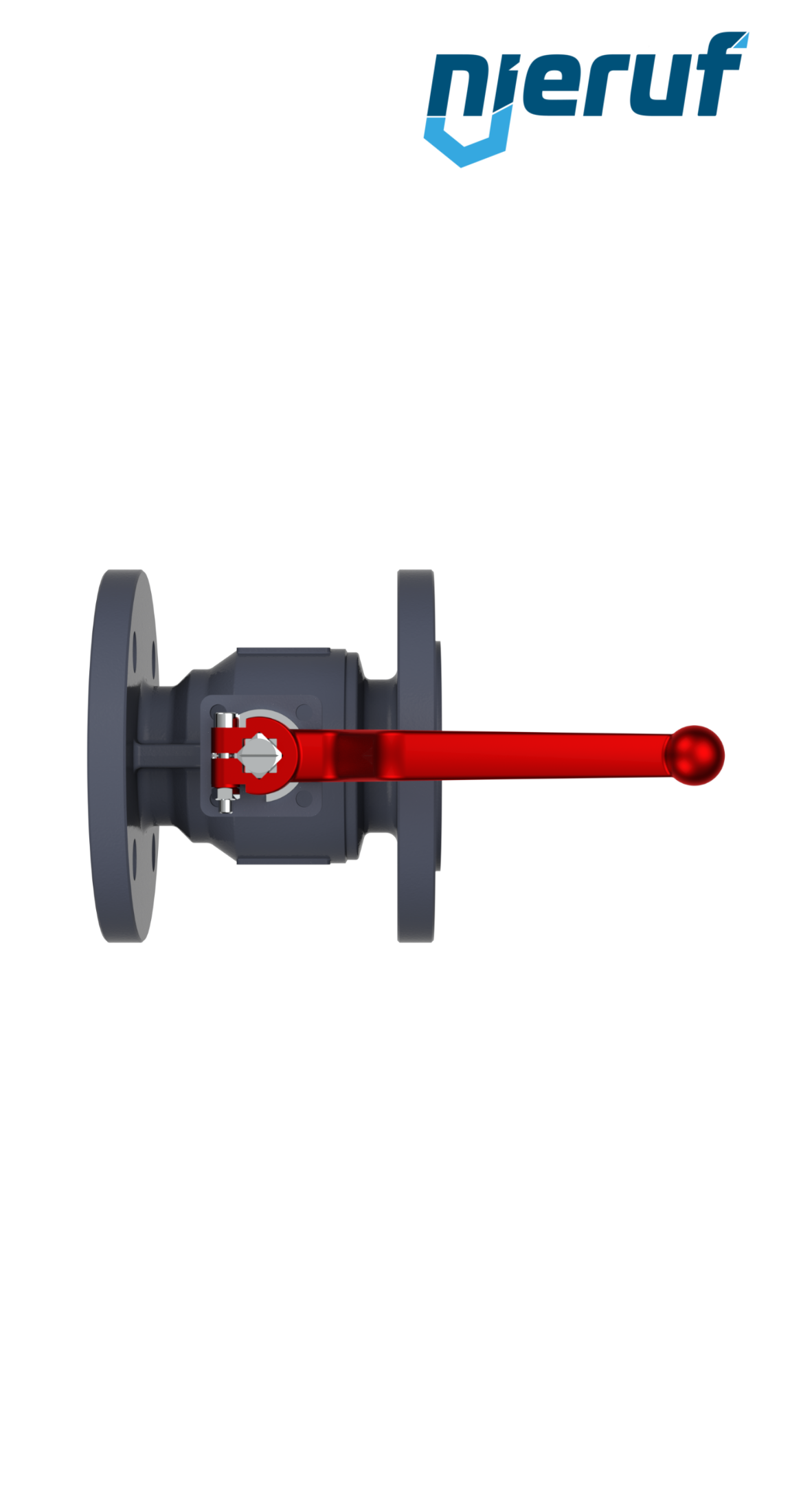

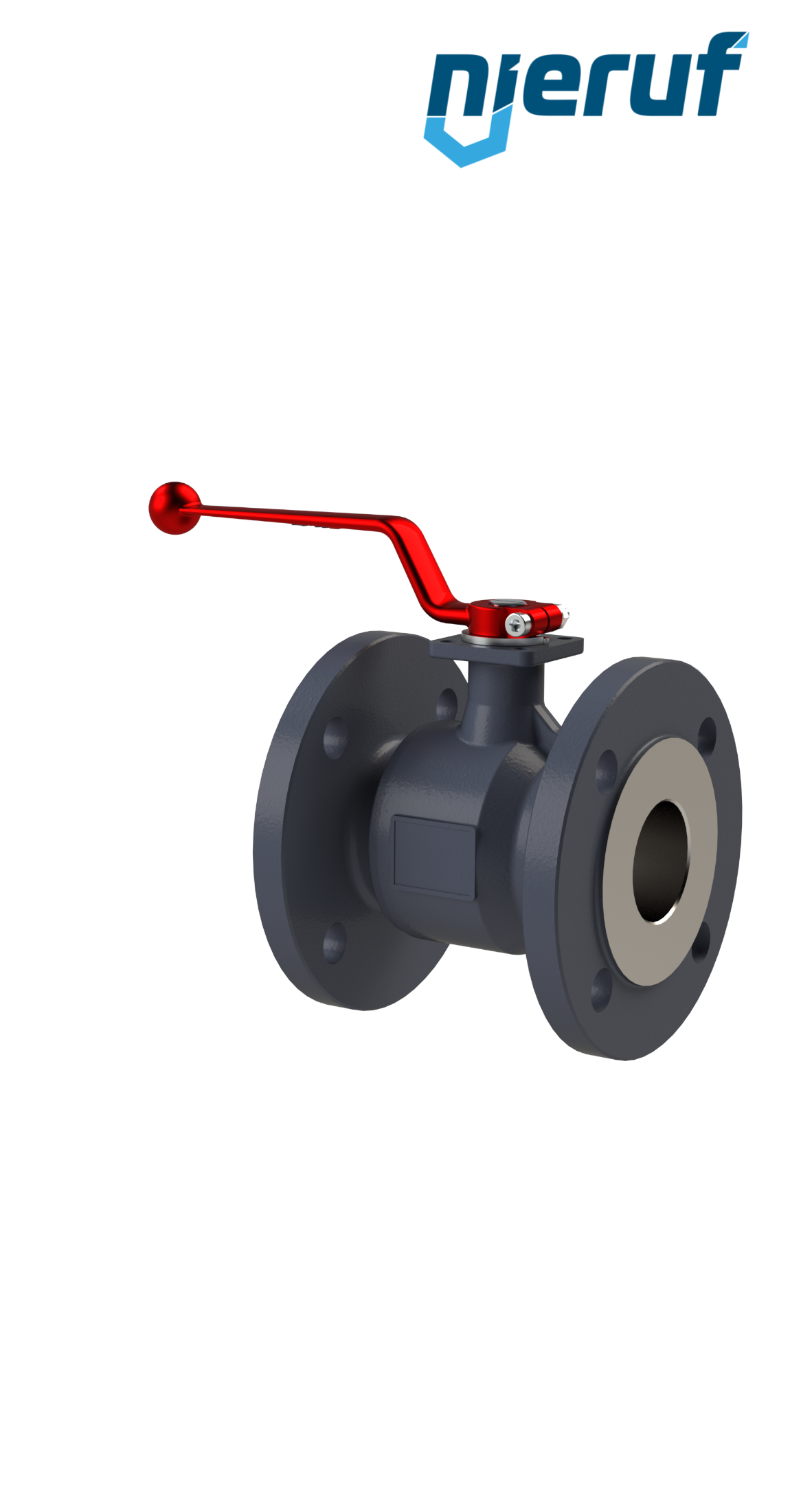

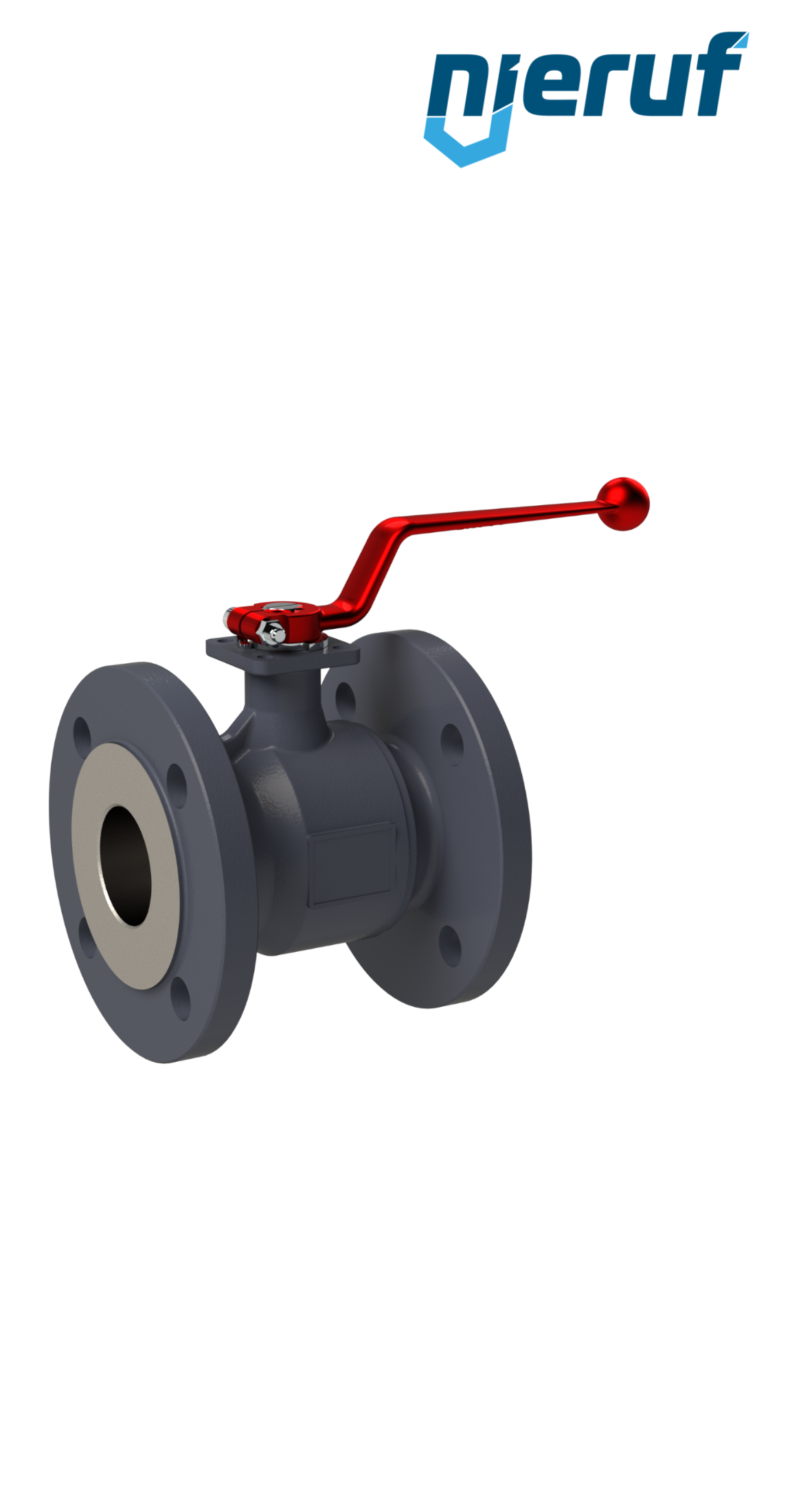

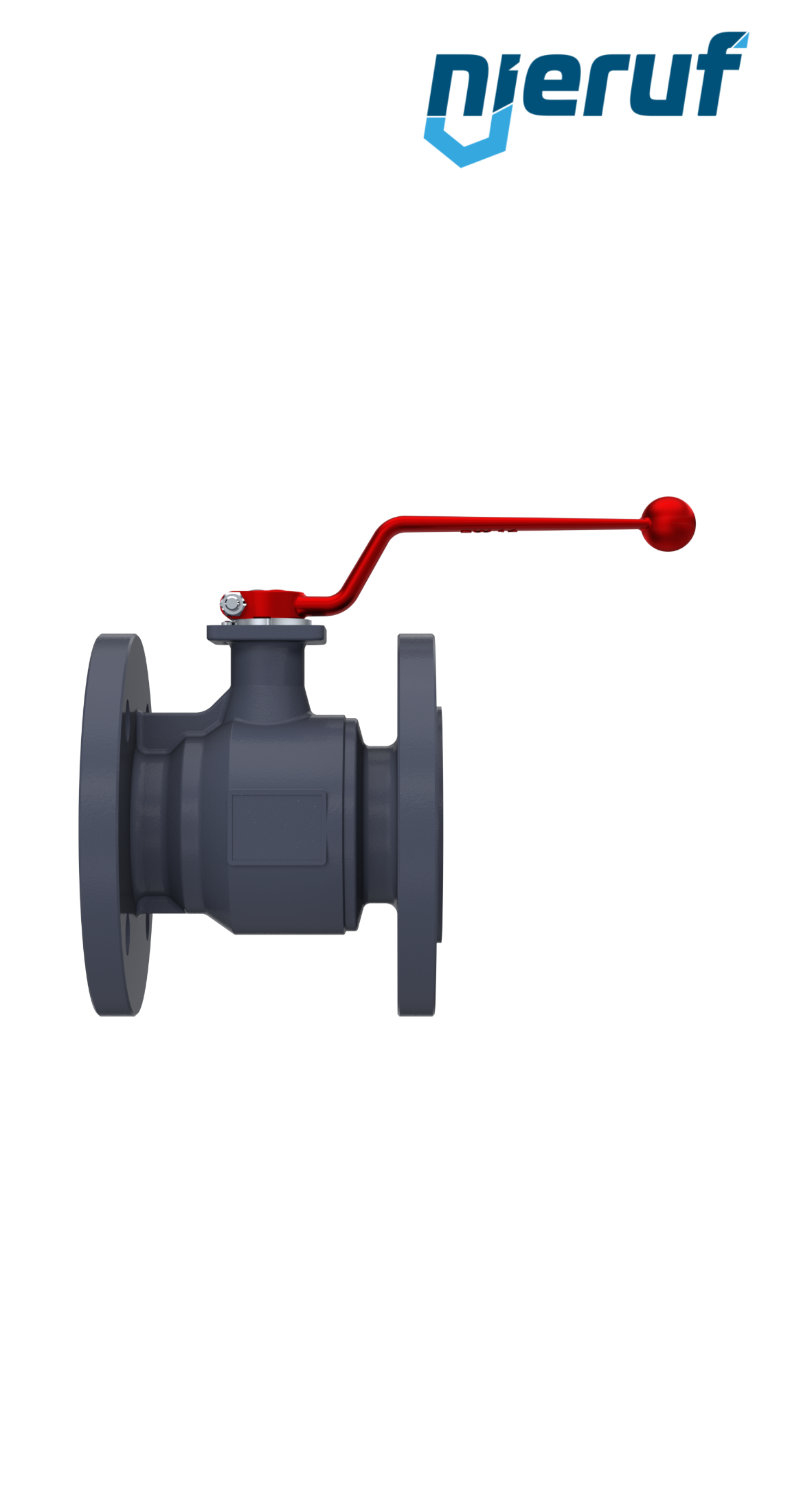

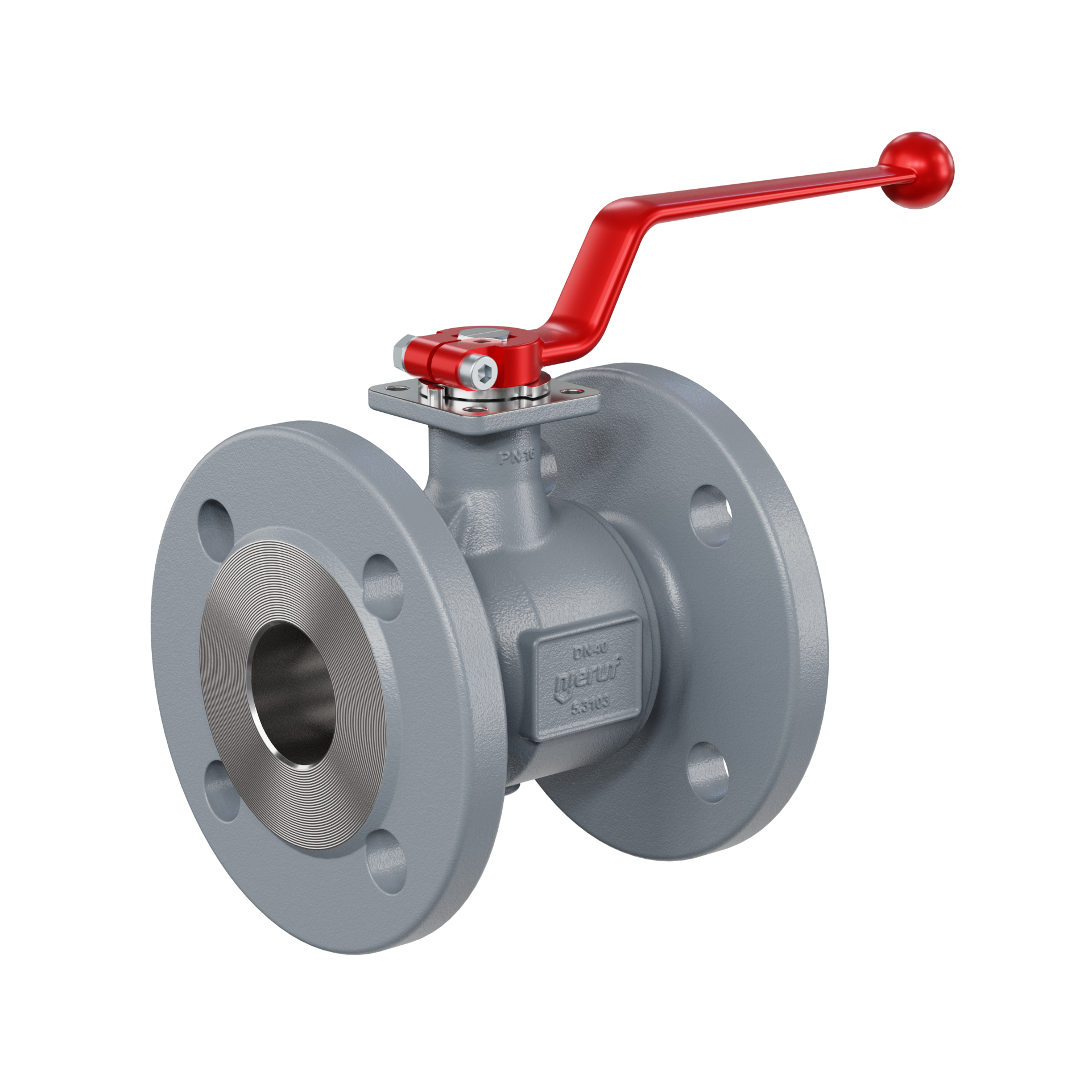

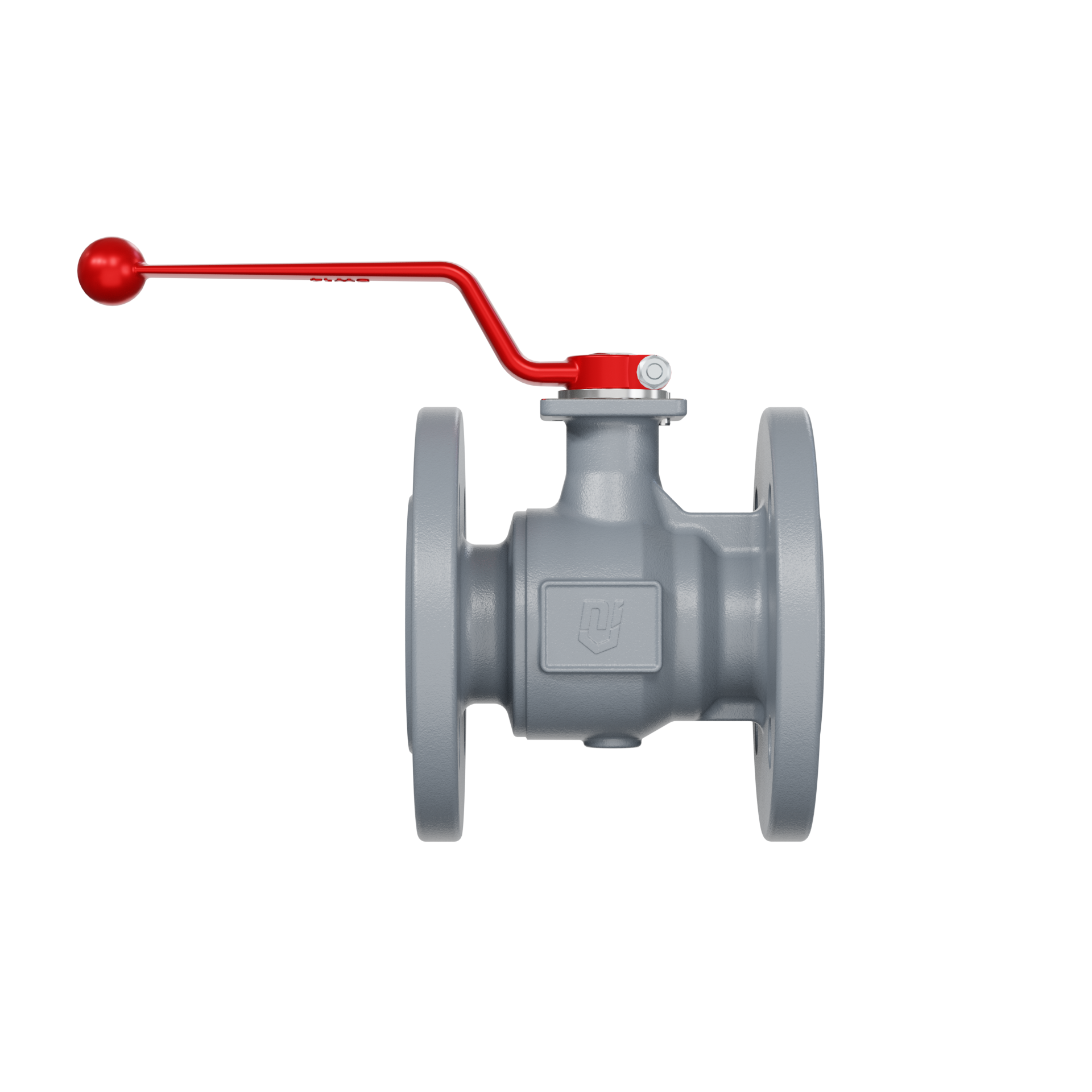

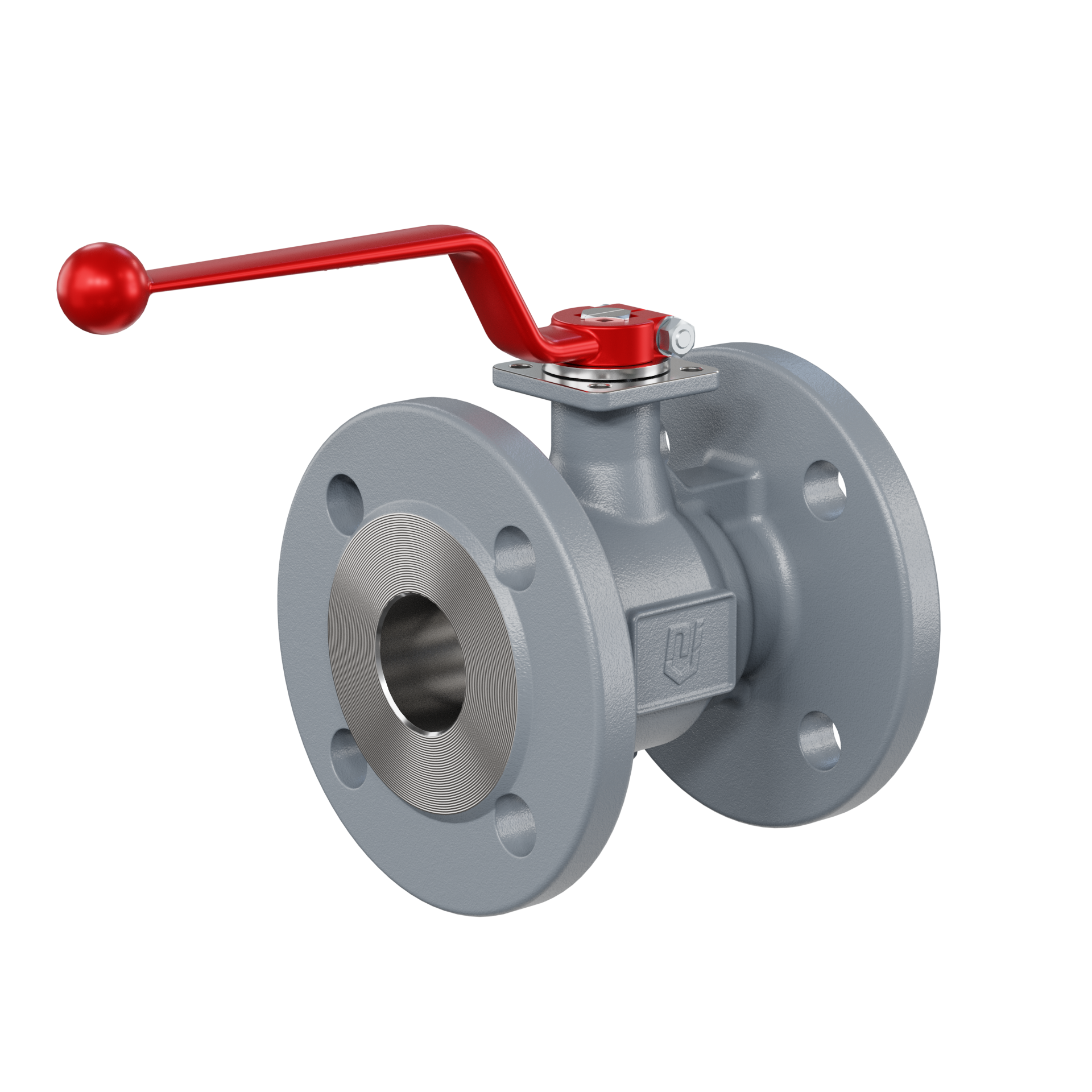

Flange ball valve DN40 FK01 body spheroidal graphite cast iron GJS 400-18 ball steel chrome plated seal PTFE / GF for liquid and gaseous media
| product | Flange ball valve |
|---|---|
| type | FK01 |
| manufacturer | NieRuf |
| diameter | DN40 |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | O-rings FKM |
| ball seal | PTFE / GF |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design with chrome plated steel ball |
| body material | spheroidal graphite cast iron 5.3103 |
| ball material | steel chrome plated 1.0503 |
| length | DIN EN 558-1 R14 |
| actuator | hand lever made of alu in red |
| installation position | any position |
| product description | This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with floating chrome plated steel ball |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange ball valve DN40 FK01 GGG40 ball steel chrome plated
Article no.
: FK01000007
product:
Flange ball valve
type:
FK01
manufacturer:
NieRuf
diameter:
DN40
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
ball seal:
PTFE / GF
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design with chrome plated steel ball
body material:
spheroidal graphite cast iron 5.3103
ball material:
steel chrome plated 1.0503
length:
DIN EN 558-1 R14
actuator:
hand lever made of alu in red
installation position:
any position
product description:
This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with floating chrome plated steel ball
