FK12010007
Steam-flange ball valve DN40 FK12 carbon steel 1.0619
- Lead time
- 1 - 2 weeks
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
stem extension hub length 100 mm square 14mm AD02 stainless steel
€37.37 VAT included.
lever with spring return F05-F07 14x14 shaft torque value max. 55Nm
€328.80 VAT included.
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
€3.21 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

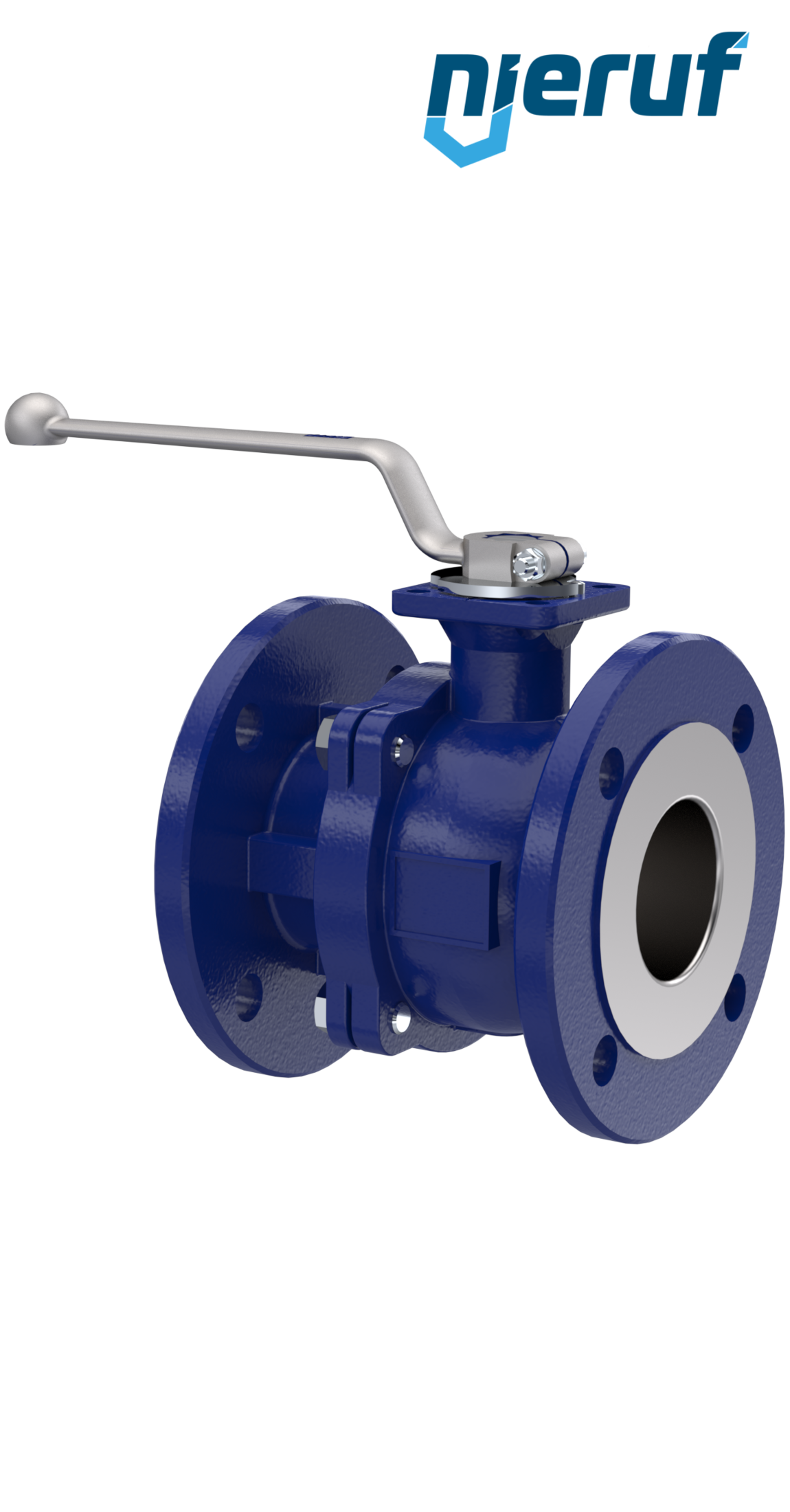

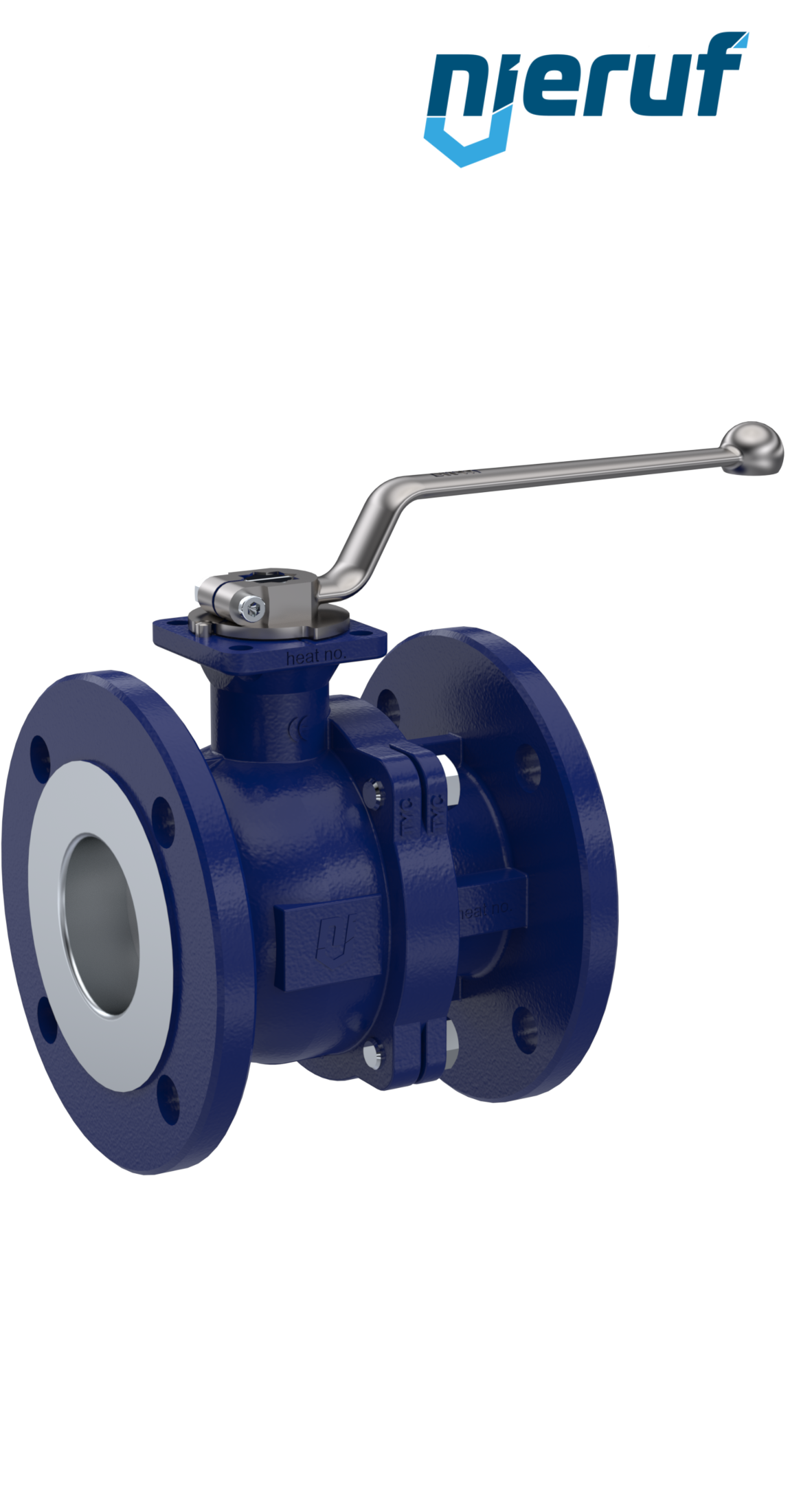

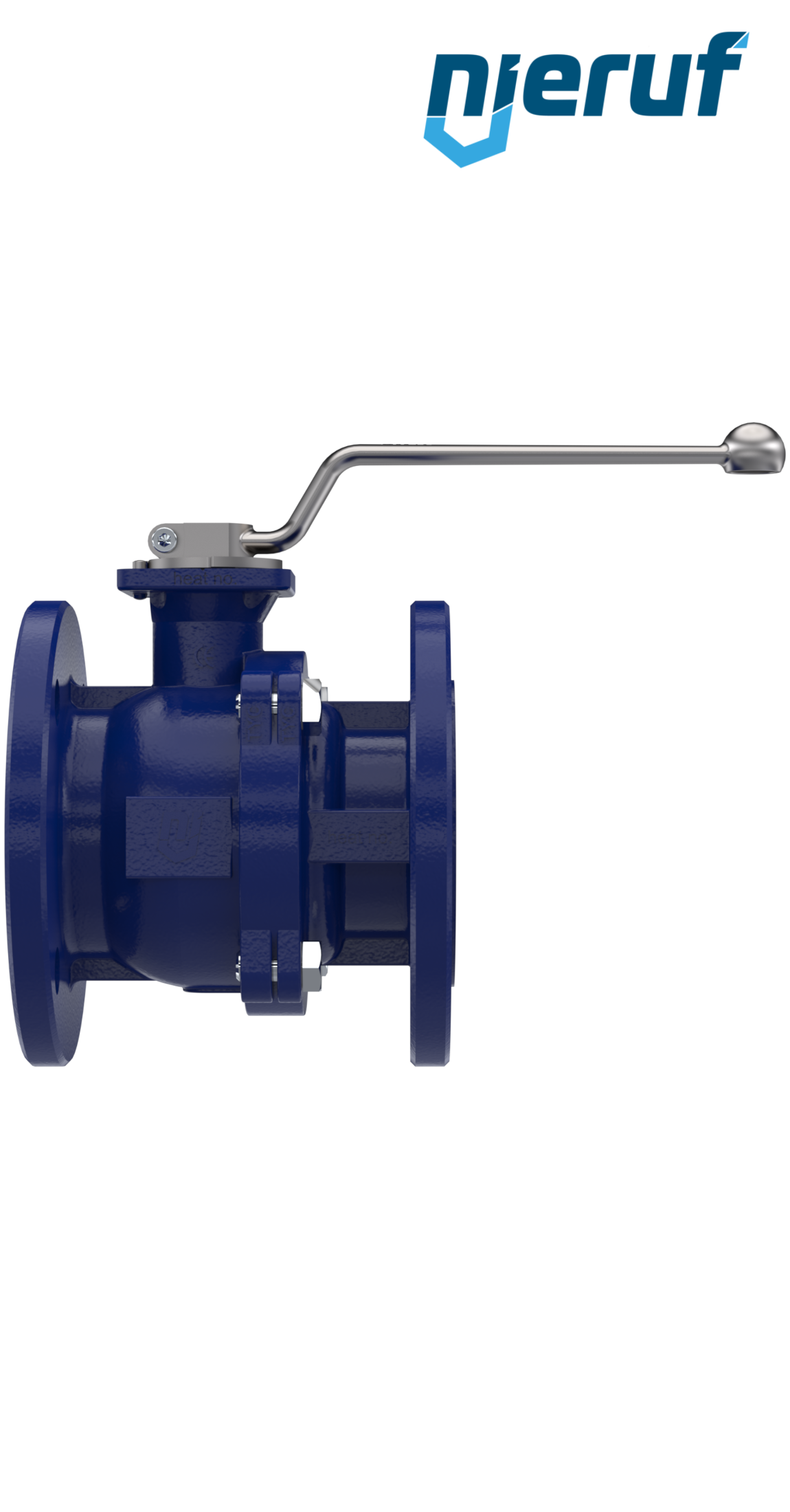

Steam-flange ball valve DN40 FK12 carbon steel 1.0619
Steam-flange ball valve DN40 PN16 FK12 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE / TFM for gaseous for example steam
| product | Steam-flange ball valve |
|---|---|
| type | FK12 |
| manufacturer | NieRuf |
| diameter | DN40 |
| connection | flange dimensions acc. to EN 1092-1 |
| Seal steam | PTFE / TFM / Graphite |
| ball seal | PTFE / TFM |
| media | gaseous for example steam |
| Leakage rate | A |
| temperature | -20°C up to +220°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4408 / CF8M |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Steam-flange ball valve DN40 FK12 carbon steel 1.0619
Article no.
: FK12010007
product:
Steam-flange ball valve
type:
FK12
manufacturer:
NieRuf
diameter:
DN40
connection:
flange dimensions acc. to EN 1092-1
Seal steam:
PTFE / TFM / Graphite
ball seal:
PTFE / TFM
media:
gaseous for example steam
Leakage rate:
A
temperature:
-20°C up to +220°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4408 / CF8M
length:
DIN EN 558 R 27
actuator:
lever handle made of steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered.
Equipment
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Lead time: in stock
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
lever with spring return F05-F07 14x14 shaft torque value max. 55Nm
Lead time: 2 - 3 weeks
stem extension hub length 100 mm square 14mm AD02 stainless steel
Lead time: 3 - 5 working days
