FK05040006
drinking-water-flange ball valve DN32 FK05 stainless steel 1.4408
- Lead time
- 1 - 2 weeks
Equipment
lever with spring return F04-F05 11x11 shaft torque value max. 30Nm
€161.25 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541
€33.44 VAT included.
stem extension hub length 100 mm square 11mm AD02 stainless steel
€32.73 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€5.24 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

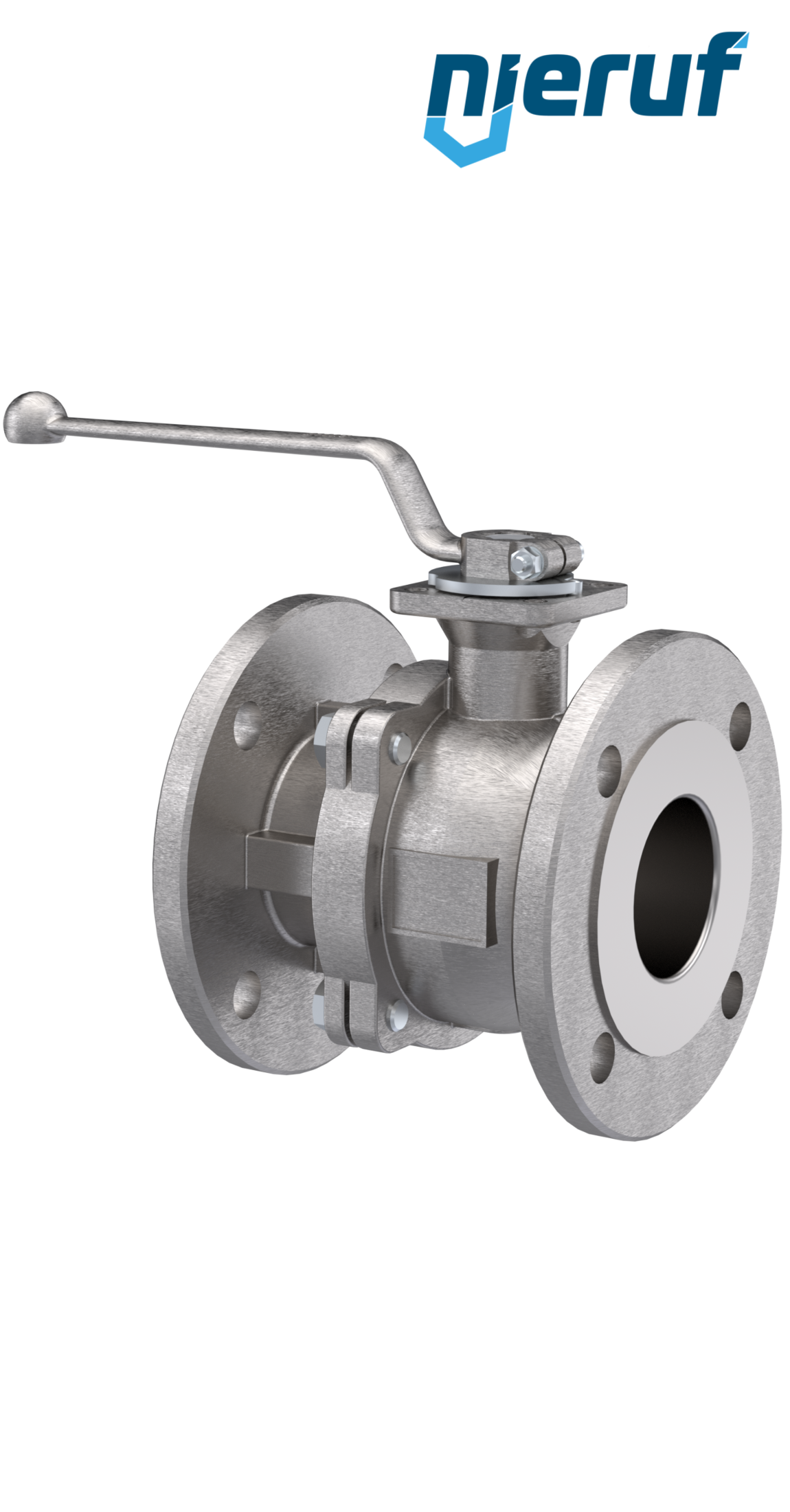

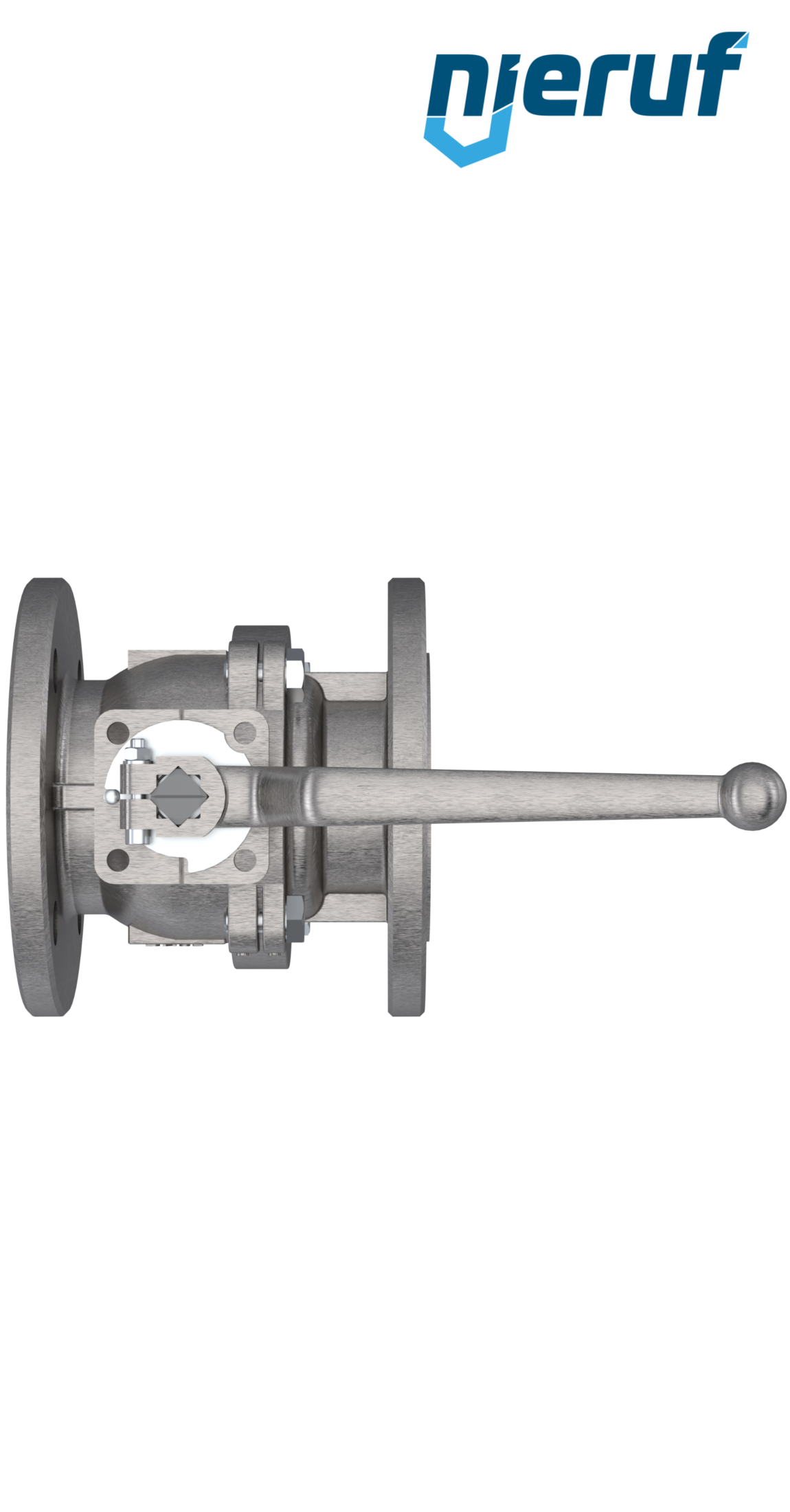

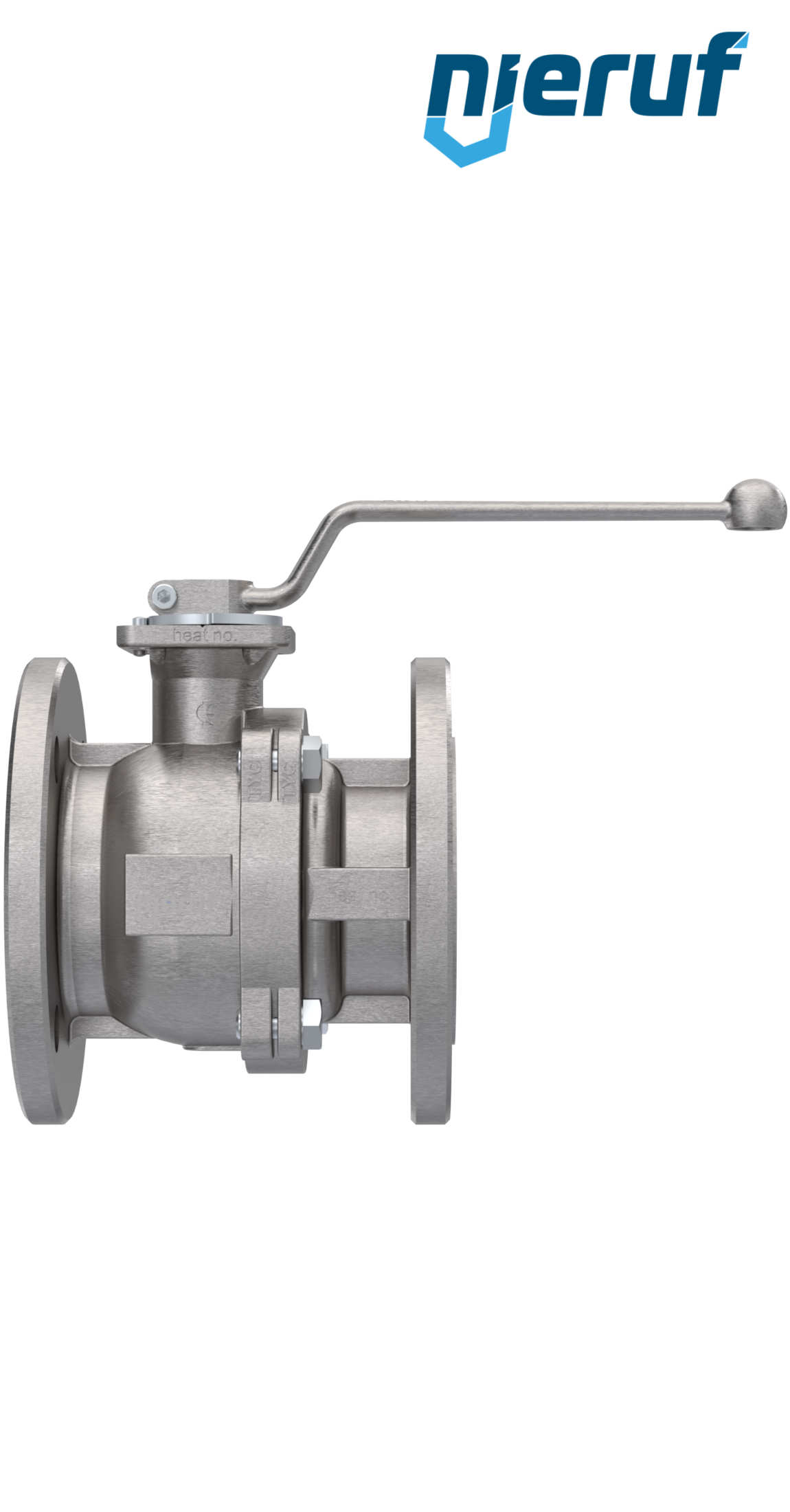

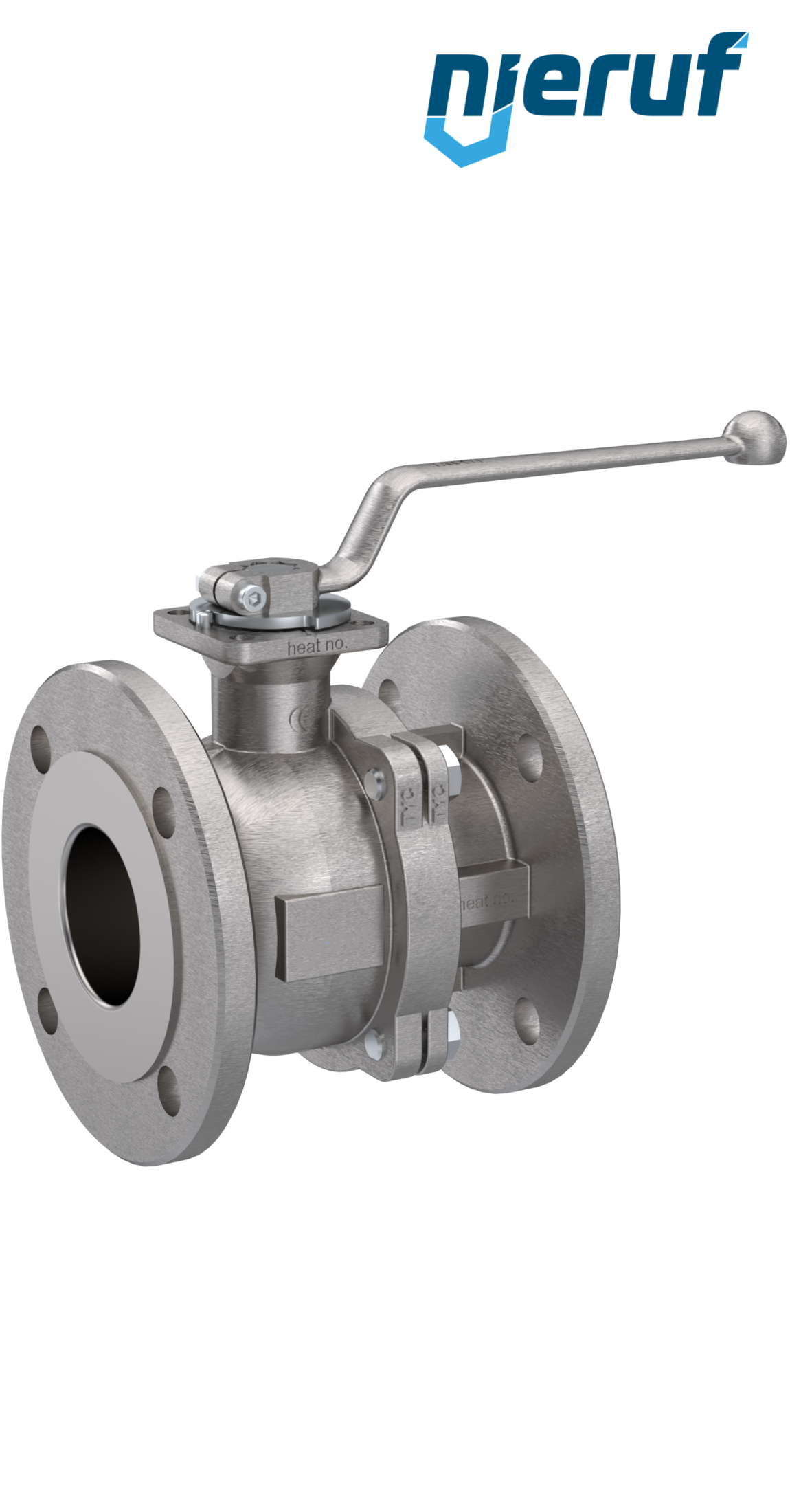

drinking-water-flange ball valve DN32 FK05 stainless steel 1.4408
drinking-water-flange ball valve DN32 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE for drinking water
| product | drinking-water-flange ball valve |
|---|---|
| type | FK05 |
| manufacturer | NieRuf |
| diameter | DN32 |
| connection | flange dimensions acc. to EN 1092-1 PN16 |
| Seal steam | PTFE/EPDM |
| body seal | PTFE |
| ball seal | PTFE |
| media | liquid media, drinking water, DVGW-drinking water |
| Leakage rate | A |
| temperature | -20°C up to +180°C - depending on media and dimension |
| max. pressure | PN16 |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4408 / CF8M |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of stainless steel |
| installation position | any position |
| authorized for | DVGW-drinking water |
| product description | This high quality ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal with DVGW drinking water approval and is suitable for drinking water. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
drinking-water-flange ball valve DN32 FK05 stainless steel 1.4408
Article no.
: FK05040006
product:
drinking-water-flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN32
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
PTFE/EPDM
body seal:
PTFE
ball seal:
PTFE
media:
liquid media, drinking water, DVGW-drinking water
Leakage rate:
A
temperature:
-20°C up to +180°C - depending on media and dimension
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4408 / CF8M
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
DVGW-drinking water
product description:
This high quality ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal with DVGW drinking water approval and is suitable for drinking water. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
Equipment
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
lever with spring return F04-F05 11x11 shaft torque value max. 30Nm
Lead time: 2 - 3 weeks
stem extension hub length 100 mm square 11mm AD02 stainless steel
Lead time: 3 - 5 working days
