FK02000006
Flange ball valve DN32 FK02 GGG40 ball stainless steel 1.4404
- Lead time
- 3 - 5 working days
Equipment
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€17.85 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€5.24 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

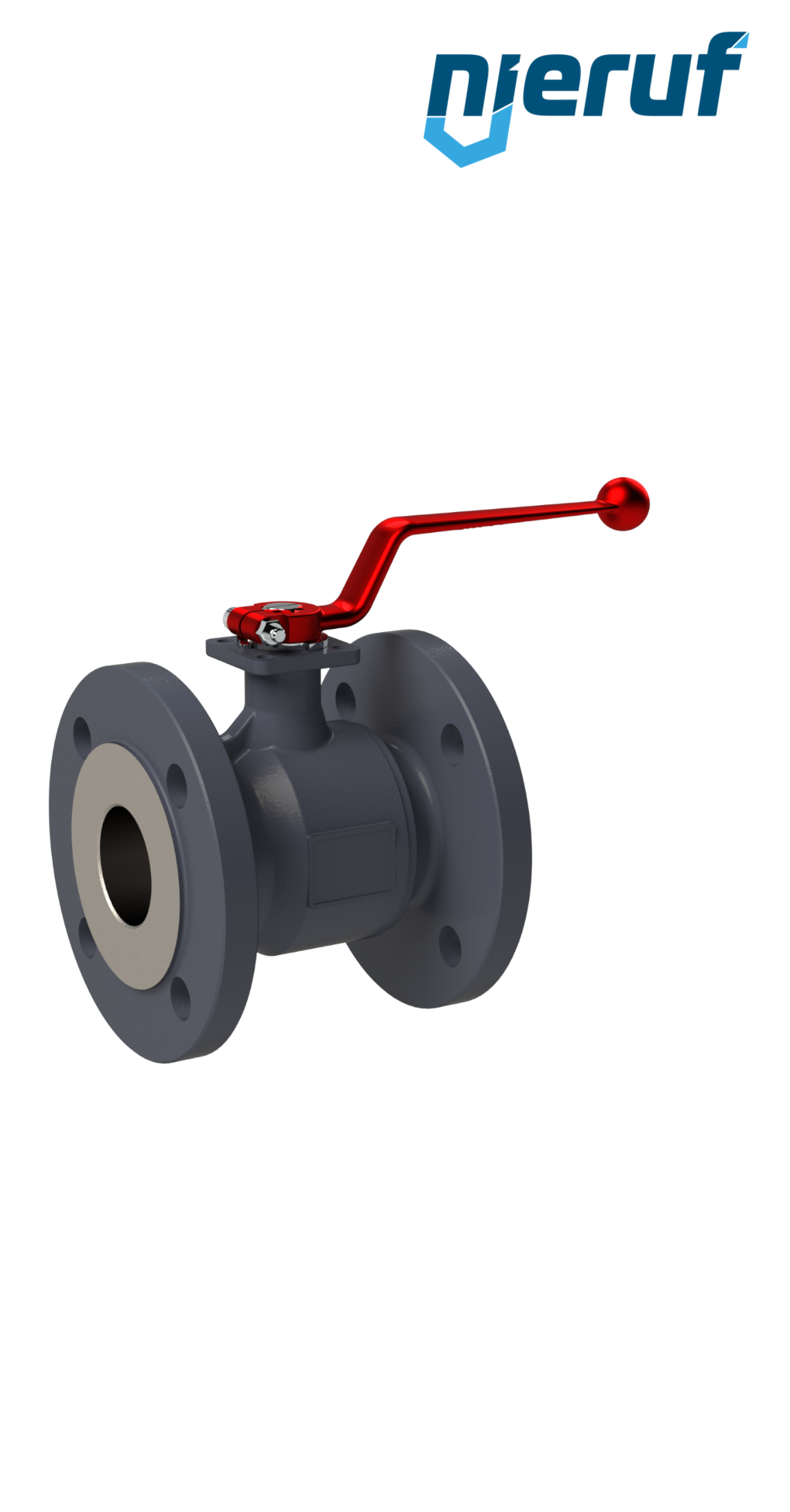

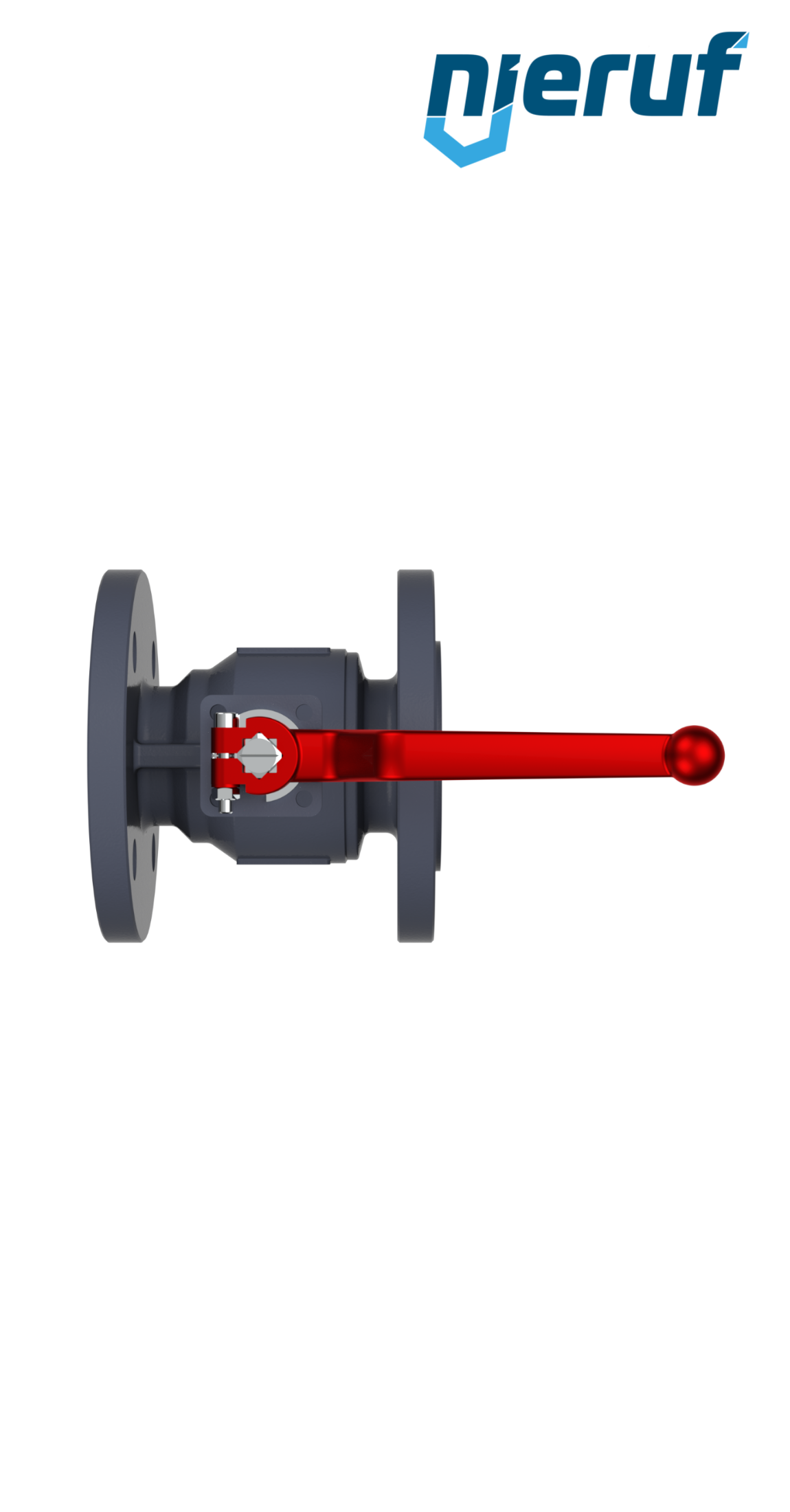

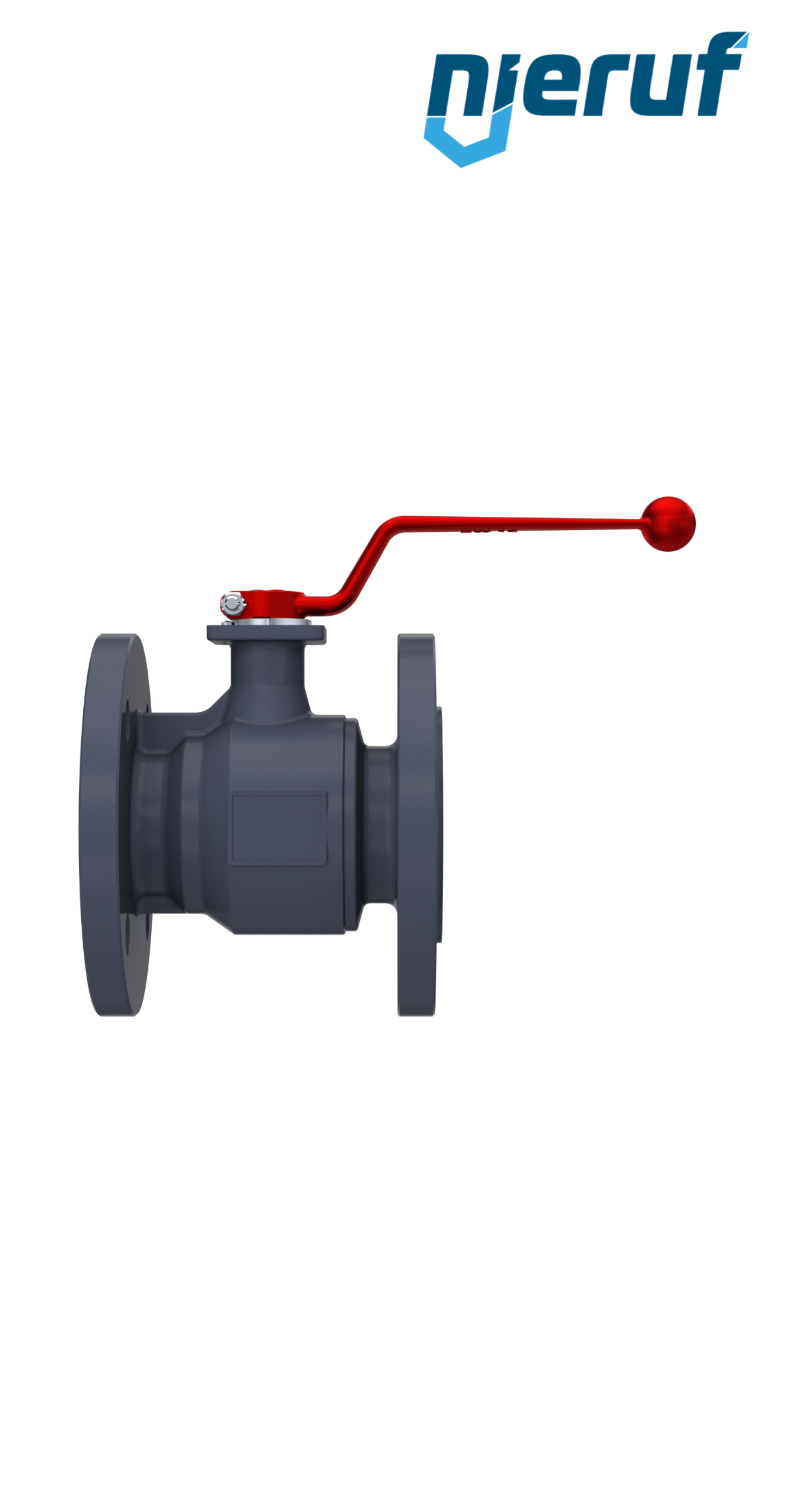

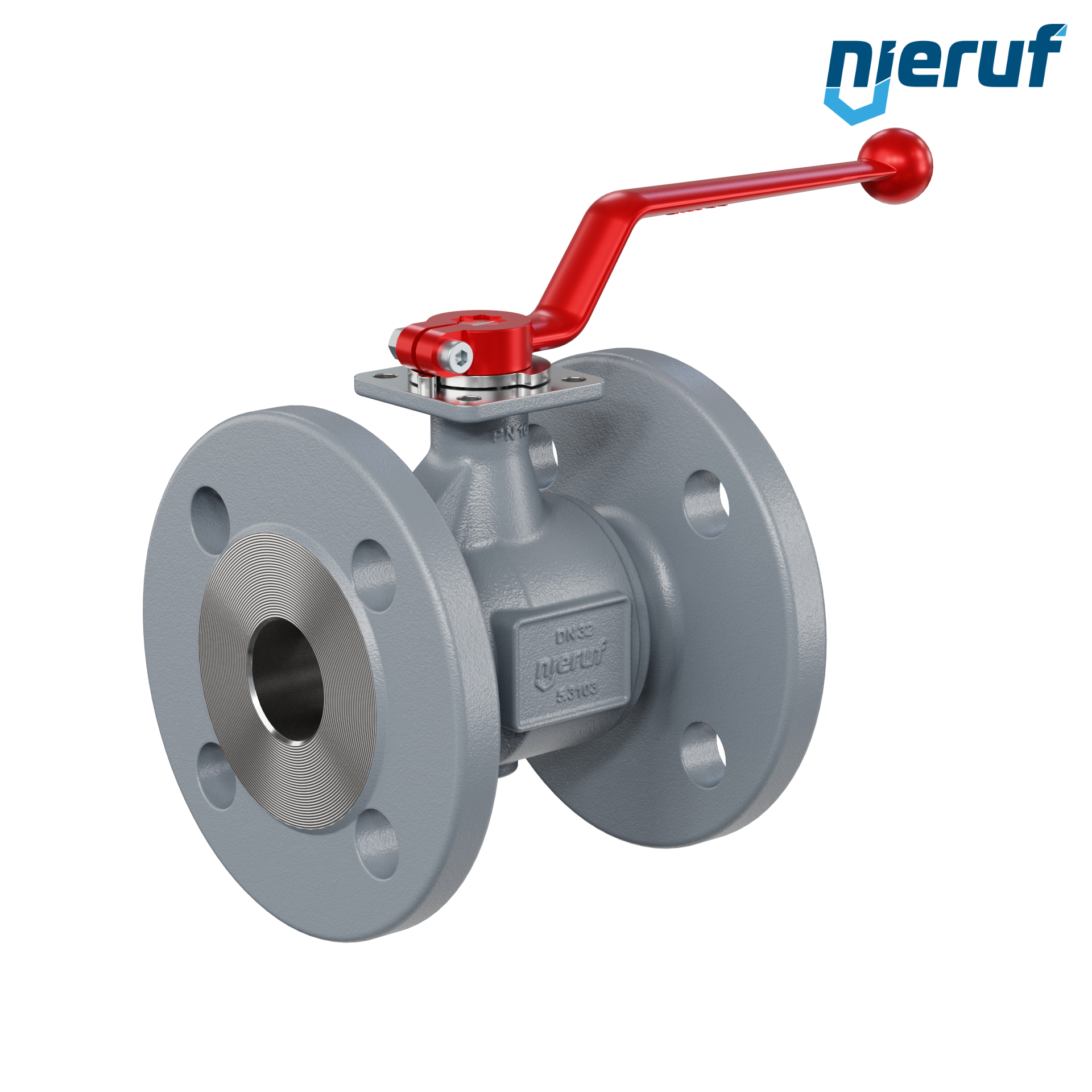

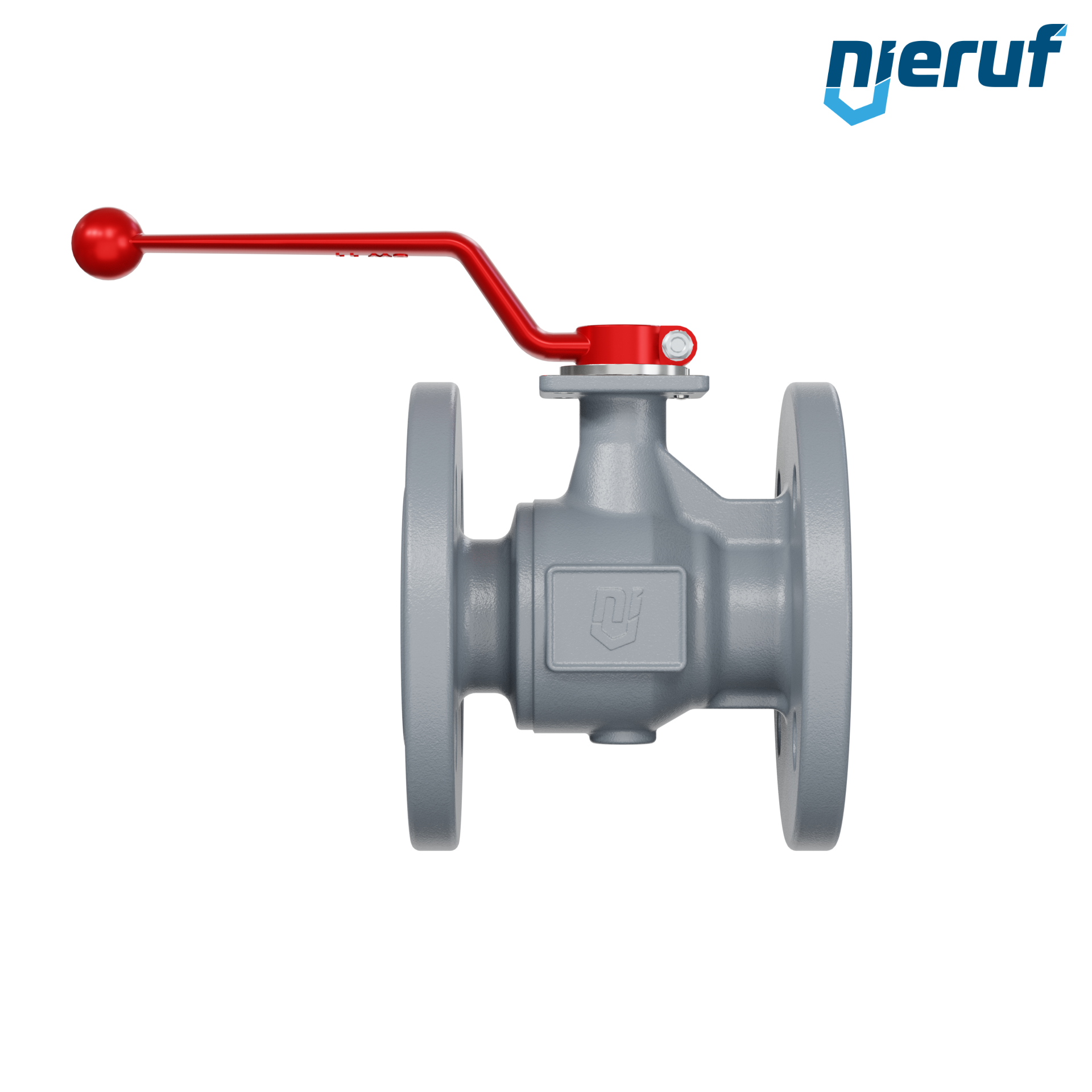

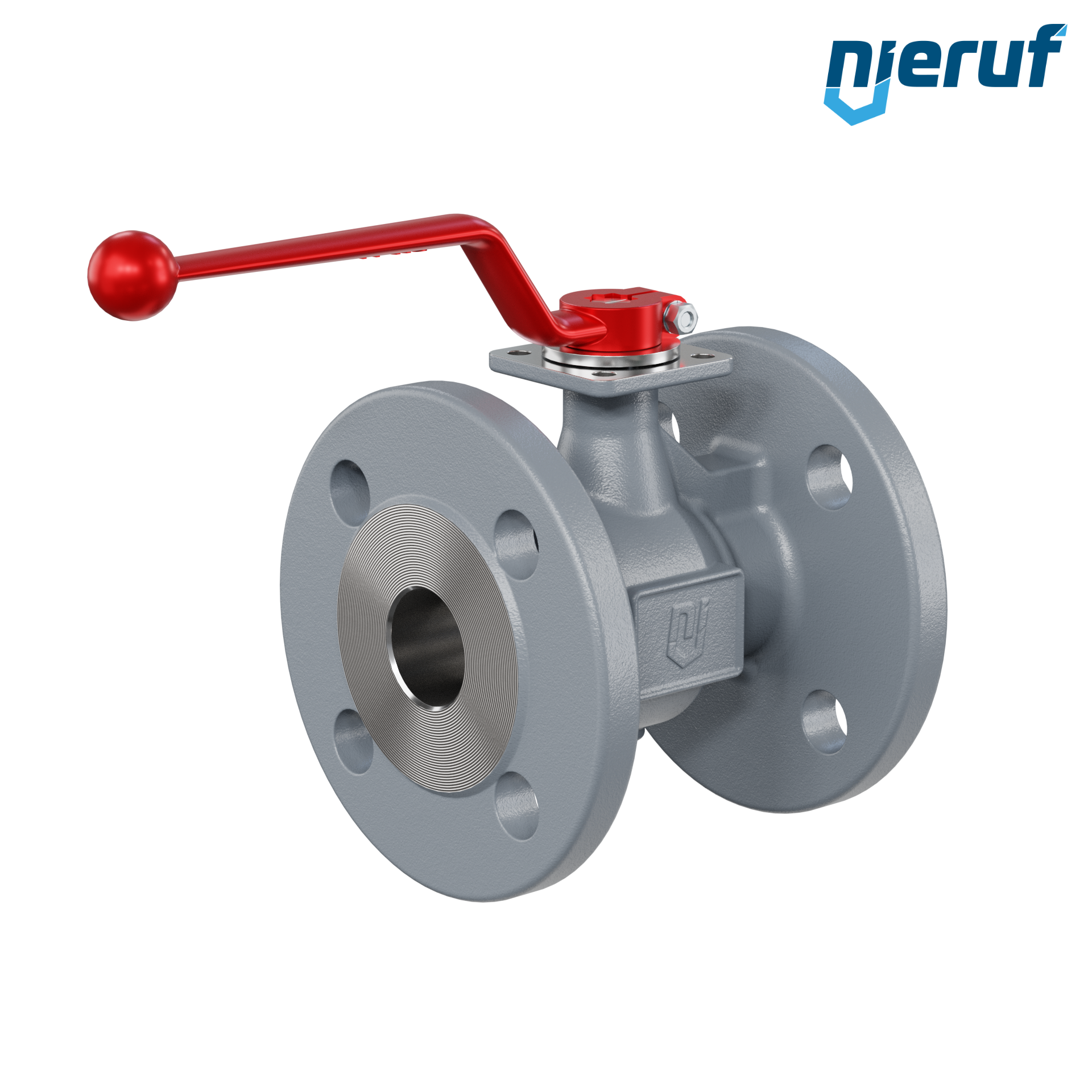

Flange ball valve DN32 FK02 GGG40 ball stainless steel 1.4404
Flange ball valve DN32 FK02 body spheroidal graphite cast iron GJS 400-18 ball stainless steel 1.4404 seal PTFE / GF for liquid and gaseous media
| product | Flange ball valve |
|---|---|
| type | FK02 |
| manufacturer | NieRuf |
| diameter | DN32 |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | O-rings FKM |
| ball seal | PTFE / GF |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | spheroidal graphite cast iron 5.3103 / Gr. 60-40-18 |
| ball material | stainless steel 1.4404 / AISI 316L |
| length | DIN EN 558 R14 |
| actuator | hand lever made of alu in red |
| installation position | any position |
| product description | This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with stainless steel ball. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange ball valve DN32 FK02 GGG40 ball stainless steel 1.4404
Article no.
: FK02000006
product:
Flange ball valve
type:
FK02
manufacturer:
NieRuf
diameter:
DN32
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
ball seal:
PTFE / GF
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
spheroidal graphite cast iron 5.3103 / Gr. 60-40-18
ball material:
stainless steel 1.4404 / AISI 316L
length:
DIN EN 558 R14
actuator:
hand lever made of alu in red
installation position:
any position
product description:
This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with stainless steel ball.
Equipment
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
Lead time: in stock
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: 3 - 5 working days
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
Lead time: in stock
