FK02020015

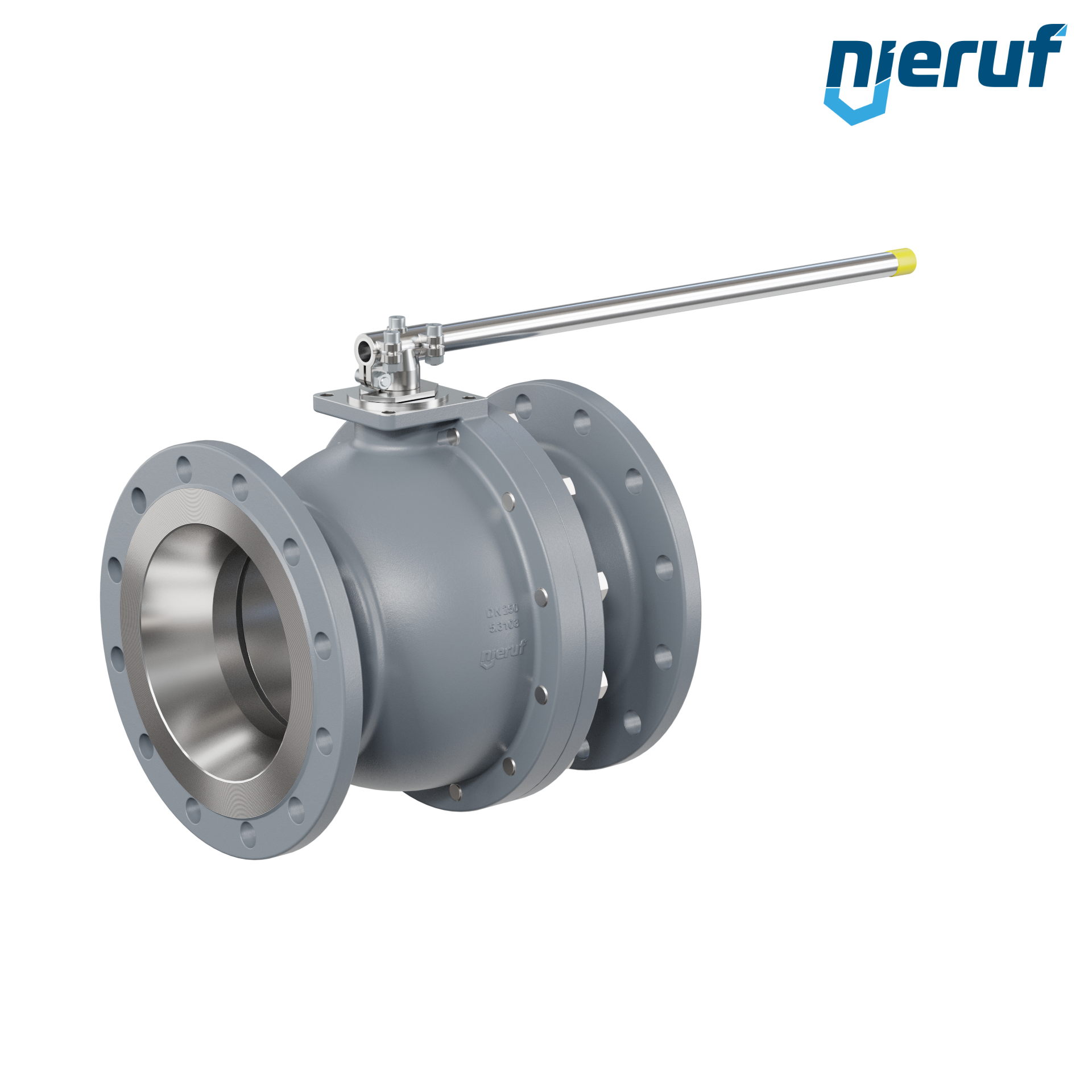

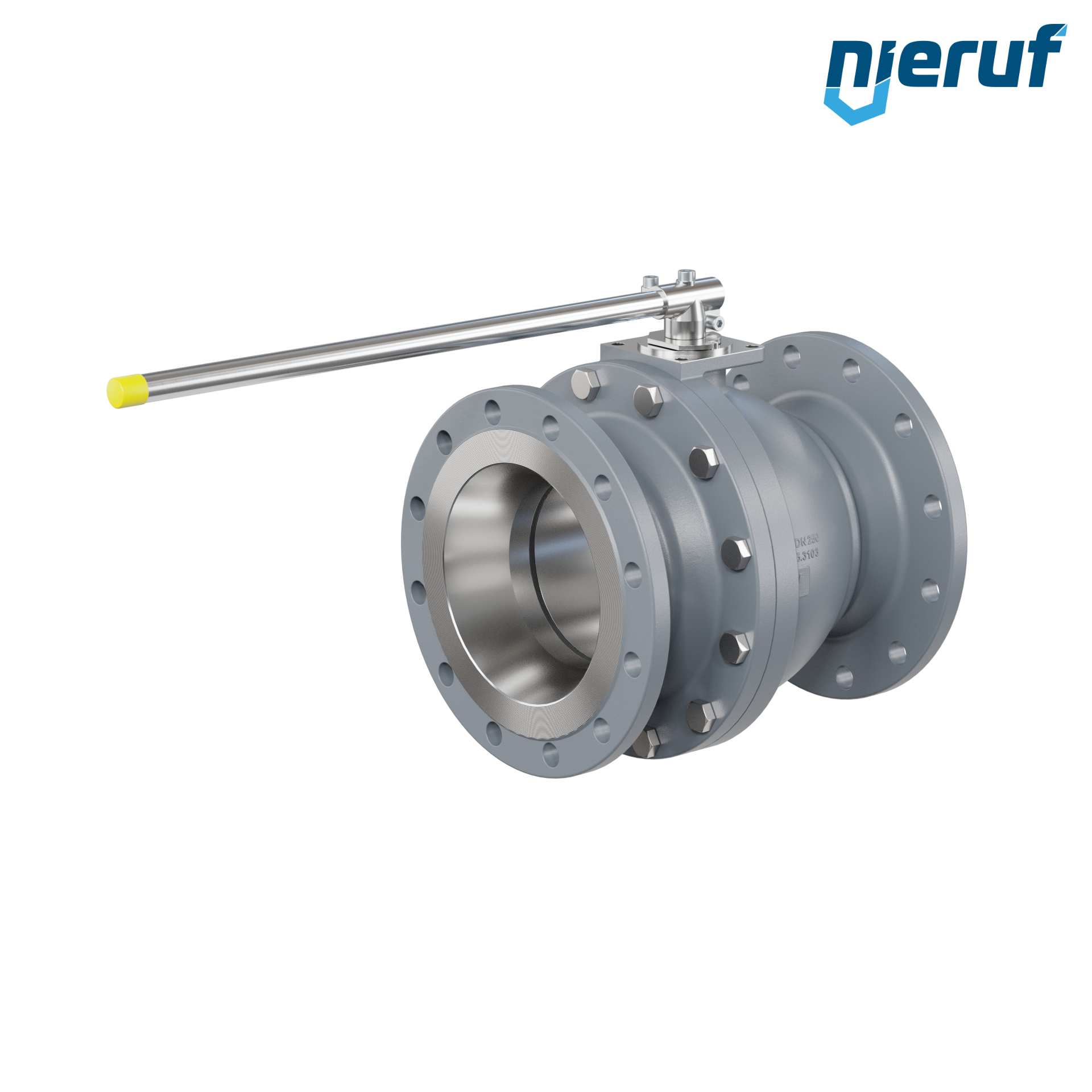

Flange ball valve DN250 FK02 GGG40 ball stainless steel 1.4404 DVGW Gas

€3,331.20*

€3,964.13 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

FD01000115

flange seal DN250 PN10 273x328x2 Klingersil C 4400

€22.50*

€26.78 VAT included.

VS01010115

joint set flange/flange DN250 - 10" Inch for flange PN10 steel

€45.60*

€54.26 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

Flange ball valve DN250 FK02 GGG40 ball stainless steel 1.4404 DVGW Gas

Flange ball valve DN250 FK02 body spheroidal graphite cast iron GJS 400-18 ball stainless steel 1.4404 seal PTFE approval DVGW gas

product	Flange ball valve
type	FK02
manufacturer	NieRuf
diameter	DN250
connection	flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam	O-rings FKM
ball seal	PTFE
media	gas: 1., 2. and 3. gas category
temperature	-20°C up to +60°C - depending on working pressure and media
max. pressure	PN16
design	reduced port design
body material	spheroidal graphite cast iron 5.3105 / Gr. 60-40-18
ball material	stainless steel 1.4404 / AISI 316L
length	DIN EN 558 R27
actuator	hand lever made of stainless steel with yellow cover
actuator informations	mounting flange acc. to ISO5211
installation position	any position
authorized for	DVGW-Gas
product description	This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange ball valve DN250 FK02 GGG40 ball stainless steel 1.4404 DVGW Gas

Article no. : FK02020015
product: Flange ball valve
type: FK02
manufacturer: NieRuf
diameter: DN250
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE
media: gas: 1., 2. and 3. gas category
temperature: -20°C up to +60°C - depending on working pressure and media
max. pressure: PN16
design: reduced port design
body material: spheroidal graphite cast iron 5.3105 / Gr. 60-40-18
ball material: stainless steel 1.4404 / AISI 316L
length: DIN EN 558 R27
actuator: hand lever made of stainless steel with yellow cover
actuator informations: mounting flange acc. to ISO5211
installation position: any position
authorized for: DVGW-Gas
product description: This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.
