- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN250 - 10" Inch for flange PN10 steel
€54.26 VAT included.
Questions about the article?

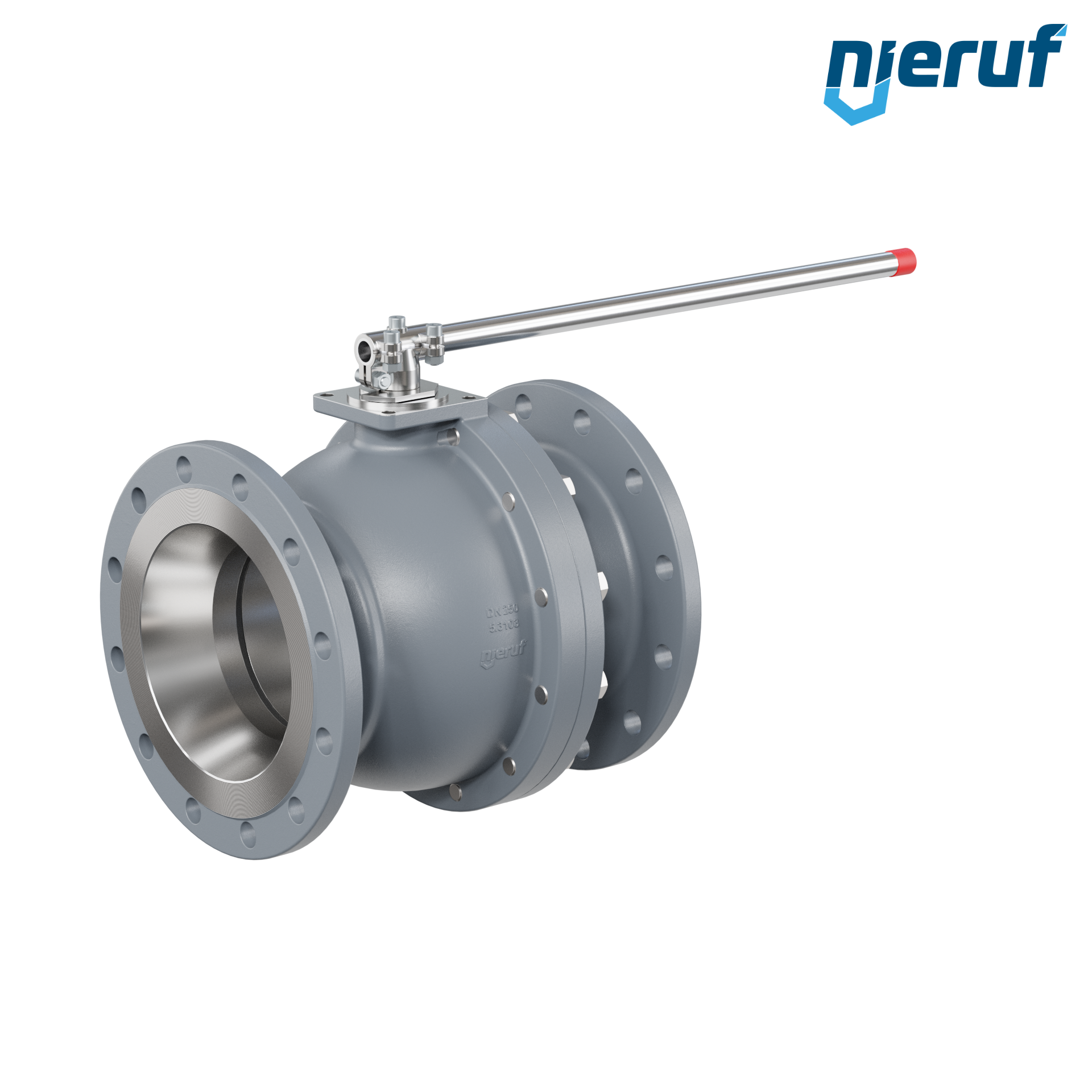

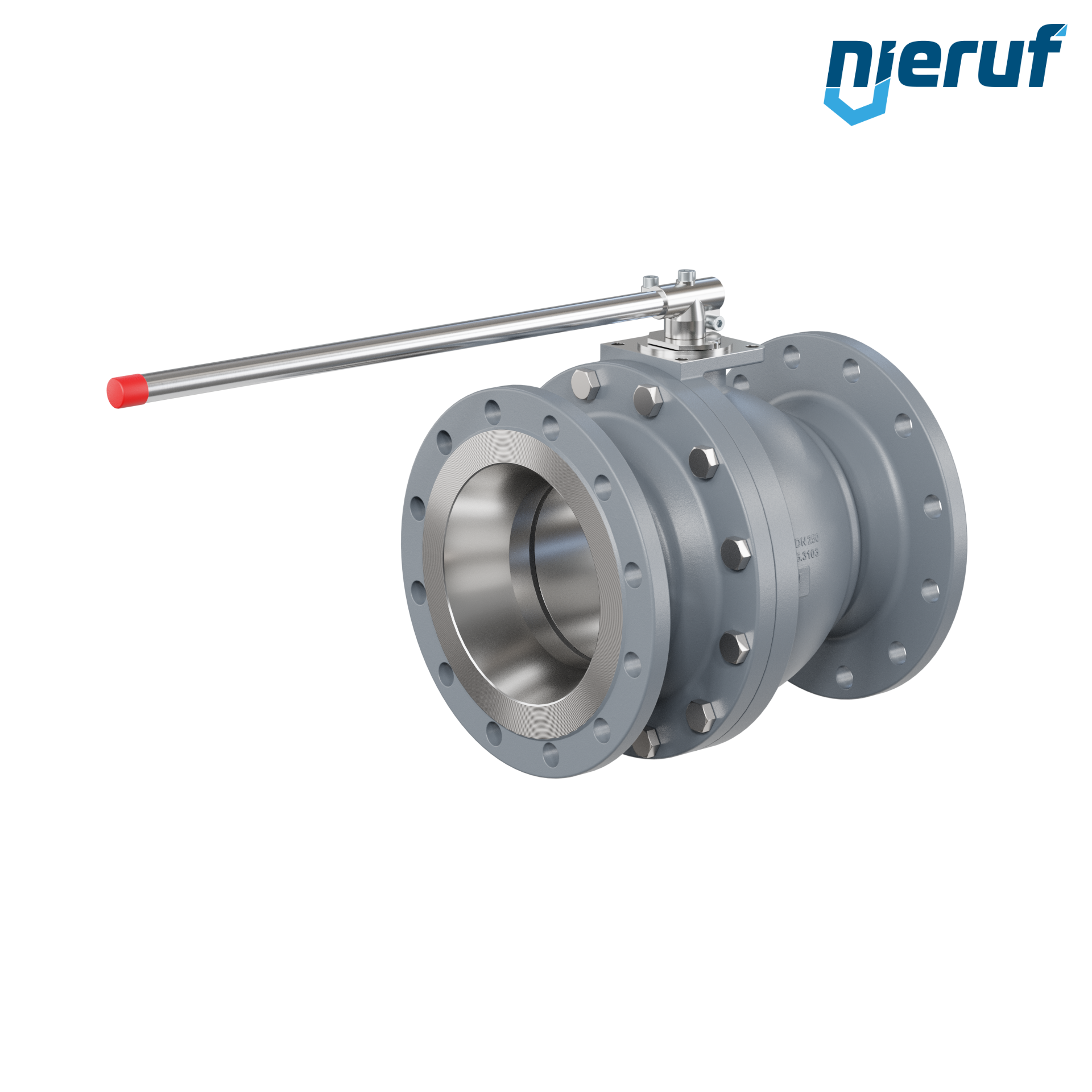

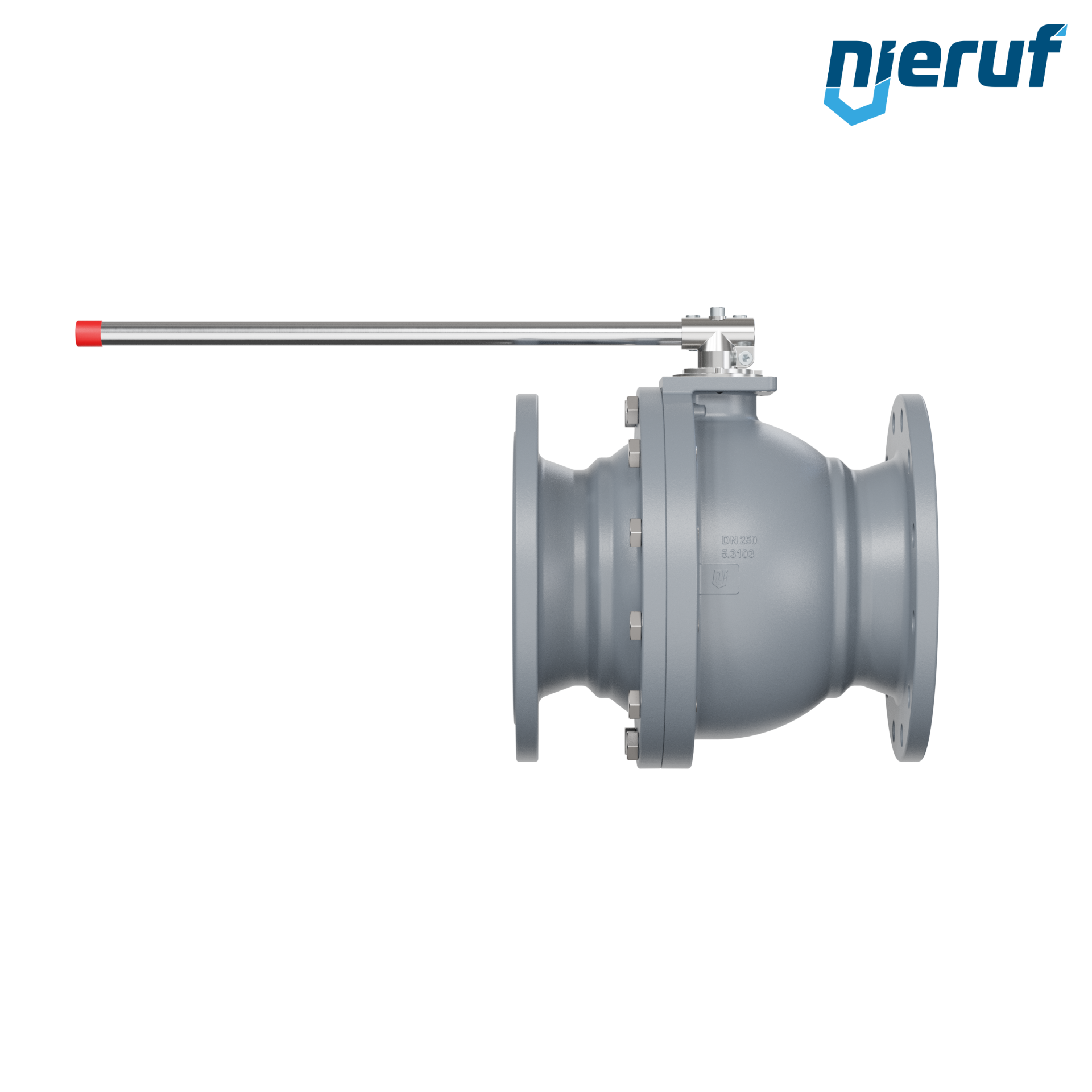

Flange ball valve DN250 FK01 body spheroidal graphite cast iron GJS 400-18 ball stainless steel 1.4301 seal PTFE for liquid and gaseous media
| product | Flange ball valve |
|---|---|
| type | FK01 |
| manufacturer | NieRuf |
| diameter | DN250 |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | O-rings FKM |
| ball seal | PTFE |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | reduced port design |
| body material | spheroidal graphite cast iron 5.3105 / Gr. 60-40-18 |
| ball material | stainless steel 1.4301 / AISI 304 |
| length | DIN EN 558 R27 |
| actuator | hand lever made of stainless steel with yellow cover |
| actuator informations | mounting flange acc. to ISO5211 |
| installation position | any position |
| product description | This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange ball valve DN250 FK01 GGG40 ball stainless steel 1.4301
Article no.
: FK01000015
product:
Flange ball valve
type:
FK01
manufacturer:
NieRuf
diameter:
DN250
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
reduced port design
body material:
spheroidal graphite cast iron 5.3105 / Gr. 60-40-18
ball material:
stainless steel 1.4301 / AISI 304
length:
DIN EN 558 R27
actuator:
hand lever made of stainless steel with yellow cover
actuator informations:
mounting flange acc. to ISO5211
installation position:
any position
product description:
This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.
joint set flange/flange DN250 - 10" Inch for flange PN10 steel
Lead time: in stock
