FK06000005
flange ball valve DN25 PN40 FK06 stainless steel 1.4408
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€4.88 VAT included.
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€22.97 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

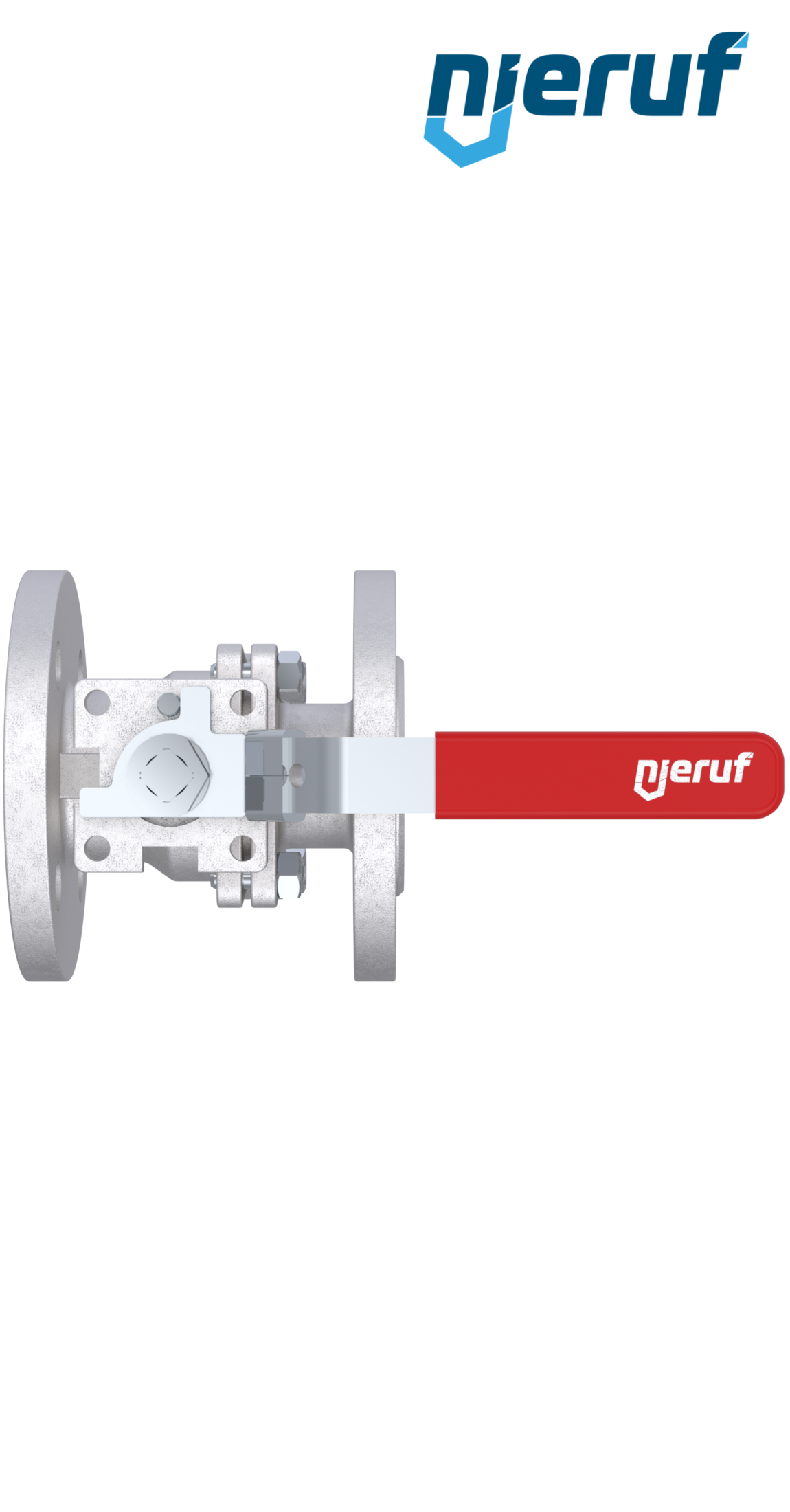

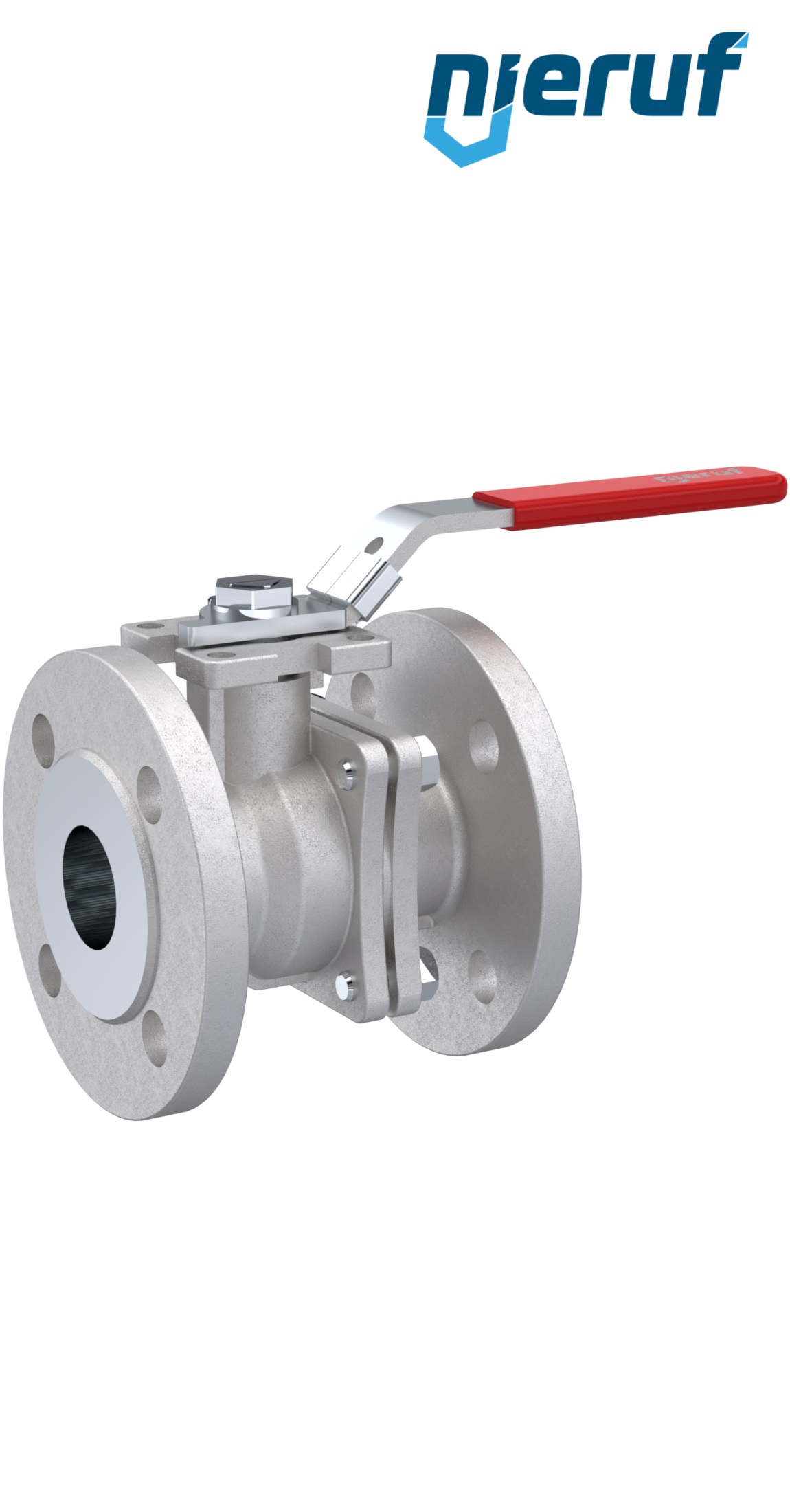

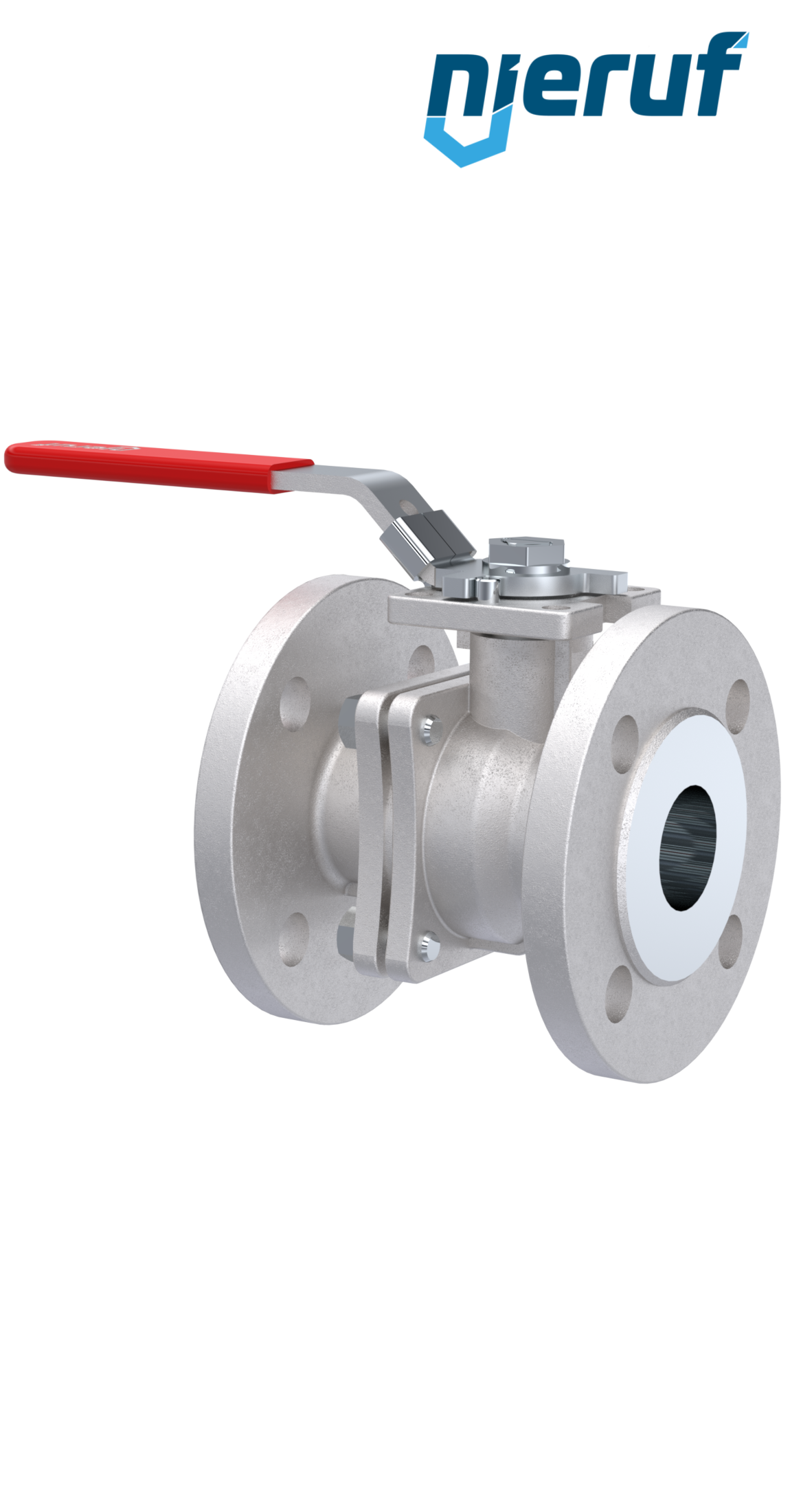

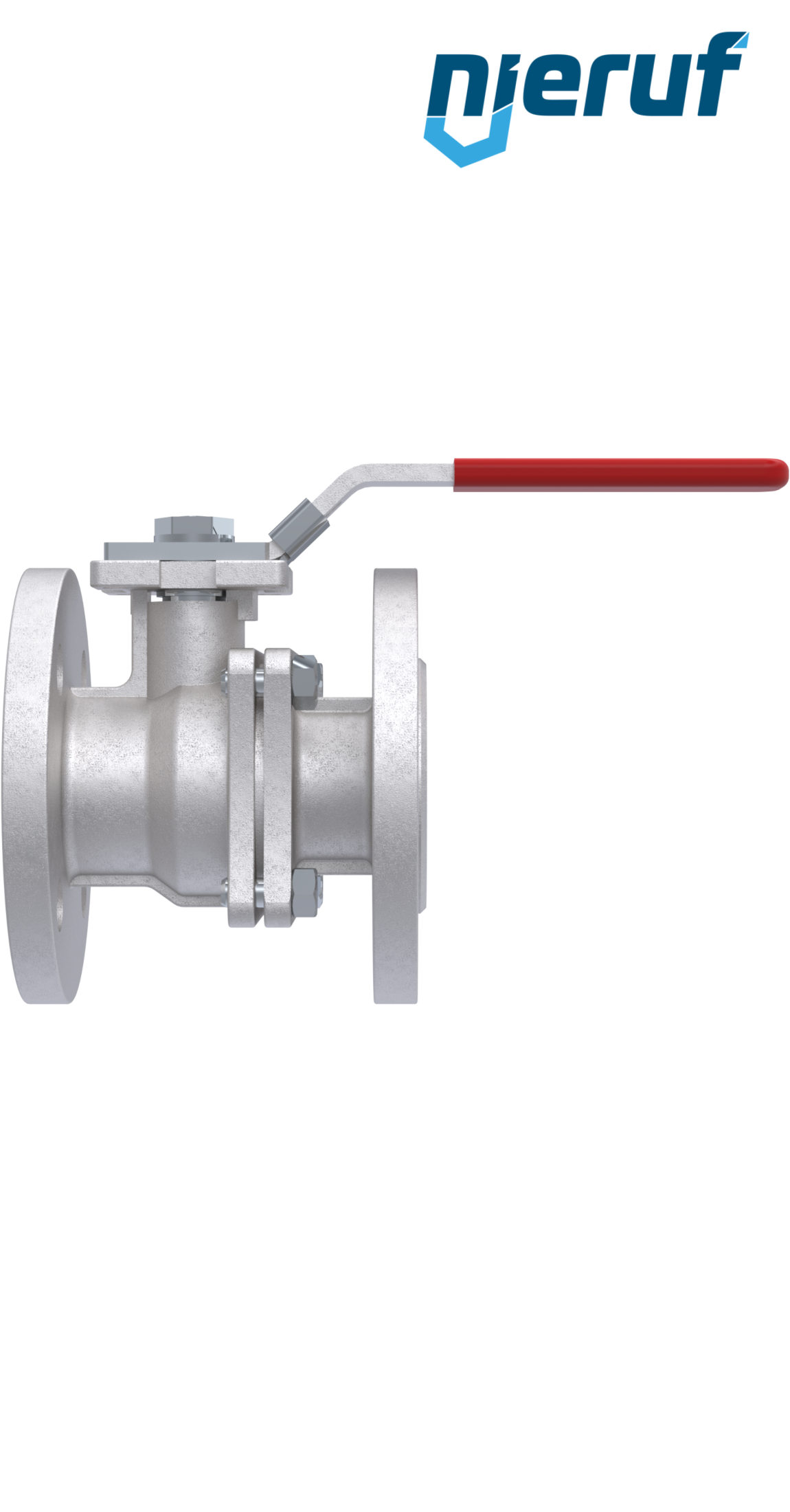

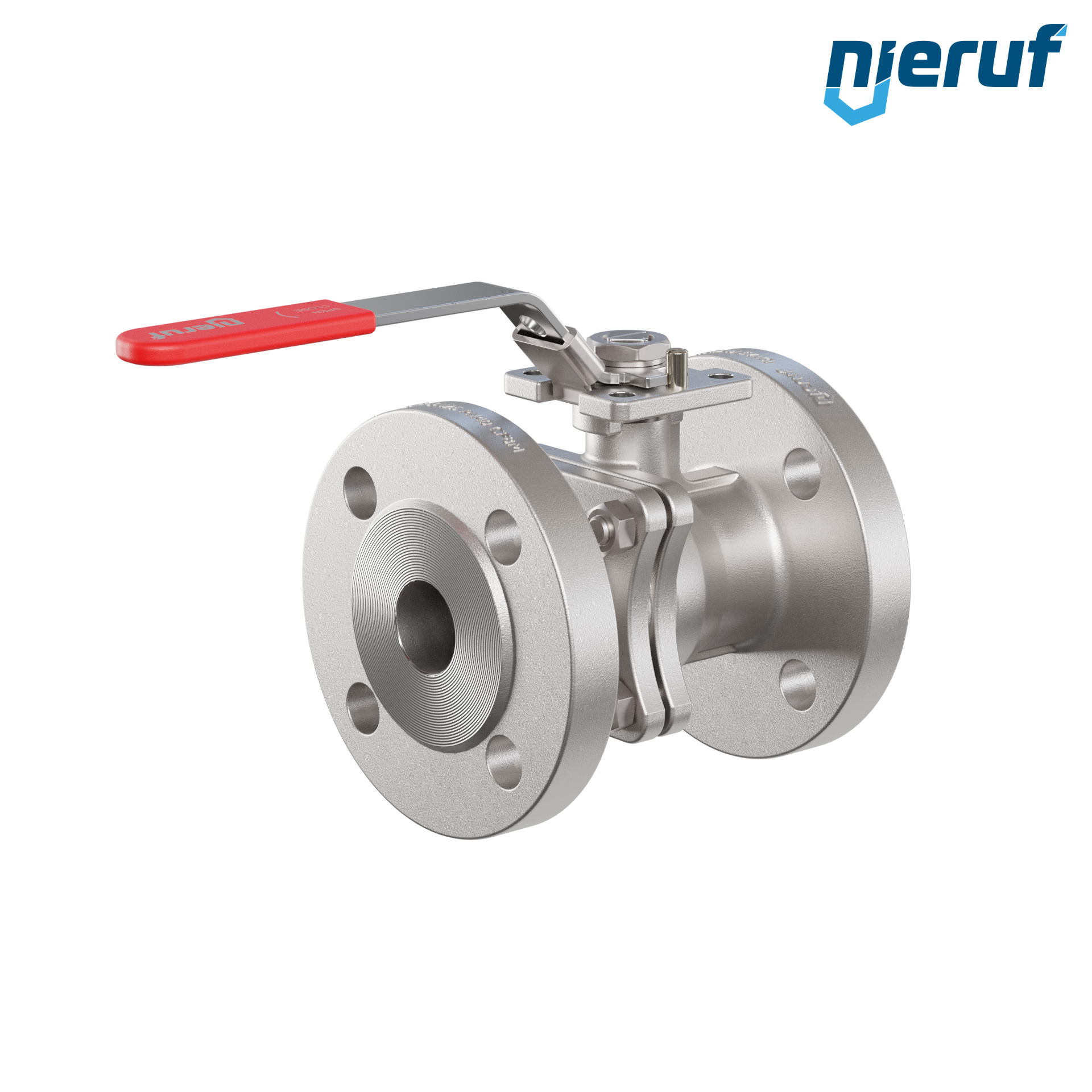

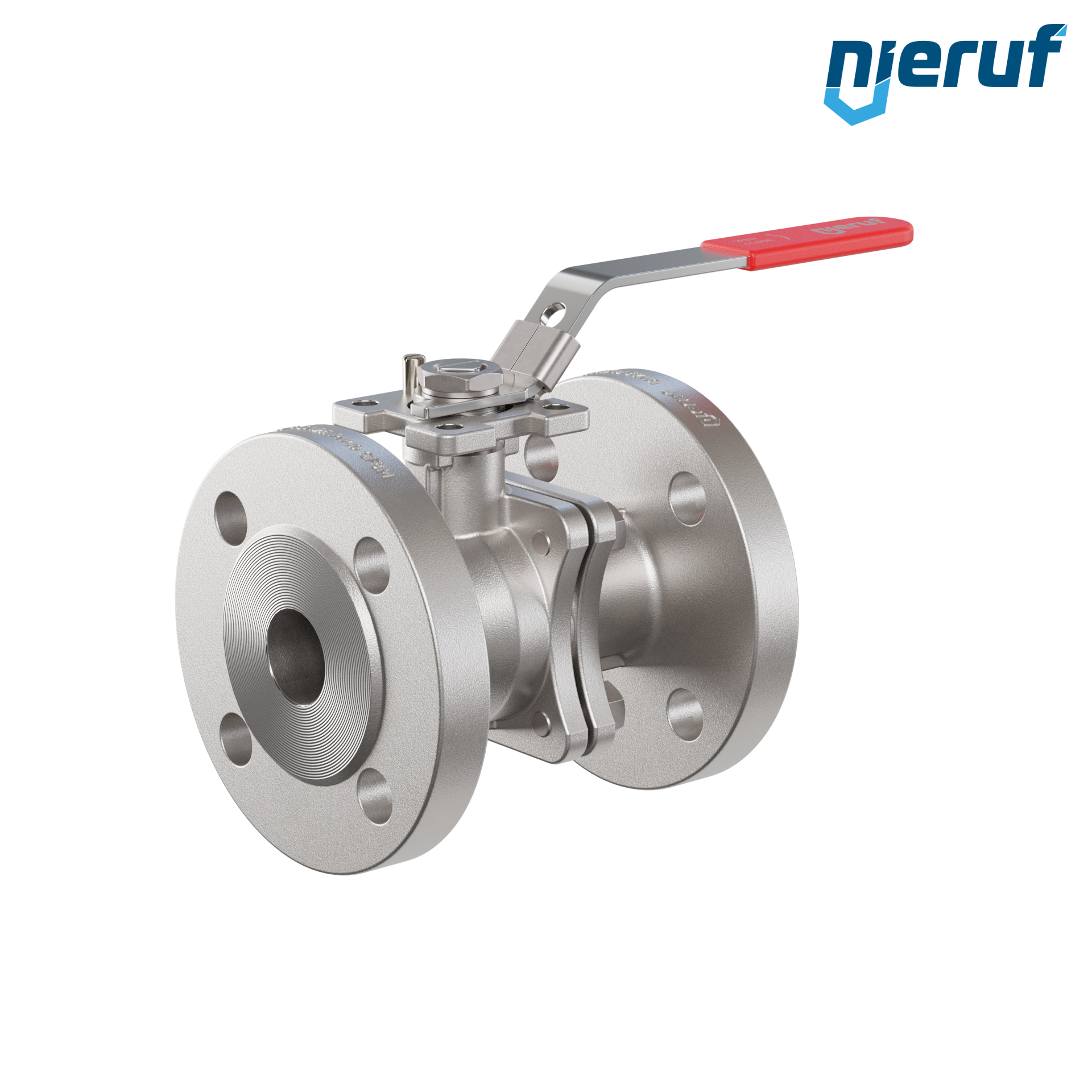

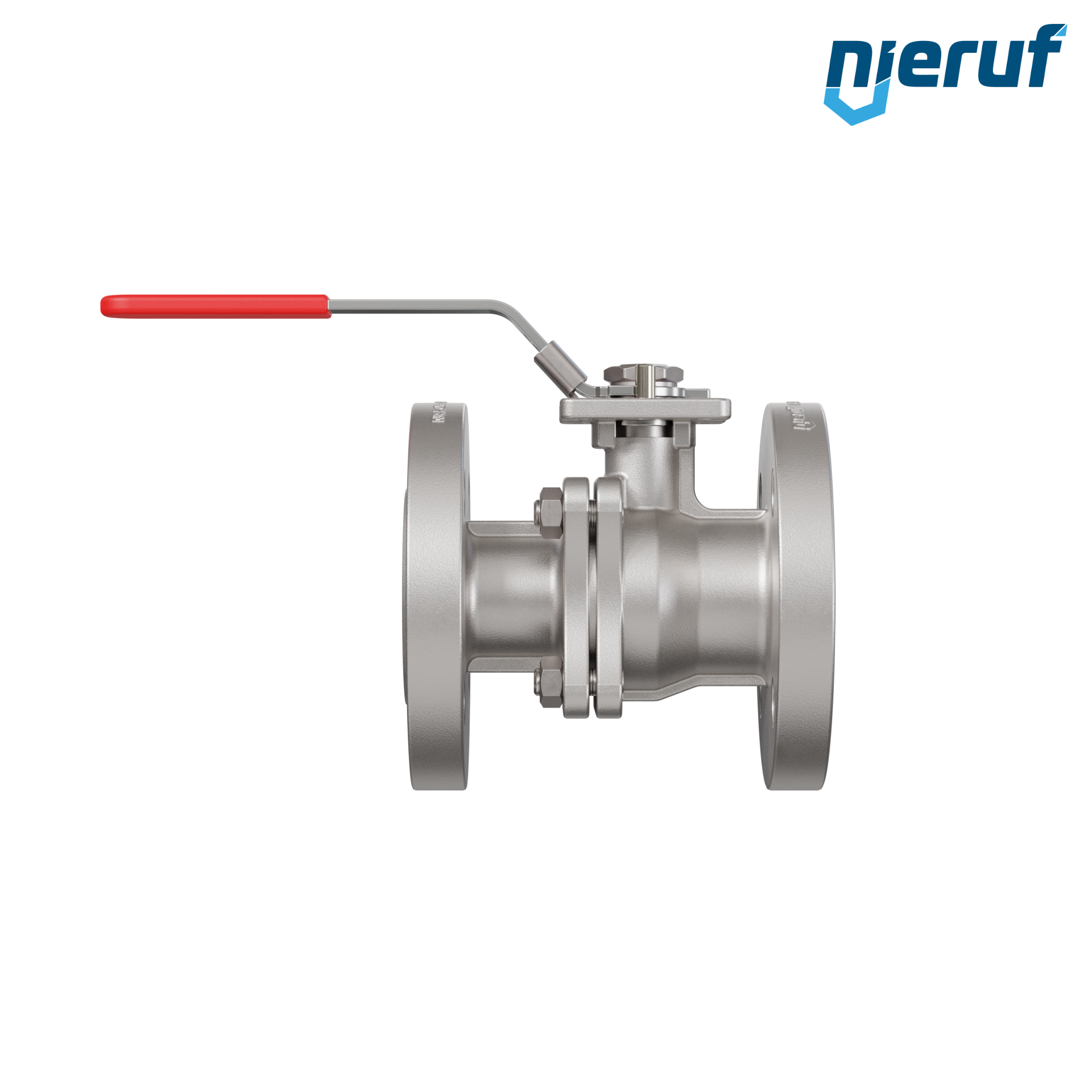

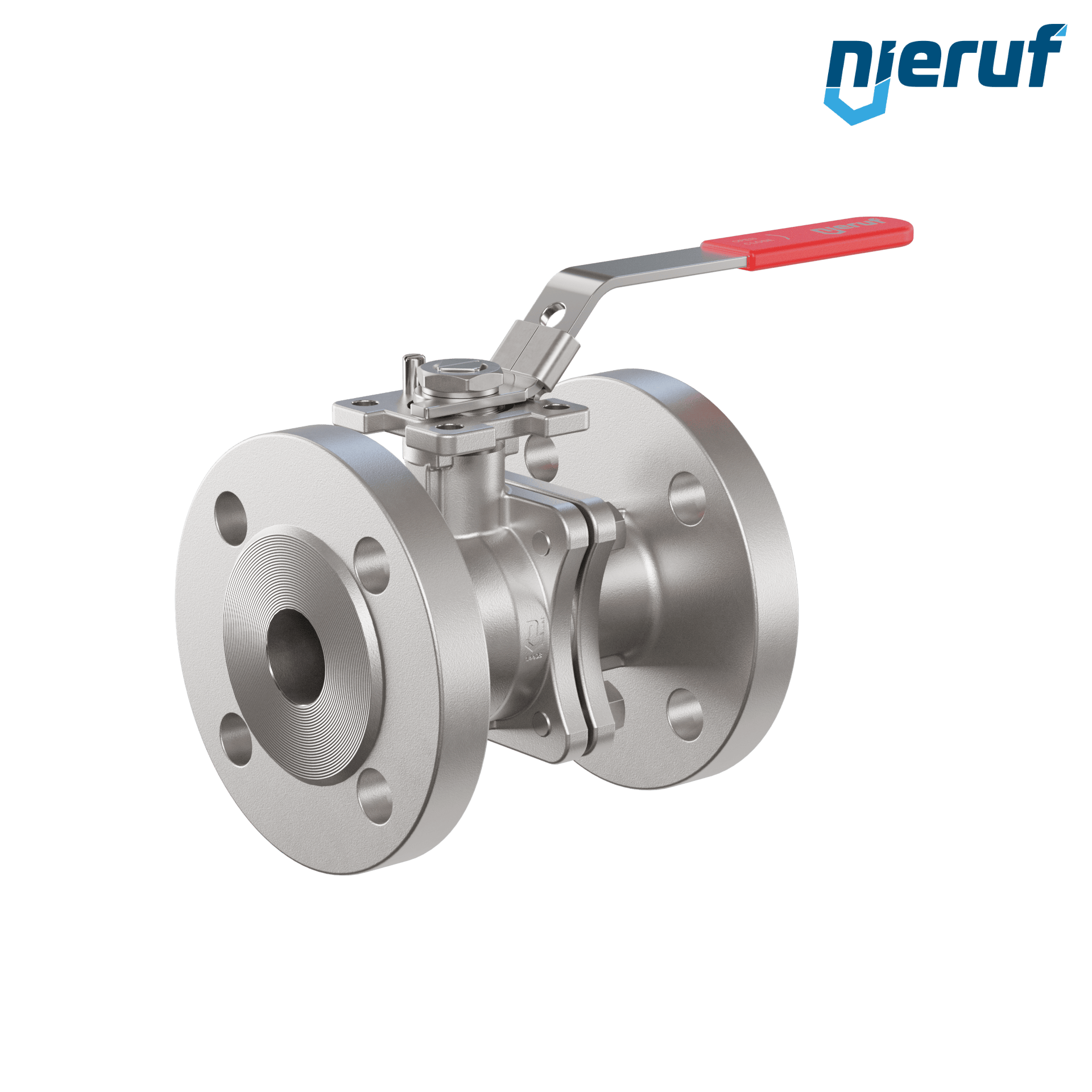

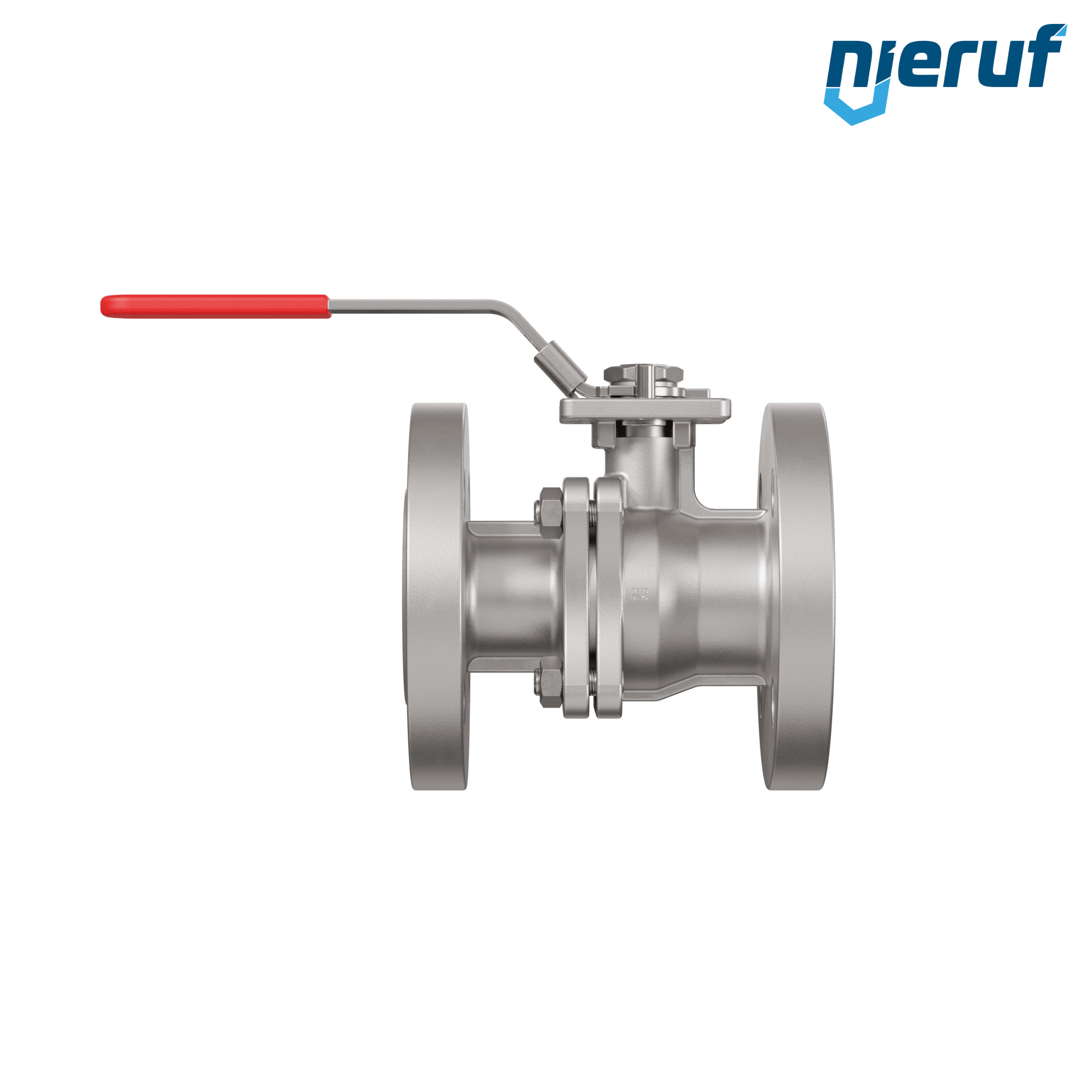

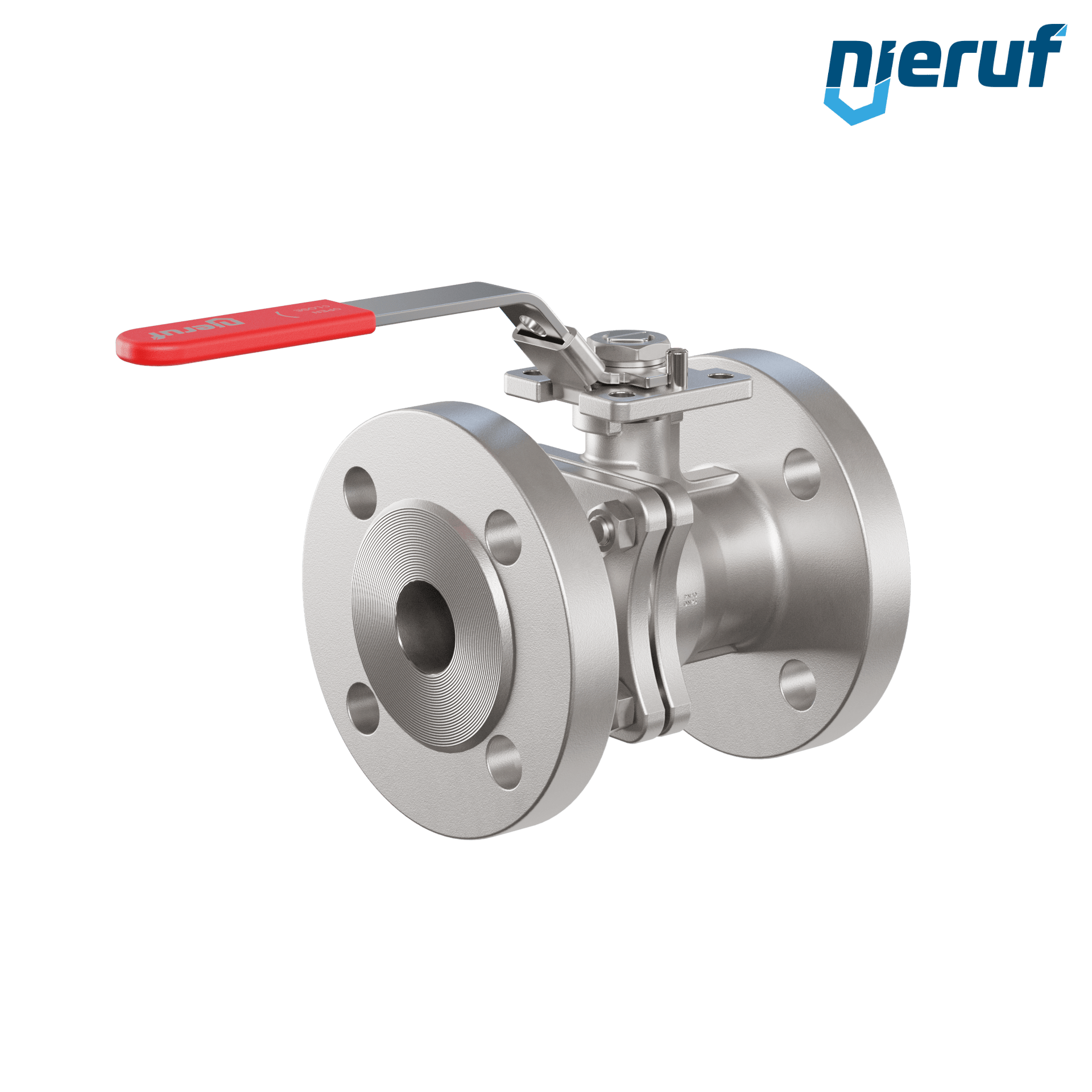

flange ball valve DN25 PN40 FK06 stainless steel 1.4408
flange ball valve DN25 PN40 FK06 body stainless steel 1.4408 ball stainless steel 1.4401 seal PTFE for liquid and gaseous media
| product | flange ball valve |
|---|---|
| type | FK06 |
| manufacturer | NieRuf |
| diameter | DN25 |
| connection | flange dimensions acc. to EN 1092-1 PN40 R.F. |
| Seal steam | O-ring FKM |
| ball seal | PTFE |
| media | liquid and gaseous media |
| temperature | -10°C up to +180°C - depending on working pressure and media |
| max. pressure | PN40 |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4401 / AISI 316 |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of stainless steel with plastic cover |
| installation position | any position |
| product description | This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange ball valve DN25 PN40 FK06 stainless steel 1.4408
Article no.
: FK06000005
product:
flange ball valve
type:
FK06
manufacturer:
NieRuf
diameter:
DN25
connection:
flange dimensions acc. to EN 1092-1 PN40 R.F.
Seal steam:
O-ring FKM
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-10°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4401 / AISI 316
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel with plastic cover
installation position:
any position
product description:
This high quality ball valve is made of stainless steel and consist of a two-piece body with blow out proof stem design.
Equipment
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
