Gas-flange ball valve DN25 FK05 stainless steel 1.4408

FK05030005
quantity (pcs.):
197.10€ * 228.64€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

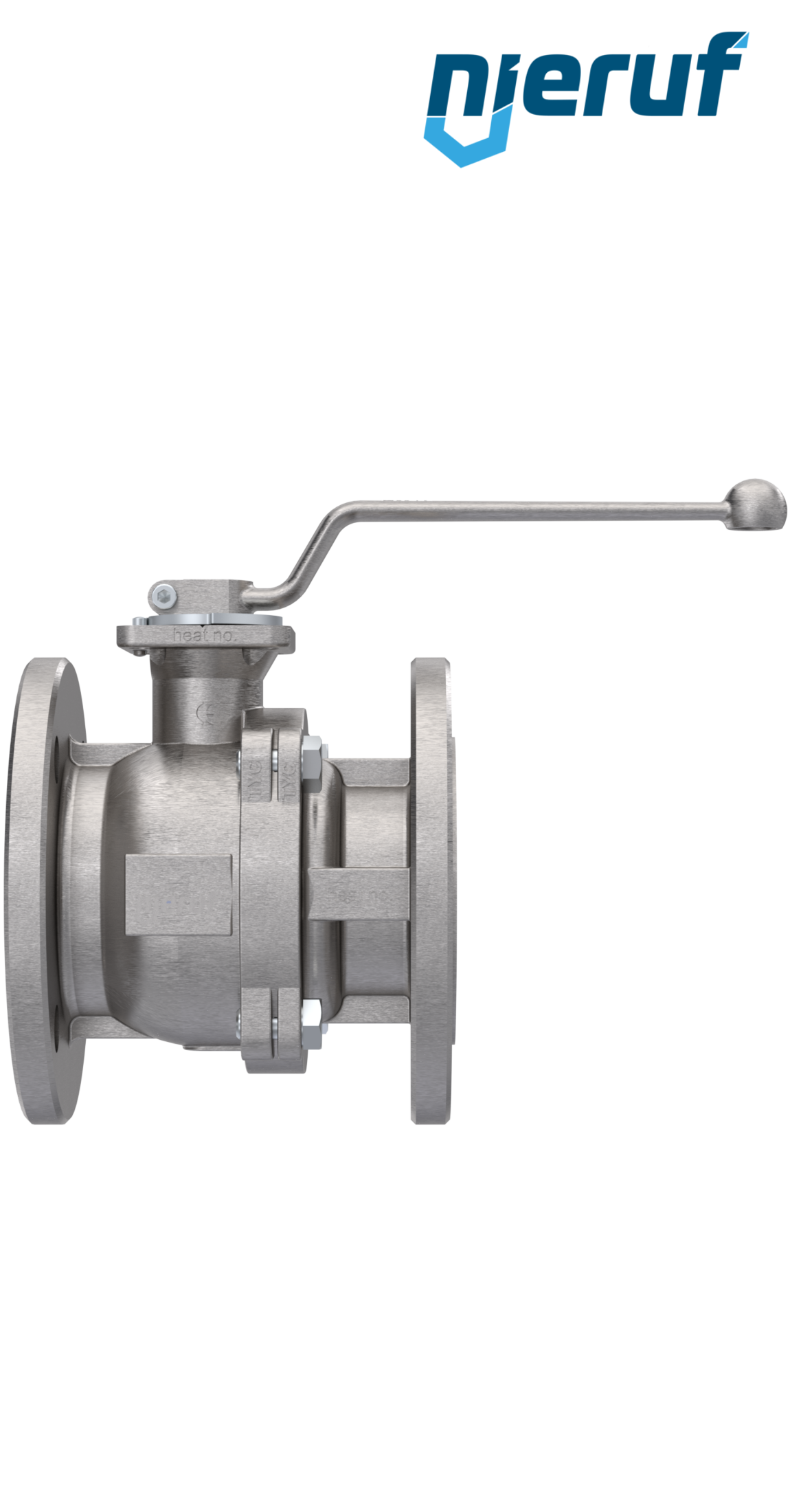

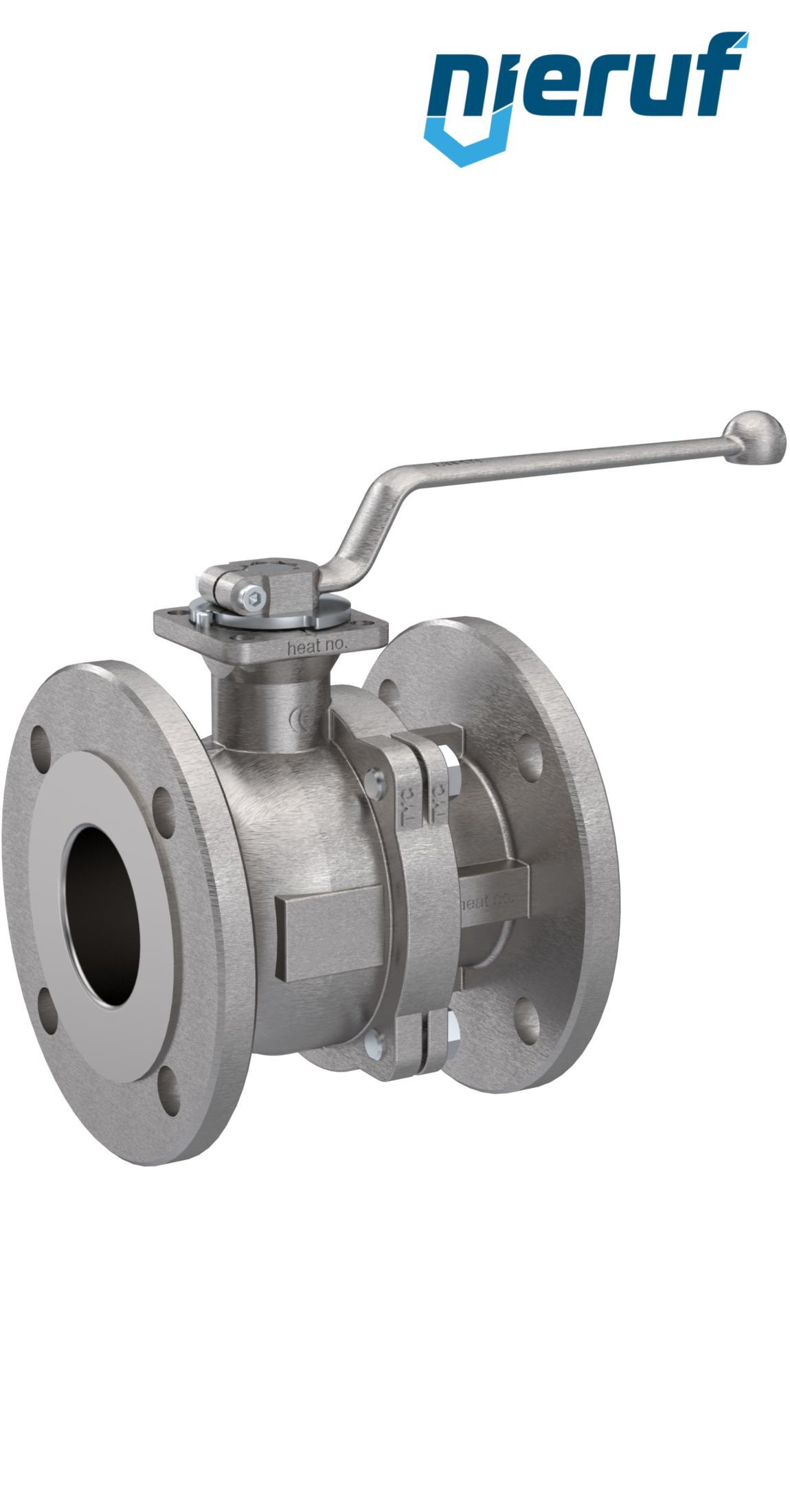

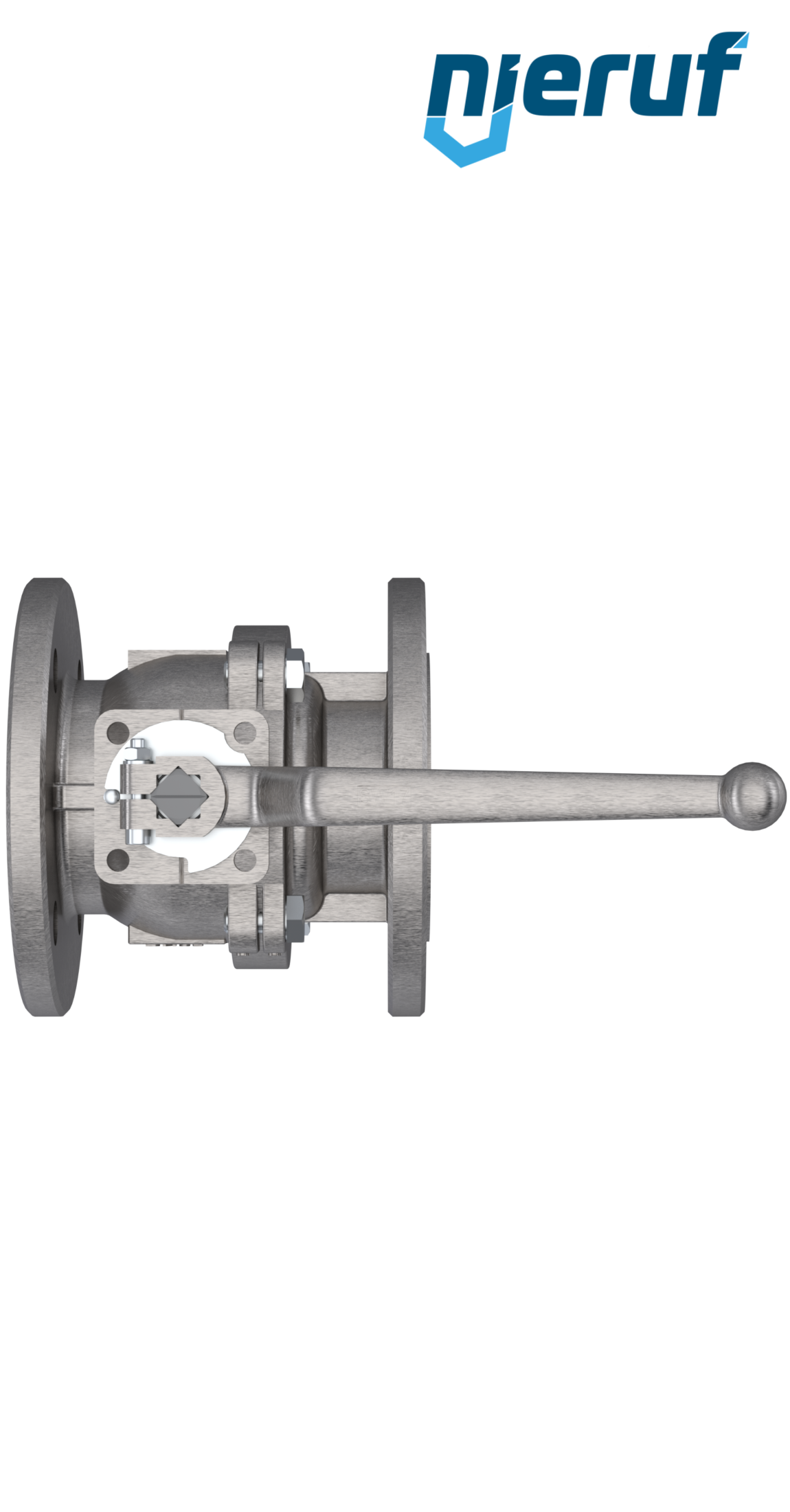

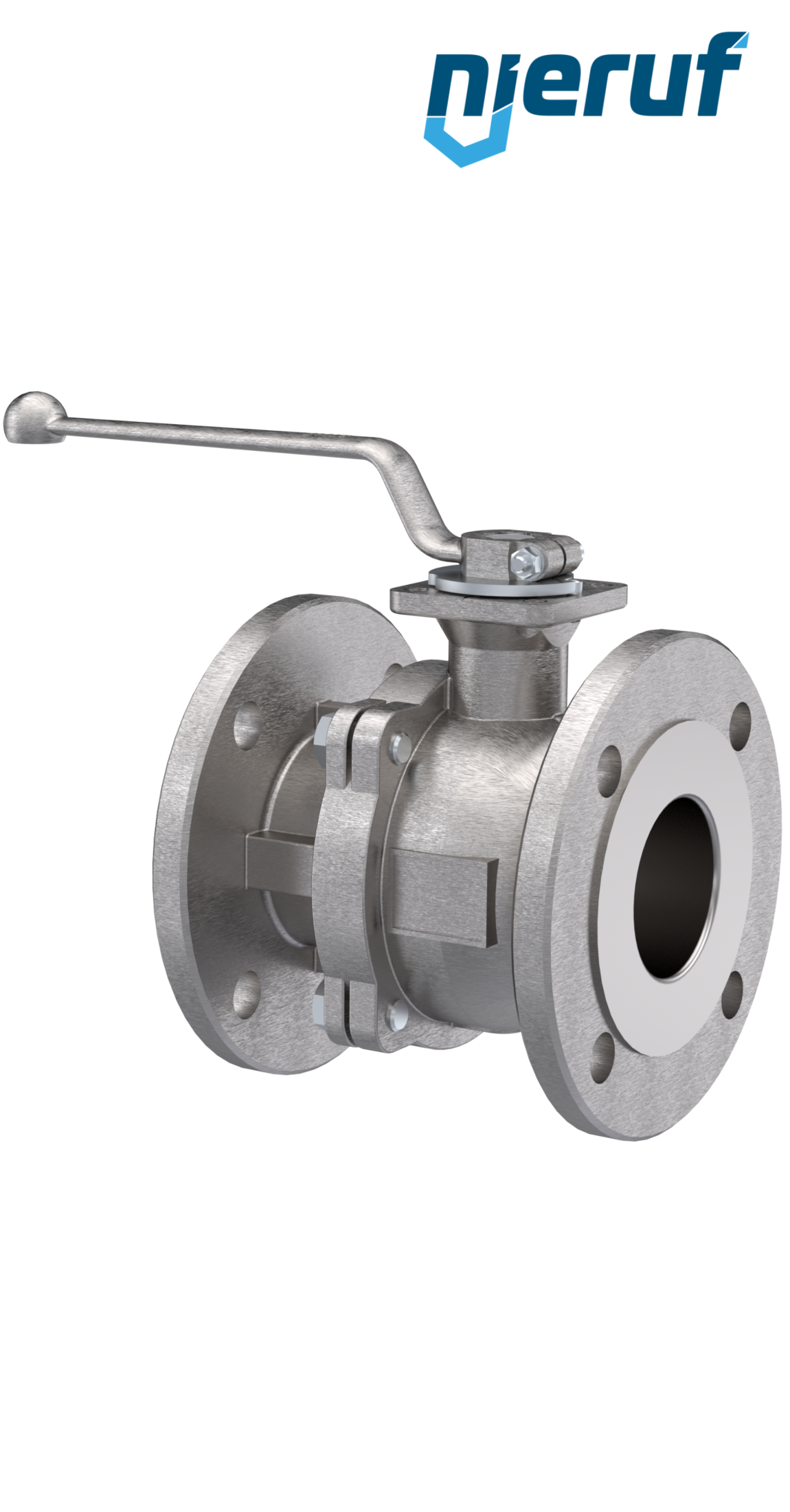

Gas-flange ball valve DN25 FK05 stainless steel 1.4408
Gas-flange ball valve DN25 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE for gas
diameter: DN25
connection: flange dimensions acc. to EN 1092-1
Seal steam: PTFE + FKM
media: gas
temperature: gas -20°C up to + 60°C
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
product description: This high quality ball valve is made of stainless stainless steel with blow out proof stem design. Stem extension is made of stainless steel. The stem seal is 3 - side covered. This ball valve is authorized for DVGW-Gas
Gas-flange ball valve DN25 FK05 stainless steel 1.4408

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Gas-flange ball valve DN25 FK05 stainless steel 1.4408
