Product number: FK02000005

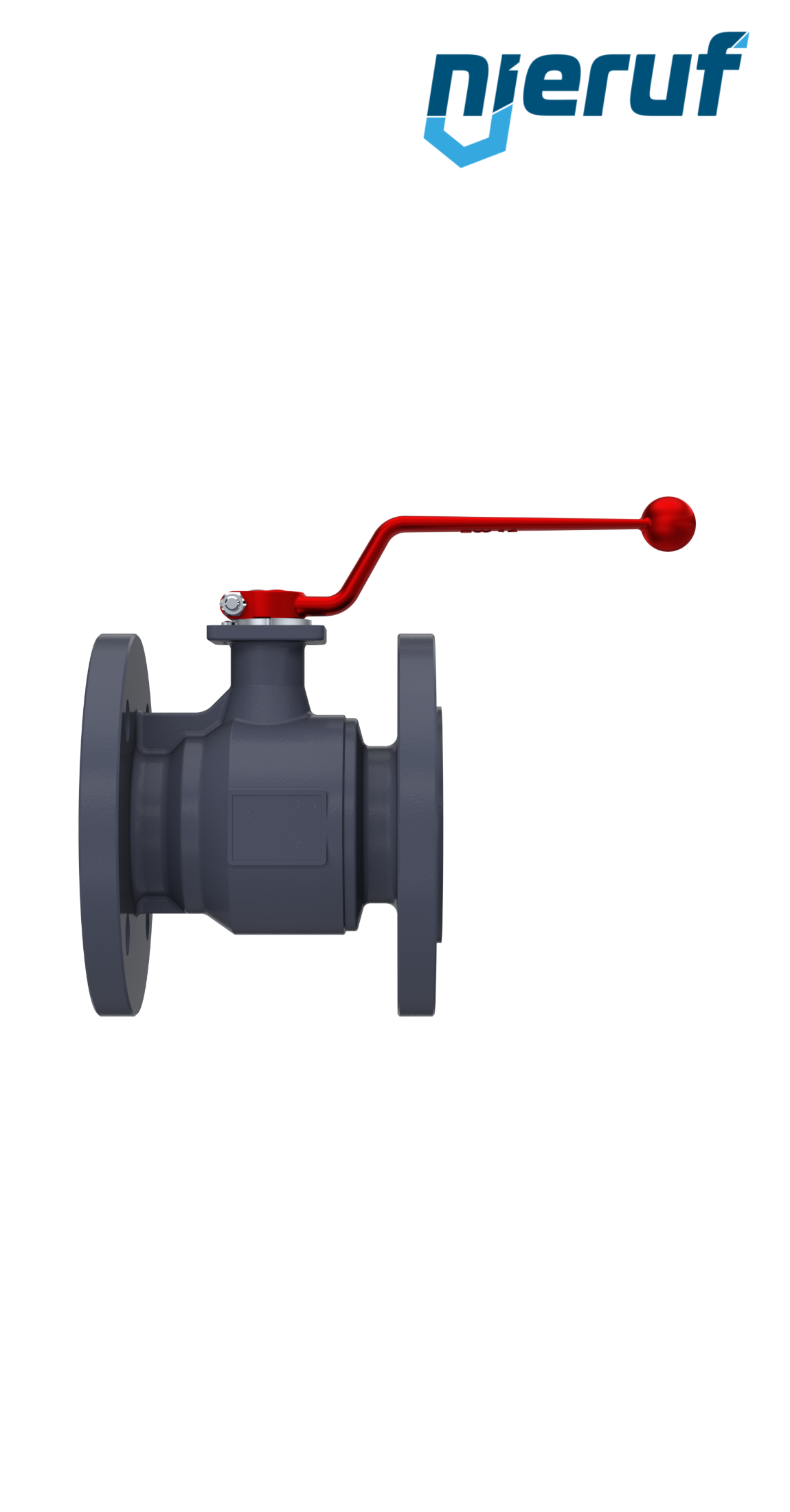

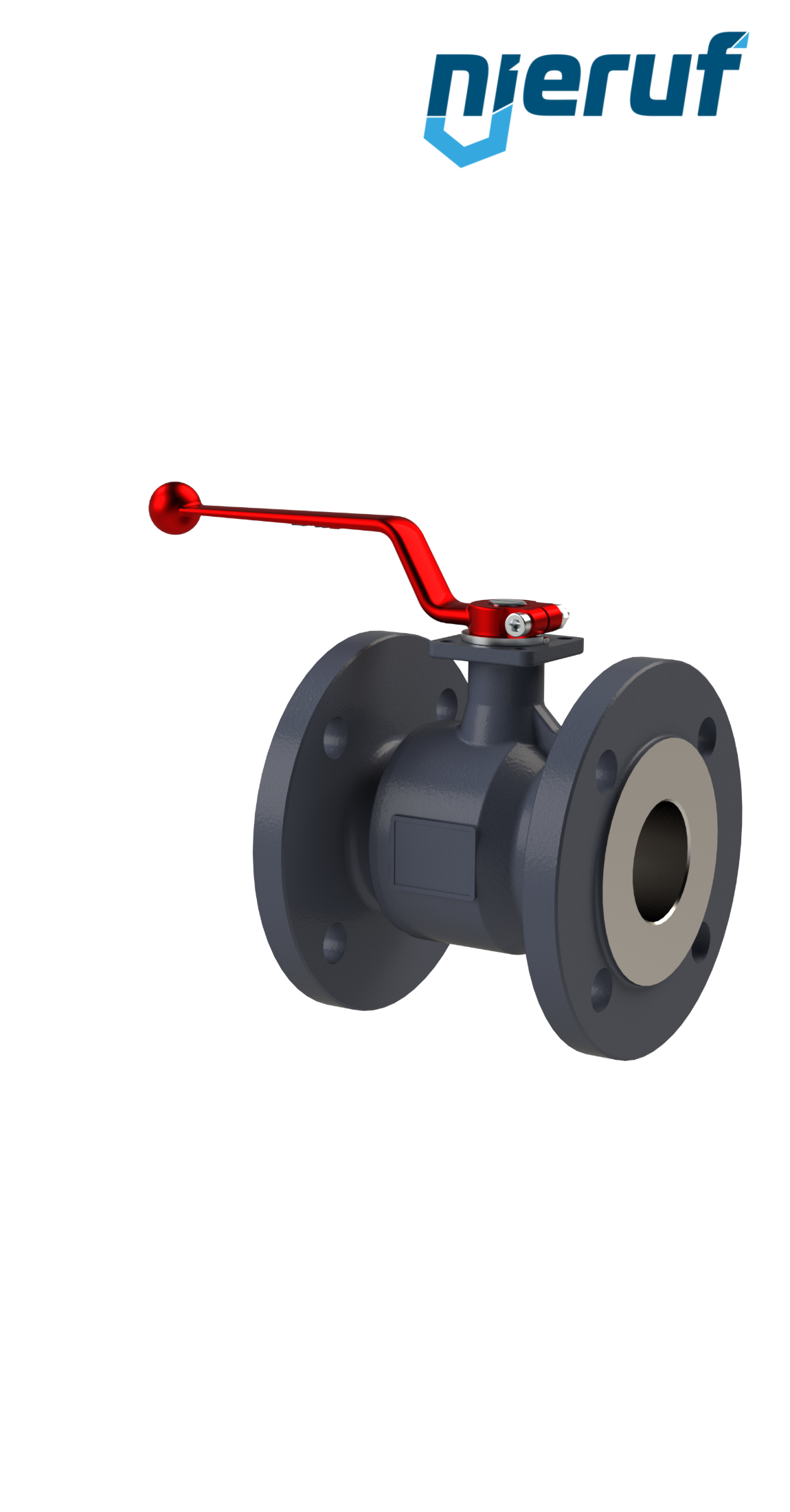

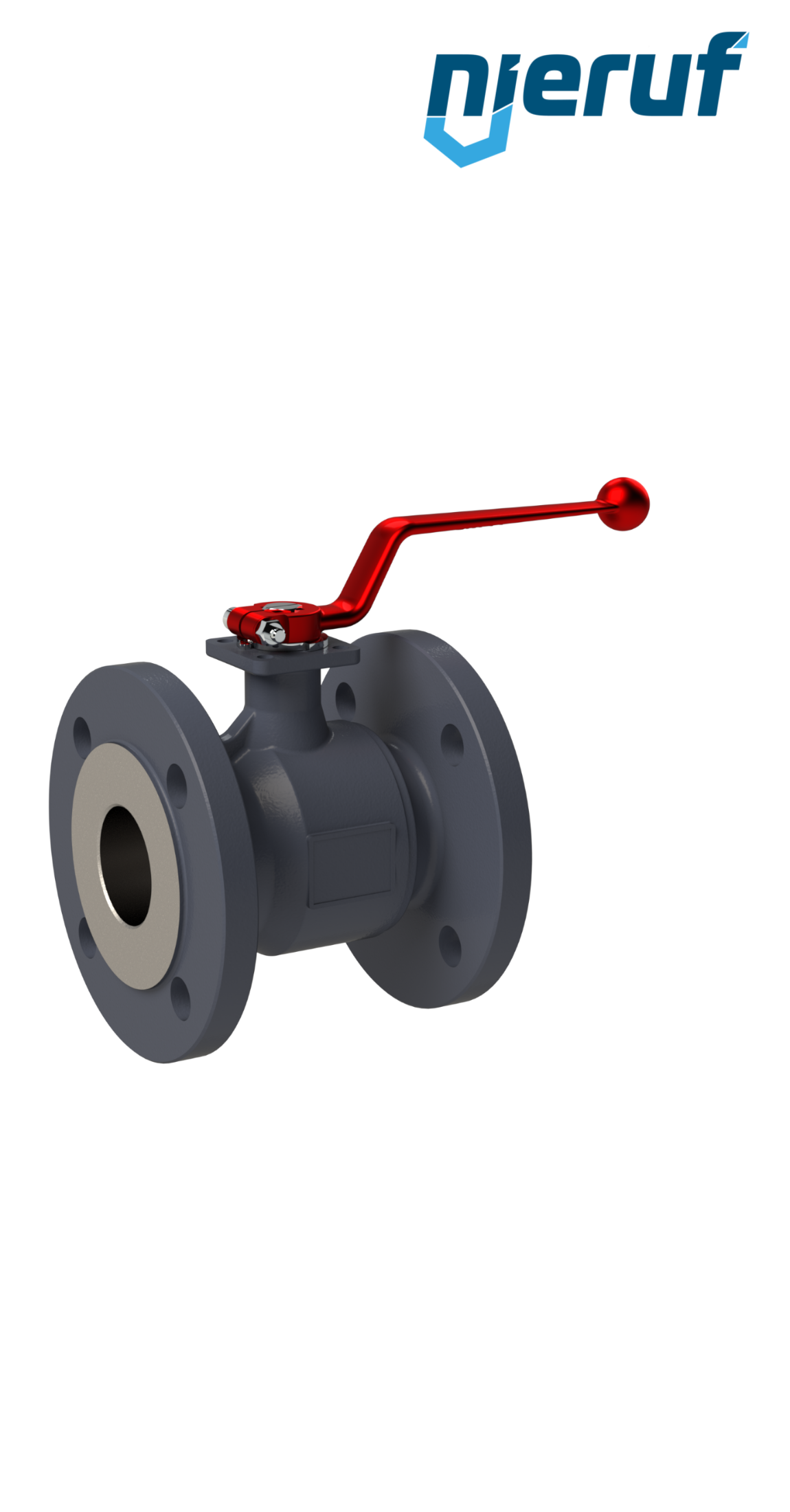

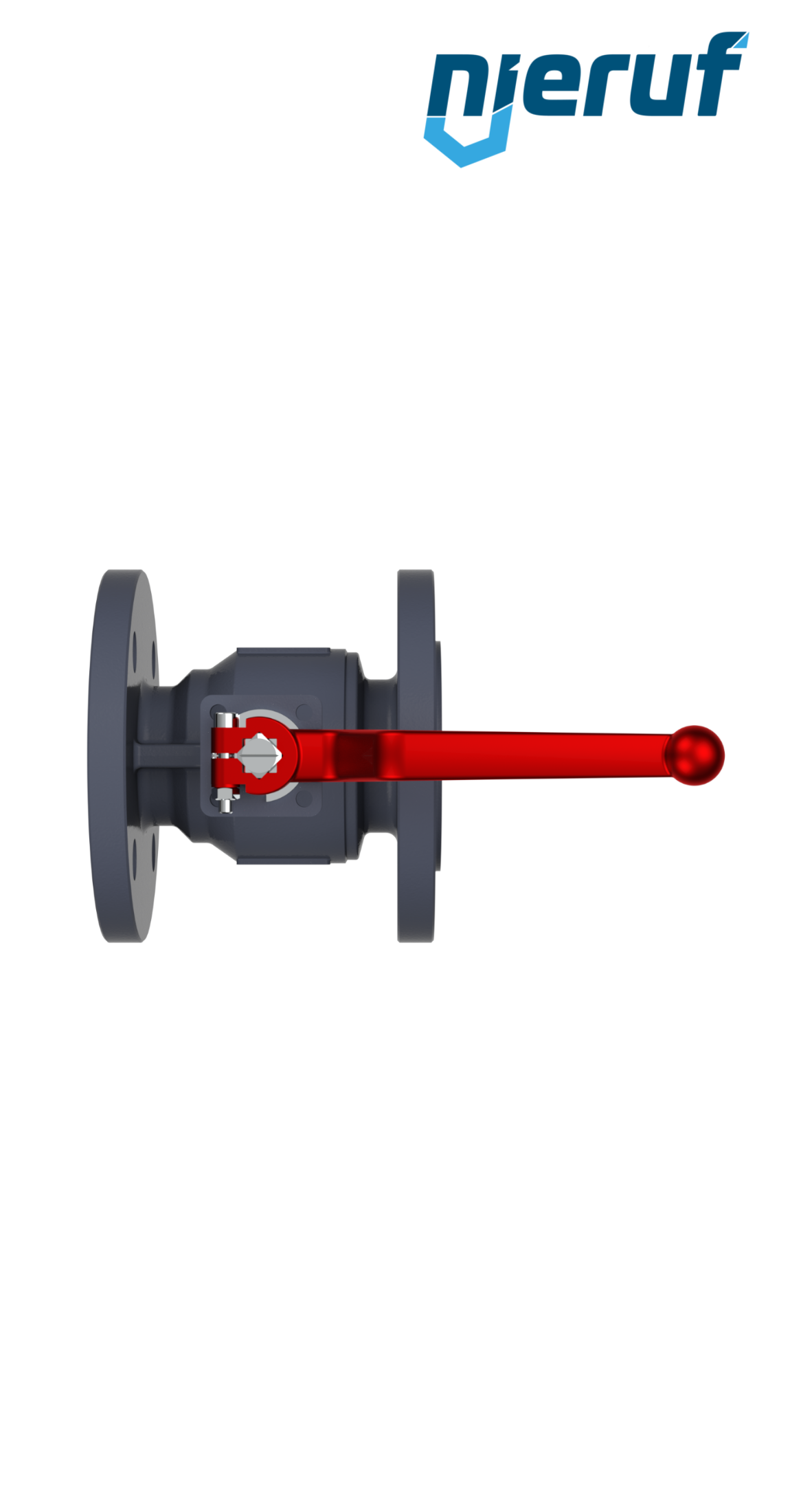

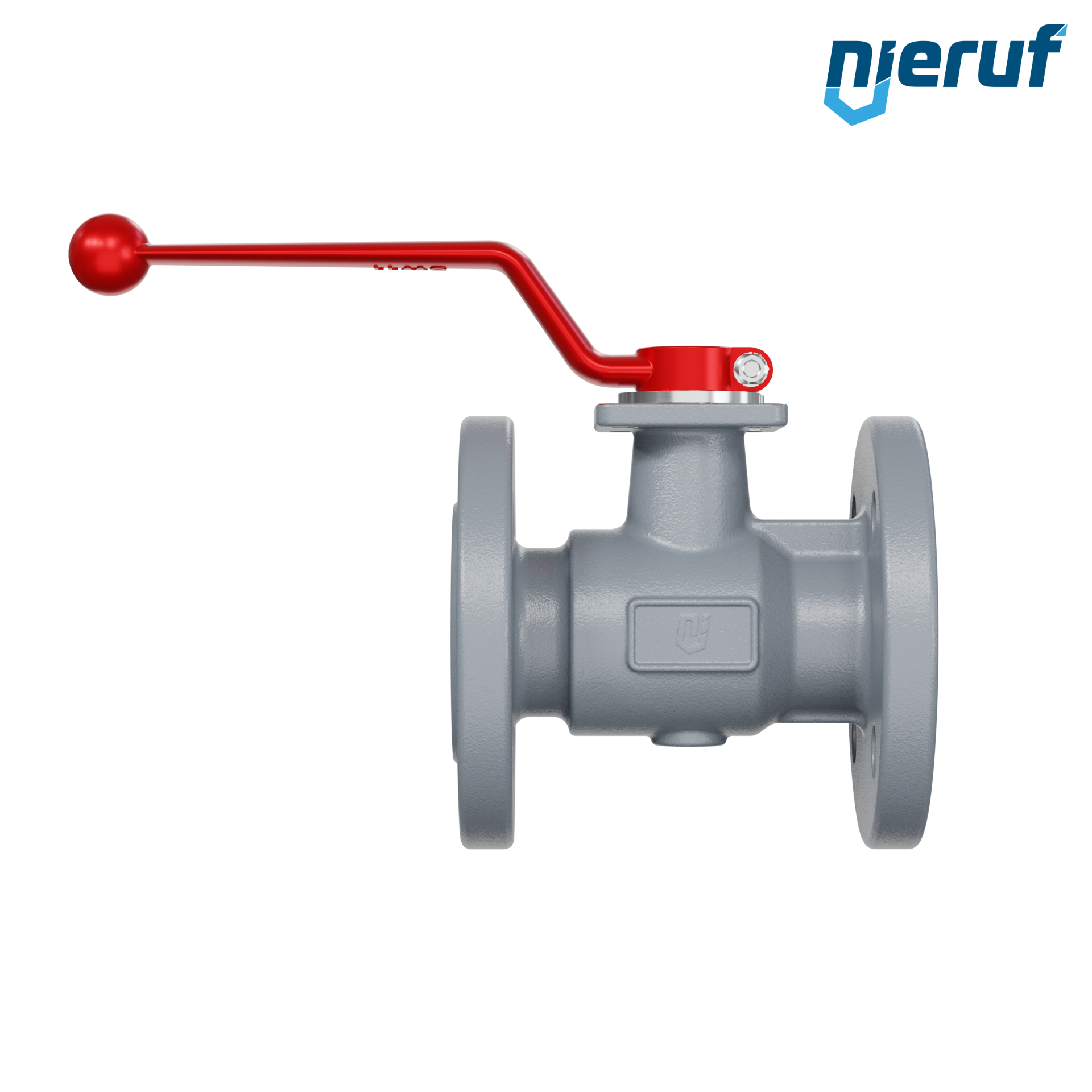

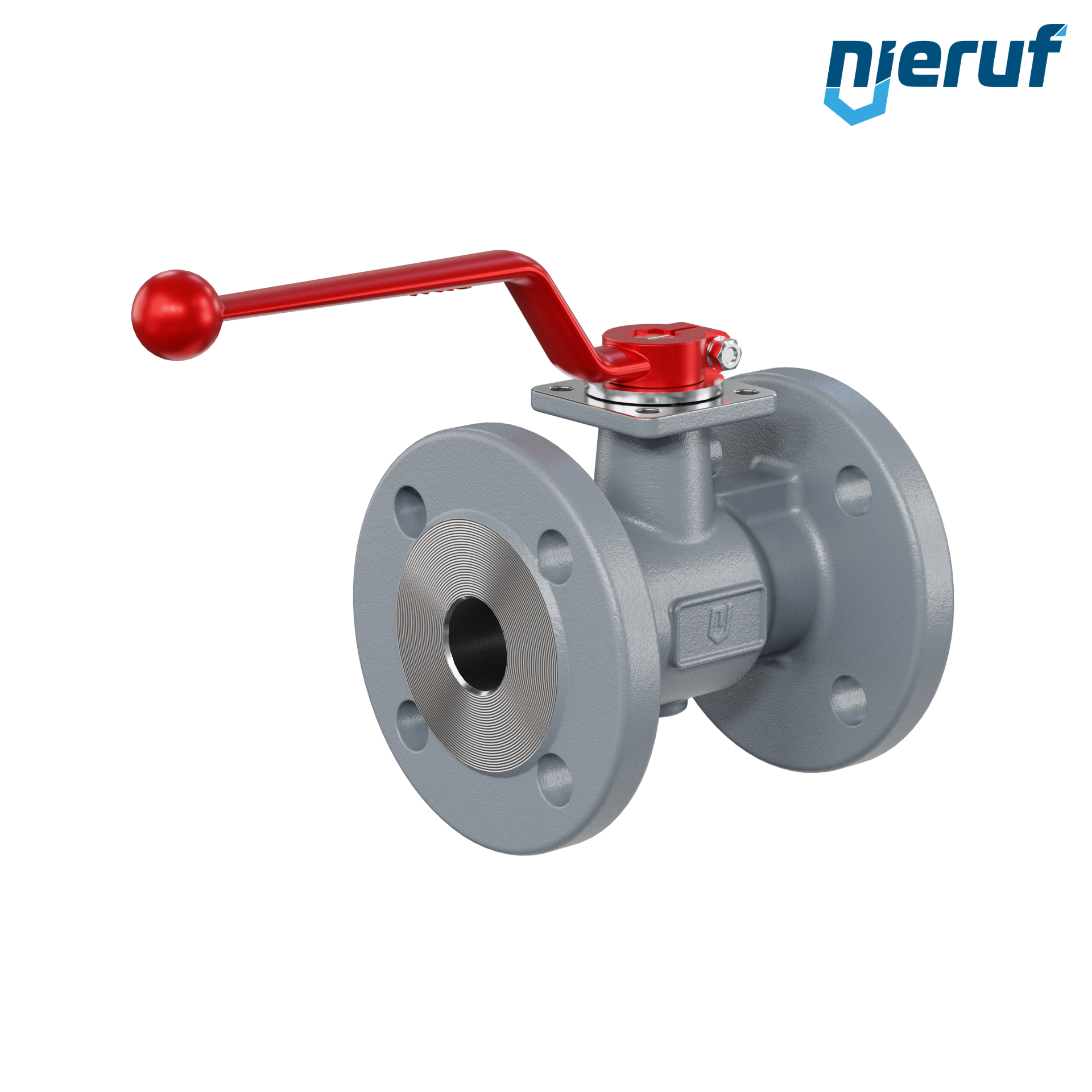

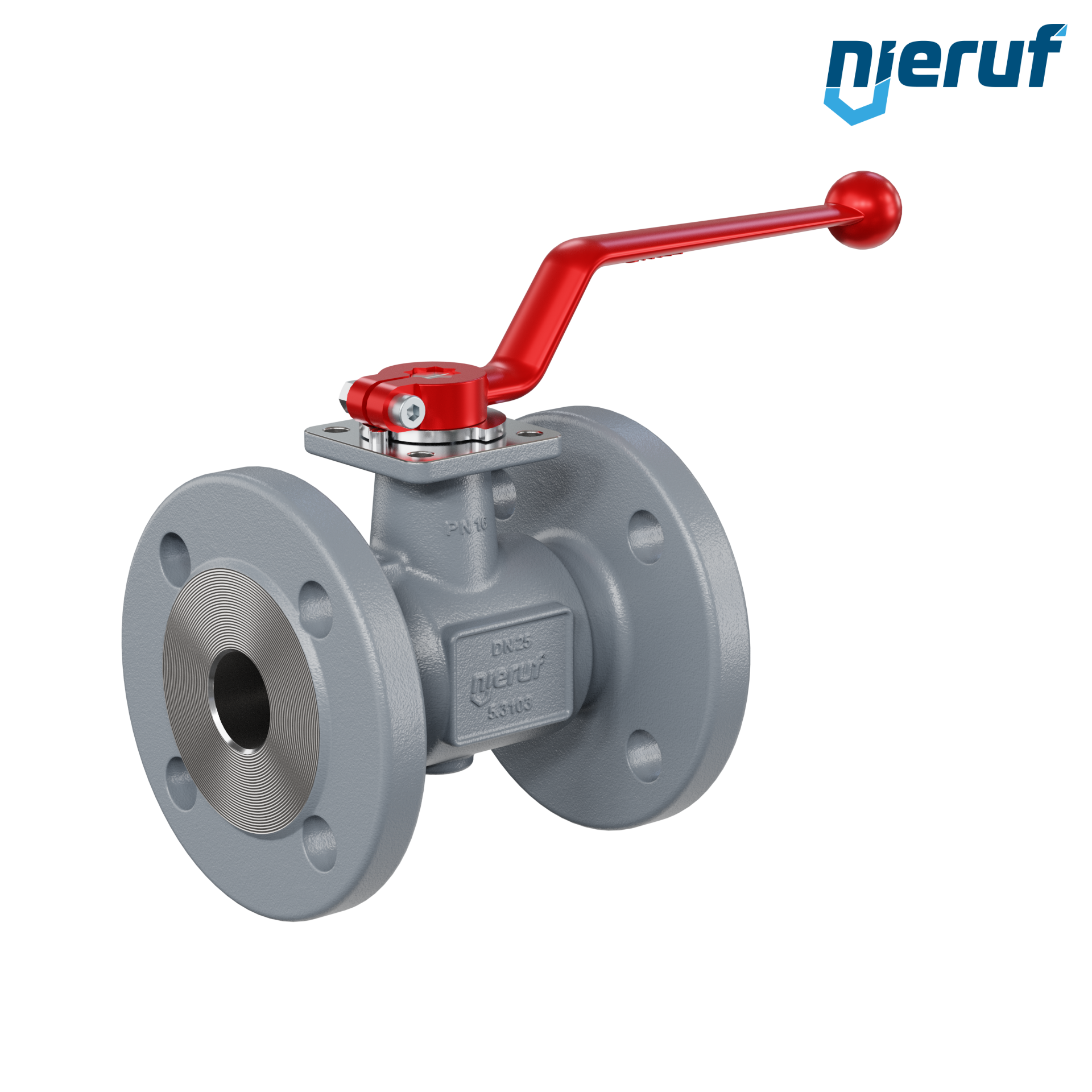

Flange ball valve DN25 FK02 GGG40 ball (solid) stainless steel 1.4408

Flange ball valve DN25 FK02 body spheroidal graphite cast iron GJS 400-18 ball (solid) stainless steel 1.4408 seal PTFE / GF for liquid and gaseous media

product: Flange ball valve
type: FK02
manufacturer: NieRuf
diameter: DN25
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE / GF
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design with stainless steel ball
body material: spheroidal graphite cast iron GJS 400-18
ball material: (solid) stainless steel 1.4408
length: DIN EN 558-1 R14
actuator: hand lever made of alu in red
installation position: any position
product description: This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with stainless steel ball.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange ball valve DN25 FK02 GGG40 ball (solid) stainless steel 1.4408

Article no. : FK02000005
product: Flange ball valve
type: FK02
manufacturer: NieRuf
diameter: DN25
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE / GF
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16
design: full port design with stainless steel ball
body material: spheroidal graphite cast iron GJS 400-18
ball material: (solid) stainless steel 1.4408
length: DIN EN 558-1 R14
actuator: hand lever made of alu in red
installation position: any position
product description: This high quality ball valve is made of spheroidal graphite cast iron with two-piece body and fire-safe-design. Full port design with stainless steel ball.
