FK05040014

drinking-water-flange ball valve DN200 FK05 stainless steel 1.4408

€6,151.70*

€7,320.52 VAT included.

Delivery time: 1 - 2 weeks

Delivery information

Equipment

FL01000214

Welding neck flange DN200 PN16 EN1092-1 11 B1 1.4541

€172.40*

€205.16 VAT included.


VS01000214

joint set flange/flange DN200 - 8" Inch for flange PN16 stainless steel

€44.40*

€52.84 VAT included.


FD01000114

flange seal DN200 PN10/16 220x273x2 Klingersil C 4400

€21.30*

€25.35 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FK05040014

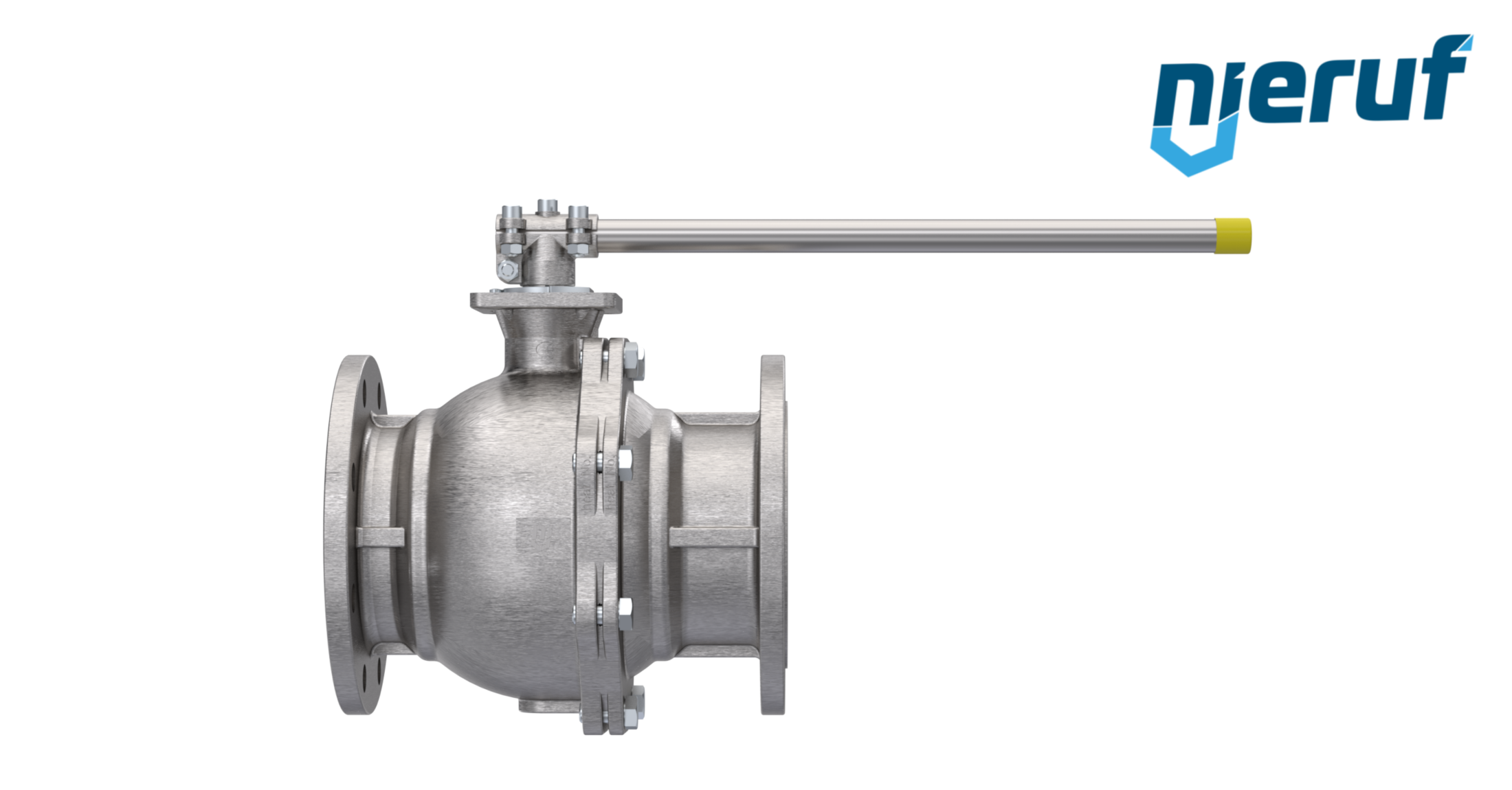

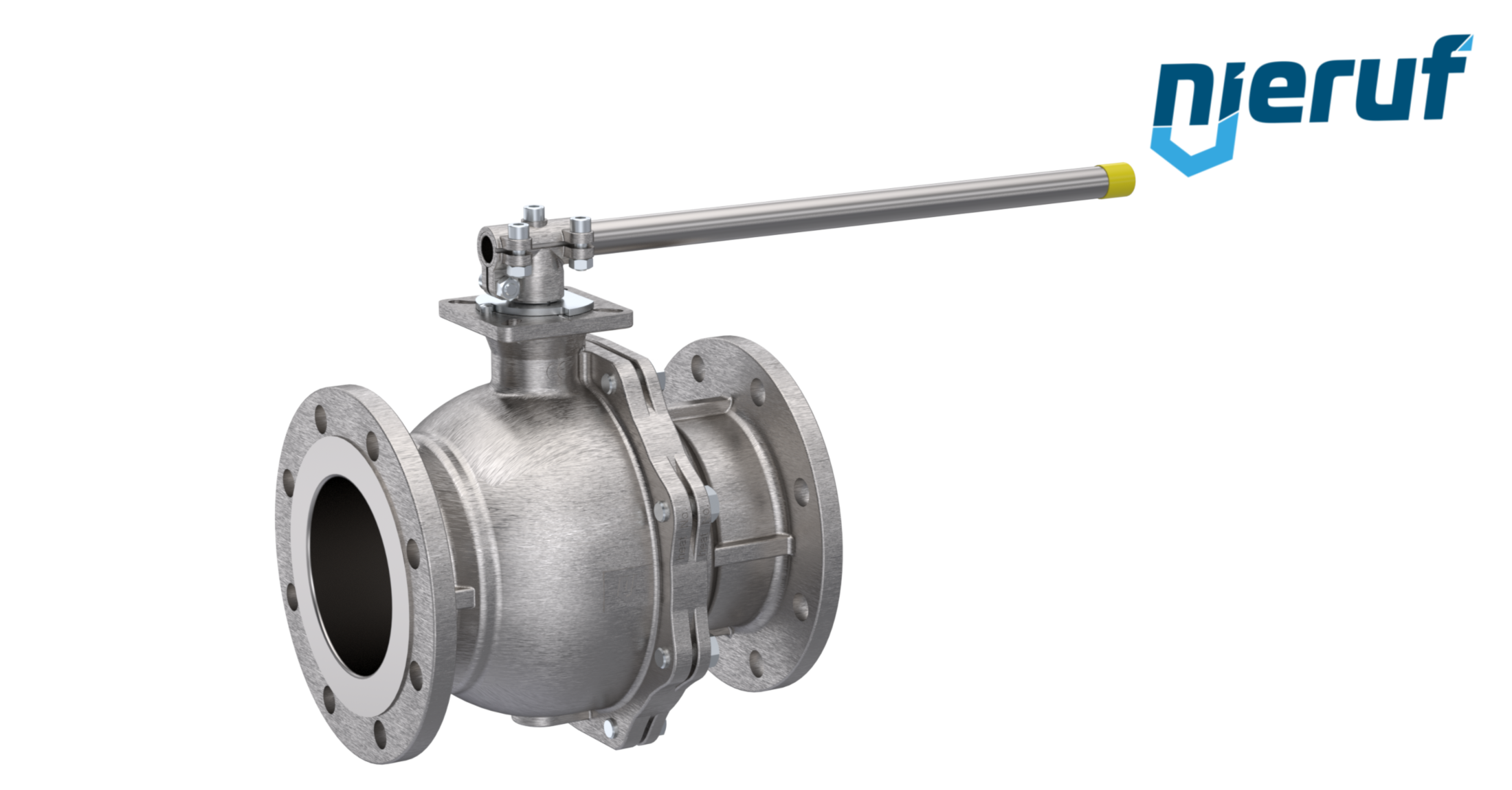

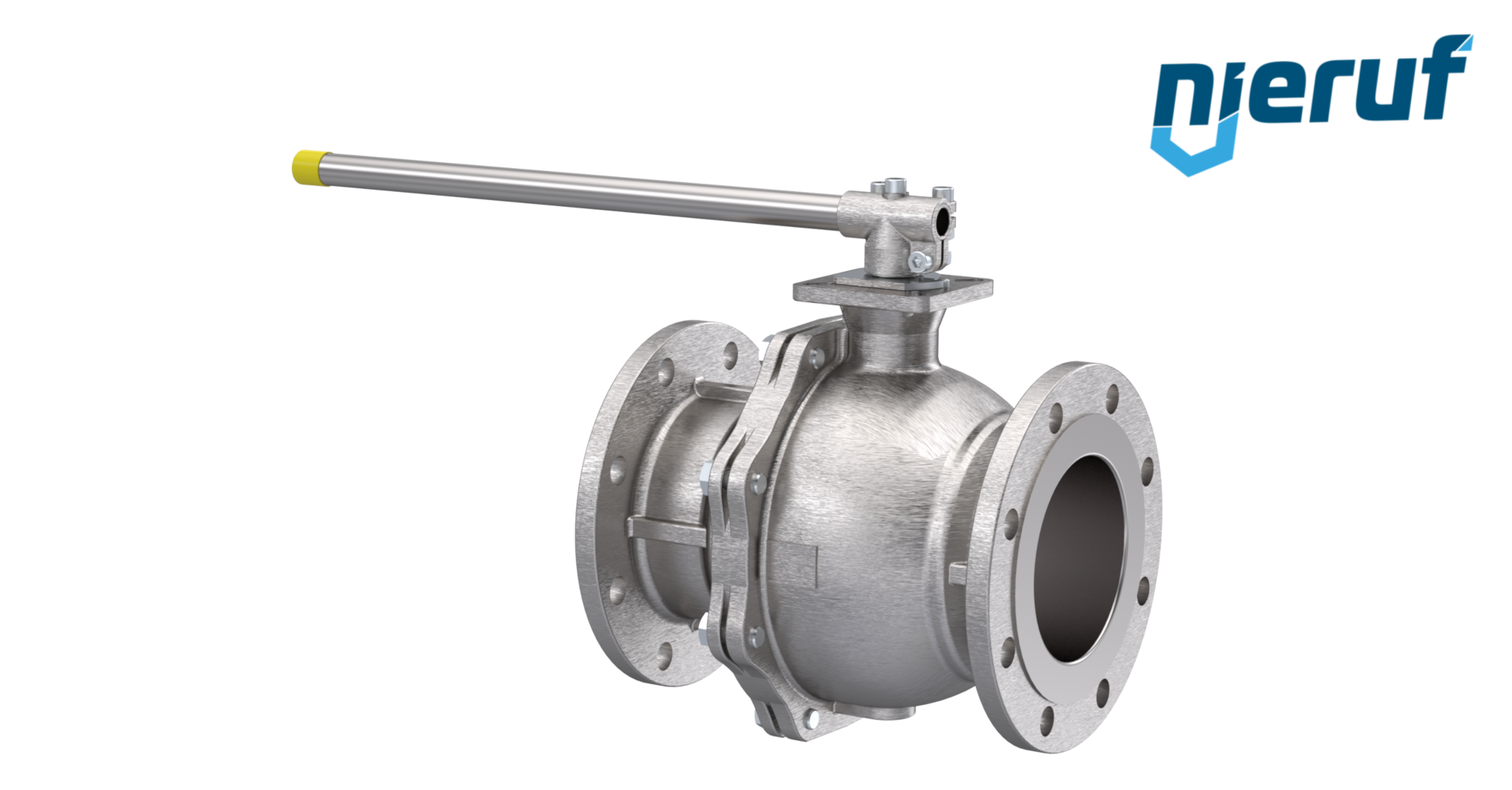

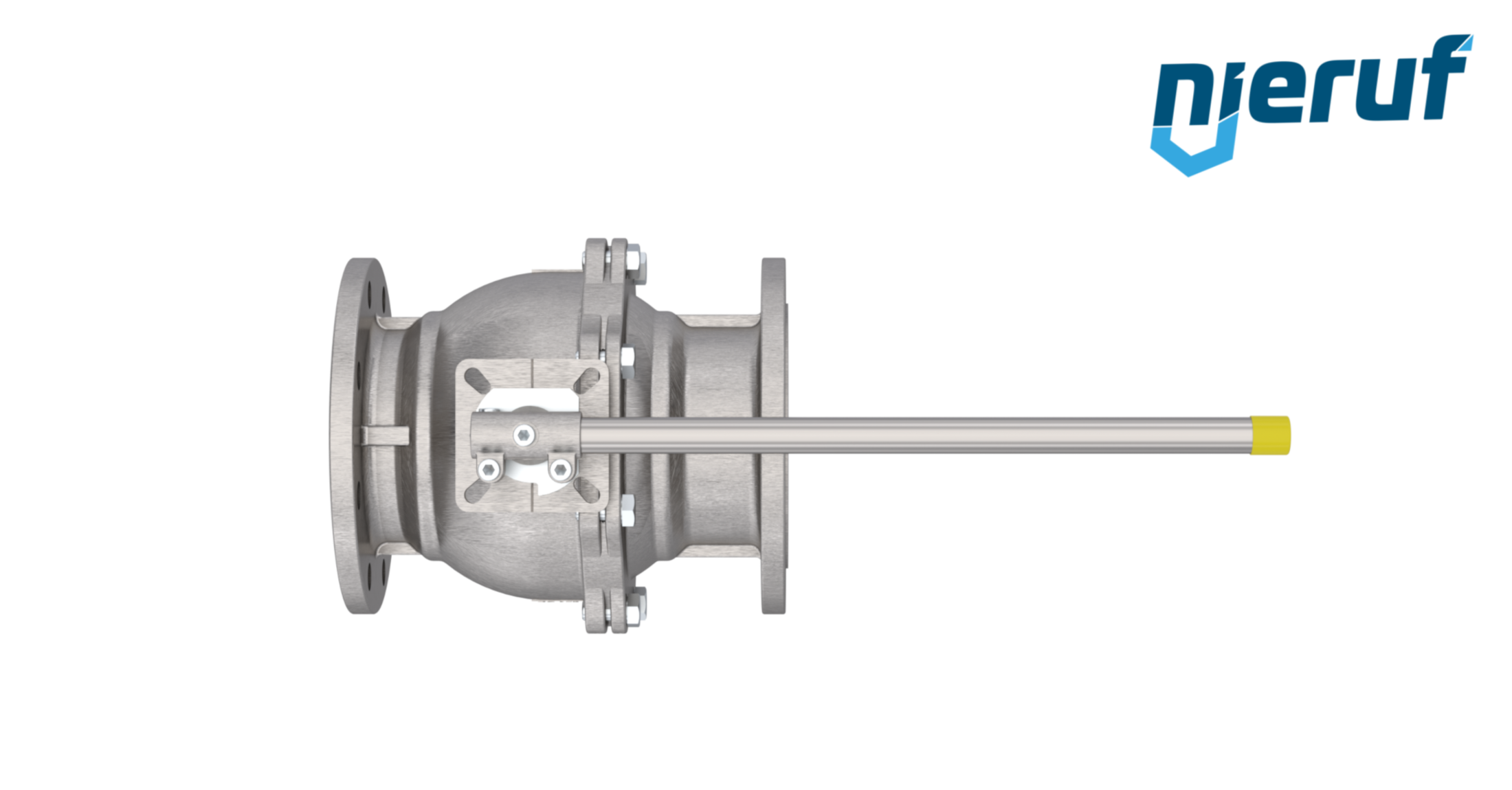

drinking-water-flange ball valve DN200 FK05 stainless steel 1.4408

drinking-water-flange ball valve DN200 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE for drinking water

product: drinking-water-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN200
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: PTFE/EPDM
body seal: PTFE
ball seal: PTFE
media: liquid media, drinking water, DVGW-drinking water
temperature: -20°C up to +180°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft, DVGW-drinking water
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal with DVGW drinking water approval and is suitable for drinking water. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

drinking-water-flange ball valve DN200 FK05 stainless steel 1.4408

Article no. : FK05040014
product: drinking-water-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN200
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: PTFE/EPDM
body seal: PTFE
ball seal: PTFE
media: liquid media, drinking water, DVGW-drinking water
temperature: -20°C up to +180°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft, DVGW-drinking water
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal with DVGW drinking water approval and is suitable for drinking water. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
