FK05030003

Gas-flange ball valve DN15 FK05 stainless steel 1.4408

€166.30*

€197.90 VAT included.

Delivery time: 1 - 2 weeks

Delivery information

Equipment

VS01000103

joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel

€4.00*

€4.76 VAT included.


FL01000103

Welding neck flange DN15 PN10/16/25/40 EN1092-1 11 B1 1.4541

€15.80*

€18.80 VAT included.


FD01000103

flange seal DN15 PN10/16/25/40 22x51x2 Klingersil C 4400

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: FK05030003

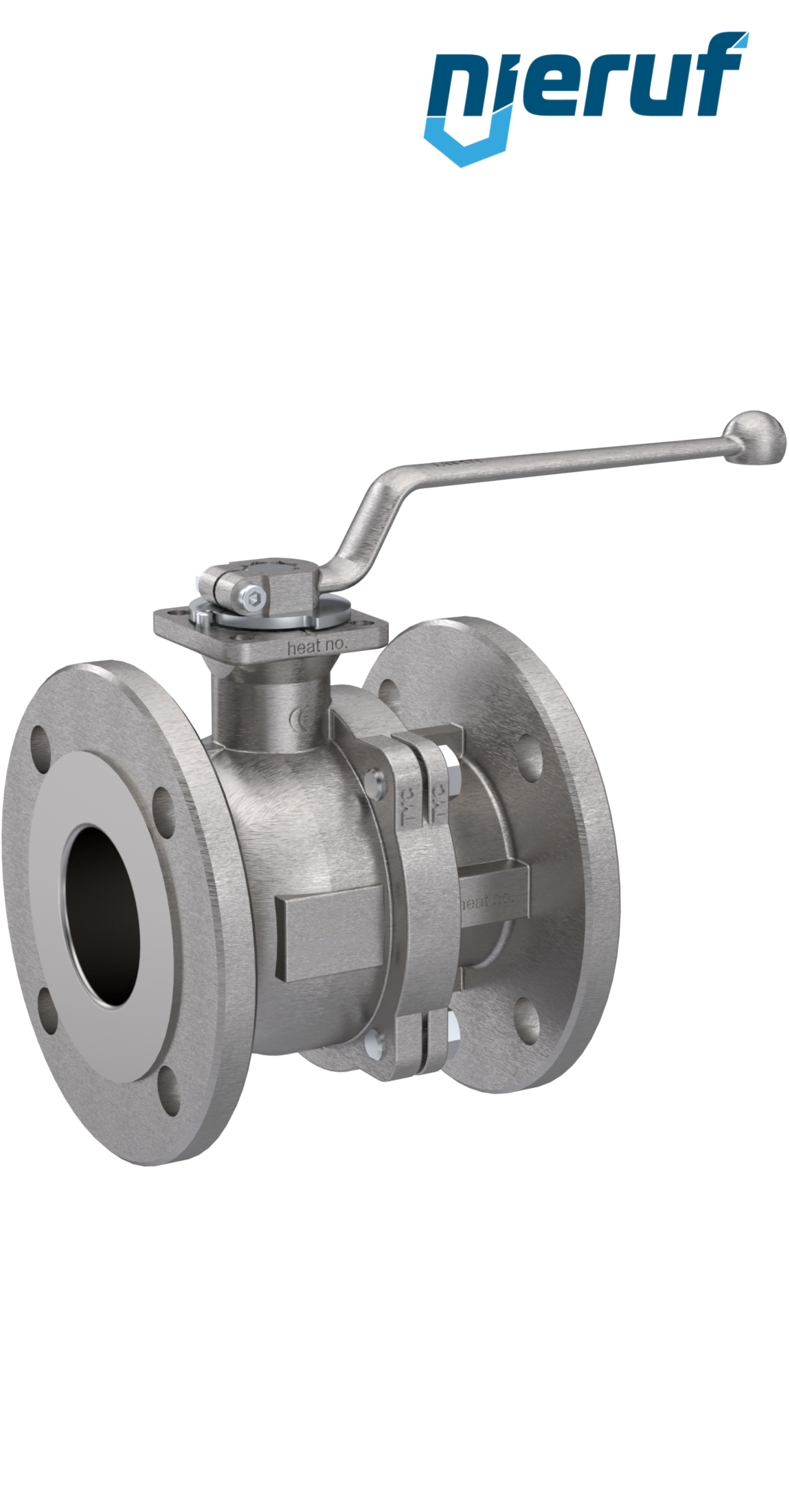

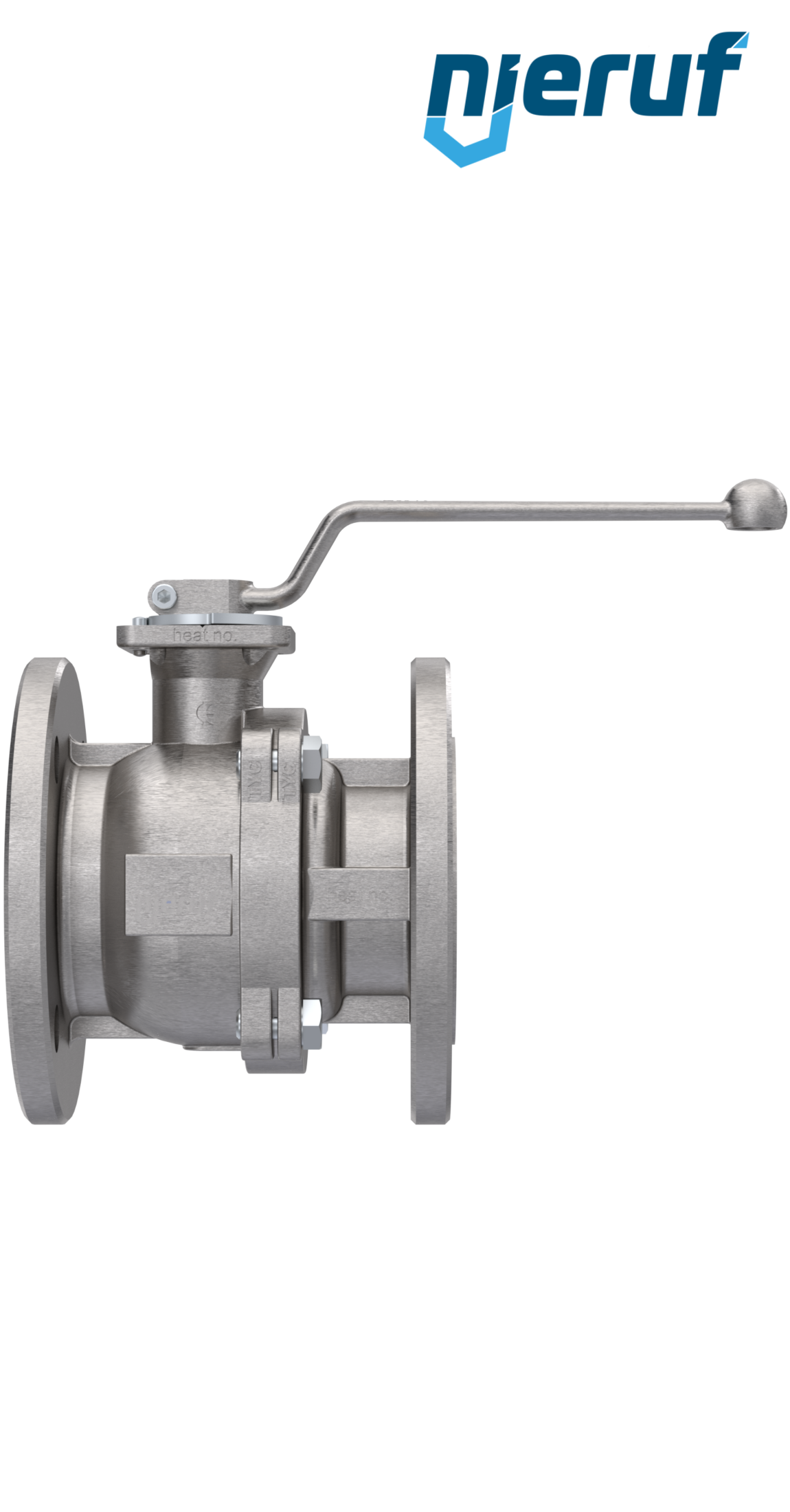

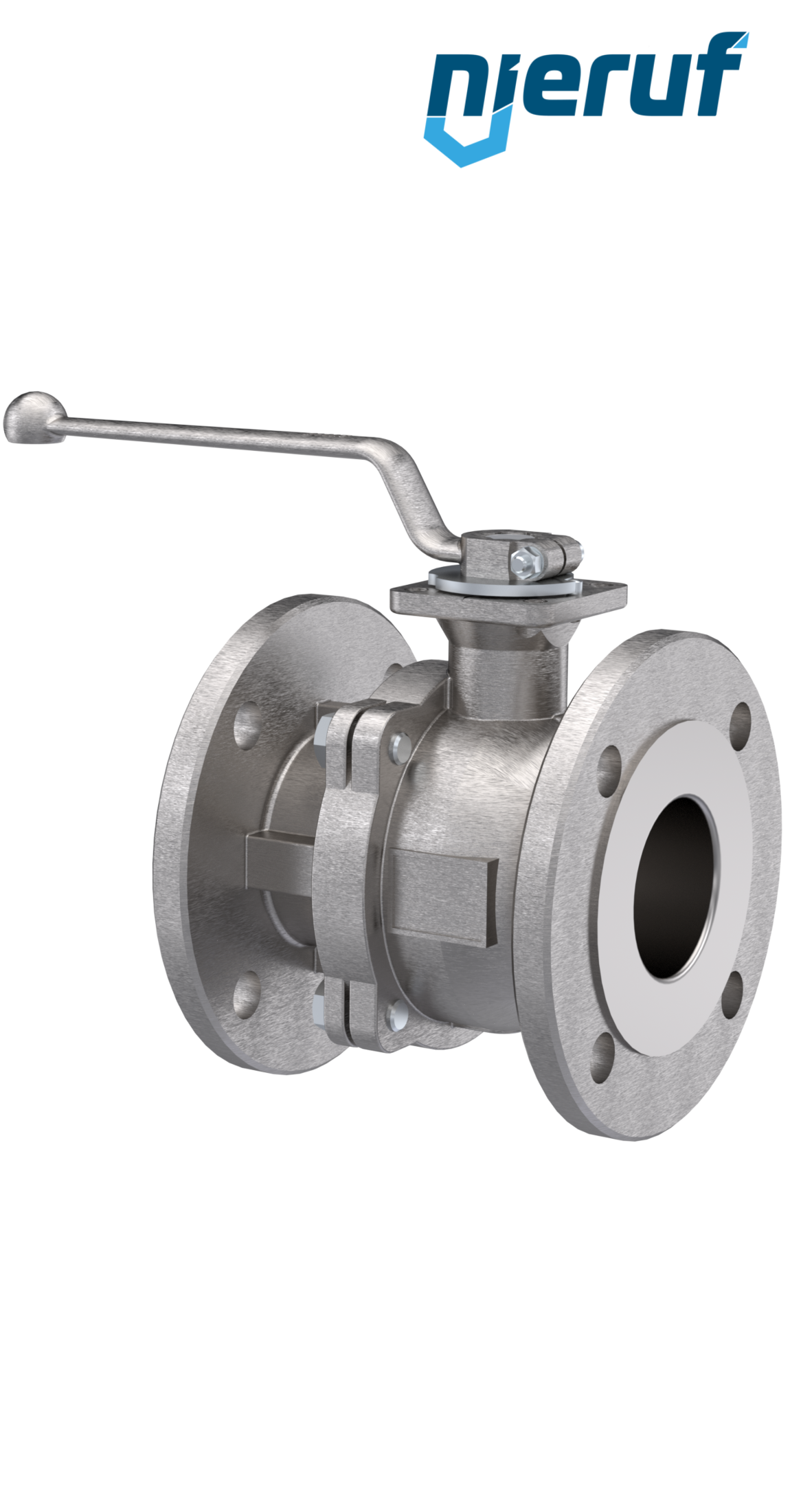

Gas-flange ball valve DN15 FK05 stainless steel 1.4408

Gas-flange ball valve DN15 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE for gas

product: Gas-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN15
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: PTFE/FKM
body seal: FKM/TFM
ball seal: PTFE
media: gaseous media, gas, DVGW-gas
temperature: -20°C up to +180°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft, DVGW-Gas
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. This ball valve includes DVGW gas approval.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Gas-flange ball valve DN15 FK05 stainless steel 1.4408

Article no. : FK05030003
product: Gas-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN15
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: PTFE/FKM
body seal: FKM/TFM
ball seal: PTFE
media: gaseous media, gas, DVGW-gas
temperature: -20°C up to +180°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft, DVGW-Gas
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. This ball valve includes DVGW gas approval.
