SV14100305.1
cryo-safety-valve DN20 1" m x 1" fm SV14, stainless steel PTFE, with lever
- Lead time
- 3 - 5 working days
Equipment
ball diverter valve DN25 - 1" inch GK16 L Drilling inlet female thread 1 1/4" inch
€1,852.24 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

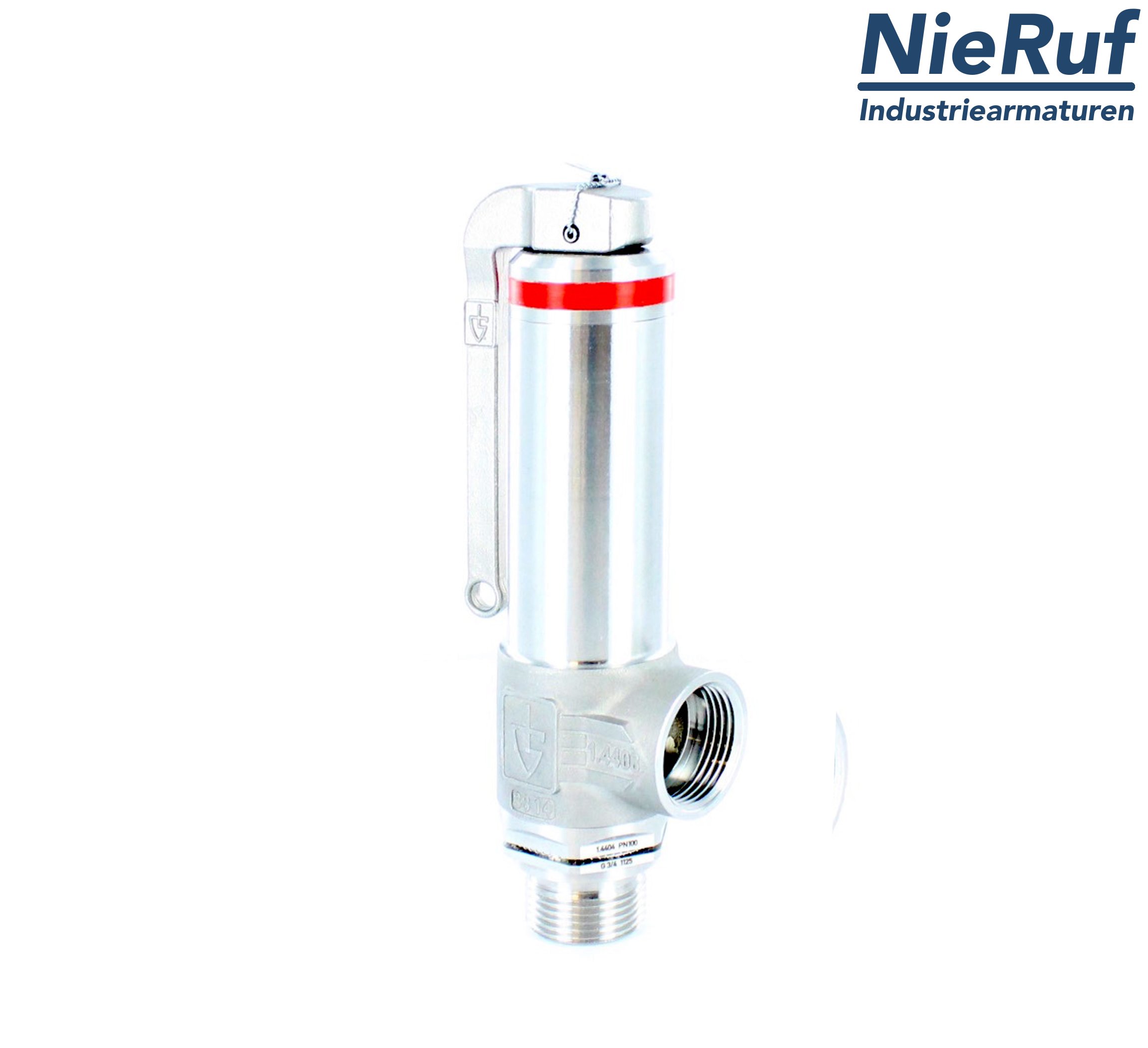

cryo-safety-valve DN20 1" m x 1" fm SV14, stainless steel PTFE, with lever
cryo-safety-valve DN20 1" m x 1" fm SV14 for cryogenic liquified gases made of stainless steel with lever seal PTFE pressure 0,2 - 70,0 bar
| product | cryo-safety-valve |
|---|---|
| type | SV14 |
| manufacturer | NieRuf |
| diameter | DN20 1" m x 1" fm |
| d0 | 13,0 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | cryogenic liquified gases |
| temperature | - 200°C up to + 200°C |
| set pressure | 0,2 - 70,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TÜV-SV-2091 D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG. Not suitable for oxygen |
| product feature 2 | oil- and greasefree |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
cryo-safety-valve DN20 1" m x 1" fm SV14, stainless steel PTFE, with lever
Article no.
: SV14100305.1
product:
cryo-safety-valve
type:
SV14
manufacturer:
NieRuf
diameter:
DN20 1" m x 1" fm
d0:
13,0 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
cryogenic liquified gases
temperature:
- 200°C up to + 200°C
set pressure:
0,2 - 70,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TÜV-SV-2091 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG. Not suitable for oxygen
product feature 2:
oil- and greasefree
