SV14000303
cryo-safety-valve DN15 1/2" m x 3/4" fm SV14, stainless steel PTFE
- Lead time
- 3 - 5 working days
Equipment
ball diverter valve DN20 - 3/4" inch GK16 T Drilling inlet female thread 1" inch
€1,754.42 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

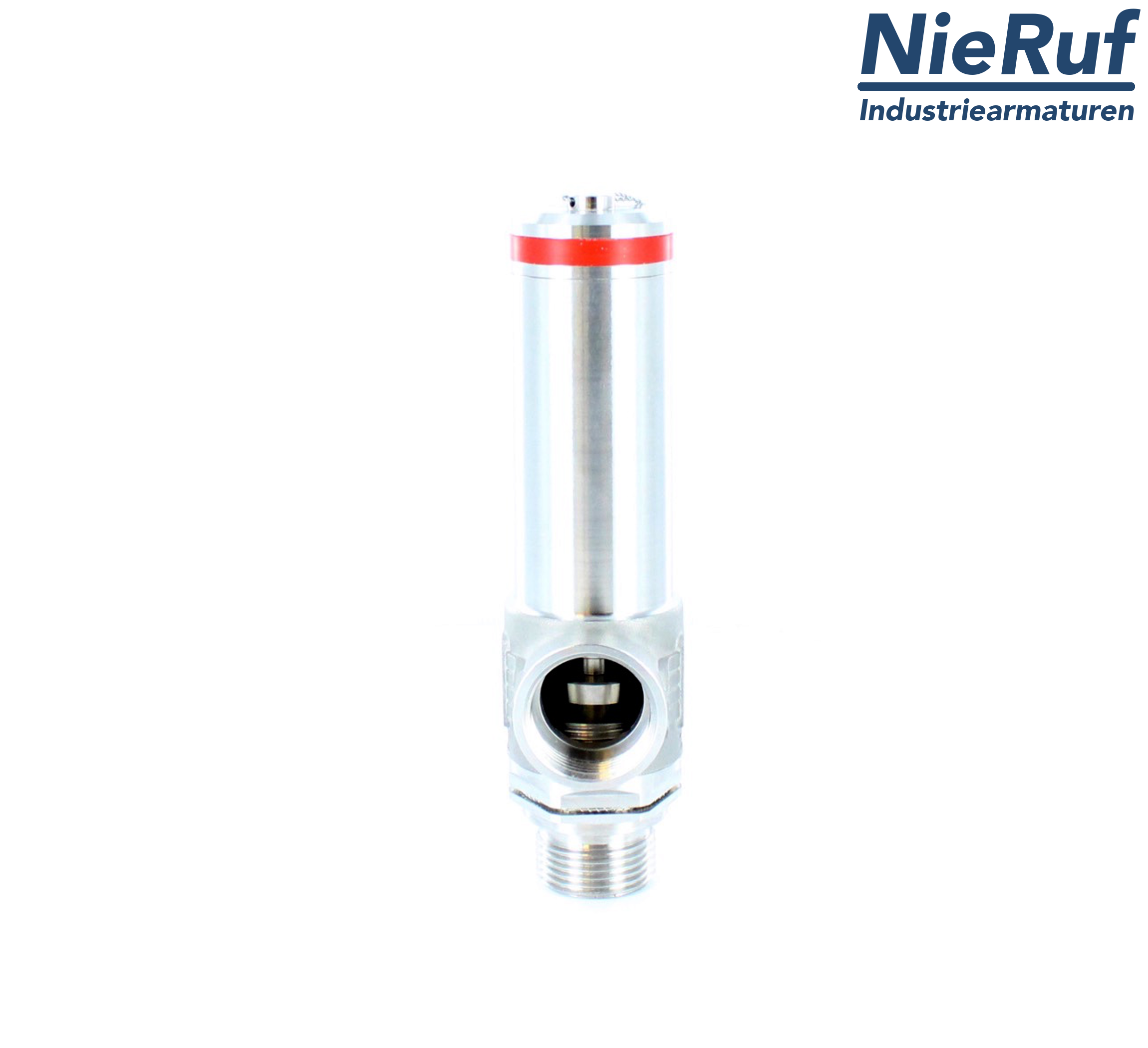

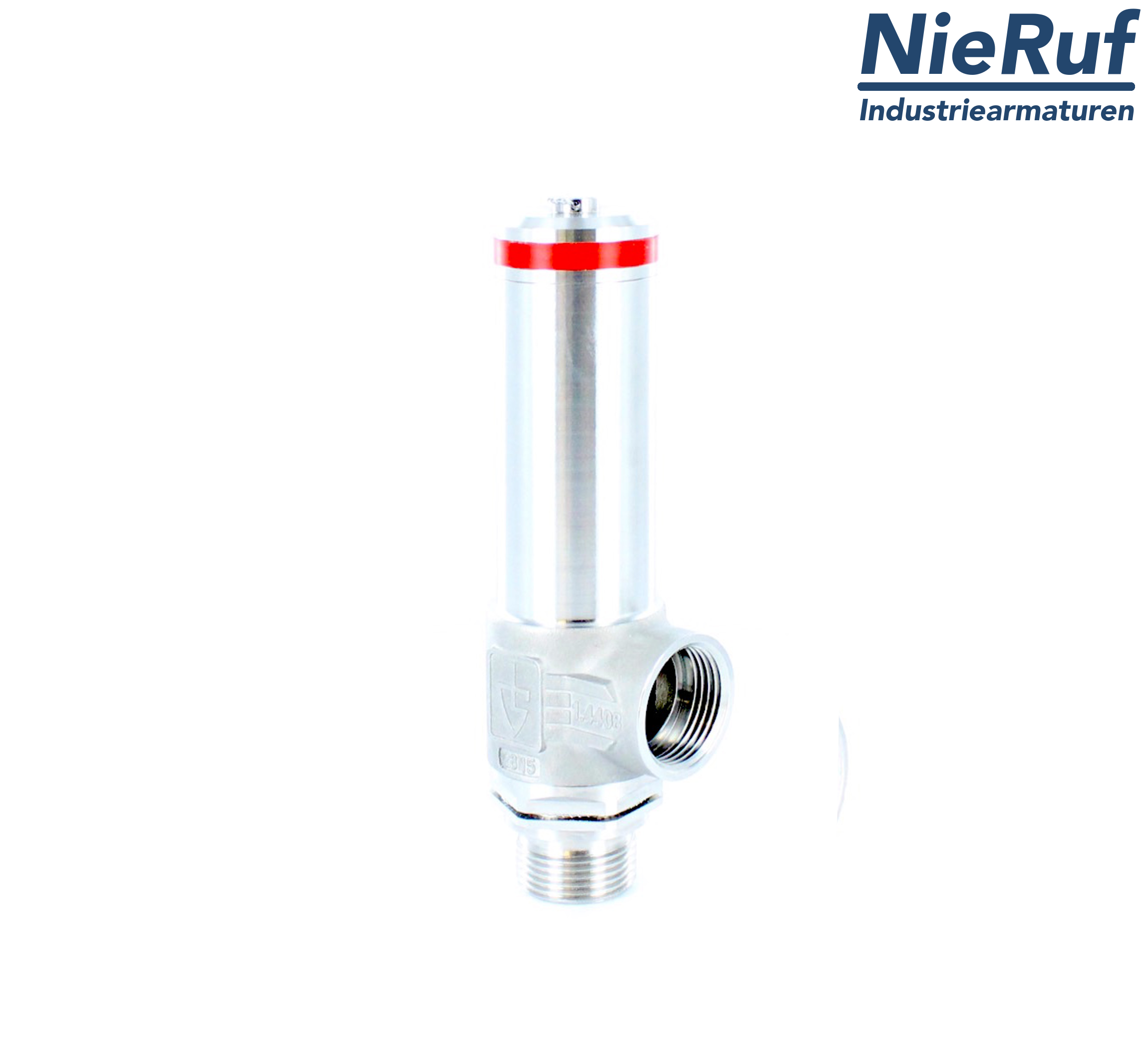

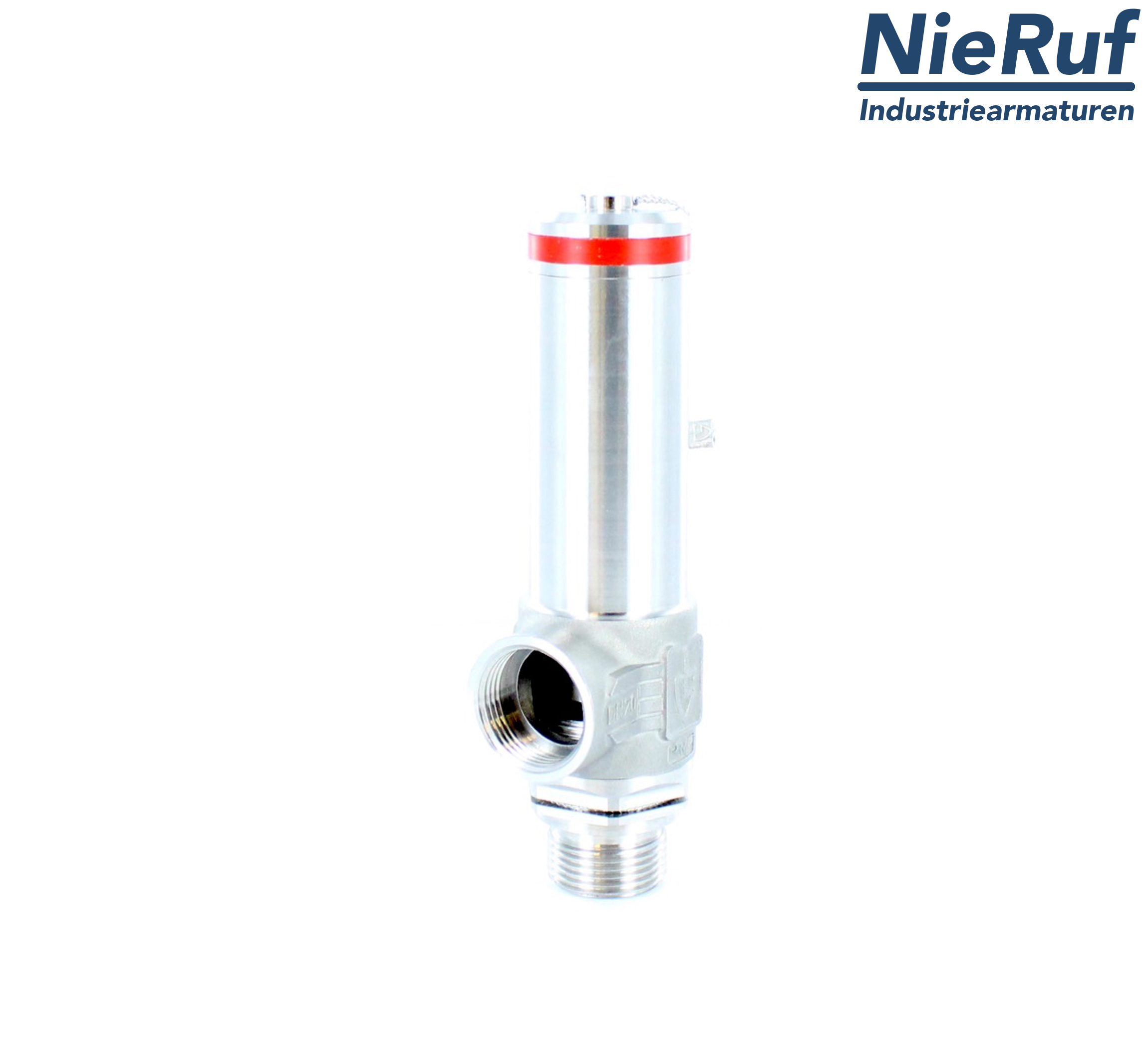

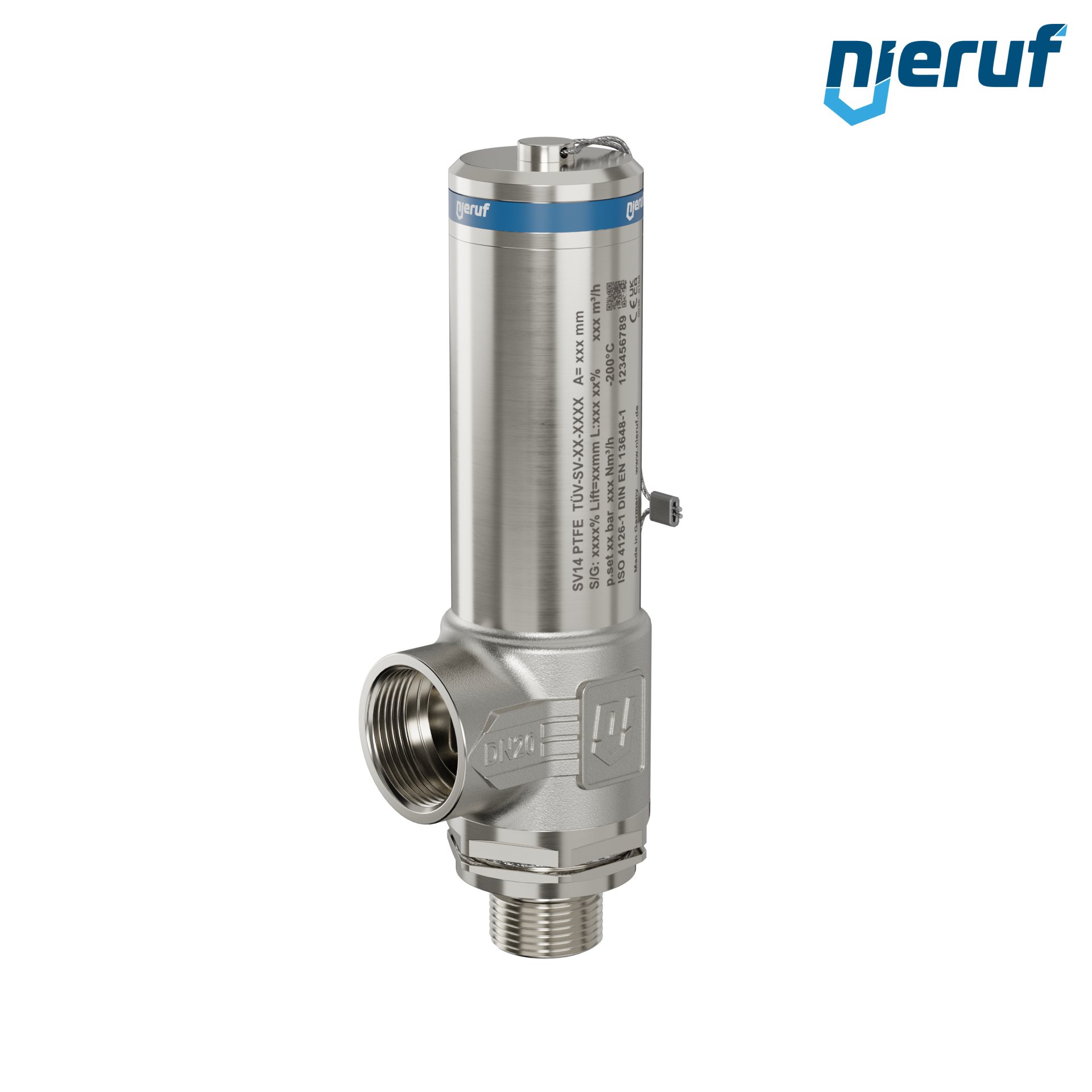

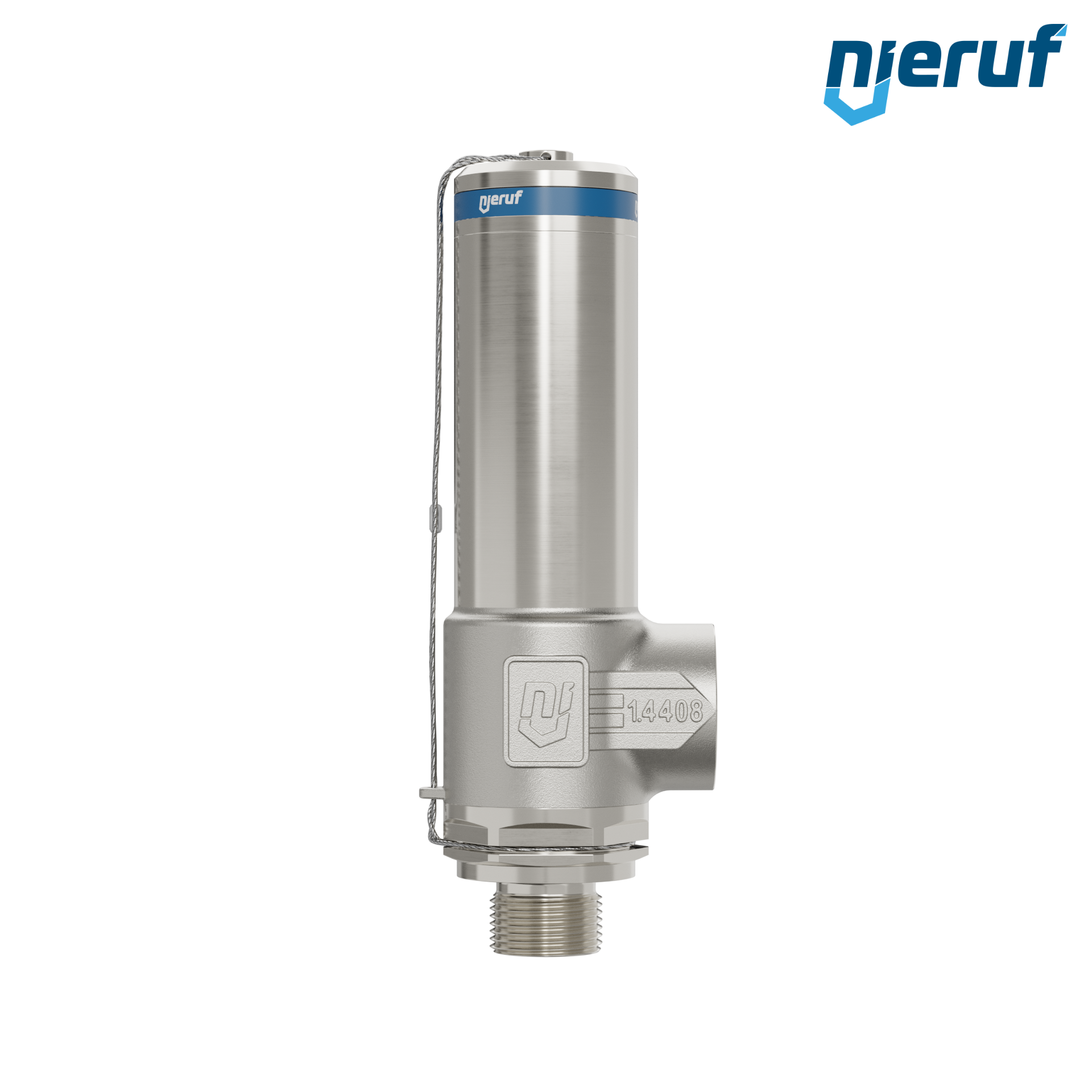

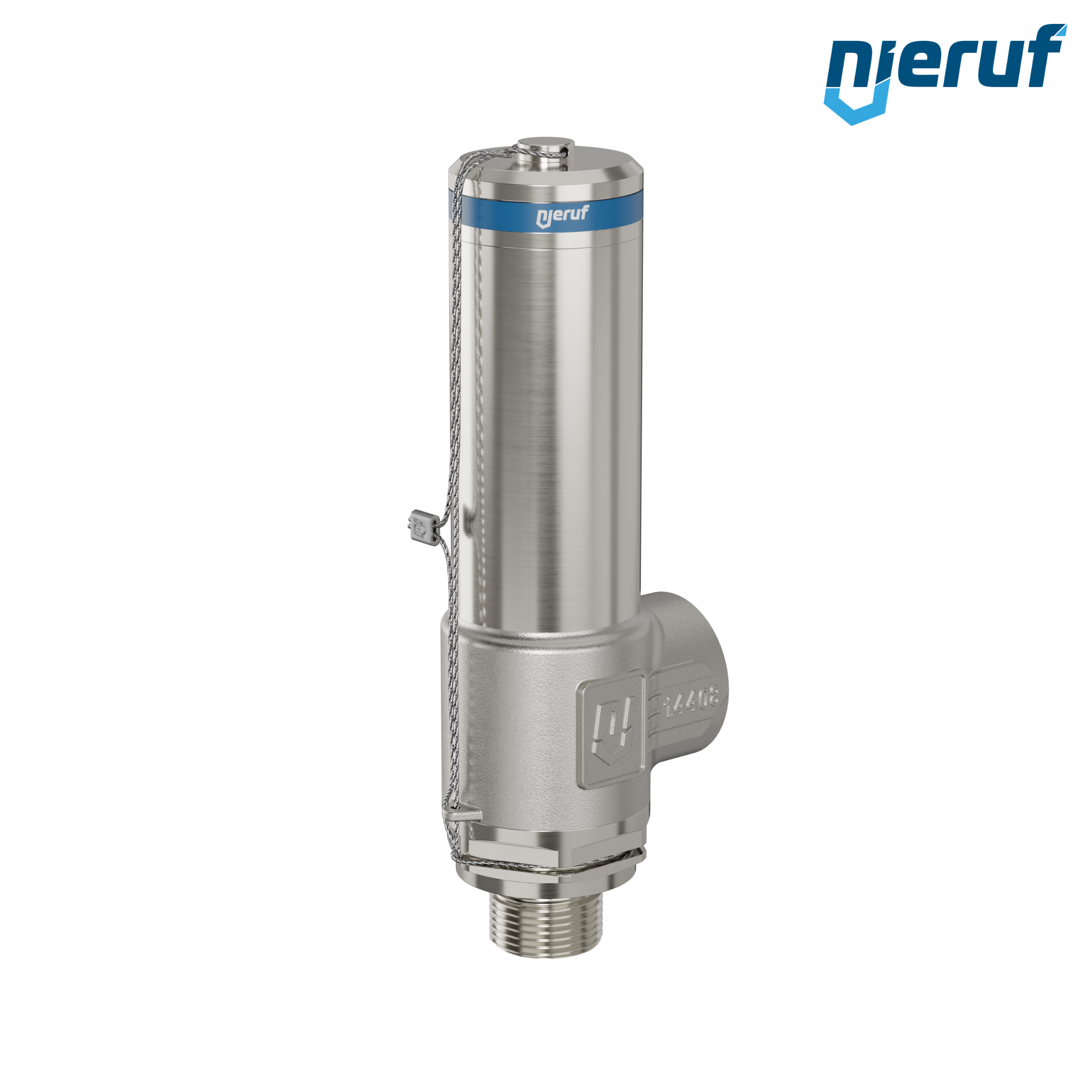

cryo-safety-valve DN15 1/2" m x 3/4" fm SV14, stainless steel PTFE
cryo-safety-valve DN15 1/2" m x 3/4" fm SV14 for nitrogen made of stainless steel seal PTFE pressure 0,2 - 70,0 bar
| product | cryo-safety-valve |
|---|---|
| type | SV14 |
| manufacturer | NieRuf |
| diameter | DN15 1/2" m x 3/4" fm |
| d0 | 10,5 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | cryogenic liquified gases |
| temperature | - 200°C up to + 200°C |
| set pressure | 0,2 - 70,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | without |
| type test approval | TÜV-SV-2091 D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG |
| product feature 2 | oil- and greasefree |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
cryo-safety-valve DN15 1/2" m x 3/4" fm SV14, stainless steel PTFE
Article no.
: SV14000303
product:
cryo-safety-valve
type:
SV14
manufacturer:
NieRuf
diameter:
DN15 1/2" m x 3/4" fm
d0:
10,5 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
cryogenic liquified gases
temperature:
- 200°C up to + 200°C
set pressure:
0,2 - 70,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
without
type test approval:
TÜV-SV-2091 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG
product feature 2:
oil- and greasefree
Equipment
pipe bend (welded) 90° 21,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 26,9 x 2,0 to 21,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days

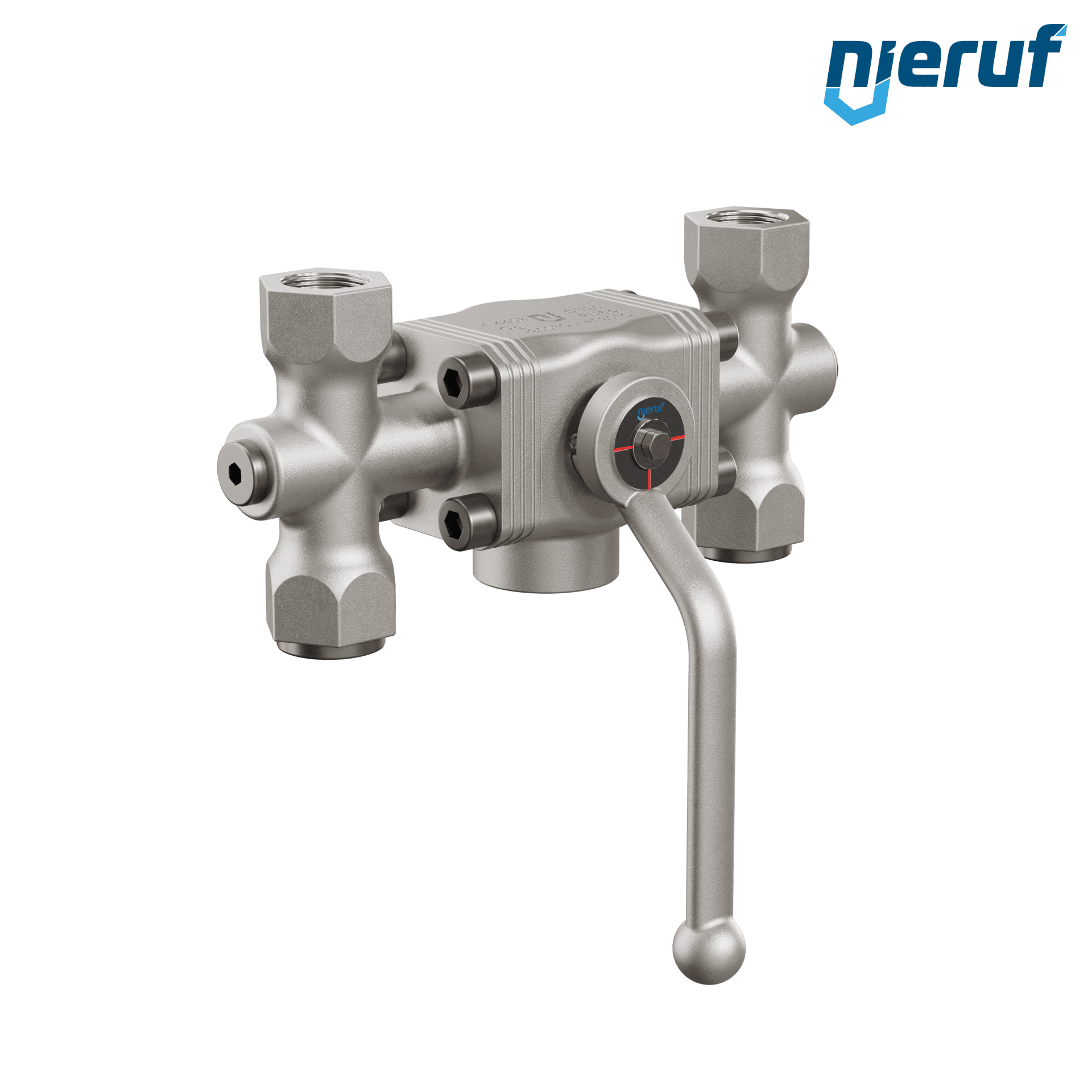

ball diverter valve DN20 - 3/4" inch GK16 T Drilling inlet female thread 1" inch
