SV14000307

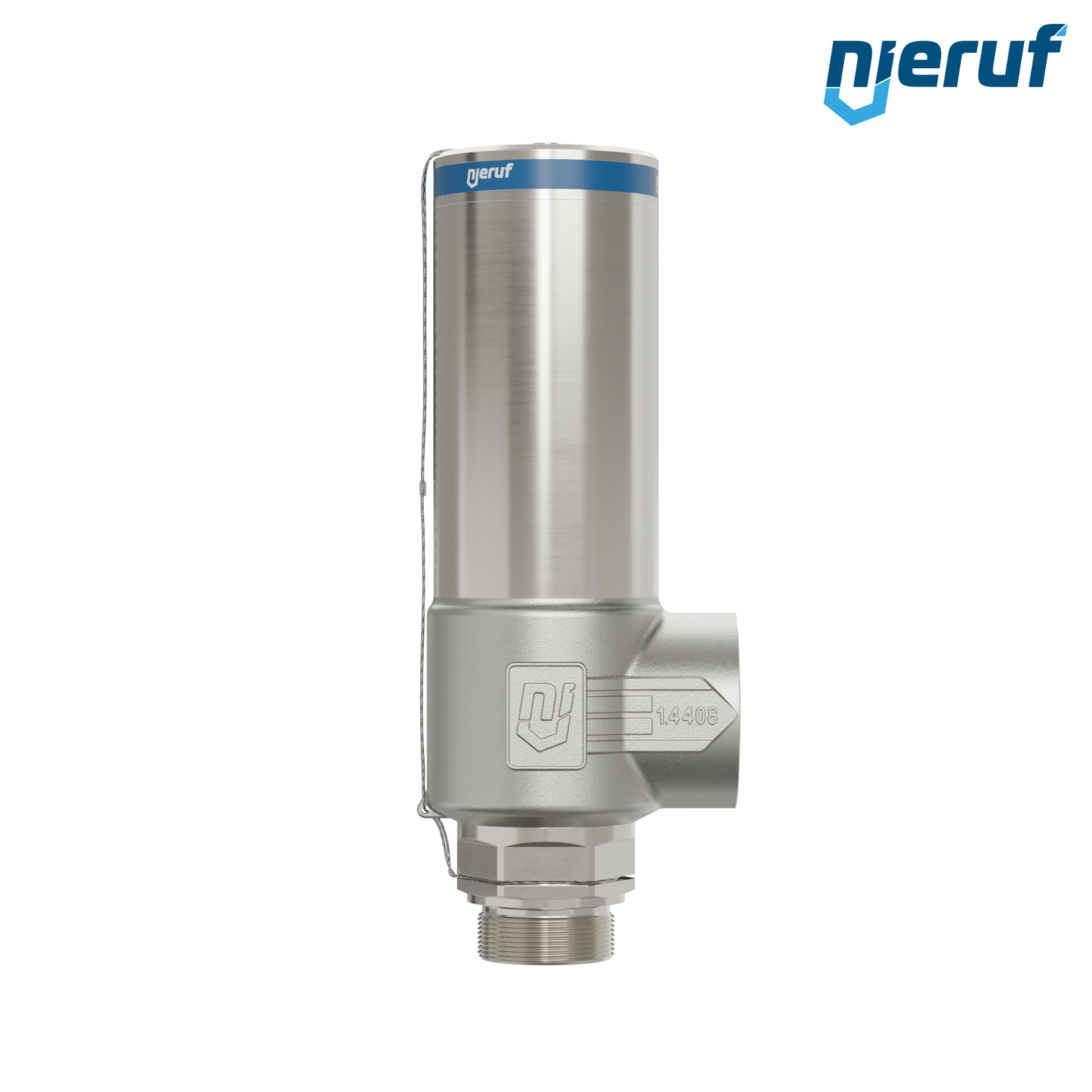

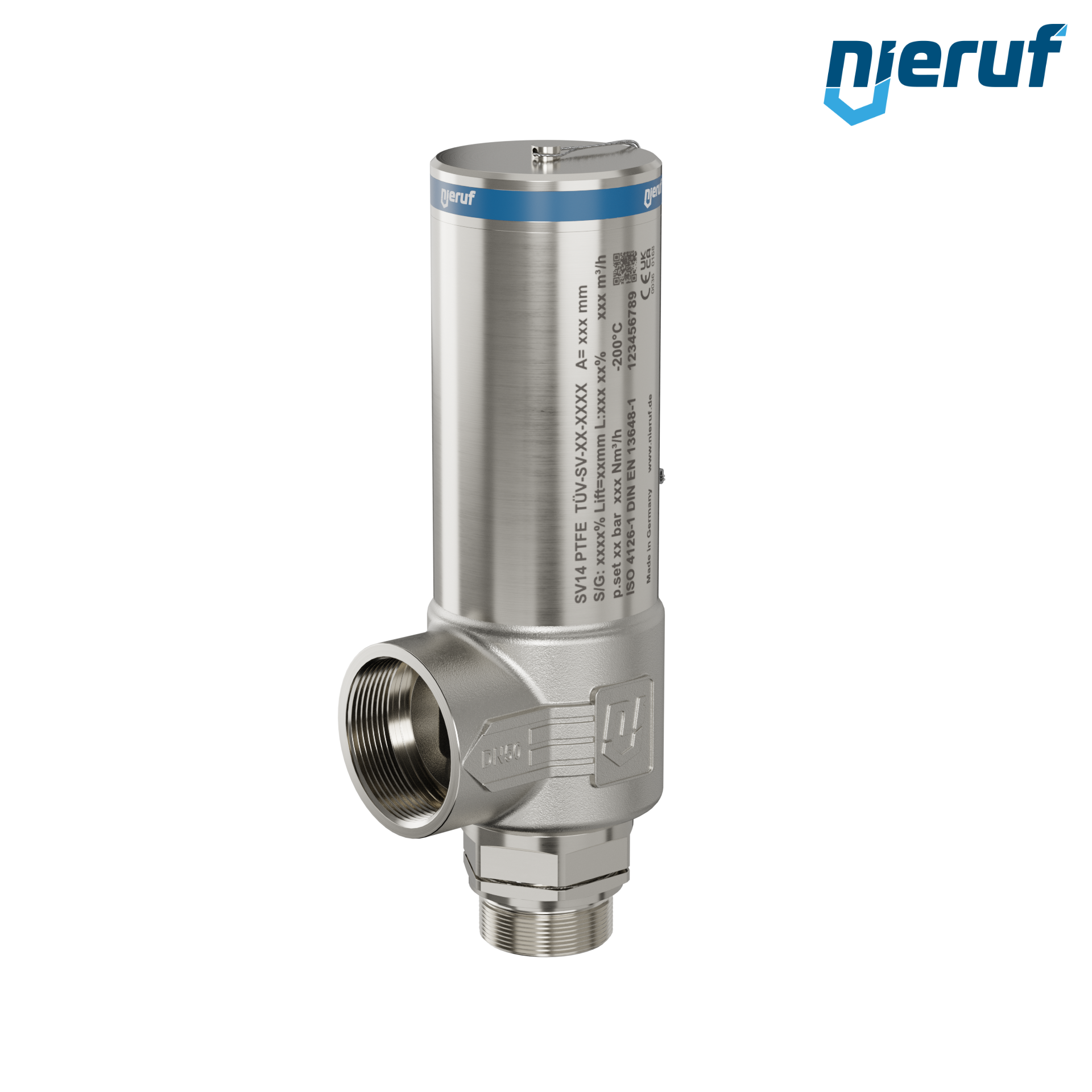

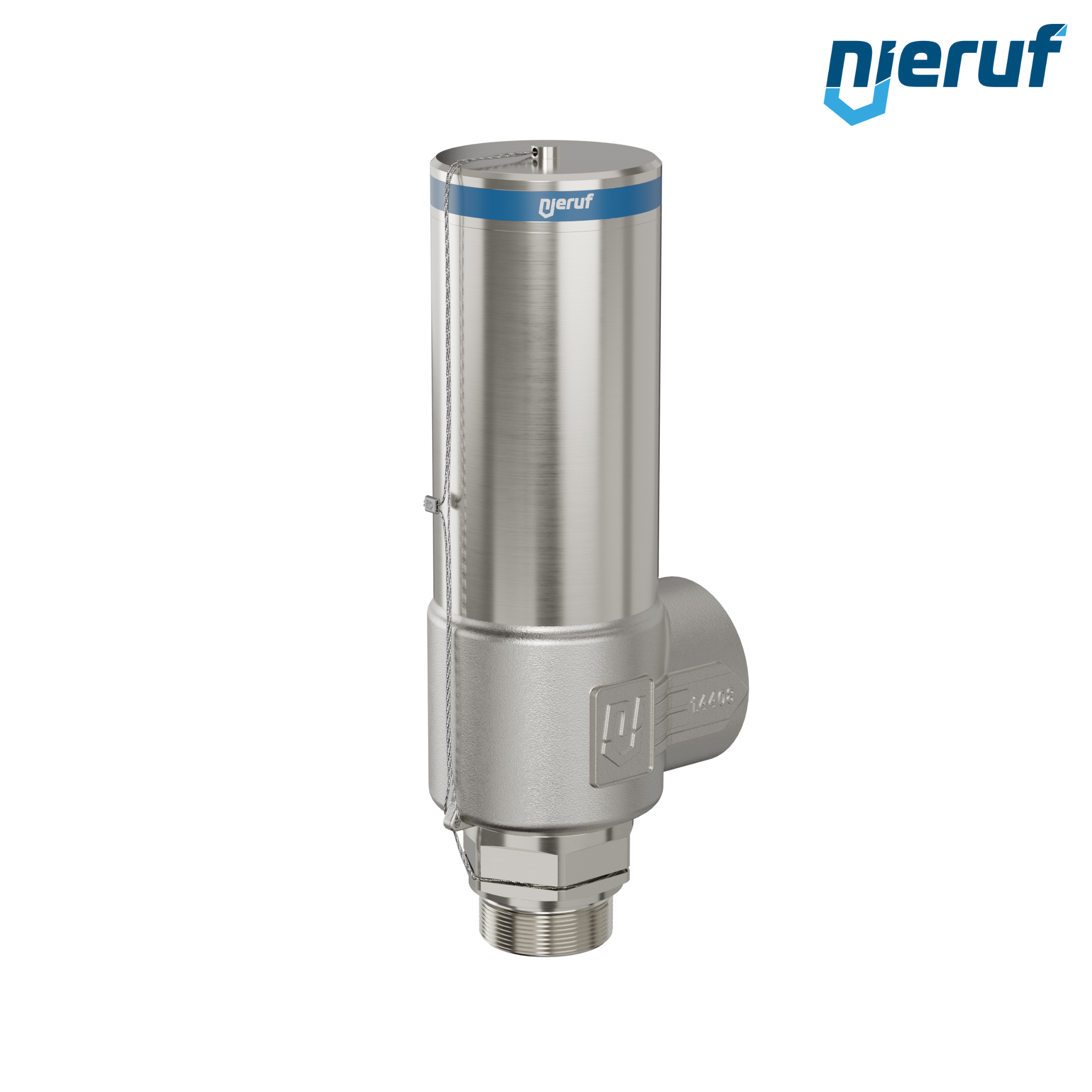

cryo-safety-valve DN32 1 1/2" m x 2" fm SV14, stainless steel PTFE, without lever

€1,493.10*

€1,776.79 VAT included.


Operating data


Delivery time: 3 - 5 working days

Delivery information

Certificates

ZEU31APZ00

Certificate of conformity EN 10204-3.1

€54.00*

€64.26 VAT included.


ZEU31MAT00

Material test certificate 3.1

€54.00*

€64.26 VAT included.


ZEU32APZ00

Certificate of conformity EN 10204-3.2

€70.00*

€83.30 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: SV14000307
cryo-safety-valve DN32 1 1/2" m x 2" fm SV14, stainless steel PTFE, without lever

cryo-safety-valve DN32 1 1/2" m x 2" fm SV14 for cryogenic liquified gases made of stainless steel seal PTFE pressure 0,2 - 50,0 bar

product: cryo-safety-valve
type: SV14
manufacturer: NieRuf
diameter: DN32 1 1/2" m x 2" fm
d0: 23,0 mm
connection: male screw threaded BSP-P
seal: PTFE
media: cryogenic liquified gases
temperature: - 200°C up to + 200°C
set pressure: 0,2 - 50,0 bar
design: angle-type
material: stainless steel
lifting: without lever
type test approval: TÜV-SV-2091 D/G/F
requirements: acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case.
SIL - safety integrity level: SIL 3
product feature 1: Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG
product feature 2: oil- and greasefree

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

cryo-safety-valve DN32 1 1/2" m x 2" fm SV14, stainless steel PTFE, without lever

Article no. : SV14000307
product: cryo-safety-valve
type: SV14
manufacturer: NieRuf
diameter: DN32 1 1/2" m x 2" fm
d0: 23,0 mm
connection: male screw threaded BSP-P
seal: PTFE
media: cryogenic liquified gases
temperature: - 200°C up to + 200°C
set pressure: 0,2 - 50,0 bar
design: angle-type
material: stainless steel
lifting: without lever
type test approval: TÜV-SV-2091 D/G/F
requirements: acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing. Safety valves are also qualified for horizontal position and have to be installed with entrance vertical downwards in this case.
SIL - safety integrity level: SIL 3
product feature 1: Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG
product feature 2: oil- and greasefree
