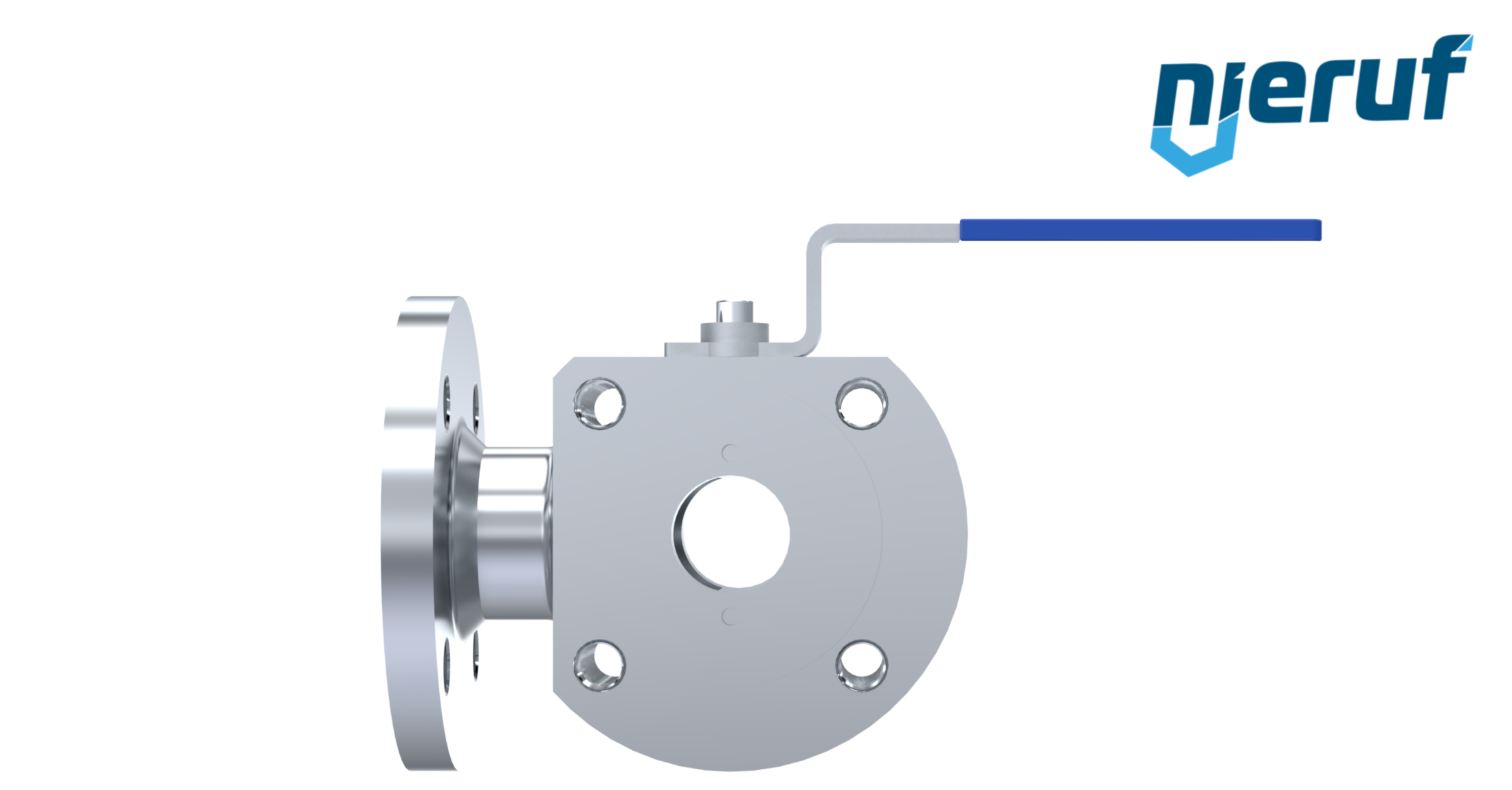

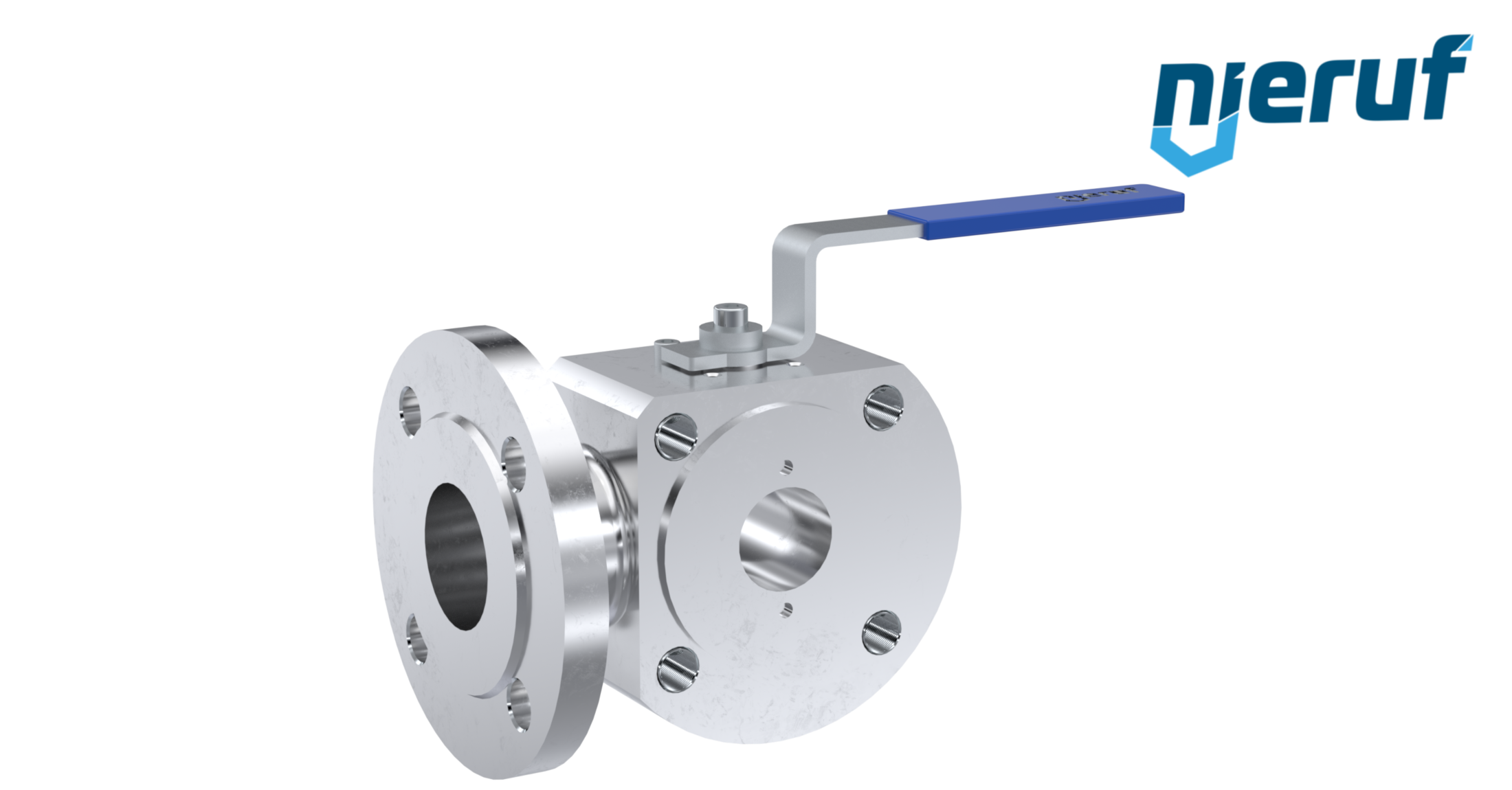

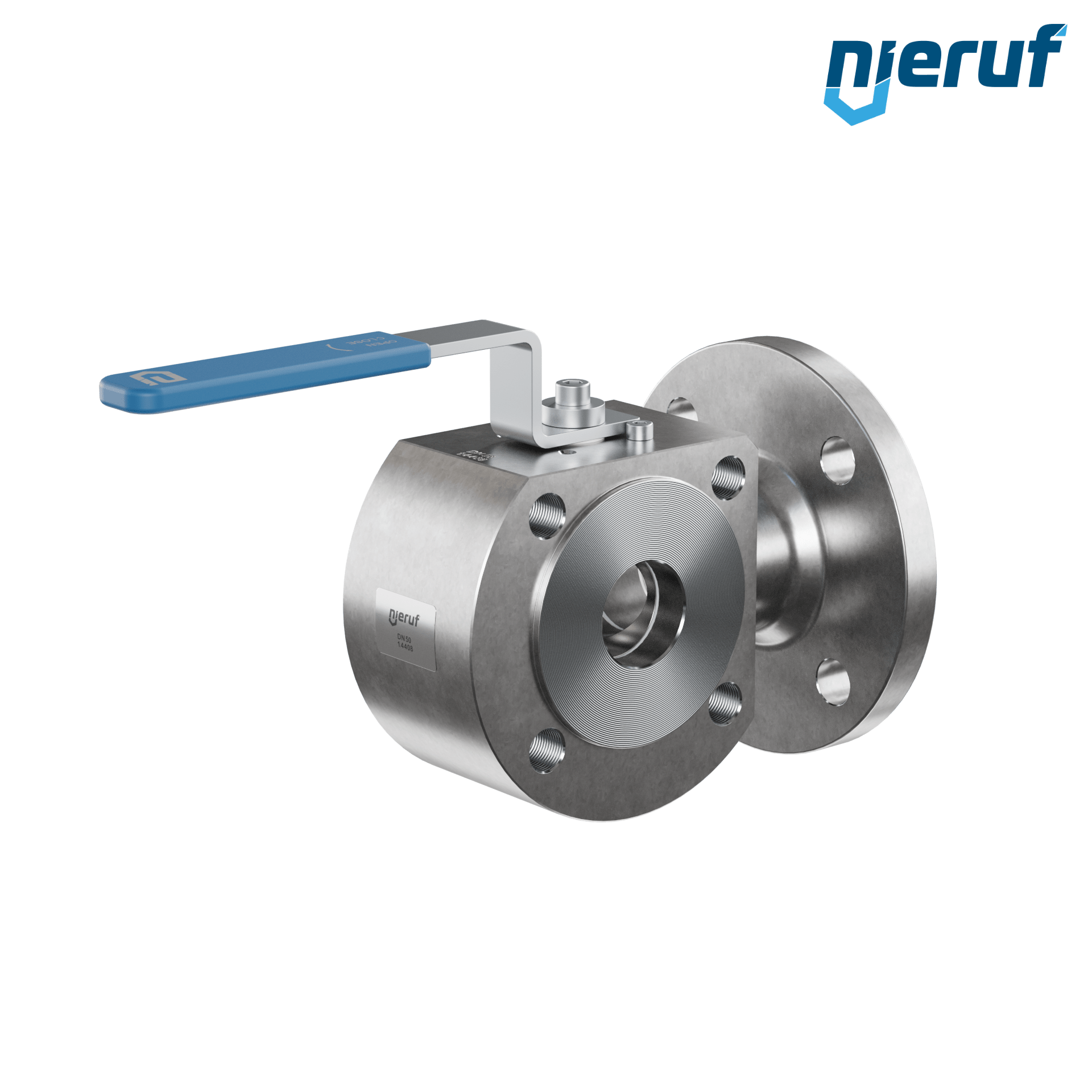

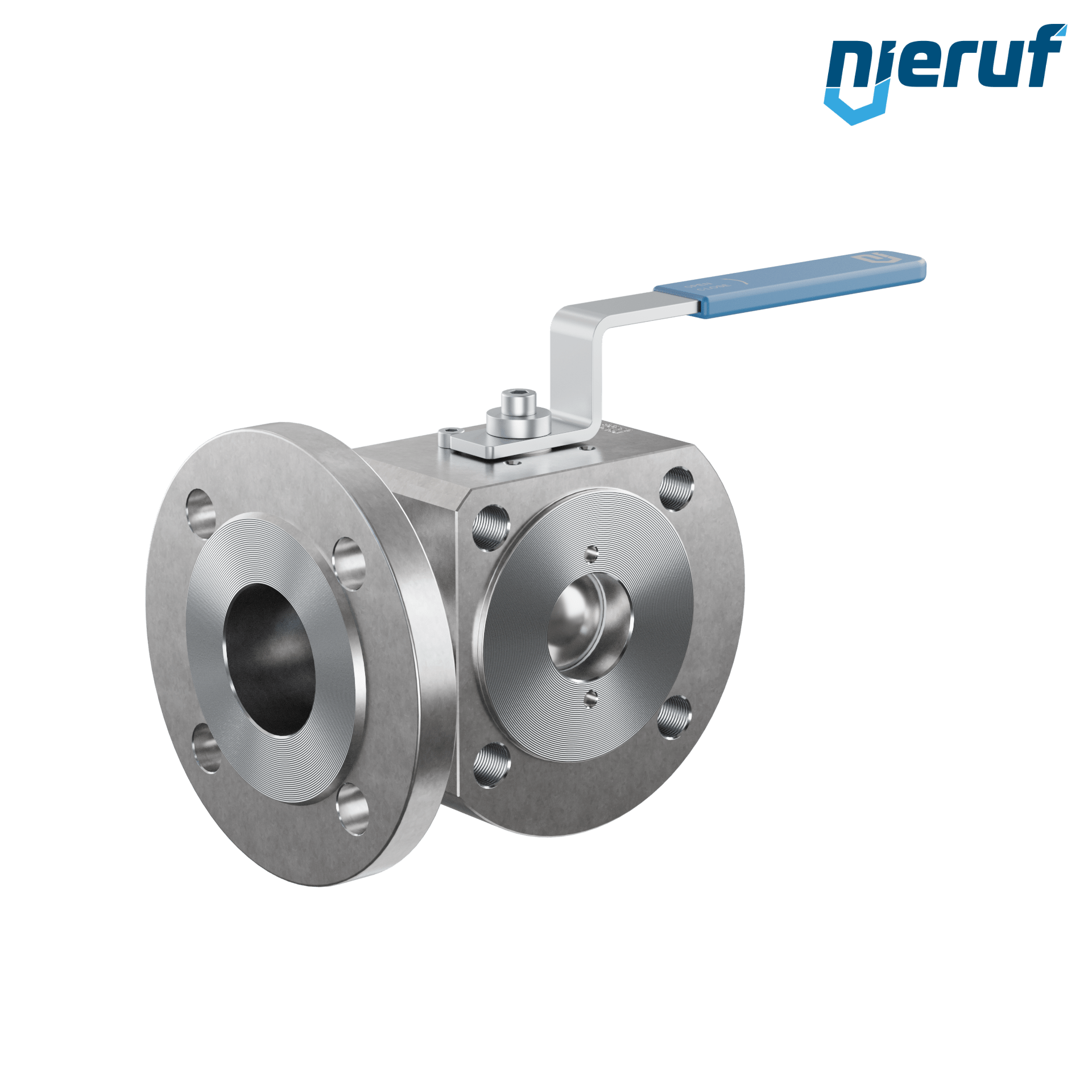

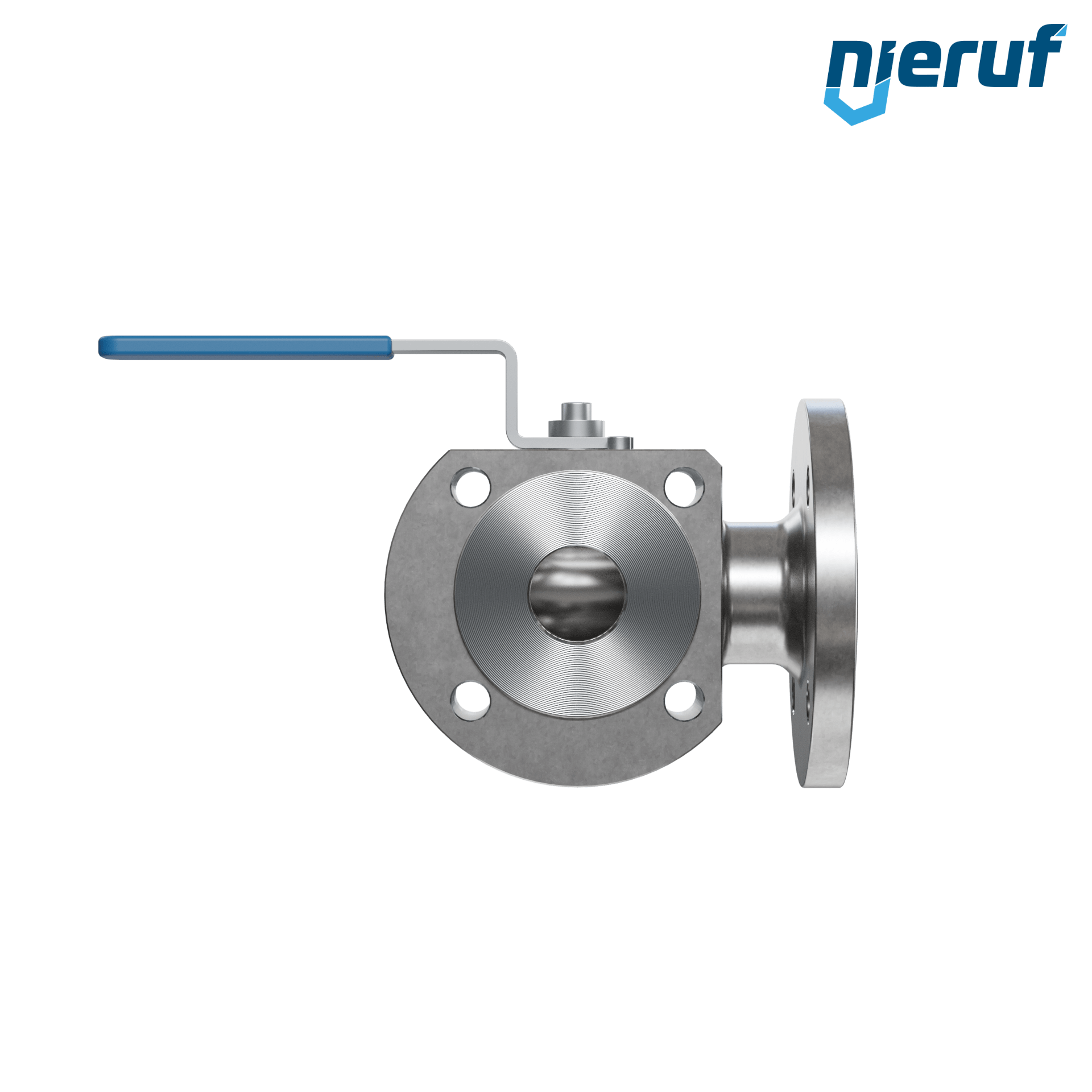

3/2 cross over ball valve DN50 FK07 C22 steel zinc plated 1.040 Kugel stainless steel 1.4404

FK07000008
quantity (pcs.):
274.90€ * 318.88€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
3/2 cross over ball valve DN50 FK07 C22 steel zinc plated 1.040 Kugel stainless steel 1.4404
3/2 cross over ball valve DN50 PN16/40 FK07 body C22 steel zinc plated 1.040 ball stainless steel 1.4404 seal TFM 25% GF for liquid and gaseous media
diameter: DN50
connection: flange
Seal steam: O-ring Viton
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16/40
design: reduced port design
body material: C22 steel zinc plated 1.040
ball material: stainless steel 1.4404
ball seal: TFM 25% GF
length: 82mm
actuator: hand lever with blue plastic cover
installation position: any position
product description: This high quality 3/2 valve with compactdesign and the body is steel zinc plated. This 3/2 cross over ball valve with sealing on the output side and direction of flow see graphical symbol
3/2 cross over ball valve DN50 FK07 C22 steel zinc plated 1.040 Kugel stainless steel 1.4404

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

3/2 cross over ball valve DN50 FK07 C22 steel zinc plated 1.040 Kugel stainless steel 1.4404
