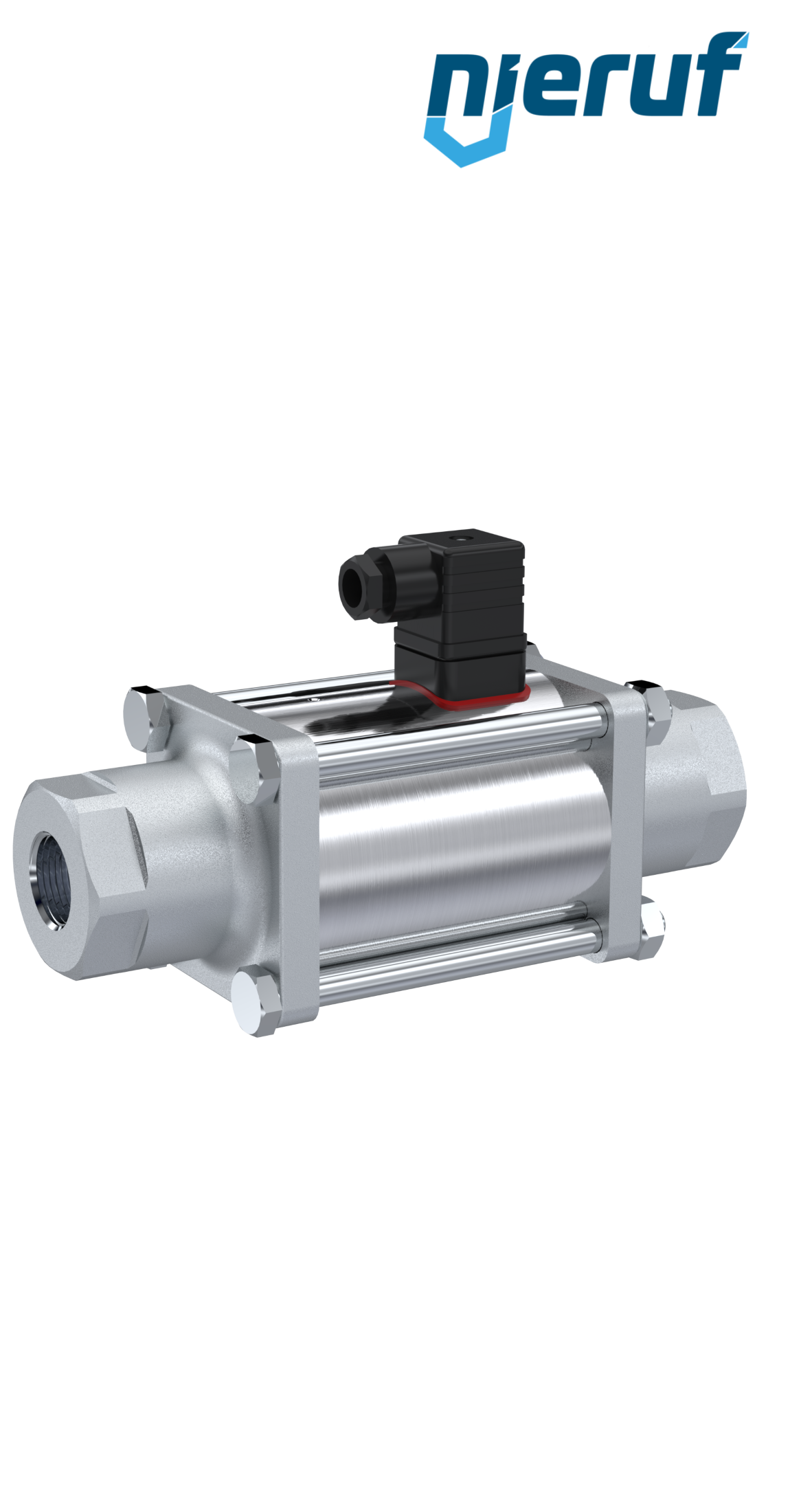

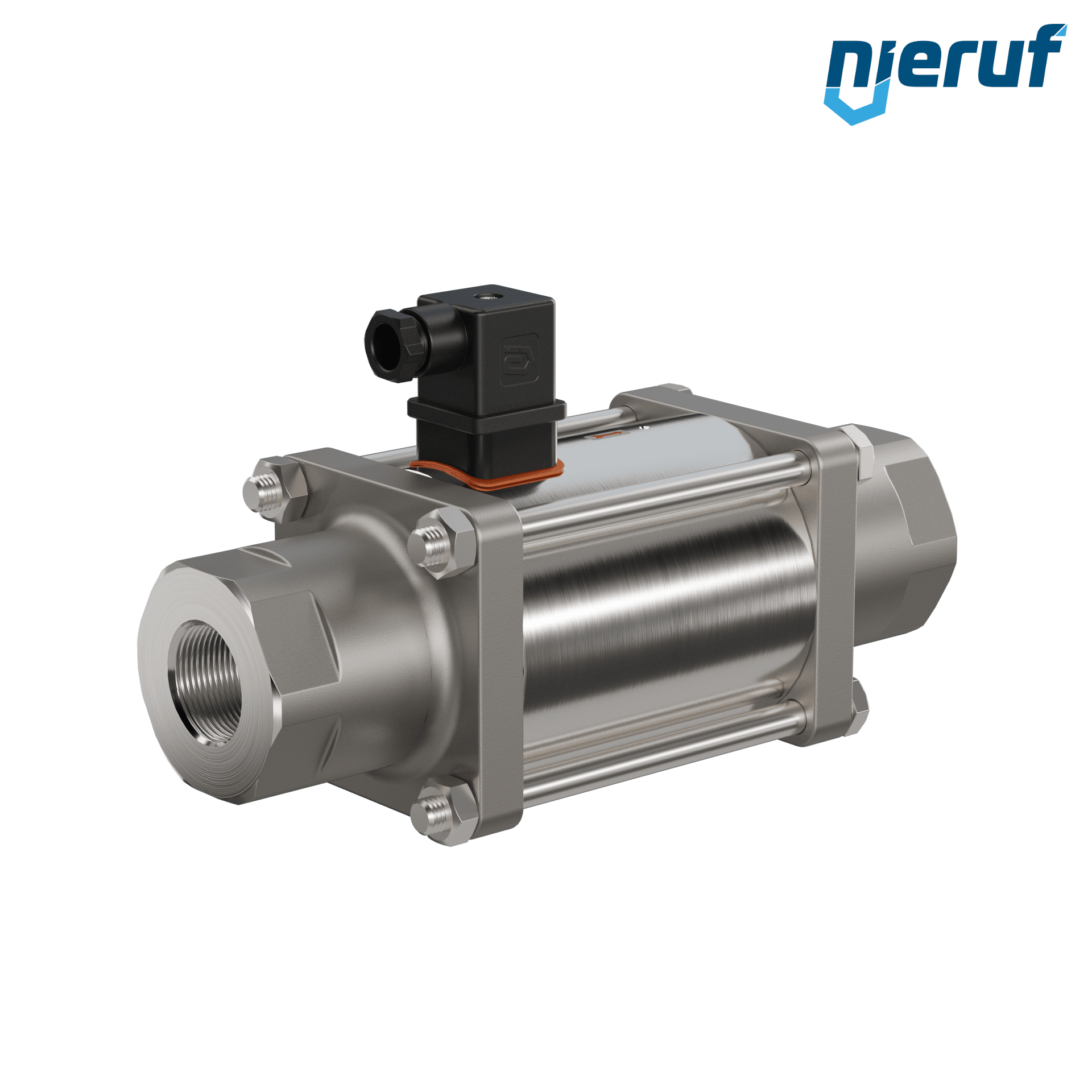

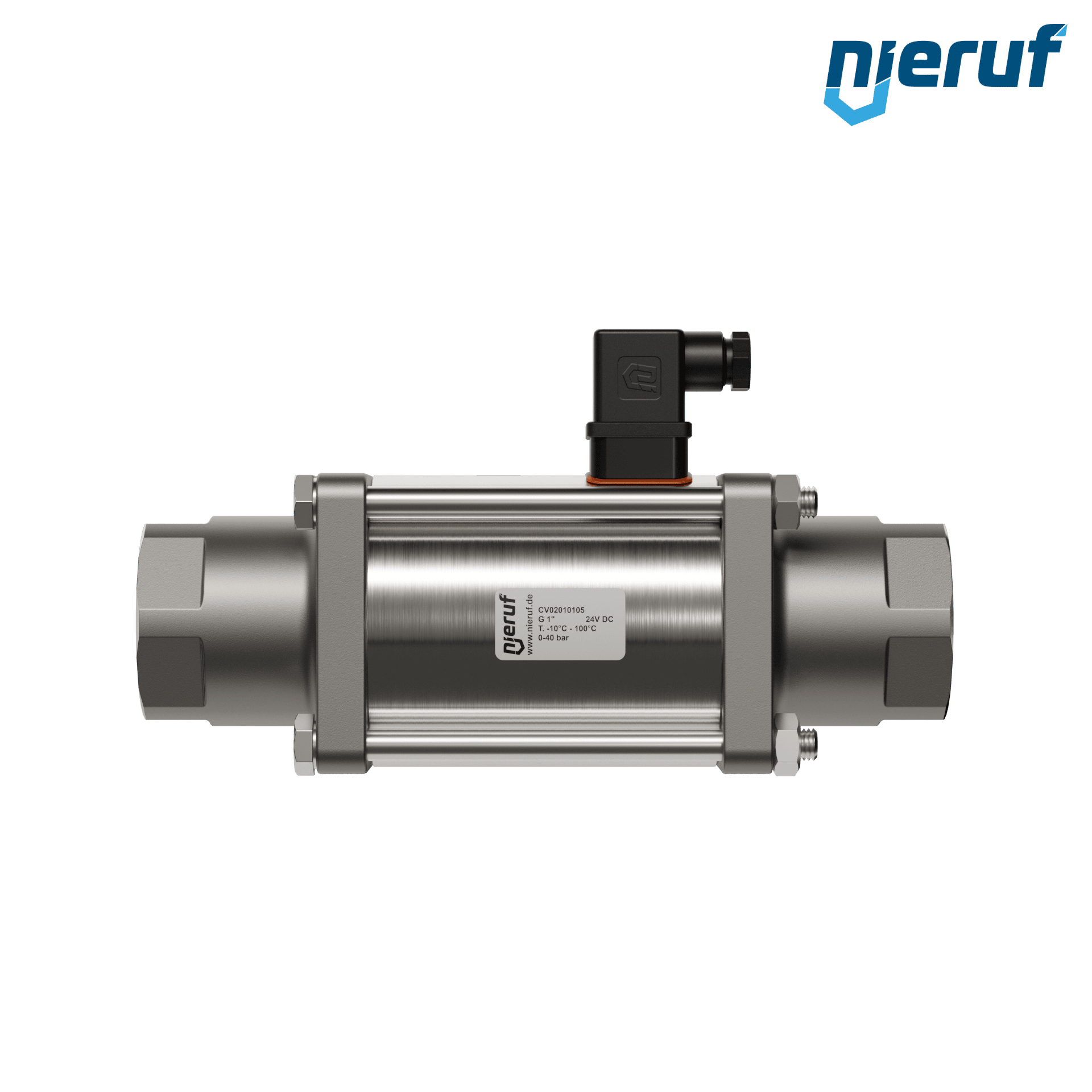

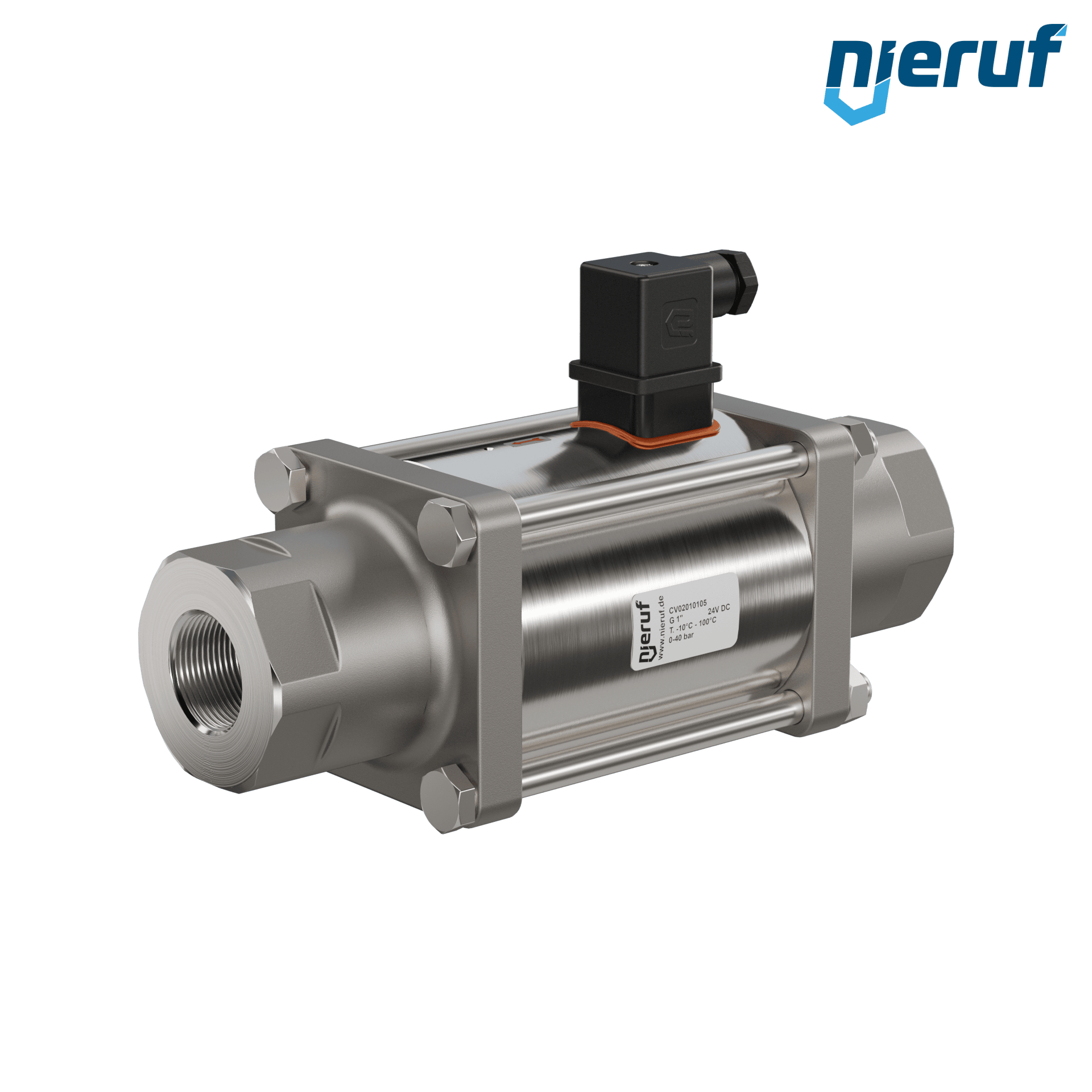

Coaxial-valve 1" inch fm - DN25 stainless steel 24V DC NO

CV02010105
quantity (pcs.):
937.44€ * 1,087.43€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Coaxial-valve 1" inch fm - DN25 stainless steel 24V DC NO
2/2 Way-valve Coaxial-valve 1" inch fm - DN25 made of stainless steel, direct acting up to max. 40 bar, NO - normal open voltage 24V DC
design: 2/2 Way-valve
diameter: 1" inch fm - DN25
connection: female thread
material: stainless steel
seal: FPM
function: NO - normally open
operation: with spring return
control: direct acting
voltage: 24V DC
media: liquid and gaseous media
temperature: from -20°C to max. +100°C
pressure range: up to max. 40 bar
installation position: any position
product feature: Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
Coaxial-valve 1" inch fm - DN25 stainless steel 24V DC NO

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Coaxial-valve 1" inch fm - DN25 stainless steel 24V DC NO
