CV03010104

3/2-Way-Coaxial-valve 3/4" inch fm - DN20 brass 24V DC NO

€597.40*

€710.91 VAT included.

Delivery time: On request

Delivery information


Equipment

GF01300004

double nipple 3/4" inch male stainless steel 316

€3.00*

€3.57 VAT included.

Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-04

E-Mail: beck@nieruf.com

Certified

Certified

Product number: CV03010104

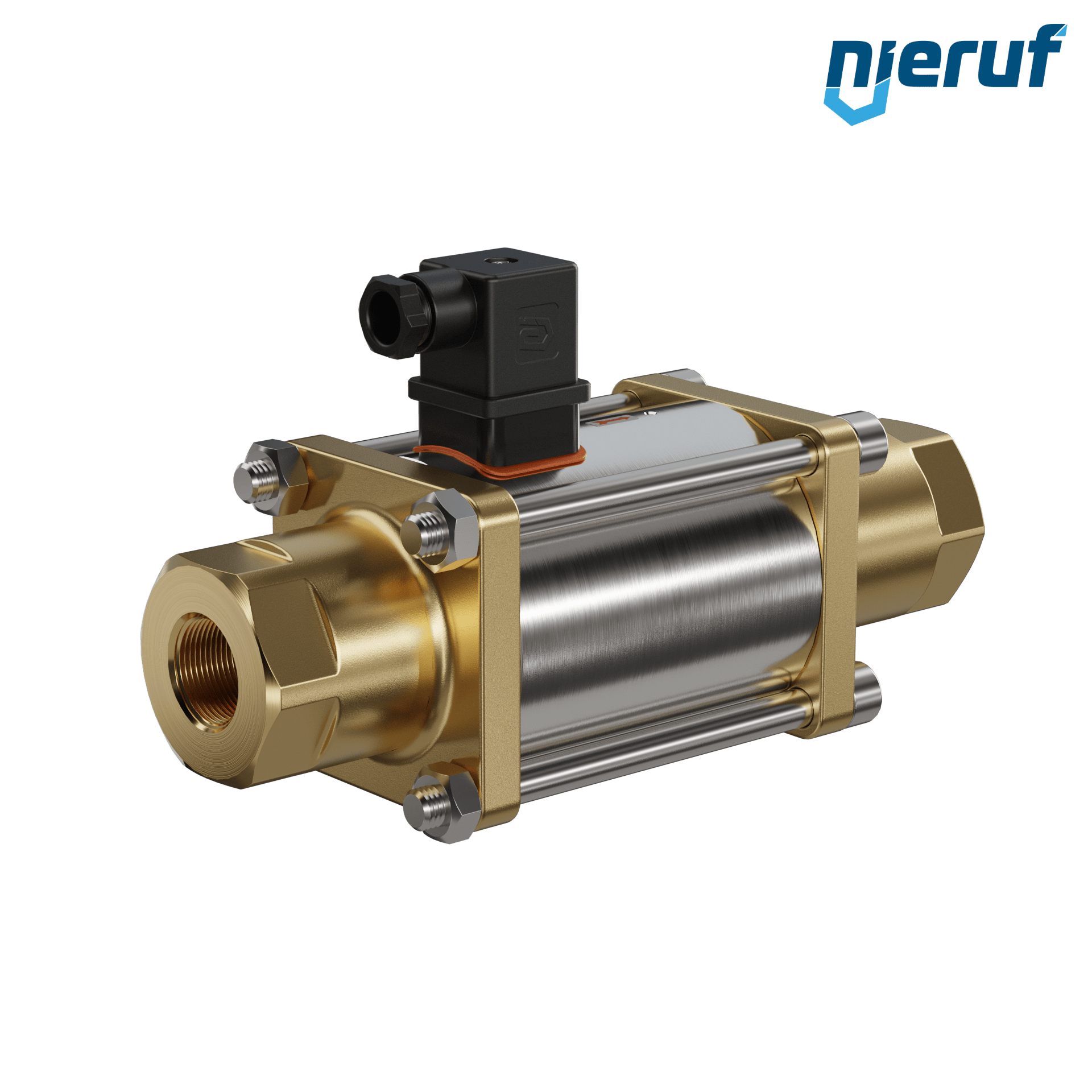

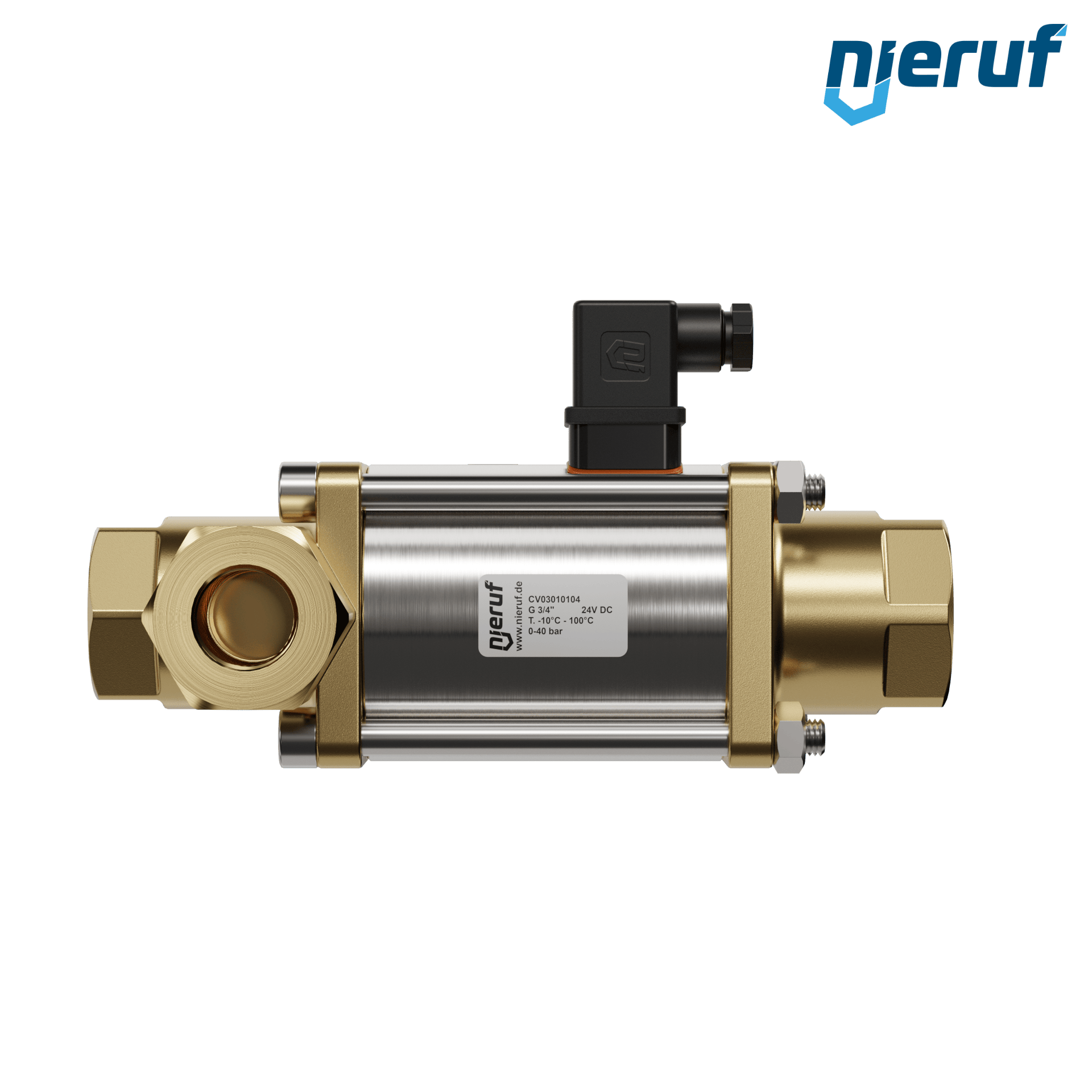

3/2-Way-Coaxial-valve 3/4" inch fm - DN20 brass 24V DC NO

3/2 Way-valve Coaxial-valve 3/4" inch fm - DN20 made of brass, direct acting up to max. 40 bar, NO - normal open voltage 24V DC

product: Coaxial-valve
type: CV03
manufacturer: NieRuf
design: 3/2 Way-valve
diameter: 3/4" inch fm - DN20
connection: female thread
material: brass
seal: FPM
function: NO - normally open
operation: with spring return
control: direct acting
voltage: 24V DC
media: liquid and gaseous media
temperature: from -20°C to max. +100°C
pressure range: up to max. 40 bar
installation position: any position
product feature: Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3/2-Way-Coaxial-valve 3/4" inch fm - DN20 brass 24V DC NO

Article no. : CV03010104
product: Coaxial-valve
type: CV03
manufacturer: NieRuf
design: 3/2 Way-valve
diameter: 3/4" inch fm - DN20
connection: female thread
material: brass
seal: FPM
function: NO - normally open
operation: with spring return
control: direct acting
voltage: 24V DC
media: liquid and gaseous media
temperature: from -20°C to max. +100°C
pressure range: up to max. 40 bar
installation position: any position
product feature: Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
