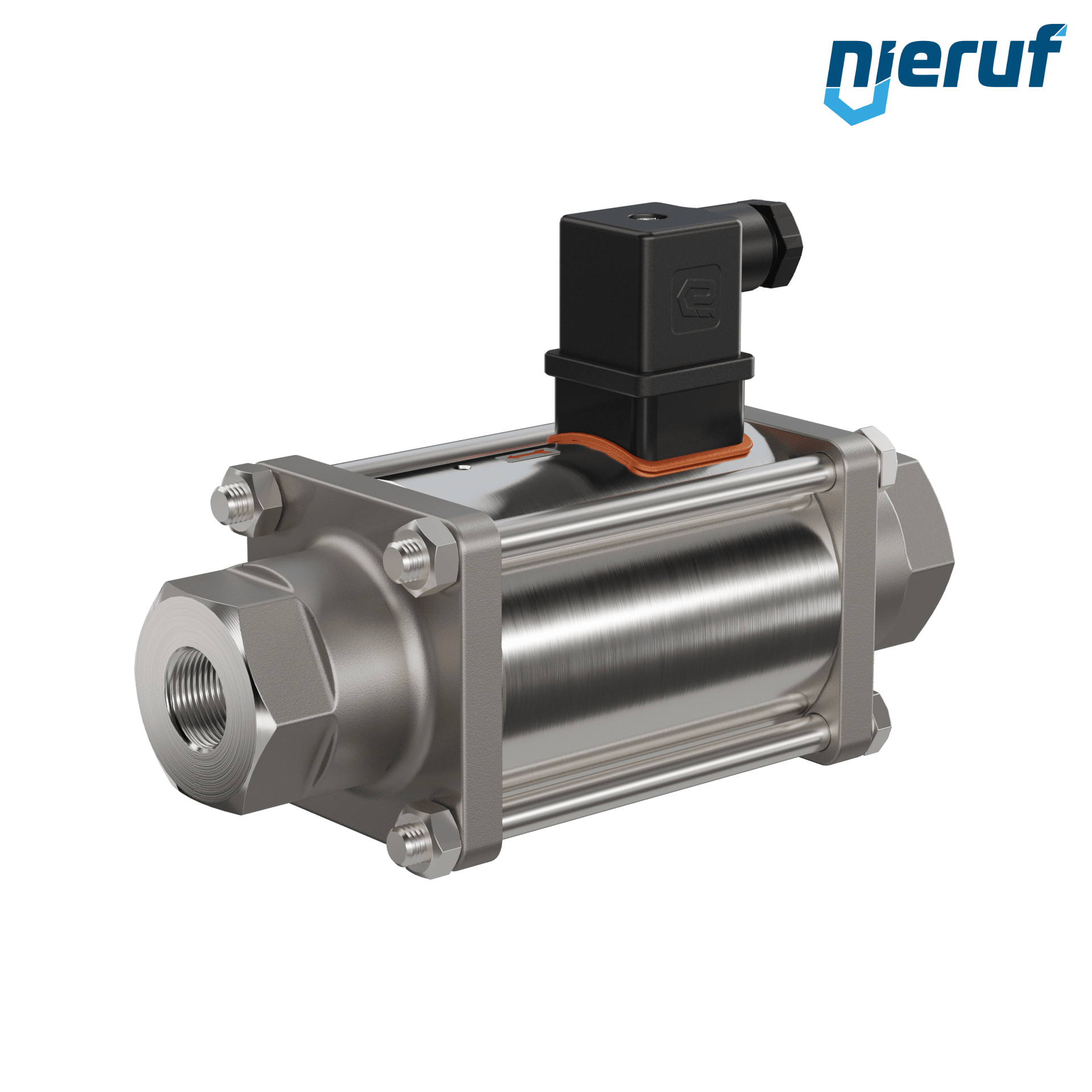

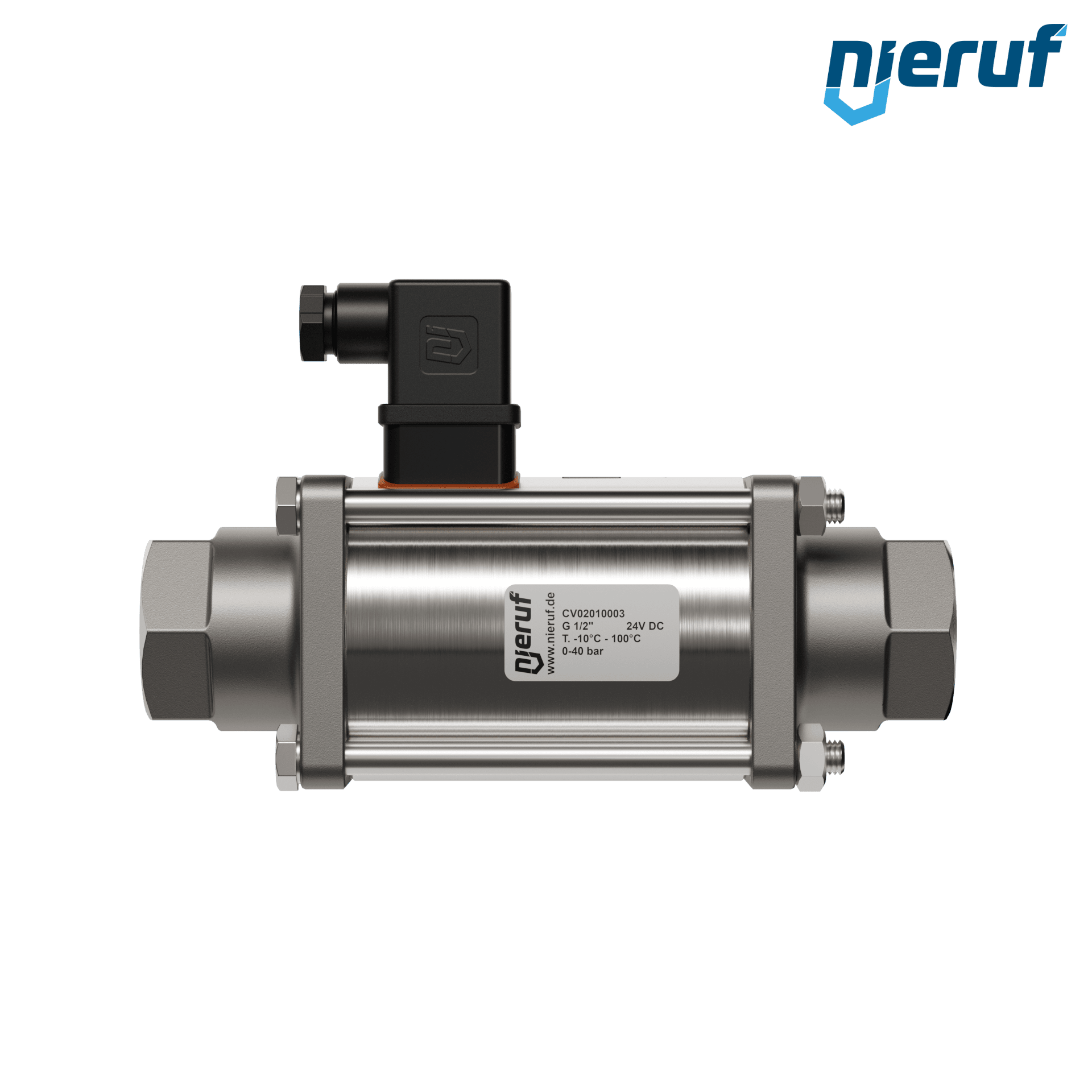

Coaxial-valve 1/2" inch fm - DN15 stainless steel 24V DC NC
2/2 Way-valve Coaxial-valve 1/2" inch fm - DN15 made of stainless steel, direct acting up to max. 40 bar, NC - normal closed voltage 24V DC
| design: | 2/2 Way-valve |
| diameter: | 1/2" inch fm - DN15 |
| connection: | female thread |
| material: | stainless steel 1.4301 |
| seal: | FPM |
| function: | NC - normally closed |
| operation: | with spring return |
| control: | direct acting |
| voltage: | 24V DC |
| media: | liquid and gaseous media |
| temperature: | from -20°C to max. +100°C |
| pressure range: | up to max. 40 bar |
| installation position: | any position |
| product feature: | Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time. |
