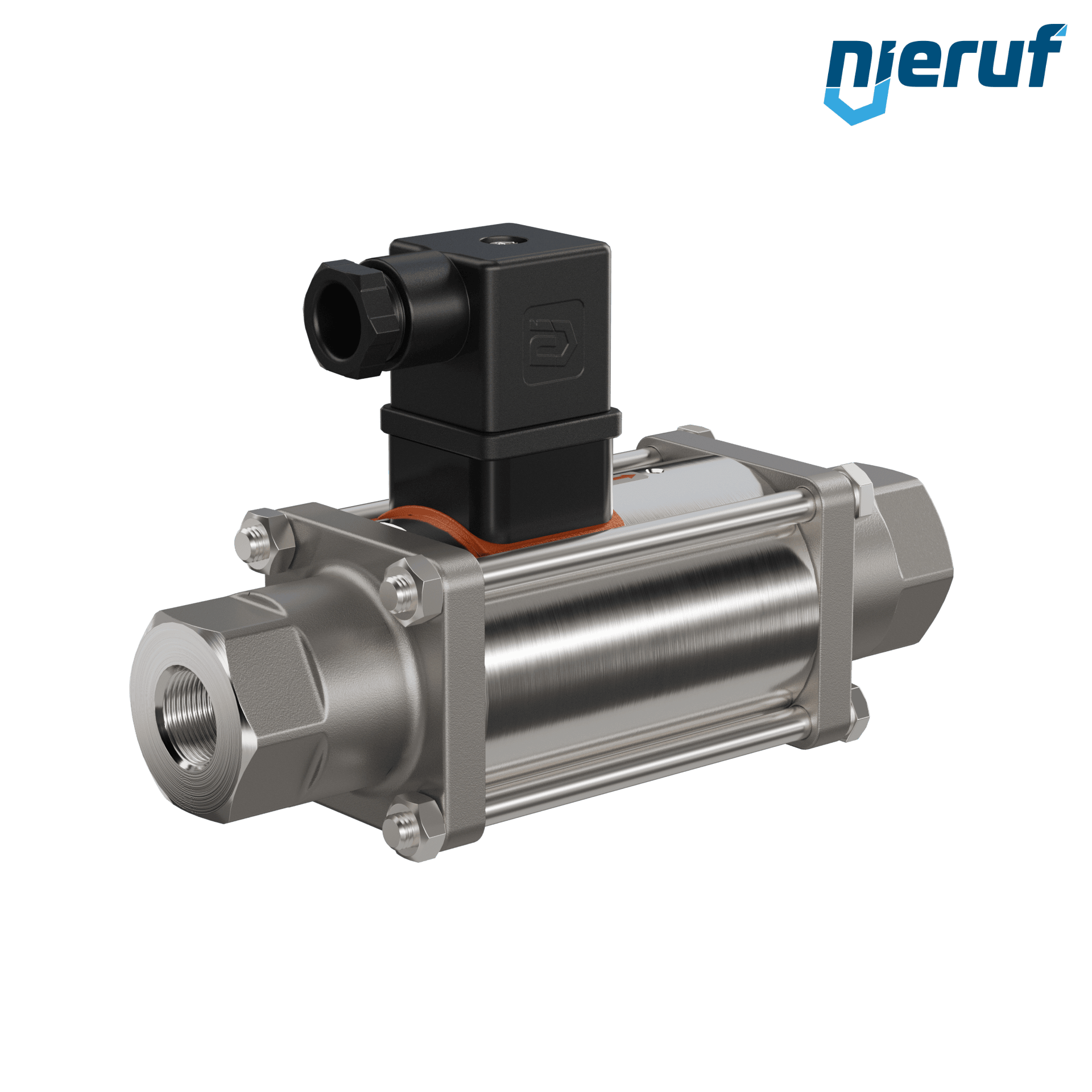

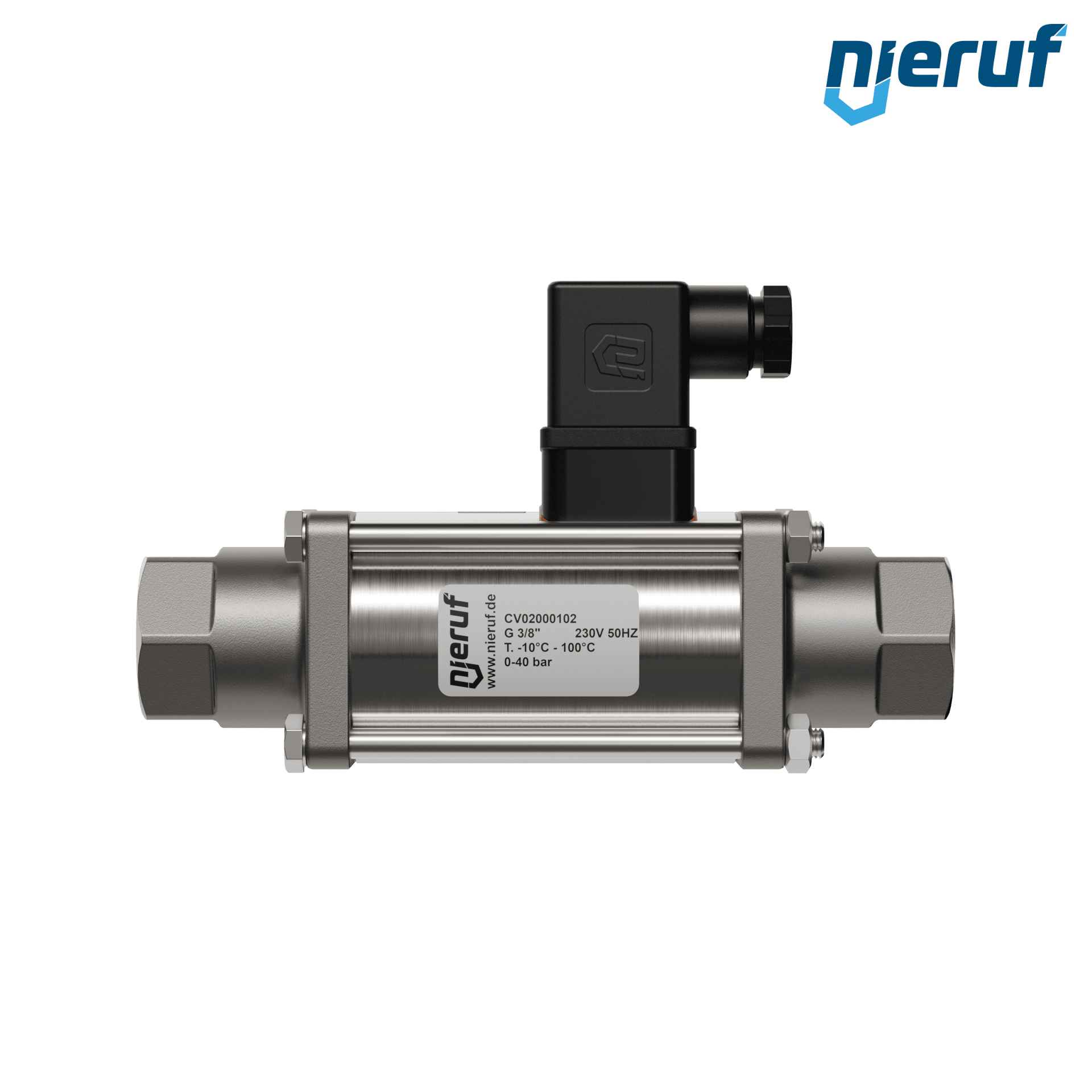

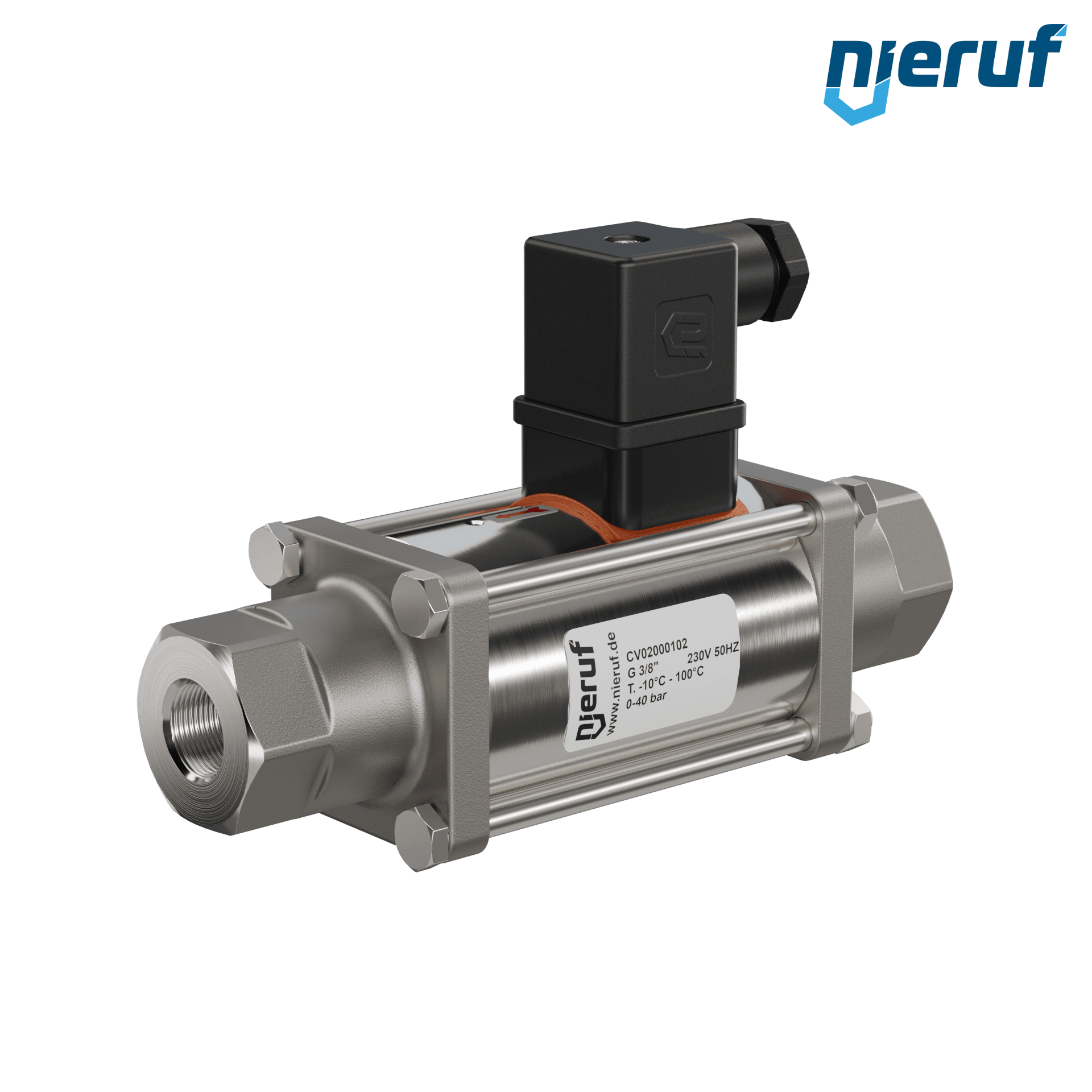

Coaxial-valve 3/8" inch fm - DN10 stainless steel 230V AC NO

CV02000102
quantity (pcs.):
342.72€ * 397.56€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Coaxial-valve 3/8" inch fm - DN10 stainless steel 230V AC NO
2/2 Way-valve Coaxial-valve 3/8" inch fm - DN10 made of stainless steel, direct acting up to max. 40 bar, NO - normal open voltage 230V AC
design: 2/2 Way-valve
diameter: 3/8" inch fm - DN10
connection: female thread
material: stainless steel
seal: FPM
function: NO - normally open
operation: with spring return
control: direct acting
voltage: 230V AC
media: liquid and gaseous media
temperature: from -20°C to max. +100°C
pressure range: up to max. 40 bar
installation position: any position
product feature: Maintenance-free, backpressure-leakproof, bi-directional flow direction with short switching time.
Coaxial-valve 3/8" inch fm - DN10 stainless steel 230V AC NO

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Coaxial-valve 3/8" inch fm - DN10 stainless steel 230V AC NO
